1. Introducció
Thank you for choosing the STRICH SEA-10 Mini Guitar Amplifier. This portable and rechargeable amplifier is designed for electric guitar practice, offering both clean and drive channels, Bluetooth connectivity, and a headphone output for versatile use. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device.
2. Producte acabatview
2.1 Característiques clau
- Pure Analog Tone: Full analog circuitry (100Hz-20kHz response) for natural clarity.
- Modes duals: Switch between CLEAN and DRIVE channels with indicators.
- Connectivitat sense fils: Bluetooth 5.3 for stable audio streaming.
- Altaveus duals de 5 W: Two 5W speakers deliver rich sound.
- Connectivitat flexible: 3.5mm headphone jack for silent practice and AUX input for external audio sources.
- Compacte i portàtil: Dimensions of 152x73x99mm (590g) with a 3000mAh rechargeable battery for hours of use.
- Controls intuïtius: Easy-to-use knobs for Gain, Tone, Volume, and dedicated switches.
2.2 Amplifier Components
Figura 1: Frontal view of the STRICH SEA-10 Mini Guitar Ampmés viu.
Figure 2: Front Panel Controls and Functions.
- BT. Button/Indicator: Activates Bluetooth pairing mode. Blue light indicates status.
- BT./AUX VOL Knob: Adjusts the volume for Bluetooth and AUX input audio.
- Mando GAIN: Adjusts the input signal gain for your guitar.
- Mando de TONE: Adjusts the audio tone. Clockwise for brighter tone, counter-clockwise for warmer tone.
- OFF/POWER VOL Knob: Gira el amplifier on/off and adjusts the main output signal volume.
- CLEAN/DRIVE Switch: Toggles between clean and overdriven guitar tones. Green light for Clean, Red light for Drive.
- INPUT (SEA-10) Jack: 1/4-inch input for connecting your electric guitar.
Figure 3: Rear Panel Ports and Functions.
- 5V DC Charging Port (USB-C): Per carregar la bateria interna.
- 1/8 Headphone Output: 3.5mm jack for connecting headphones for silent practice.
- 1/8 Audio Input (AUX): 3.5mm jack for connecting external audio devices like phones or MP3 players.
3. Configuració
3.1 Càrrega de la Ampmés viu
The STRICH SEA-10 features a built-in 3000mAh rechargeable battery. Before first use, or when the battery indicator shows low power, charge the amplifier using the provided USB-C cable.
- Connect the USB-C cable to the Port de càrrega de 5 V CC al panell posterior.
- Connect the other end of the cable to a standard 5V USB power adapter (not included).
- The charging indicator will illuminate during charging and turn off when fully charged. A full charge typically provides 4-6 hours of working time.

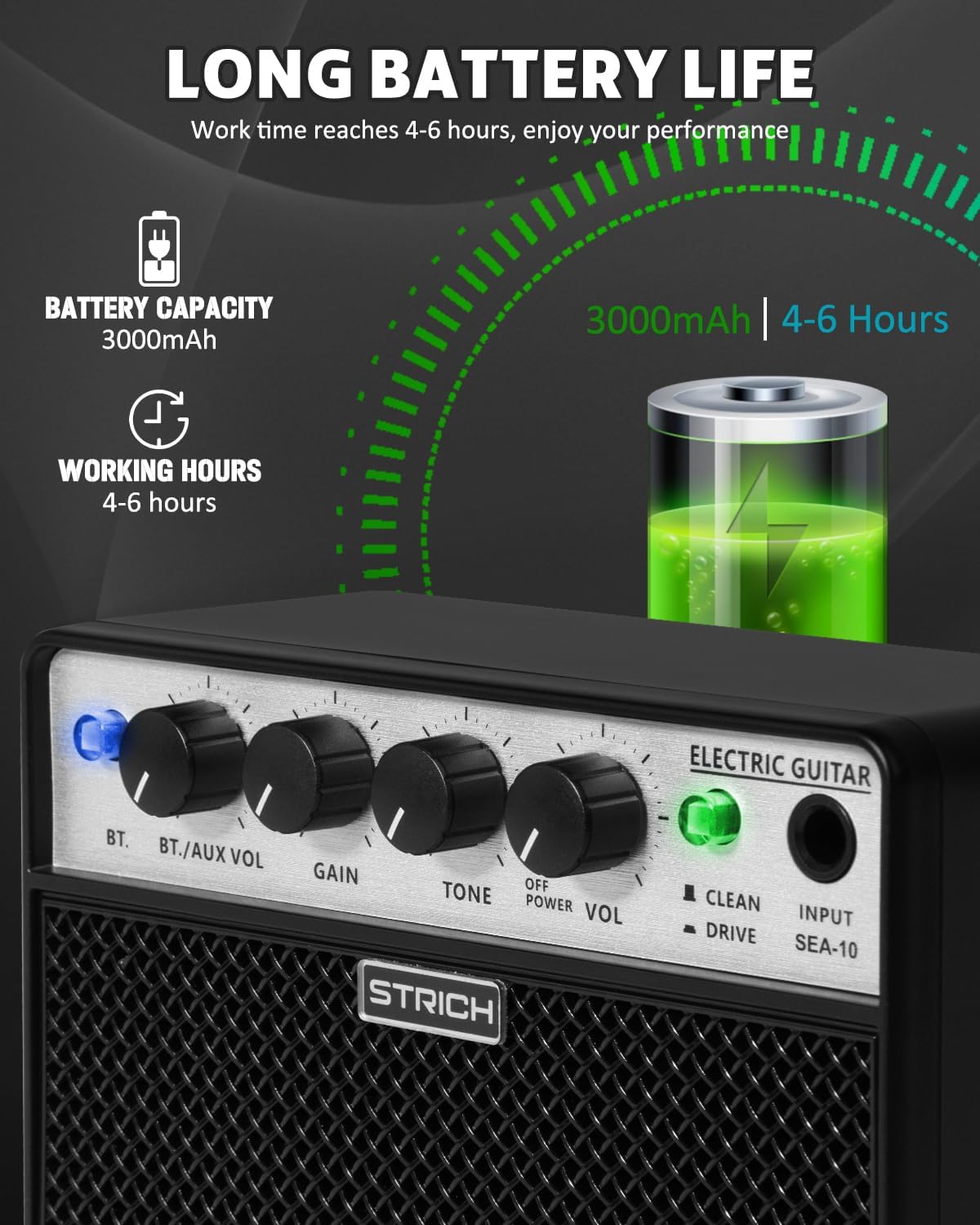

Figure 4: Battery Life Information.
3.2 Encès inicial
- Gira el OFF/POWER VOL knob clockwise until it clicks to turn on the ampmés viu.
- L'indicador d'alimentació s'il·luminarà.
4. Instruccions de funcionament
4.1 Connexió de la guitarra
- Assegureu-vos el ampel lifier està encès.
- Connect your electric guitar to the INPUT (SEA-10) 1/4-inch jack on the front panel using a standard instrument cable.
4.2 Adjusting Guitar Tone and Volume
- GUANY: Gira el GUANYA knob to adjust the input sensitivity and amount of distortion (especially in Drive mode).
- TO: Utilitza el TO knob to shape your sound. Turn clockwise for brighter tones, counter-clockwise for warmer tones.
- VOL: Adjust the overall output volume of your guitar using the OFF/POWER VOL knob. Start at a low setting and increase gradually.
4.3 Switching Between Clean and Drive Channels
- El NETEJA/CONDUCIR switch allows you to select between two distinct tones.
- Premeu l'interruptor a la NETEJA position for a clear, undistorted guitar sound. The indicator will be green.
- Premeu l'interruptor a la CONDUCIR position for an overdriven, distorted tone suitable for rock and blues. The indicator will be red.
Figure 5: Clean and Drive Mode Indicators.
4.4 Using Bluetooth Connectivity
El amplifier supports Bluetooth 5.3 for wireless audio streaming from your devices.
- Premeu el botó BT. button on the front panel to activate Bluetooth pairing mode. The blue indicator light will flicker.
- On your smartphone, tablet, or computer, search for Bluetooth devices and select "STRICH SEA-10".
- Once connected, the blue indicator light will remain solid.
- Adjust the volume of the Bluetooth audio using the BT./AUX VOL perilla.

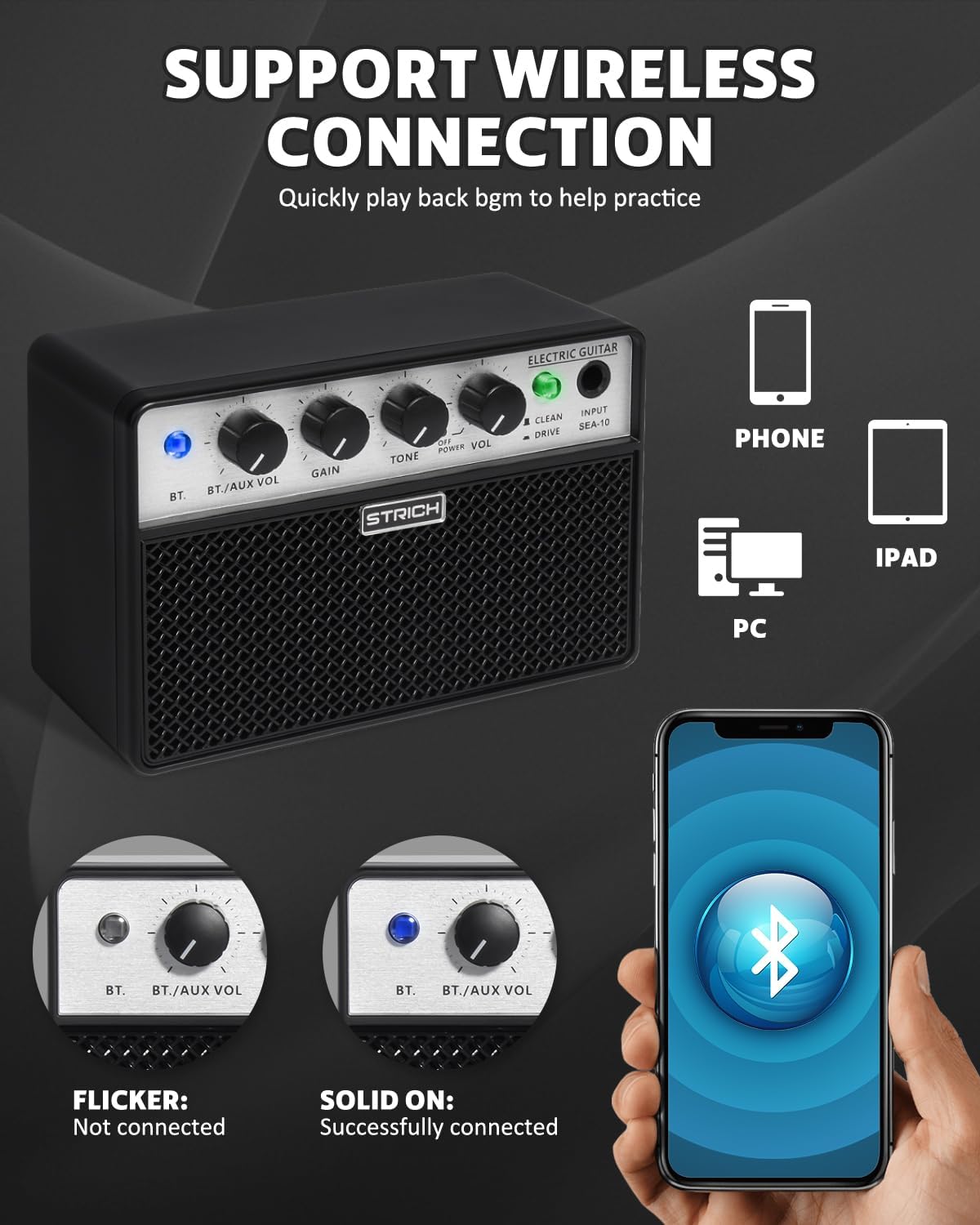

Figure 6: Bluetooth Connection Guide.
4.5 Ús de l'entrada AUX
Connect external audio devices via the 3.5mm AUX input.
- Connect your audio device (e.g., MP3 player, phone) to the 1/8 Audio Input (AUX) on the rear panel using a 3.5mm audio cable.
- Adjust the volume of the AUX audio using the BT./AUX VOL perilla.
4.6 Using Headphone Output
Per practicar en silenci, connecteu els auriculars a ampmés viu.
- Connecteu els auriculars a la 1/8 Headphone Output al panell posterior.
- The internal speakers will automatically mute when headphones are connected.
- Adjust the headphone volume using the OFF/POWER VOL perilla.
5. Manteniment
- Neteja: Utilitzeu un drap suau i sec per netejar l'exterior ampNo utilitzeu netejadors líquids ni materials abrasius.
- Emmagatzematge: Emmagatzemar el ampGuardar en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Cura de la bateria: For optimal battery life, avoid fully discharging the battery frequently. Charge the amplifier regularly, even if not in use for extended periods.
- Eviteu la humitat: Mantenir el amplifier away from water and high humidity to prevent damage to electronic components.
6. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Sense so ampmés viu. | Amplifier is off; Volume is too low; Guitar cable is faulty or not connected; Headphones are plugged in. | Enceneu amplifier and increase VOL knob; Check guitar cable connections; Disconnect headphones if using speakers. |
| No sound from Bluetooth/AUX. | BT./AUX VOL knob is too low; Device not paired (Bluetooth); AUX cable faulty or not connected. | Increase BT./AUX VOL knob; Re-pair Bluetooth device; Check AUX cable and connection. |
| Distorted sound (unexpected). | GAIN knob is too high; Volume is too high; DRIVE mode is active. | Reduce GAIN and/or VOL; Switch to CLEAN mode if clean tone is desired. |
| El Bluetooth no es connecta. | AmpL'amplificador no està en mode d'emparellament; Dispositiu massa lluny; Interferències. | Press BT. button to enter pairing mode (flickering blue light); Move device closer; Avoid strong interference sources. |
| Durada de la bateria curta. | Bateria no completament carregada; Bateria antiga. | Ensure full charge before use; Contact support if battery life significantly degrades. |
7. Especificacions
- Model: MAR-10
- Potència de sortidatage: 2 x 5 Watts (10W total)
- Resposta de freqüència: 100Hz-20kHz
- Versió Bluetooth: 5.3
- Capacitat de la bateria: 3000 mAh
- Horari de treball: 4-6 hores (aprox.)
- Càrrega: USB-C, 5 V CC
- Entrada: 1/4-inch Instrument Jack
- Sortides: Conector d'auriculars de 3.5 mm
- Entrada auxiliar: Jack de 3.5 mm
- Dimensions del producte: 6.5 x 3.43 x 4.45 polzades (152 x 73 x 99 mm)
- Pes de l'article: 1.5 lliures (590 g)
- Material: Acrylonitrile Butadiene Styrene (ABS), Handcrafted Two-Tone Woven Grille
8. Garantia i Suport
STRICH is committed to providing quality products and excellent customer service.
- 30-Day Returns: This product is backed by Amazon's 30-day return policy.
- Garantia de 12 mesos: The STRICH SEA-10 Mini Guitar Amplifier comes with a 12-month warranty from the date of purchase, covering manufacturing defects.
- Atenció al client: For any questions, technical assistance, or warranty claims, please contact STRICH customer support. We offer 24/7 support to assist you.
Si us plau, conserveu el comprovant de compra per motius de garantia.
