Introducció
Thank you for choosing the Vente-unique Ravena Sliding Aluminum Glass Partition. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new partition. Please read these instructions carefully before beginning assembly or use, and retain them for future reference.
Instruccions de seguretat
- Sempre utilitzeu l'equip de protecció individual (EPI) adequat, com ara guants i ulleres de seguretat, durant la instal·lació.
- Ensure the installation area is clear of obstructions and provides sufficient space for assembly.
- Handle glass panels with extreme care to prevent breakage and injury.
- Verify that the wall structure is capable of supporting the weight of the partition. Consult a professional if unsure.
- Mantingueu els nens i les mascotes allunyats de la zona d'instal·lació.
- Do not attempt to modify the product. Use only original Vente-unique parts for replacement if necessary.
- Ensure all screws and fasteners are securely tightened after assembly.
Contingut del paquet
Before starting, please check that all components are present and undamaged. If any parts are missing or damaged, contact Vente-unique customer support.
- Marc d'alumini professionalfiles (top, bottom, vertical)
- Panells de vidre
- Sliding mechanism components (rollers, guides)
- Maquinari de muntatge (cargols, ancoratges)
- Instruccions de muntatge (aquest manual)
Imatge: Més deview of the Vente-unique Ravena Sliding Aluminum Glass Partition components.
Configuració i instal·lació
Follow these steps carefully for proper installation. Two people are recommended for assembly.
- Prepareu l'àrea d'instal·lació: Ensure the wall and floor surfaces are clean, level, and structurally sound. Mark the desired position for the partition.
- Install Top and Bottom Rails: Securely attach the top and bottom aluminum rails to the ceiling and floor, respectively, using the provided mounting hardware. Use a level to ensure they are perfectly horizontal and parallel.
- Muntar les seccions del marc: Connect the vertical aluminum profiles to the top and bottom rails to form the main frame structure. Ensure all connections are tight and stable.
- Insert Glass Panels: Carefully lift and insert each glass panel into the designated slots within the aluminum frame. Ensure the rollers are correctly seated in the bottom rail and the guides engage with the top rail.

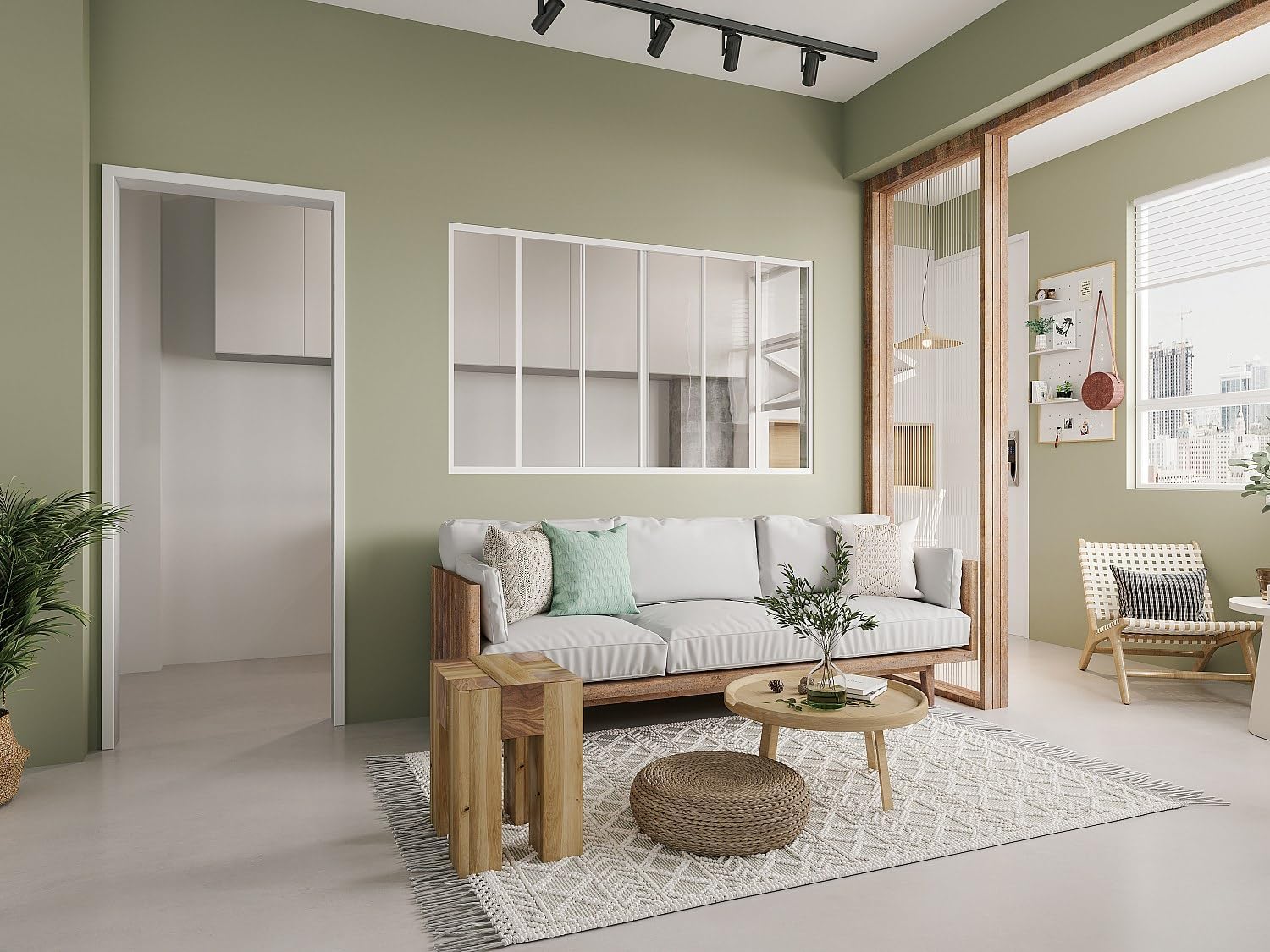

Image: The Ravena sliding partition installed, dividing a living space.
Imatge: Detallada view of the bottom rail, showing the track for the sliding panels.
- Adjust and Secure Panels: Once all panels are in place, adjust them to ensure smooth sliding and proper alignment. Secure any locking mechanisms or stoppers as per the specific design.
- Inspecció final: Check all connections, ensure panels slide freely without obstruction, and confirm the partition is stable and secure.
Instruccions de funcionament
The Ravena sliding partition is designed for smooth and effortless operation.
- To open or close the partition, gently grasp the edge of a sliding panel and push or pull it along the track.
- Avoid forcing the panels if they encounter resistance. Check for any obstructions in the track.
- The panels are designed to slide independently, allowing for flexible room configuration.
Image: A hand demonstrating the smooth operation of a sliding glass panel.
Manteniment
Regular maintenance will ensure the longevity and optimal performance of your partition.
- Cleaning Glass Panels: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Avoid harsh chemicals or abrasive materials that could scratch the glass.
- Cleaning Aluminum Frame: Wipe the aluminum profiles amb un drap suau dampened with mild soap and water. Dry immediately to prevent water spots.
- Manteniment de la pista: Periodically clean the top and bottom tracks to remove dust, dirt, or debris that could impede smooth sliding. A vacuum cleaner with a narrow attachment can be useful.
- Lubricació: If the sliding mechanism becomes stiff, apply a silicone-based lubricant to the rollers and tracks. Do not use oil-based lubricants as they can attract dirt.
- Comprovació de maquinari: Annually inspect all screws and fasteners to ensure they remain tight. Retighten if necessary.
Resolució de problemes
If you encounter issues with your sliding partition, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| Panels are difficult to slide | Dirt or debris in tracks; rollers are dry or damaged; misaligned panels. | Clean tracks thoroughly. Apply silicone lubricant to rollers. Check panel alignment and adjust if needed. |
| Panels do not close completely | Obstruction in the closing path; misaligned stoppers. | Remove any obstructions. Adjust the position of the stoppers. |
| Wobbling or instability | Loose mounting hardware; improper installation. | Check and tighten all screws and fasteners. Re-verify installation steps. |
Especificacions
- Marca: Vente-únic
- Model: Ravena
- Dimensions del producte (L x A x A): 180 x 3.5 x 105 cm
- Pes de l'article: 23.6 quilos
- Material: Thermolacquered Aluminum, Glass
- Color: Blanc
Garantia i Suport
For information regarding warranty coverage or to obtain technical support, please refer to the purchase documentation or contact Vente-unique customer service directly. Keep your proof of purchase for any warranty claims.
