Producte acabatview
The JOYOR Y7-S Electric Scooter is designed for adult riders, offering a powerful 500W brushless DC motor capable of speeds up to 31 MPH and a long-range battery supporting 43.5-56 miles on a single charge. It features dual suspension and 10-inch off-road tires for enhanced comfort and stability across various terrains. The scooter is foldable for convenient storage and transport, making it suitable for commuting and recreational travel.
Image: The JOYOR Y7-S Electric Scooter, showcasinpel seu disseny elegant i la pantalla digital integrada.
Configuració i preparació inicial
Before your first ride, it is essential to properly set up and prepare your JOYOR Y7-S Electric Scooter. This includes unfolding the scooter, inflating the tires, and familiarizing yourself with its components.
Desplegament del Scooter
The Y7-S features a one-second folding function for easy deployment. Locate the folding mechanism and carefully unfold the scooter until it locks securely into place. Ensure all locking mechanisms are engaged before use.
Image: Product dimensions and a visual guide to the folding mechanism, highlighting the safety lock.
Inflat de pneumàtics
It is crucial to inflate the tires to the recommended pressure before your first use and to check them regularly. Proper tire pressure ensures optimal performance, range, and safety.
Ajust del manillar
Adjust the handlebar height to a comfortable position for safe and ergonomic riding. Secure the adjustment clamp firmly after setting the desired height.
Vídeo: Un overview of the JOYOR Y7-S scooter, demonstrating its features and portability, which can assist with initial setup understanding.
Funcionament del teu scooter
The JOYOR Y7-S is equipped with advanced features for a smooth and controlled riding experience. Familiarize yourself with the controls and riding modes.
Controls i pantalla
The scooter features a clear LED display that shows current speed, battery life, and riding data. Controls include an On/Off switch, gear switch for three cruise speeds, and dedicated levers for front and rear brakes.

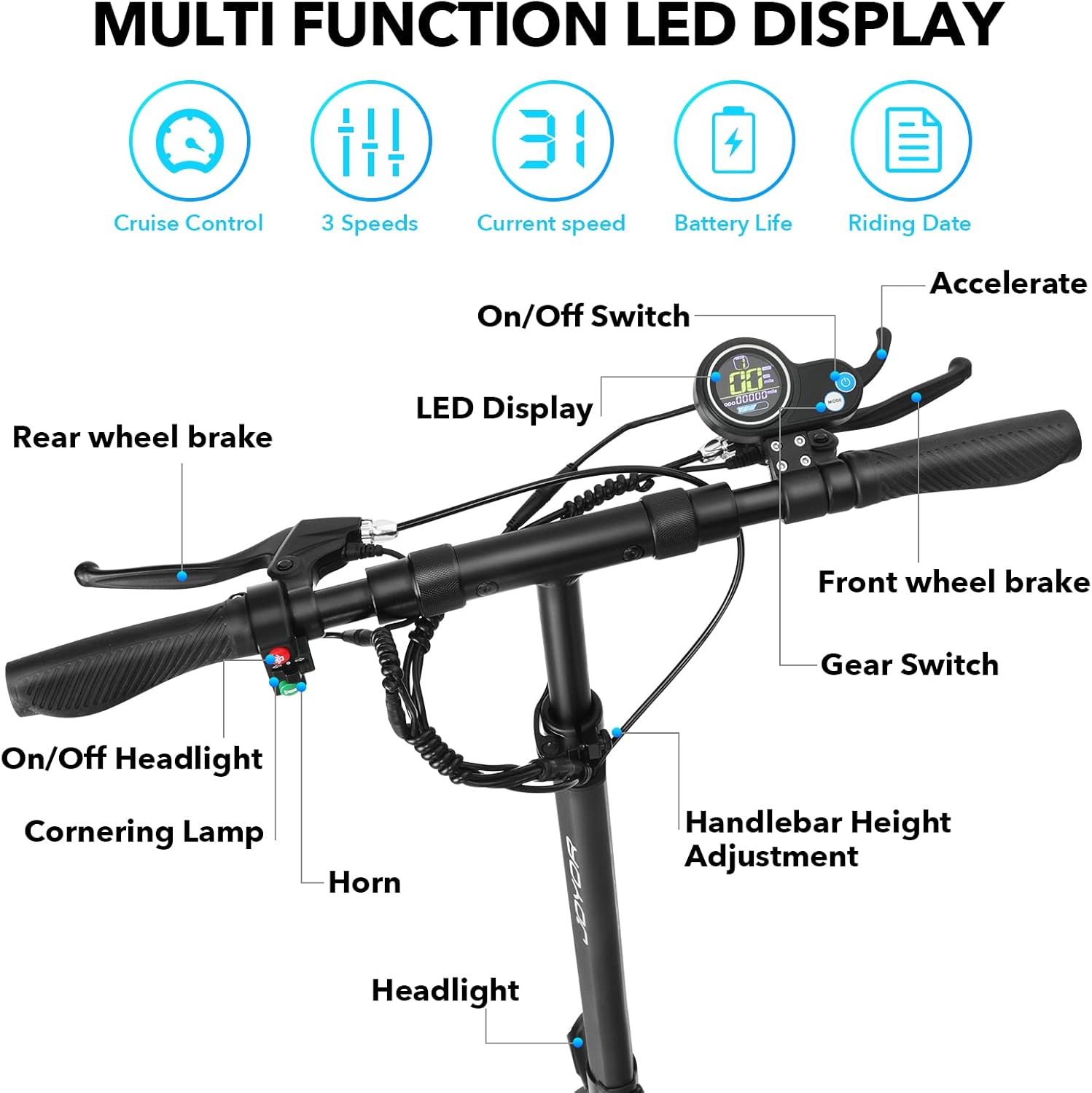

Imatge: Detallada view of the multi-function LED display and handlebar controls, including the On/Off switch, gear switch, and brake levers.
Riding Modes and Cruise Control
Switch between three different speed gears to suit your riding needs. The integrated cruise control technology allows for maintaining a constant speed, enhancing rider comfort during longer commutes.
Motor and Performance
Powered by a 500W brushless DC motor, the Y7-S delivers quick acceleration and a top speed of 31 MPH. Its robust motor also provides excellent climbing ability, handling inclines of 15-30 degrees.

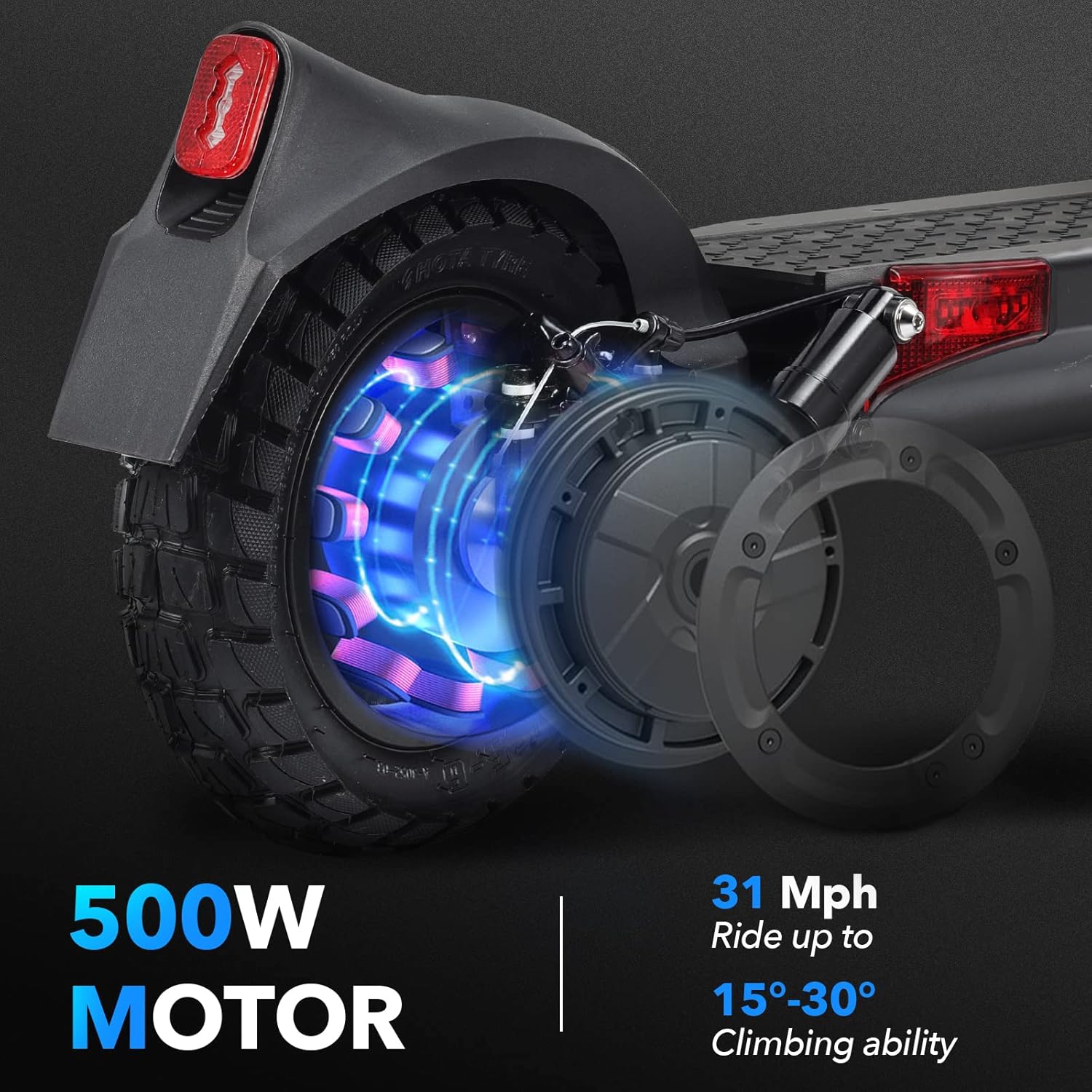

Image: Visual representation of the 500W motor and its contribution to the scooter's speed and climbing ability.
Suspension and Tires
The dual front and rear shock absorbers, combined with 10-inch off-road pneumatic tires, provide superior stability and comfort, absorbing bumps and uneven terrain effectively.

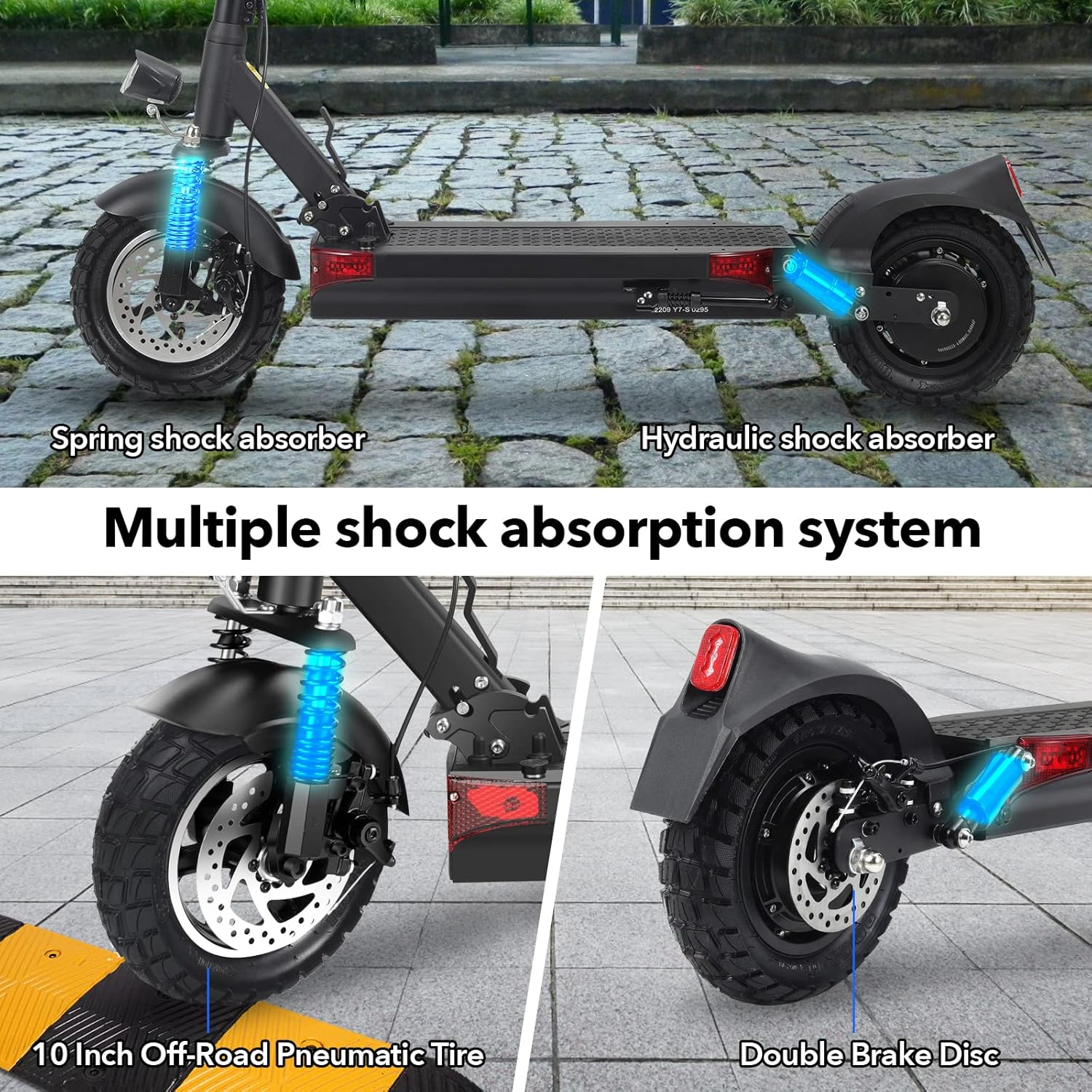

Imatge: Detallada view of the scooter's multiple shock absorption system, off-road tires, and double brake discs.
Característiques de seguretat
The Y7-S is equipped with an ultra-bright 1.1W headlight with a range of up to 20 meters for visibility, and double disc brakes (front and rear) for reliable stopping power.
Video: Demonstrates the JOYOR Y7-S Off-Road Electric Scooter in action, highlighting its performance and features in various environments.
Manteniment
Regular maintenance is crucial for the longevity and safe operation of your JOYOR Y7-S Electric Scooter. Perform routine checks and address any issues promptly.
Cura dels pneumàtics
Regularly check tire pressure and inflate as needed. The 10-inch off-road tires are durable, but proper inflation prevents punctures and ensures a smooth ride. If an inner tube needs replacement, follow the detailed instructions provided in the videos below.
Video: Step-by-step guide on how to remove the inner tube from the scooter's wheel.
Video: Step-by-step guide on how to reinstall the inner tube into the scooter's wheel.
Comprovacions generals
- Inspect brake levers and cables for proper function and wear.
- Ensure all bolts and fasteners are tight, especially around the folding mechanism and wheels.
- Clean the scooter regularly to prevent dirt buildup, especially on moving parts and the anti-slip pedal.
Resolució de problemes
This section provides guidance on common issues you might encounter with your JOYOR Y7-S Electric Scooter.
Problemes comuns i solucions
| Problema | Causa possible | Solució |
|---|---|---|
| El scooter no s'encén | Low battery, loose connections, power switch issue. | Charge the battery fully. Check all visible cable connections. Ensure the power switch is fully engaged. |
| Abast o velocitat reduïts | Under-inflated tires, heavy load, uphill riding, low battery. | Inflate tires to recommended pressure. Reduce load if possible. Ensure battery is fully charged. |
| Tire deflation/puncture | Sharp object, low tire pressure, worn inner tube. | Inspect tire for foreign objects. Replace inner tube if punctured (refer to Maintenance videos). Maintain proper tire pressure. |
| Error Code (e.g., E-1) | Motor or controller malfunction, sensor issue. | Turn off the scooter, wait a few minutes, then restart. If the error persists, contact customer support. |
For issues not listed here or if solutions do not resolve the problem, please contact JOYOR customer support.
Especificacions
| Característica | Detall |
|---|---|
| Marca | JOYOR |
| Nom del model | Y7-S |
| Potència del motor | Motor DC sense escombretes de 500 W |
| Velocitat màxima | 31 MPH |
| Interval de distància màxim | 43.5-56 milles |
| Mida del pneumàtic | 10 polzades |
| Tipus de pneumàtic | Off-Road Pneumatic |
| Tipus de suspensió | Suspensió dual |
| Límit de pes | 265 lliures |
| Dimensions del producte (LxWxH) | 45.3 cm de llargada x 23.6 cm d'amplada x 49.2 cm d'alçada |
| Pes de l'article | 63.45 lliures |
| Material del marc | Alumini |
| Temps de càrrega | 10 hores |
| Estil de fre | Rear Braking, Front Braking |
| Característica especial | Plegable |
Garantia i Suport
Informació de la garantia
The JOYOR Y7-S Electric Scooter comes with a 2-year manufacturer's limited warranty. Please retain your proof of purchase for warranty claims.
Atenció al client
For technical assistance, troubleshooting, or warranty inquiries, please contact JOYOR customer support. Refer to the product packaging or the official JOYOR weblloc web per obtenir la informació de contacte més actualitzada.
Note: Always refer to the official JOYOR website or included documentation for the most up-to-date support contact details.
