Luqeeg 14 Inch 1000/5000W In-Wheel Hub Motor Kit

Introducció

This manual provides essential information for the installation, operation, and maintenance of your Luqeeg 14 Inch In-Wheel Hub Motor Kit. This motor is designed for use with electric motorcycles, electric bikes, and electric scooters, offering high power output and a quiet operation.

Please read this manual thoroughly before attempting installation or operation to ensure safe and efficient use of the product.

Producte acabatview

The Luqeeg 14 Inch Hub Motor is engineered for performance and durability. Key features include:

• Sortida d'alta potència: Delivers strong acceleration and high top speeds, suitable for climbing hills.
• Funcionament silenciós: Brushless design ensures minimal noise during use for a comfortable riding experience.
• Waterproof and Lightweight: Constructed from premium aluminum alloy, offering high waterproof hardness (IPX5) and a lightweight design for long-term outdoor stability.
• Proteccions múltiples: Features overheat protection, overload protection, and short circuit protection to enhance riding safety.
• Disseny durador: The aluminum alloy construction ensures robustness and longevity.

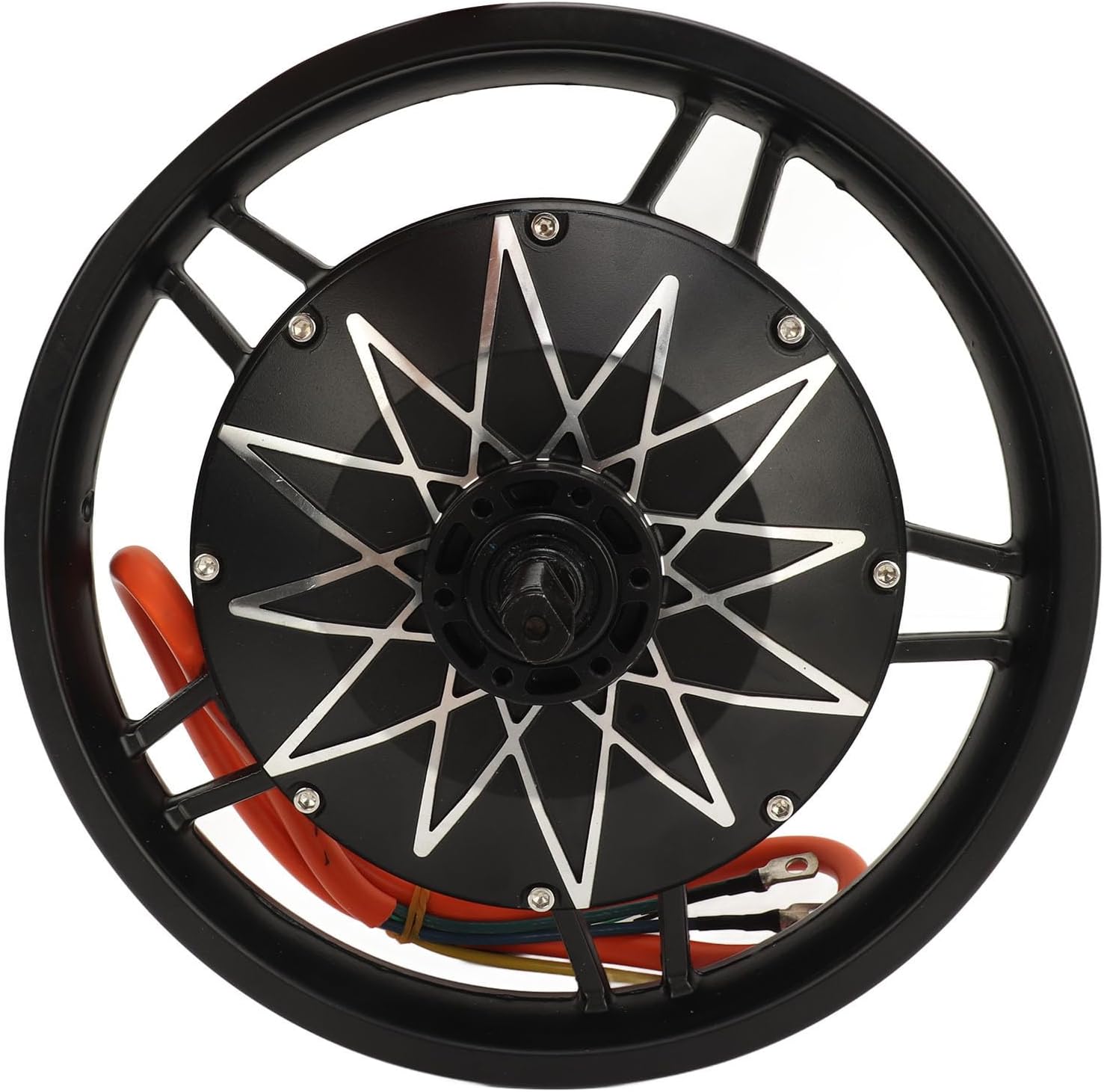

Imatge: Frontal view of the Luqeeg 14 Inch In-Wheel Hub Motor, showcasing its star pattern design.

Contingut del paquet

En desembalar, comproveu que hi hagi tots els components:

• 1 x 14 Inch Hall Hub Motor
• 1 x Installation Package (including 7 accessories such as nuts and washers)

Image: The 14 Inch Hub Motor shown with its accompanying installation accessories, including nuts and washers.

Informació de seguretat

Always prioritize safety during installation and operation. The hub motor is equipped with several safety features:

• Protecció contra el sobreescalfament: Evita els danys causats per temperatures excessives.
• Protecció de sobrecàrrega: Safeguards the motor from drawing too much current.
• Protecció contra curtcircuits: Protects against electrical faults.

Despite these protections, it is crucial to operate the motor within its specified voltage and power limits. Always wear appropriate safety gear when riding an electric vehicle.

Configuració i instal·lació

Installation of the 14-inch hub motor requires technical knowledge. It is strongly recommended that installation be performed by professional mechanics to ensure correct setup and safe operation.

The installation package includes necessary accessories for mounting the motor onto your electric vehicle. Ensure all connections are secure and properly insulated.

Imatge: Primer pla view of the hub motor's electrical wiring harness, which connects to the controller and power source.

Connexions de cablejat

Proper wiring is critical for the motor's functionality. Refer to the following video for a general guide on connecting brushless motor kits. Note that specific connectors and wire colors may vary, always consult your controller's manual.

Video: Demonstration of connecting various components of a brushless motor kit, including the controller and throttle. This video provides a visual aid for understanding the wiring process.

Instruccions de funcionament

Once installed, the hub motor provides powerful and efficient propulsion for your electric vehicle. Ensure your battery and controller are compatible with the motor's voltage and power ratings (48V/72V, 1000W/5000W).

• Encès: Activate your electric vehicle's power system.
• Control de l'accelerador: Use the throttle to control the motor's speed. Apply throttle gradually for smooth acceleration.
• Frenatge: Utilize your vehicle's braking system to slow down or stop.

Image: The 14 Inch Hub Motor shown in context with an electric scooter, illustrating its intended application.

Motor Operation Demonstration

Observe the motor in operation to understand its performance characteristics.

Video: A brief demonstration of a similar hub motor spinning, illustrating its quiet and efficient operation.

Manteniment

To ensure the longevity and optimal performance of your Luqeeg hub motor, follow these maintenance guidelines:

• Inspecció periòdica: Comproveu periòdicament totes les connexions elèctriques per comprovar si estan ben ajustades i si hi ha signes de desgast.
• Neteja: Keep the motor free from dirt and debris. While the motor is waterproof (IPX5), avoid high-pressure washing directly on electrical components.
• Exposició a l'aigua: The IPX5 rating indicates protection against low-pressure water jets from any direction. This means it can withstand splashes and light rain, but it is not designed for submersion.

Image: The hub motor shown partially submerged in water, highlighting its waterproof design for outdoor use.

Resolució de problemes

If you encounter issues with your hub motor, consider the following common problems and solutions:

• Motor no funciona: Check all electrical connections, including battery, controller, and motor phase wires. Ensure the battery is charged and the controller is receiving power.
• Potència/velocitat reduïdes: Verify battery charge level. Inspect for loose connections or damaged wiring. Ensure the controller is functioning correctly and matches the motor's power requirements.
• Sorolls inusuals: Discontinue use immediately. This could indicate internal damage or a foreign object. Professional inspection is recommended.

For complex issues or if basic troubleshooting does not resolve the problem, it is advisable to seek assistance from a qualified electric vehicle technician.

Especificacions
