OREiN Solar Outdoor Light User Manual

1. Introducció

Thank you for choosing the OREiN Solar Outdoor Light. This product is designed to provide efficient and reliable outdoor illumination with advanced solar technology and motion detection capabilities. It is built to withstand various outdoor conditions, ensuring long-lasting performance.

The OREiN outdoor solar spotlight is crafted from durable polycarbonate and ABS materials. Its solar panel features advanced LED solar technology with a tempered glass surface, making it waterproof and sun-resistant. A black rubber ring around the motion sensor prevents water ingress, ensuring precision engineering for outdoor rain and snow conditions.

Figure 1: OREiN Solar Outdoor Light - Front View

2. Característiques del producte

• Fast Charging & Efficient Operation: Equipped with a monocrystalline silicon battery panel, offering 30% higher charging efficiency than polycrystalline silicon. Features a high-capacity 2600 mAh battery for extended operation (over 5 hours recommended sunlight).
• 3 Convenient & Energy-Saving Modes: Easily switch modes with a single red button.
• 800 lm Super Bright & Anti-Glare: Internal plate with focusing holes for concentrated light. Anti-glare outer cover prevents direct bright light exposure. Provides 800 lumens and 5000K daylight white light for night illumination.
• Motion Detector for More Scenarios: Suitable for pathways, garages, and portable camping. Wide application for home fronts, gutters, sidewalks, yards, garages, pools, and gardens. (Detection angle 120°, distance: 8 m).
• IP65 Waterproof & Durable: Constructed from durable PC + ABS material with a tempered glass solar panel, resistant to water and sun. Rubber ring around the sensor prevents water penetration.

Figure 2: Key Product Features including 3 Modes, 2600mAh Battery, 120° Motion Sensor, IP65 Waterproofing, and Solar Energy.

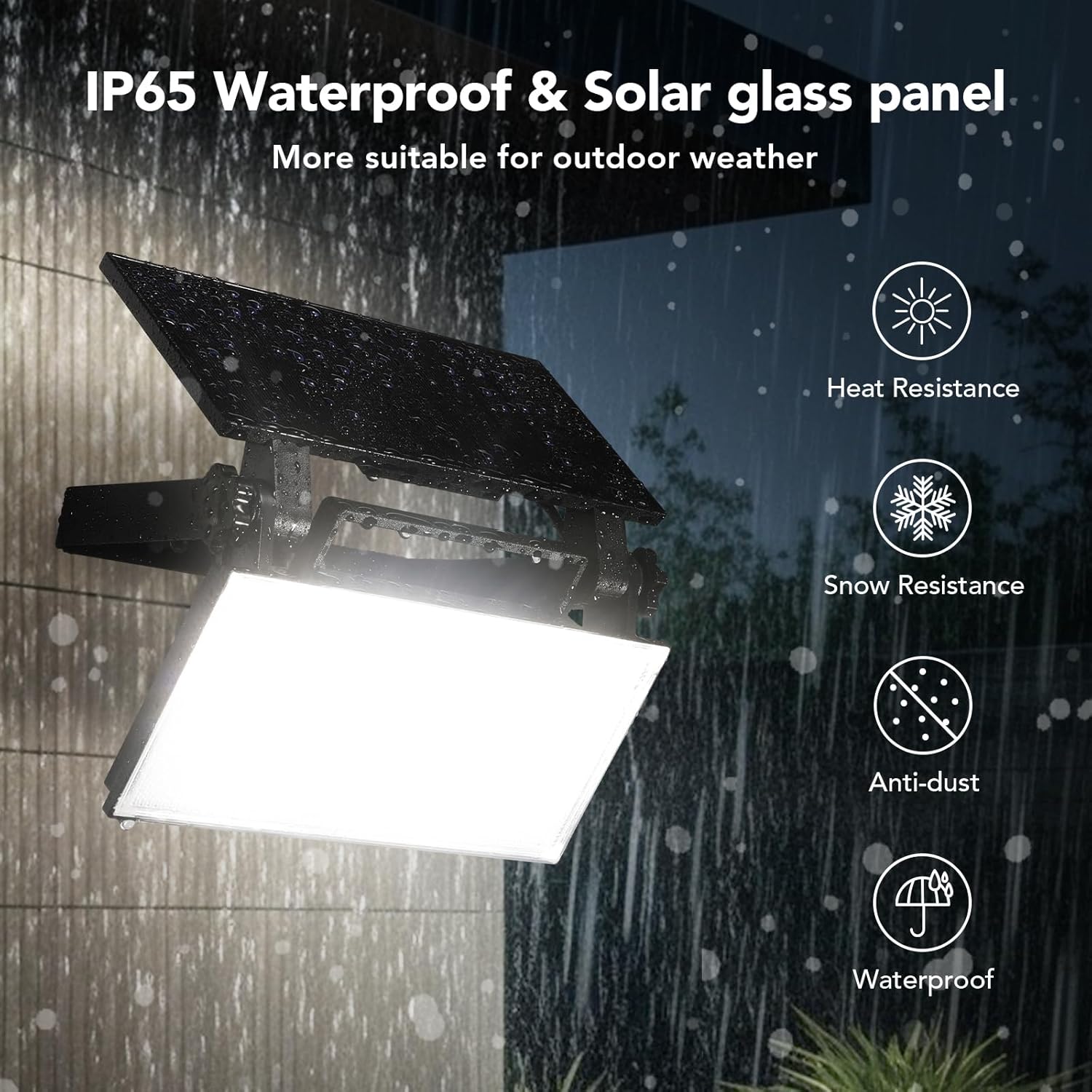

Figure 3: The IP65 waterproof rating and solar glass panel ensure suitability for outdoor weather, offering heat resistance, snow resistance, anti-dust properties, and overall waterproofing.

Figure 4: Diagram illustrating the layers of the upgraded solar panel, including tempered glass, EVA, cell, and PVP, designed for increased charging efficiency and anti-glare properties.

3. Informació de seguretat

• Assegureu-vos que el producte estigui instal·lat en un lloc que rebi llum solar directa per a una càrrega òptima.
• Do not disassemble or modify the product. This may void the warranty and pose safety risks.
• Mantenir allunyat de materials inflamables.
• Do not immerse the product in water, despite its waterproof rating, to prevent damage.
• Handle with care during installation to avoid injury.
• Eliminar la bateria d'acord amb la normativa local.

4. Contingut del paquet

Si us plau, comproveu el paquet per veure si hi ha els elements següents:

• 1 x OREiN Solar Outdoor Light (with integrated LED light, battery, and motion detector)
• 1 x Suport de muntatge
• Screws and Drywall Anchors (for installation)
• Manual d'usuari (aquest document)

5. Configuració i instal·lació

For optimal performance, ensure the solar panel is placed in an area that receives at least 5 hours of direct sunlight daily.

Passos d'instal·lació:

1. Step 1: Drill Holes and Insert Anchors. Mark the desired installation location. Drill holes and hammer the drywall anchors into them.
2. Step 2: Secure the Light Bracket. Use screws through the light bracket to secure it firmly to the wall.
3. Step 3: Adjust Solar Panel and Joint Direction. Attach the solar light to the secured bracket. Adjust the angle of the solar panel and the light itself to optimize sunlight exposure and illumination area.

Nota: If installing on a wooden wall, use screws directly without drywall anchors.

Figure 5: Visual guide for easy installation, showing drilling, securing the bracket, and adjusting the solar panel.

6. Instruccions de funcionament

The OREiN Solar Outdoor Light features three operating modes, controlled by a single red button. Press the button to cycle through the modes.

Selecció del mode:

• Press 1x (Light blinks once): OFF-ON-OFF Mode
  The light turns on at full brightness when motion is detected at night and turns off after 20 seconds of no motion.
• Press 2x (Light blinks twice): DIM-BRIGHT-DIM Mode
  The light stays in dim mode at night and brightens to full intensity when motion is detected. It returns to dim mode after 20 seconds of no motion.
• Press 3x (Light blinks three times): DIM LIGHT Mode
  The light automatically turns on at a constant dim level at night and stays on until dawn. Motion detection is inactive in this mode.
• Press 4x: Turn Off Light
  Pressing the button a fourth time will turn the light off completely.

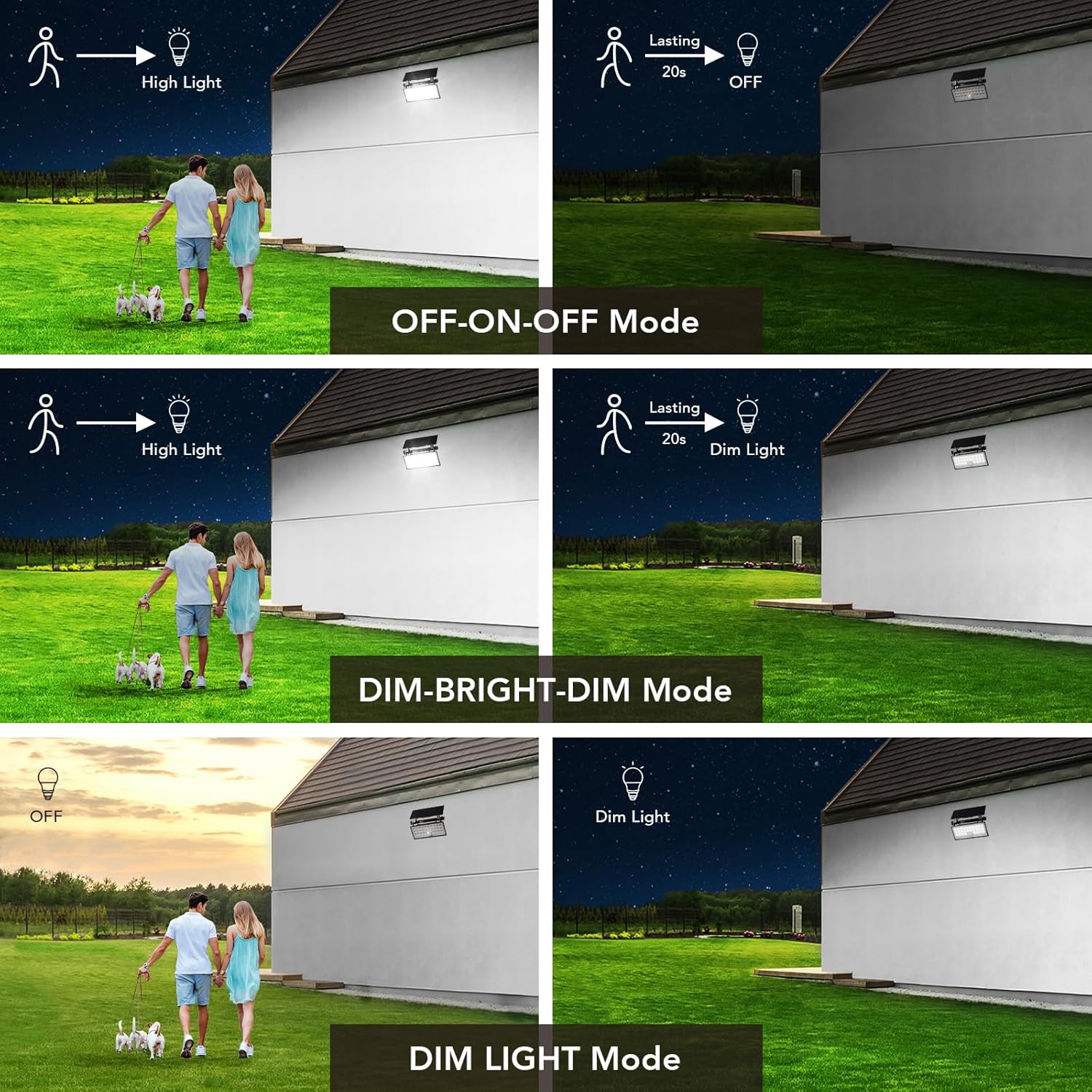

Figure 6: Visual representation of the three operating modes: OFF-ON-OFF, DIM-BRIGHT-DIM, and DIM LIGHT Mode, illustrating light behavior with and without motion.

Figure 7: Illustration of the 120° wide-angle motion sensor's detection range, covering an area of 16ft-26ft (5m-8m) with 800LM brightness.

7. Manteniment

• Neteja: Netegeu regularment el panell solar amb un drap suau iamp drap per eliminar la pols, la brutícia o les restes. Un panell net garanteix la màxima eficiència de càrrega.
• Col·locació: Periodically check that the solar panel's location is still optimal for sunlight exposure, especially after seasonal changes or new obstructions (e.g., growing trees).
• Bateria: The integrated Lithium-ion battery is designed for long life. If the light's performance significantly degrades over time, ensure it's receiving adequate sunlight.
• Cura d'hivern: In areas with heavy snow, ensure the solar panel is clear of snow to allow charging.

8. Solució De Problemes

9. Especificacions

10. Garantia i Suport

OREiN provides a Període de garantia de 12 mesos for this product. If you encounter any doubts or difficulties during use, please do not hesitate to contact us. We are committed to responding within 24 hours to assist you.

For customer support, please refer to the contact information provided on the product packaging or the official OREiN weblloc.

11. Informació addicional

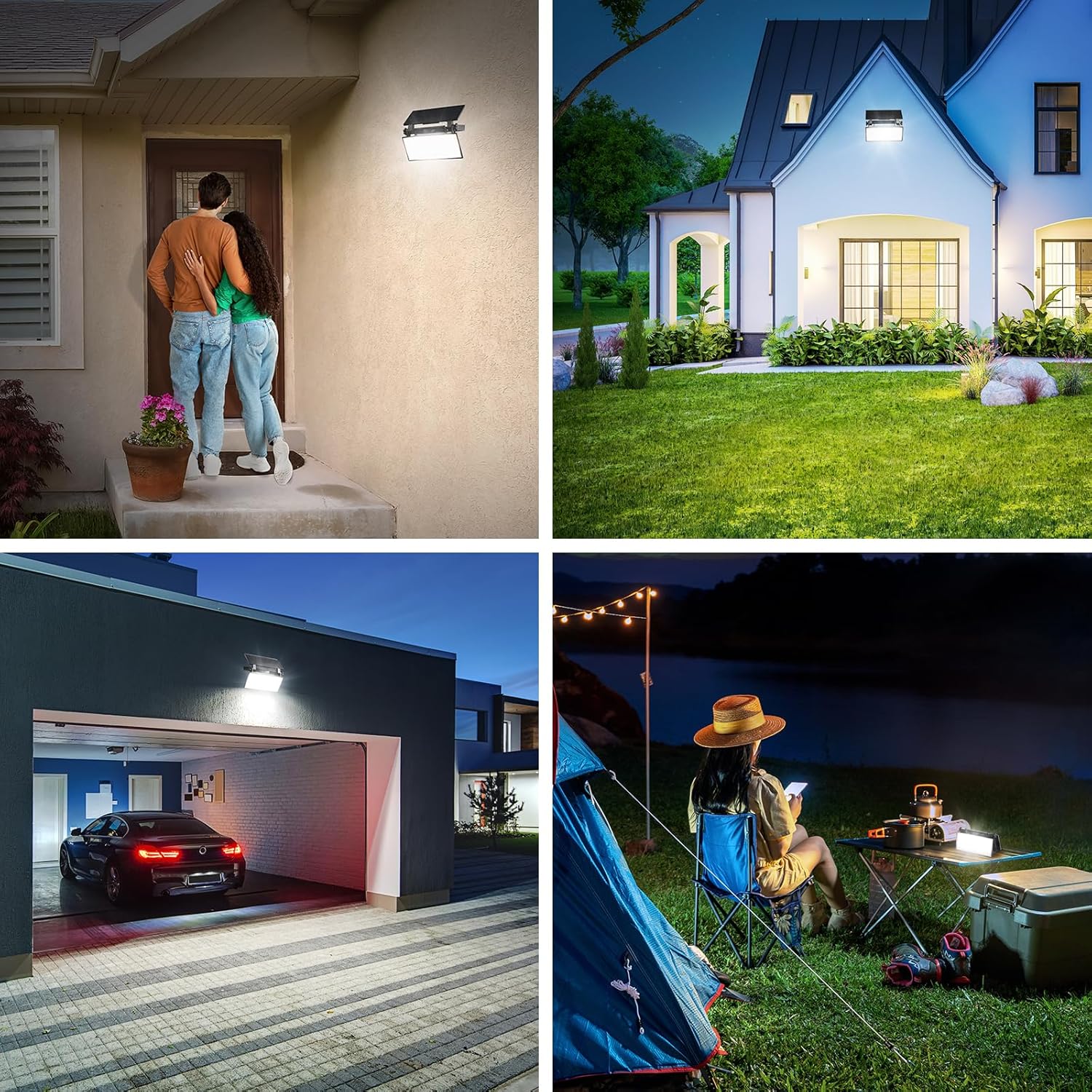

Figura 8: Examples of product usage in various outdoor settings, including front doors, gardens, garages, and camping llocs.

Figure 9: OREiN company profile highlighting 23 years of manufacturing experience, 10 years of brand registration, and top supplier status.

Figure 10: Awards and certifications received by OREiN, including ISO 9001, UL, CE, FC, RoHS, and Intertek.

Figure 11: Map indicating OREiN's global sales presence in over 20 countries, including North America, Mexico, Brazil, Germany, France, Russia, Japan, and Korea.

Figure 12: Aerial view of OREiN's advanced global manufacturing facilities.
