ALLPOWERS S2000 PRO Portable Power Station User Manual

1. Introducció

The ALLPOWERS S2000 PRO Portable Power Station is a versatile and powerful energy solution designed for various applications, from outdoor adventures and camping to home backup during power outages. With its impressive 1500Wh capacity and 2400W (peak 4000W) output, it can reliably power a wide range of devices and appliances. This manual provides essential information on setup, operation, maintenance, and troubleshooting to ensure safe and efficient use of your power station.

2. Informació de seguretat

AVÍS: Llegiu tots els avisos de seguretat i totes les instruccions abans d'utilitzar aquest producte. Si no seguiu els avisos i les instruccions, podeu patir descàrregues elèctriques, incendis i/o lesions greus.

• No desmunteu, no repareu ni modifiqueu la unitat.
• No exposeu la unitat al foc ni a altes temperatures.
• No utilitzeu ni emmagatzemeu la unitat sota la llum solar directa ni en ambients amb altes temperatures.
• Keep the unit away from water, rain, and moisture.
• Assegureu-vos una ventilació adequada durant l'ús per evitar el sobreescalfament.
• Mantenir fora de l'abast dels nens i mascotes.
• Utilitzeu només cables i accessoris originals o certificats.
• Avoid dropping, hitting, or subjecting the unit to strong impacts.
• No introduïu objectes estranys als ports.
• In case of abnormal behavior, stop using the unit immediately and contact customer support.

The unit is equipped with a Battery Management System (BMS) for protection against overheating, short circuits, overcurrent, and overcharging, ensuring safe operation.

3. Què hi ha a la caixa

• 1 x ALLPOWERS S2000 PRO Power Station
• 1 cable de càrrega de CA
• 1 x Manual d'usuari
• 1 x Targeta de garantia

4. Configuració

Before first use, fully charge your ALLPOWERS S2000 PRO Power Station. You can charge it via an AC wall outlet or compatible solar panels.

Initial Charging (AC Wall Outlet)

1. Locate the AC charging input port on the back of the power station.
2. Connect the provided AC Charging Cable to the power station and then to a standard wall outlet.
3. The display screen will show the charging status. The unit can be fully charged in approximately 1.5 hours.

Figure 1: Connecting the AC Charging Cable for initial power-up.

Càrrega solar (opcional)

1. Connect compatible solar panels (e.g., ALLPOWERS Foldable Solar Panel) to the XT60 solar input port on the front of the power station.
2. Ensure the solar panels are placed in direct sunlight for optimal charging efficiency.
3. The display will indicate solar input wattage. A full charge can be achieved in 2-3 hours with 1000W solar input.

Figure 2: Solar panel connection for charging.

5. Instruccions de funcionament

Encès/Apagat

Press and hold the main power button for 3 seconds to turn the unit on or off. The display screen will illuminate.

Using AC Outputs

The S2000 PRO features 4 AC outlets (2400W, peak 4000W). Press the "AC" button to enable AC output. Plug your devices into the AC outlets. Press the "AC" button again to disable AC output when not in use.

Figure 3: Powering various devices using AC outlets.

Using DC Outputs

The unit provides 2 x USB-C Ports (PD 100W), 2 x USB-A Ports, 2 x USB-A Fast Charging Ports, and 1 x Car Cigarette Lighter Socket (12V 10A). Press the "DC" button to enable DC output. Connect your devices to the appropriate USB or 12V ports. Press the "DC" button again to disable DC output.

Control d'aplicacions intel·ligents

Download the ALLPOWERS app to control and monitor your power station remotely via Wi-Fi or Bluetooth. The app allows you to check battery status, input/output wattage, and toggle AC/DC outputs.

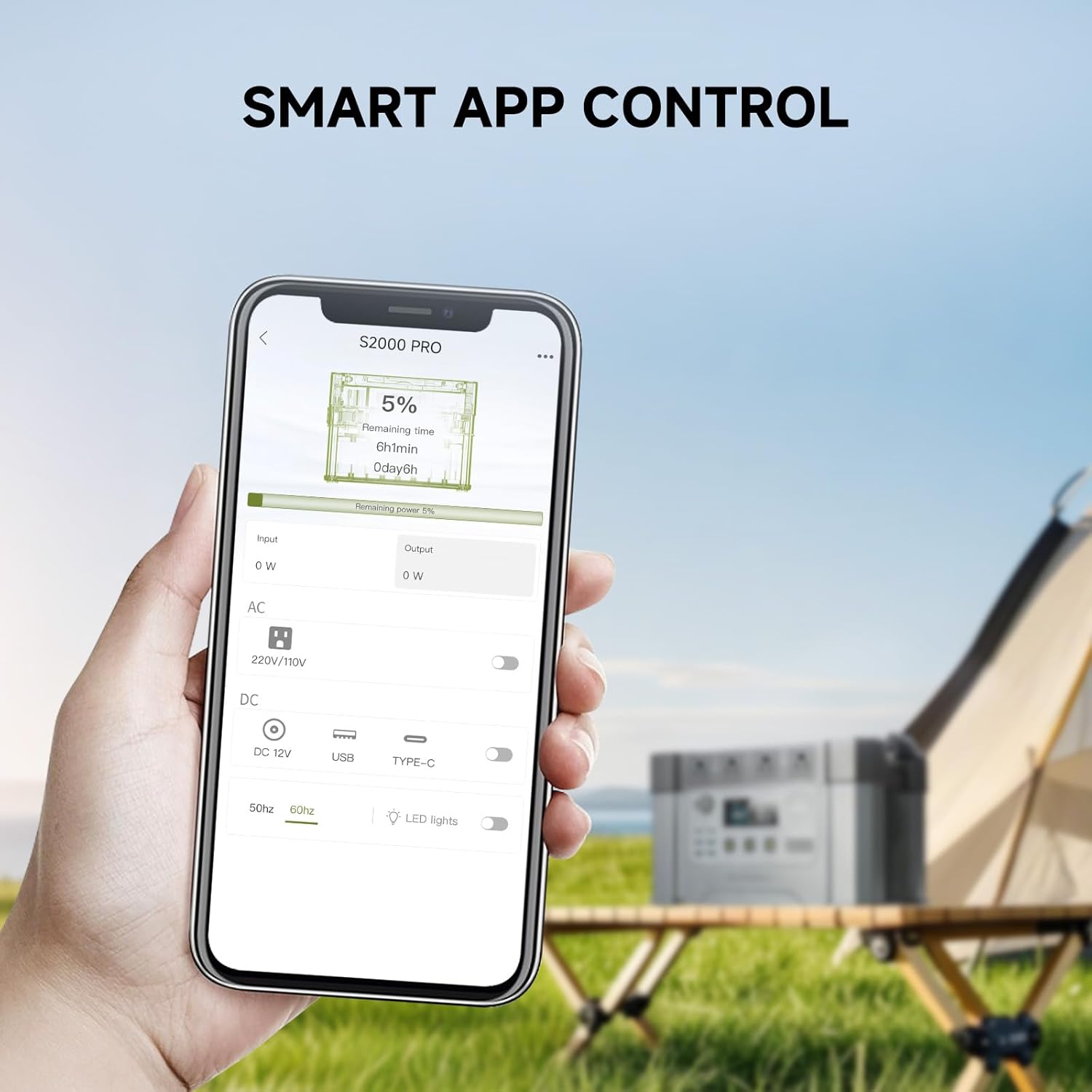

Figure 4: Monitoring and controlling the power station via the smartphone app.

Funció d'alimentació ininterrompuda (UPS).

The S2000 PRO features a UPS function with a 15ms switching time. Connect your critical devices to the AC outlets while the power station is plugged into a wall outlet. In case of a power outage, the unit will automatically switch to battery power, providing seamless operation.

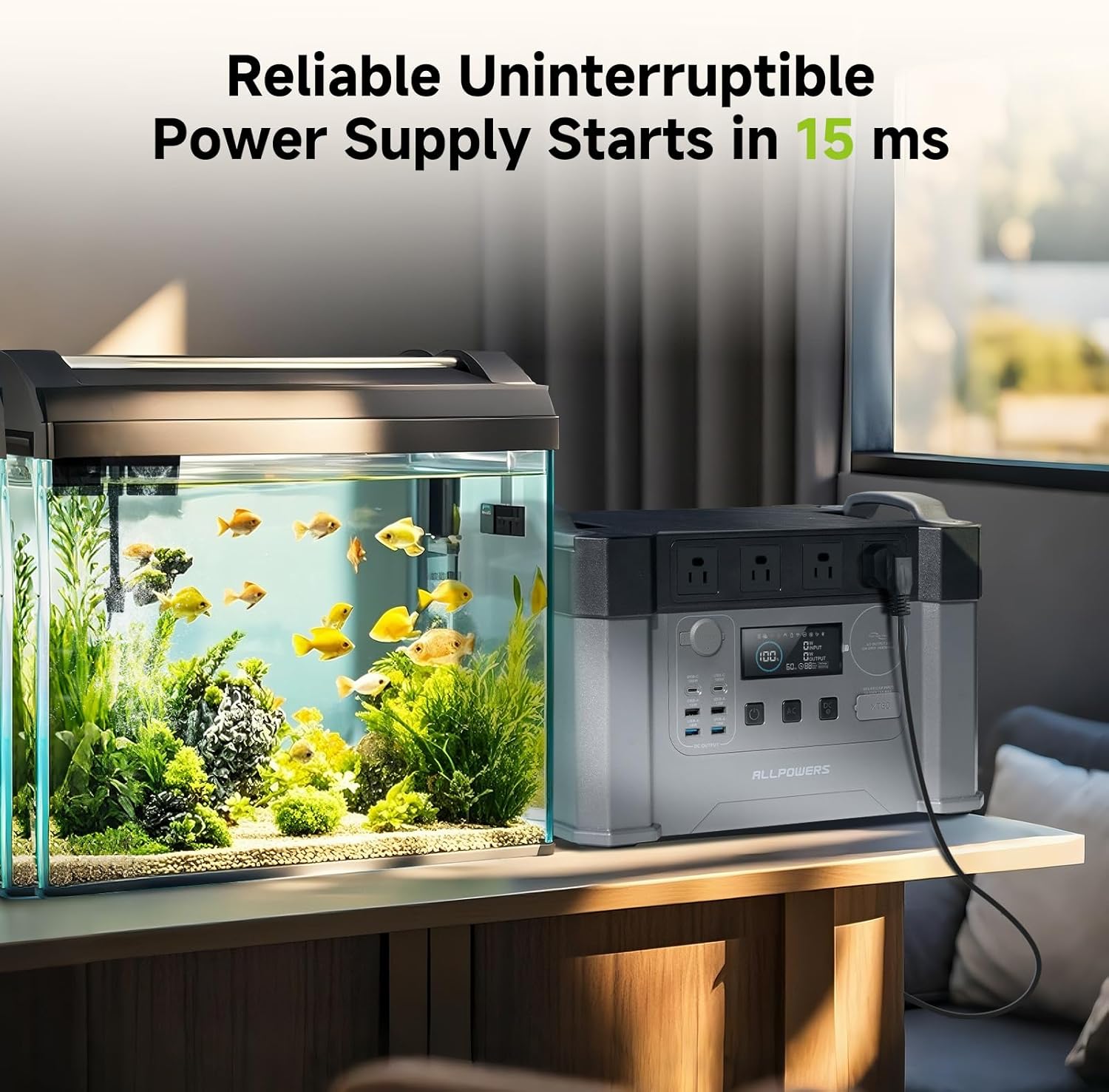

Figure 5: The power station providing backup power for essential devices.

Vídeos oficials de productes

Watch these official videos from the seller for detailed demonstrations and usage scenarios:

6. Manteniment

• Guardeu la unitat en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
• Recarrega la unitat cada 3-6 mesos per mantenir la bateria en bon estat, fins i tot si no l'utilitzes.
• Netegeu l'exterior amb un drap sec i suau. No utilitzeu productes de neteja abrasius ni dissolvents.
• Assegureu-vos que les obertures de ventilació estiguin netes de pols i deixalles.

7. Solució De Problemes

La unitat no s'encén

• Check if the battery is completely depleted. Recharge the unit.
• Assegureu-vos que el botó d'engegada estigui premut i mantingut premut durant 3 segons.

No Output from AC/DC Ports

• Ensure the AC/DC output buttons are enabled (green indicator light).
• Check if the device connected exceeds the maximum output power.
• Verifiqueu que els cables estiguin connectats correctament.

Càrrega lenta

• For solar charging, ensure panels are in direct sunlight and free from obstructions.
• Check the input wattage es mostra a la pantalla.
• Verify that the charging cable is not damaged.

8. Especificacions

9. Garantia i assistència

The ALLPOWERS S2000 PRO Portable Power Station comes with a 10-year ALLPOWERS' warranty. For warranty claims, technical support, or any inquiries, please contact ALLPOWERS customer service directly.

You can find contact information on the warranty card included in your package or visit the official ALLPOWERS weblloc.
