ARRMA Gorgon 2WD MT1/10 RTR RC Truck Instruction Manual

1. Informació de seguretat

ADVERTIMENT: Llegiu tot el manual d'instruccions per familiaritzar-vos amb les característiques del producte abans de fer-lo funcionar. Si no feu servir el producte correctament, podeu causar danys al producte, a la propietat personal i lesions greus. Aquest és un producte sofisticat per a aficions. S'ha d'utilitzar amb precaució i sentit comú, i requereix algunes habilitats mecàniques bàsiques. Si no feu servir aquest producte de manera segura i responsable, podeu causar lesions o danys al producte o a altres propietats. Aquest producte no està pensat per a l'ús de nens sense la supervisió directa d'un adult. No l'utilitzeu amb components incompatibles ni l'altereu de cap manera fora de les instruccions proporcionades per Horizon Hobby, LLC. El manual del producte conté instruccions de seguretat, funcionament i manteniment. És essencial llegir i seguir totes les instruccions i advertències del manual abans del muntatge, la configuració o l'ús per tal de funcionar correctament i evitar danys o lesions greus.

2. Contingut del paquet

The ARRMA Gorgon 2WD MT1/10 RTR RC Truck package includes the following components:

• 1/10 GORGON 4X2 MEGA 550 Brushed Monster Truck
• Spektrum Waterproof SLT 2-in-1 ESC and Receiver Unit
• Mega 550 14T Brushed Motor
• Transmissor Spektrum SLT2 de 2.4 GHz
• Spektrum S660 Waterproof Digital Steering Servo
• Spektrum 8.4V 3300mAh 7-Cell Hump Smart NiMH Battery with IC3 Connector
• Spektrum 2S LiPo Ready S120 USB-C Smart Charger
• 4 AA Transmitter Batteries
• 1.5mm, 2mm, and 2.5mm Hex Key and Multi-Tool
• 1/10 GORGON 4X2 MEGA 550 Brushed Monster Truck RTR Product Manual

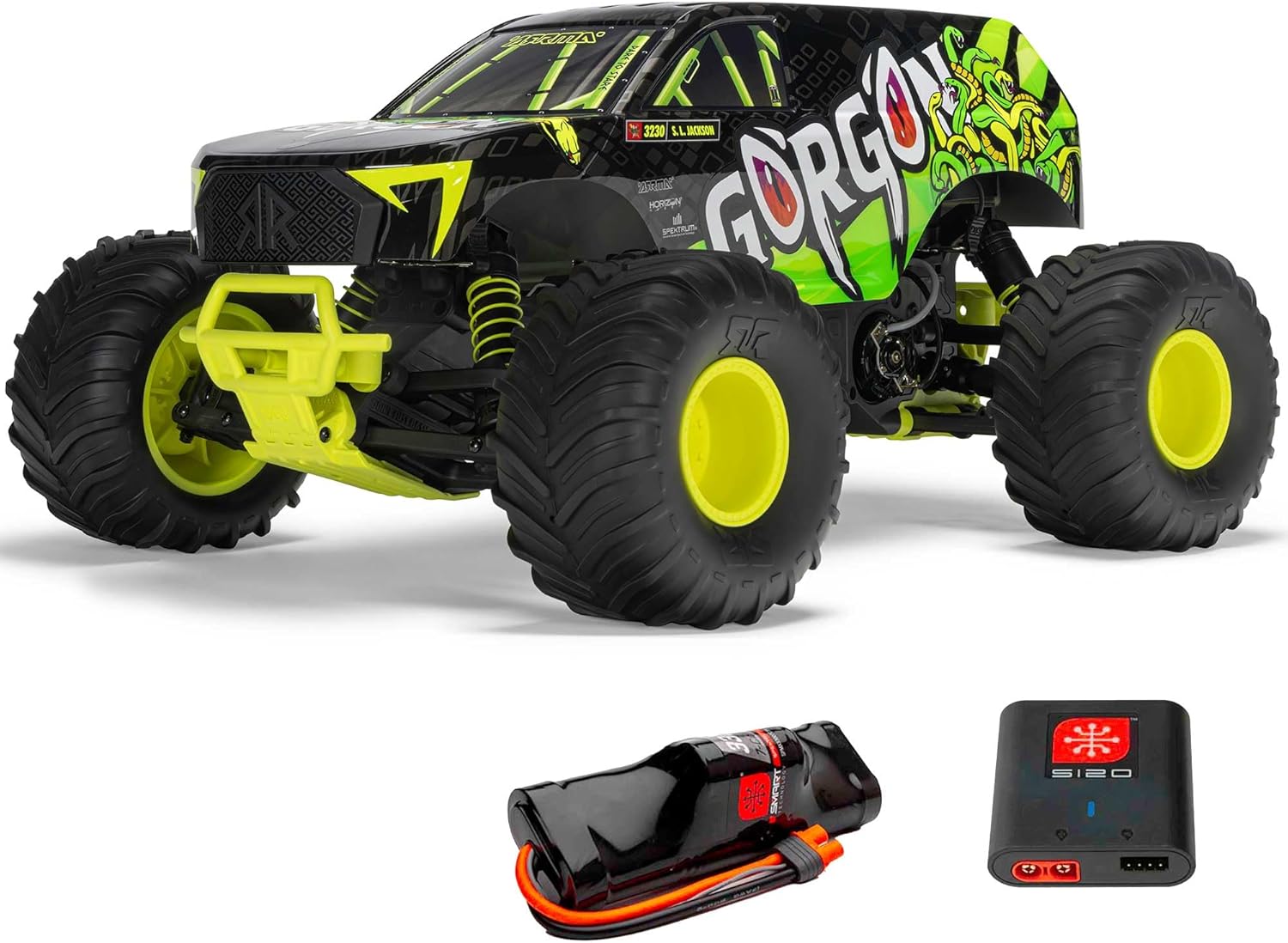

Image: The ARRMA Gorgon RC Truck, ready-to-run, shown with its included battery and charger.

3. Guia de configuració

3.1. Instal·lació de la bateria del transmissor

1. Locate the battery compartment on the Spektrum SLT2 2.4GHz Transmitter.
2. Obriu la tapa del compartiment de la bateria.
3. Insert the 4 included AA batteries, ensuring correct polarity.
4. Tanqueu bé la tapa del compartiment de la bateria.

3.2. Càrrega de la bateria del vehicle

The vehicle includes a Spektrum 8.4V 3300mAh 7-Cell Hump Smart NiMH Battery and a Spektrum 2S LiPo Ready S120 USB-C Smart Charger.

1. Connect the S120 USB-C Smart Charger to a compatible USB power supply (QC 2.0/3.0 18W+ recommended, not included).
2. Connect the vehicle battery to the charger's IC3 connector.
3. Deixeu que la bateria es carregui completament. Consulteu els indicadors lluminosos del carregador per conèixer l'estat de càrrega.

Image: A diagram illustrating the type of USB power supply (QC 2.0/3.0 18W+) required for the included charger, which is not supplied with the product.

3.3. Vinculació de l'emissor i el receptor

If the transmitter and receiver are not already bound, follow these steps:

1. Ensure the vehicle battery is disconnected from the ESC.
2. Enceneu l'emissor.
3. Connect the vehicle battery to the ESC. The ESC will power on.
4. Press and hold the bind button on the receiver (or follow the specific binding procedure outlined in the full product manual).
5. The receiver's LED will indicate successful binding.

3.4. ESC Battery Type Selection

The ESC is compatible with both NiMH and LiPo batteries. Before using a LiPo battery, ensure the ESC is set to the correct battery type. Refer to the full product manual for instructions on how to switch the pin on the ESC from its stock NiMH position to LiPo.

4. Instruccions de funcionament

4.1. Controls bàsics

• Activador de l'accelerador: Estireu per accelerar endavant, empenyeu per frenar/retrocedir.
• Volant: Gireu a l'esquerra o a la dreta per dirigir el vehicle.
• Ajustos de retall: Use the steering trim and throttle trim dials on the transmitter to fine-tune the vehicle's straight-line tracking and neutral throttle position.

4.2. Consells de conducció

The ARRMA Gorgon is designed for durability and performance across various terrains. Its robust construction allows for aggressive driving, including jumps and rough terrain. Always operate the vehicle in open areas free from obstacles, people, and pets.

Image: The ARRMA Gorgon RC Truck airborne after launching off a ramp, demonstrating its capability for jumps.

Image: The ARRMA Gorgon RC Truck kicking up dirt while driving, highlighting its off-road capabilities.

4.3. Temps de funcionament de la bateria

The included NiMH battery provides approximately 15-20 minutes of runtime depending on driving conditions. For extended runtimes, consider purchasing additional compatible batteries, such as a 2S LiPo 7200mAh battery with an EC3 connector, ensuring the ESC is correctly configured for LiPo use.

5. Manteniment

5.1. Neteja general

After each use, especially in dusty or dirty conditions, clean the vehicle to prevent debris buildup. Use a soft brush or compressed air to remove dirt from the chassis, suspension, and drivetrain components.

5.2. Drivetrain Inspection

Regularly inspect the gears, especially the spur gear and pinion gear, for wear or damage. Stripped gears can occur from impacts or excessive stress. Replace any worn or damaged parts promptly to maintain optimal performance.

5.3. Motor Cooling

For prolonged operation or in warm environments, consider installing a 40mm cooling fan on the brushed motor. This can help maintain motor temperature and extend its lifespan. The fan can typically plug directly into the fan port on the stock ESC for power.

6. Solució De Problemes

6.1. Vehicle Not Responding

• Ensure both the transmitter and vehicle batteries are fully charged and correctly installed.
• Verifiqueu que l'emissor i el receptor estiguin correctament connectats.
• Check all electrical connections for looseness or damage.

6.2. Loss of Steering or Throttle Control

• Direcció: Inspect the steering servo for damage or if it has become unresponsive. Check servo linkages for obstructions.
• Acceleració: Check the motor and ESC connections. If the motor accelerates but the wheels do not turn, inspect the spur gear and pinion gear for stripping.

6.3. Durada curta de la bateria

• Assegureu-vos que la bateria estigui completament carregada abans d'utilitzar-la.
• Consider the age and condition of the battery; older batteries may have reduced capacity.
• Driving style (e.g., continuous full throttle) significantly impacts runtime.

7. Especificacions

Imatge: Side profile of the ARRMA Gorgon RC Truck, illustrating its physical dimensions.

8. Garantia i Suport

For warranty information, technical support, and replacement parts, please refer to the official documentation provided with your product or visit the ARRMA website. All warranty claims and support inquiries should be directed to Horizon Hobby, LLC, the manufacturer.

Extended protection plans may be available from third-party providers at the time of purchase. Review the terms and conditions of any such plans separately.
