ENERMAX LIQMAXFLO SR 360mm A-RGB AIO CPU Liquid Cooler Instruction Manual

Producte acabatview

The ENERMAX LIQMAXFLO SR 360mm A-RGB AIO CPU Liquid Cooler is engineered for high-performance cooling, featuring a powerful pump with speeds up to 3000RPM, a dedicated 60mm VRM fan for enhanced component cooling, and pressure-optimized silent 120mm FDB PWM fans. It offers extensive compatibility with Intel LGA1700/1200/115X and AMD AM5/AM4 sockets, making it a versatile solution for modern PC builds. The design includes a magnetic detachable pump cover for customization, convenient daisy-chained cables, and pre-applied premium thermal grease for effortless installation.

Imatge: Frontal view of the ENERMAX LIQMAXFLO SR 360mm A-RGB AIO CPU Liquid Cooler, showcasing the radiator, three fans, and the pump with RGB lighting.

Característiques clau

• Enhanced Airflow and VRM Cooling: Features a 60mm VRM Fan with a 3-phase 6-pole motor, providing stable and silent airflow to surrounding components and reducing VRM temperatures.
• PWM-Controlled Design: Allows automatic control of the newly designed, pressure-optimized FDB bearing fan, VRM fan, and pump for enhanced silence and cooling performance.
• User-Friendly Customization: Magnetic detachable pump cover can be rotated 90° for easy customization. Includes 3 tube clips for neat cable management and a daisy-chained cable design for simplified installation.
• Instal·lació sense esforç: Comes with pre-applied premium Dow Corning TC-5888 thermal grease and an extra tube for convenient application.
• Compatibilitat àmplia: Supports Intel LGA 1700, 1200, 115X and AMD AM5, AM4 sockets.

Image: Diagram illustrating the upgraded internal components of the pump, highlighting a 30% increase in pump pressure and a 20% increase in water flow rate.

Image: Visual comparison showing VRM temperatures with the VRM fan ON (65.5°C) and OFF (81.1°C), demonstrating the effectiveness of the 60mm VRM fan.

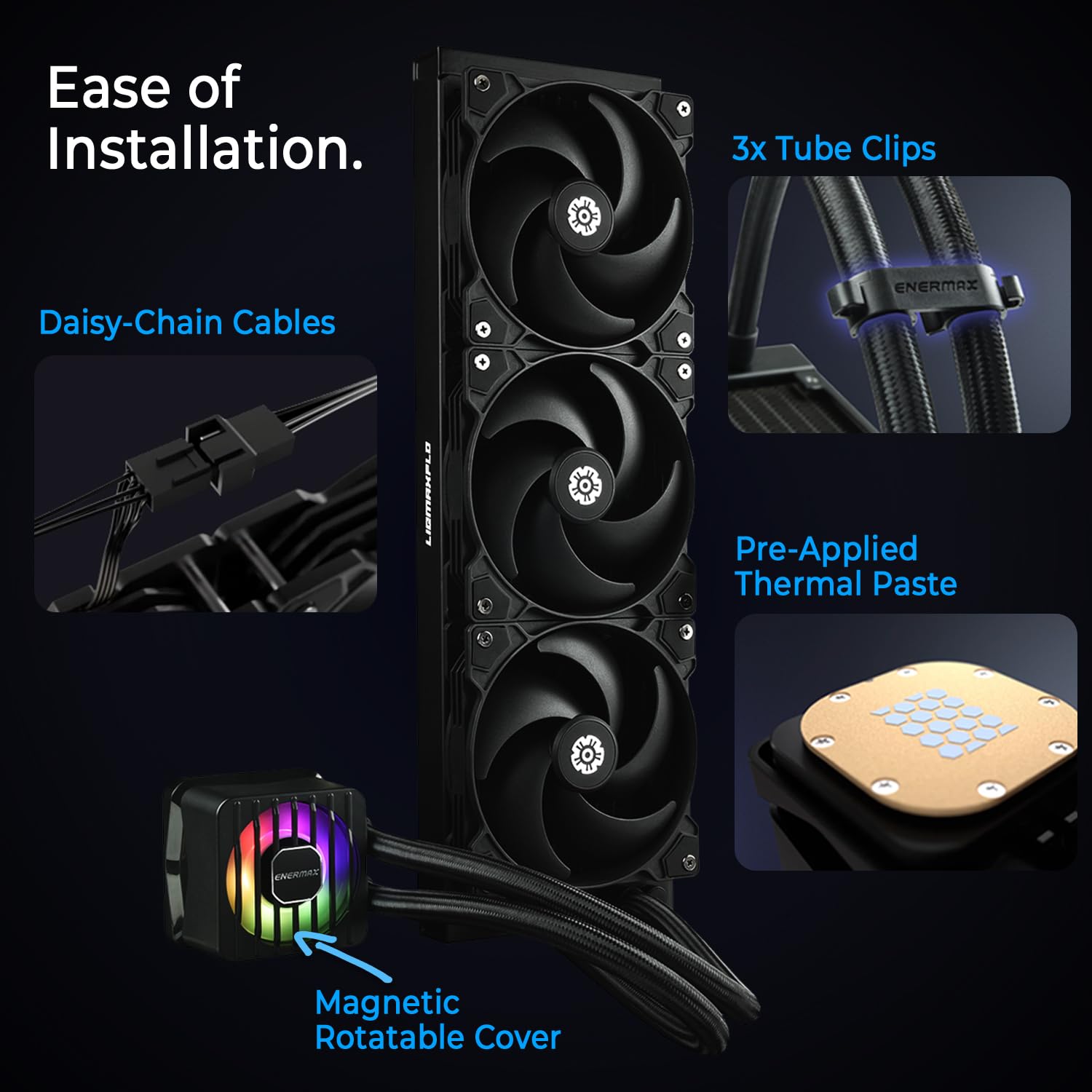

Image: Highlights ease of installation features including daisy-chain cables, triple tube clips for cable management, pre-applied thermal paste, and a magnetic rotatable pump cover.

Image: Close-up of the fan blades, illustrating the 5-blade scoop-design optimized for high static pressure and silent operation.

Punts de referència de rendiment

The ENERMAX LIQMAXFLO SR 360mm A-RGB AIO CPU Liquid Cooler has undergone rigorous testing to demonstrate its cooling capabilities across various workloads.

Low Workload - 120W

Video: Performance chart showing CPU temperatures at a 120W low workload. The LIQMAXFLO 360 maintains a CPU temperature of 28.4°C above ambient, performing comparably to high-end AIOs.

High Workload - 250W

Video: Performance chart illustrating CPU temperatures at a 250W high workload. The LIQMAXFLO 360 performs similarly to the Lian Li Galahad 360, maintaining excellent thermal control.

Very High Workload - 320W

Video: Performance chart demonstrating CPU temperatures at a 320W very high workload. The LIQMAXFLO 360 secures a top 5 position among tested coolers, showcasing its robust performance under extreme conditions.

Desembalatge i components inclosos

The ENERMAX LIQMAXFLO SR 360mm A-RGB AIO CPU Liquid Cooler comes in a standard retail box, containing all necessary components for installation and operation.

Imatge: Frontal view of the cooler, highlighting its sleek design and A-RGB fans.

Imatge: Lateral view of the cooler, showing the radiator thickness and tube routing.

Què hi ha a la caixa:

• 3x 120mm A-RGB Fans
• Radiador de 360 ​​mm
• Thermal Paste (pre-applied and extra tube)
• Intel & AMD Installation Hardware
• Fan A-RGB and PWM Adapter
• PSU Shortener (for pump priming)
• 3x Tube Clips
• Coolant Refill Bottle

Radiator Design

Video: Close-up of the 38mm thick radiator, showing its fin density (19 FPI) and 12 water channels for efficient heat dissipation.

Fans

Vídeo: Detallat view of the 5-wing fan design with a small middle section, optimized for high static pressure. Fans operate at up to 1800 RPM, delivering 58.03 CFM airflow and 2.4mm/H2O static pressure.

Pump and VRM Fan

Video: Showcases the 55x55mm water block with pre-applied thermal paste and the integrated 60mm VRM fan. The VRM fan actively cools motherboard components, enhancing overall system stability.

Configuració i instal·lació

Installation of the LIQMAXFLO SR is straightforward, designed for broad compatibility with modern CPU sockets.

Compatibilitat

This cooler is compatible with the following CPU sockets:

• Intel: LGA 1700, 1200, 115X, 2066, 2011(-3), 1366
• AMD: AM5, AM4, AM3+, FM2+, FM1

Image: Diagram illustrating the Intel and AMD mounting brackets and compatible CPU sockets.

Passos d'instal·lació

Video: Step-by-step guide on installing the cooler, including attaching the correct retention bracket, preparing the motherboard with the backplate/screws, and mounting the water block onto the CPU.

Manteniment

The LIQMAXFLO SR is designed for long-term reliability, but includes features for extended lifespan and optimal performance.

Coolant Refill

Video: Demonstrates the fill port on the radiator, allowing for coolant refilling or replacement if needed over the product's lifespan. A coolant bottle is included for this purpose.

Resolució de problemes

Should you encounter any issues, refer to the following common troubleshooting tips.

Problemes d'il·luminació RGB

Video: Shows the A-RGB lighting on the fans and pump. If the RGB lights are flickering or not working, ensure all connections are secure. The daisy-chainable 8-pin combined connector for PWM and A-RGB simplifies wiring and reduces potential points of failure.

Video: Close-up of the proprietary 8-pin combined connector for PWM and A-RGB. Ensure this connection is firm. If your motherboard lacks a 3-pin A-RGB header, use the included A-RGB controller.

Especificacions tècniques

Garantia i Suport

For detailed warranty information and further support, please refer to the official user manual.
