KRUPS EA910B Sensation Fully Automatic Coffee Machine User Manual

Introducció

Thank you for choosing the KRUPS EA910B Sensation Fully Automatic Coffee Machine. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.

Instruccions de seguretat

Per evitar lesions o danys, observeu sempre les següents precaucions de seguretat:

• Assegureu-vos que el voltagEl volum indicat a l'aparell correspon al volum de la xarxa elèctricatage abans de connectar.
• No submergiu l'aparell, el cable d'alimentació o l'endoll en aigua o cap altre líquid.
• Mantingueu l'aparell fora de l'abast dels nens. Cal una supervisió acurada quan l'aparell sigui utilitzat per nens o a prop d'ells.
• No feu funcionar l'aparell si el cable d'alimentació o l'endoll estan danyats, o si l'aparell no funciona correctament o ha estat danyat de qualsevol manera.
• Always unplug the appliance from the mains socket before cleaning, filling, or when not in use.
• Avoid contact with hot surfaces. Use handles or knobs. Steam and hot water can cause severe burns.
• Utilitzeu només accessoris recomanats pel fabricant.
• No col·loqueu l'aparell sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.

Producte acabatview

Familiarize yourself with the components of your KRUPS EA910B Sensation coffee machine.

Figura 1: The KRUPS EA910B Sensation fully automatic coffee machine in operation, dispensing coffee into two cups. This image highlights the sleek design and the user interface.

Figura 2: Davant view of the KRUPS EA910B Sensation coffee machine, showcasing the control panel, coffee dispenser, and drip tray. The bean hopper is visible at the top.

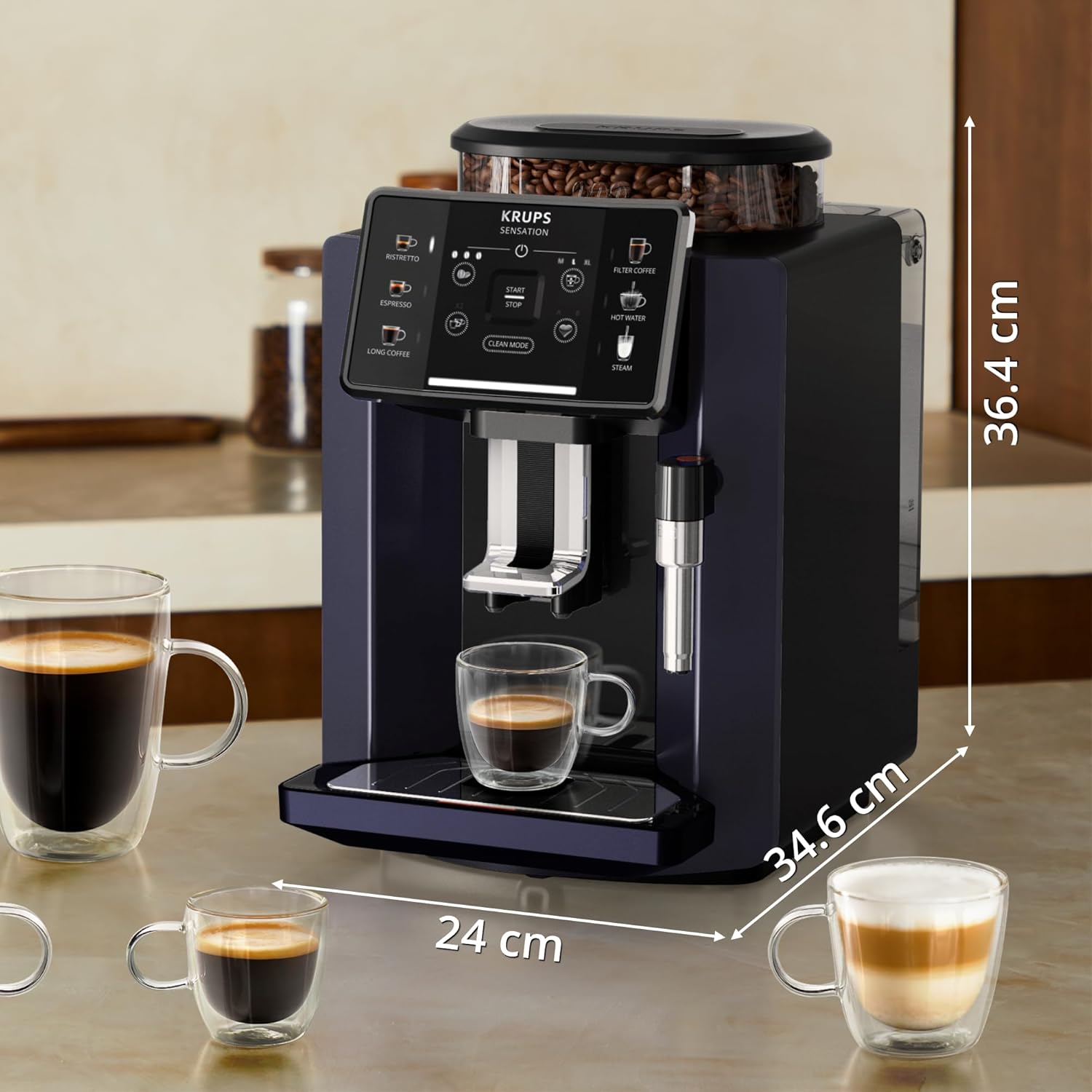

Figura 3: This image illustrates the dimensions of the KRUPS EA910B Sensation coffee machine: 36.4 cm in height, 24 cm in width, and 34.6 cm in depth. Various cup sizes are shown for scale.

Components principals:

• Contenidor de mongetes: Per a grans de cafè sencers.
• Dipòsit d'aigua: Dipòsit extraïble per a aigua dolça.
• Tauler de control: Touchscreen interface for selecting drinks and settings.
• Botiga de cafè: Alçada ajustable per a diverses mides de copa.
• Safata de degoteig: Recull l'excés d'aigua i les gotes de cafè.
• Contenidor de posos de cafè: Recull discos de cafè usats.
• Steam Nozzle/Milk Frother: Per fer escuma de llet i dispensar aigua calenta.

Configuració

1. Desembalatge i neteja inicial:

• Traieu tots els materials d'embalatge.
• Netegeu l'exterior de la màquina amb anunciamp tela.
• Wash the water tank, drip tray, and coffee grounds container with warm soapy water, then rinse thoroughly.

2. Omplir el dipòsit d'aigua:

• Traieu el dipòsit d’aigua de la màquina.
• Fill it with fresh, cold tap water up to the MAX level.
• Torneu a col·locar el dipòsit d'aigua a la màquina de manera segura.
• Opcional: Install the water filter provided in the box as per the filter instructions.

3. Omplir el recipient de grans:

• Obriu la tapa del recipient de les mongetes.
• Pour fresh, roasted coffee beans into the container. Do not use ground coffee, instant coffee, or caramelized beans.
• Tanqueu bé la tapa per conservar la frescor dels fesols.

4. First Use / Priming:

• Connecteu la màquina a una presa de corrent amb connexió a terra.
• Premeu el botó d'encesa per encendre la màquina.
• The machine will typically perform an automatic rinsing cycle. Place a container under the coffee outlet to collect the water.
• Follow any on-screen prompts or illumination warnings for initial setup, such as language selection or water hardness setting.

Instruccions de funcionament

1. Encendre/apagar:

• Encendre: Premeu el botó d'engegada (⏻ symbol) on the control panel. The machine will heat up and perform a rinse cycle.
• Apagar: Press and hold the power button. The machine will perform a final rinse cycle before shutting down.

2. Preparing Coffee:

• Place one or two cups under the coffee outlet. Adjust the height of the outlet to fit your cup.
• On the touchscreen, select your desired coffee type:
  • Ristretto: A very short, concentrated espresso.
  • Cafè espresso: A classic, strong coffee shot.
  • Cafè llarg: A larger volume coffee, similar to an Americano.
  • Filter Coffee: A milder, larger cup of coffee.
• Press the corresponding icon to start brewing. The machine will automatically grind the beans and brew the coffee.

3. Customizing Your Drink:

• Before brewing, you can often adjust settings like coffee strength (e.g., mild, medium, strong) and volume using the on-screen options.
• Some models allow saving customized recipes for quick access. Refer to the on-screen menu for "Custom Settings" or "My Recipes."

4. Hot Water Function:

• Select the "Hot Water" icon on the control panel.
• Col·loqueu una tassa sota el broquet de vapor.
• Press the button to dispense hot water for tea or other beverages.

5. Steam Function (Milk Frothing):

• Select the "Steam" icon. The machine will heat up to steam temperature.
• Fill a milk jug with cold milk.
• Submerge the steam nozzle into the milk.
• Activate the steam function (usually by pressing the steam button again or turning a knob).
• Move the jug up and down to create foam.
• Once desired foam is achieved, deactivate steam and clean the nozzle immediately.

Manteniment i Neteja

Regular cleaning ensures optimal performance and extends the lifespan of your coffee machine. The KRUPS Sensation features a fully automatic cleaning program for convenience.

1. Neteja diària:

• Safata de degoteig i contenidor de cafè mòlt: Empty and rinse daily. These components are usually dishwasher safe or can be washed by hand with warm soapy water.
• Botiga de cafè: Netegeu amb un anunciamp tela.
• Broquet de vapor: After each use, wipe the nozzle with a damp cloth. Run a short burst of steam to clear any milk residue from inside.

2. Automatic Cleaning Program:

• The machine will prompt you when a cleaning cycle is required, often indicated by illumination warnings on the display.
• Follow the on-screen instructions to initiate the "Clean Mode" program. This typically involves placing a container under the coffee outlet and adding a cleaning tablet (if required by the machine).

3. Descalcificació:

• The machine will indicate when descaling is necessary based on water hardness settings and usage.
• Use a descaling solution recommended by KRUPS.
• Follow the detailed instructions provided by the machine's display for the descaling process, which involves filling the water tank with the solution and running a cycle.

4. Water Filter Replacement:

• If you use a water filter, replace it regularly as indicated by the machine or every two to three months, depending on usage and water hardness.

Resolució de problemes

If you encounter issues with your KRUPS EA910B Sensation, refer to the table below for common problems and solutions. Illumination warnings on the display will often guide you to the specific issue.

Especificacions

Garantia i Suport

For warranty information and technical support, please refer to the warranty card included with your product or visit the official KRUPS weblloc web. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.

For further assistance, you may contact KRUPS customer service through their official channels.
