CAME 119RIY066 M6 Z12 By-3500T Pinion Replacement Part Instruction Manual

1. Introducció

This instruction manual provides essential information for the proper installation, maintenance, and safe use of the CAME 119RIY066 M6 Z12 By-3500T Pinion replacement part. This component is designed for specific CAME motor reducers, ensuring optimal performance and longevity of your gate or door automation system. Please read this manual thoroughly before proceeding with any installation or maintenance.

2. Informació de seguretat

• Instal·lació professional recomanada: Installation of this replacement part should ideally be performed by qualified technical personnel to ensure correct fitting and safe operation.
• Desconnexió d'alimentació: Always disconnect the main power supply to the motor reducer before beginning any installation, maintenance, or repair work. Failure to do so can result in electric shock or serious injury.
• Equips de protecció individual (EPI): Wear appropriate safety gear, such as gloves and eye protection, during installation and maintenance.
• Recanvis originals: Use only genuine CAME replacement parts to ensure compatibility and maintain the safety and performance standards of the original equipment.
• Inspeccionar per danys: Before installation, carefully inspect the new pinion for any signs of damage during transit. Do not install damaged parts.

3. Producte acabatview

The CAME 119RIY066 is a replacement pinion specifically designed for the By-3500T motor reducer. This component is crucial for the transmission of motion within the gate or door automation system. It features an M6 module and 12 teeth (Z12), ensuring precise engagement with the rack.

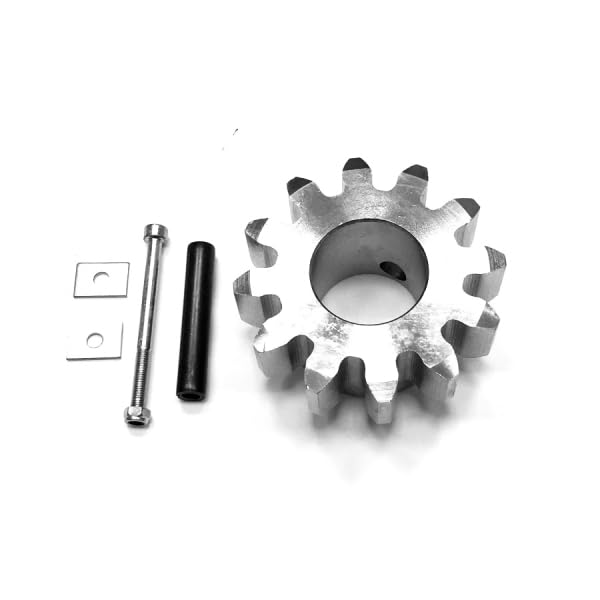

Figura 1: CAME 119RIY066 M6 Z12 By-3500T Pinion. This image shows the replacement pinion, a crucial gear component for CAME motor reducers, featuring its distinct tooth profile and mounting hub.

4. Instal·lació (Configuració)

Follow these general steps for replacing the pinion. Specific procedures may vary slightly depending on the exact motor reducer model. Always refer to the motor reducer's primary manual for detailed disassembly and reassembly instructions.

1. Preparar la zona de treball: Ensure the work area is clean, well-lit, and free from obstructions. Gather all necessary tools (e.g., wrenches, screwdrivers, circlip pliers).
2. Desconnecteu l'alimentació: Crucially, disconnect the main power supply to the motor reducer at the circuit breaker to prevent accidental activation.
3. Access the Motor Reducer: Carefully open the motor reducer housing to gain access to the existing pinion. This may involve removing covers or other components.
4. Remove Old Pinion: Identify how the old pinion is secured (e.g., set screws, keyway, circlip). Loosen or remove the fasteners and carefully extract the worn or damaged pinion. Note its orientation and position for correct installation of the new part.
5. Components nets: Clean any debris, old grease, or metal shavings from the motor shaft and surrounding components before installing the new pinion.
6. Install New Pinion: Carefully slide the new CAME 119RIY066 pinion onto the motor shaft, ensuring it aligns correctly with any keyways or grooves. Position it precisely as the old one was.
7. Secure Pinion: Secure the new pinion using the appropriate fasteners (e.g., tighten set screws, install circlips). Ensure it is firmly seated and does not wobble.
8. Remuntar i provar: Reassemble the motor reducer housing. Before restoring full power, manually check for smooth rotation and proper engagement. Once confirmed, restore power and perform functional tests of the gate or door system, ensuring smooth and quiet operation.

5. Funcionament

The CAME 119RIY066 pinion is a mechanical drive component. Its "operation" is integral to the motor reducer's function. Once correctly installed, it works in conjunction with the motor and the gate rack to transmit rotational motion, thereby opening and closing the gate or door. Proper installation ensures smooth, efficient, and reliable movement of the automated system.

6. Manteniment

Regular maintenance helps extend the life of the pinion and the entire motor reducer system.

• Inspecció periòdica: Annually, or more frequently in high-usage environments, inspect the pinion for signs of wear, damage, or corrosion. Check for loose fasteners.
• Neteja: Keep the pinion and surrounding gear area free from dirt, dust, and debris. Use a brush or compressed air for cleaning.
• Lubricació: Consult the motor reducer's main manual for specific lubrication requirements. If lubrication is recommended for the pinion, use the specified type of grease or oil sparingly to prevent accumulation of dirt.
• Check Rack Engagement: Ensure the pinion maintains proper engagement with the gate rack. Incorrect engagement can lead to premature wear.

7. Solució De Problemes

If you experience issues after replacing the pinion, consider the following:

• Sorolls de grinyol: This may indicate improper pinion-to-rack engagement, insufficient lubrication, or debris in the gear mechanism. Re-check alignment and clean/lubricate as necessary.
• Gate Not Moving Smoothly: Check if the pinion is securely fastened to the motor shaft. Ensure there are no obstructions in the gate's path or on the rack.
• Pinion Appears Loose: Re-tighten any set screws or check for proper installation of retaining clips. Ensure the shaft is clean and free of burrs.
• Fallada del sistema: If the system fails to operate after installation, ensure all power connections are secure and that the motor reducer's internal components are correctly reassembled. If issues persist, contact qualified technical support.

8. Especificacions

9. Garantia i Suport

This CAME replacement part is covered by the manufacturer's standard warranty against defects in materials and workmanship. The duration and terms of the warranty may vary by region. Please retain your proof of purchase for warranty claims.

For technical support, warranty service, or further assistance, please contact your authorized CAME dealer or the official CAME customer service in your region. Using non-genuine parts or improper installation may void the product warranty.
