1. Informació important de seguretat
Si us plau, llegiu atentament totes les instruccions de seguretat abans d'utilitzar aquest producte. Conserveu aquest manual per a futures consultes.
- Font d'alimentació: Assegureu-vos que la font d'alimentació voltage matches the rating label on the TV.
- Ventilació: No bloquegeu les obertures de ventilació. Deixeu prou espai al voltant del televisor per a un flux d'aire adequat.
- Aigua i humitat: No exposeu el televisor a la pluja ni a la humitat. No col·loqueu objectes plens de líquids a sobre del televisor.
- Neteja: Desendolleu el televisor abans de netejar-lo. Feu servir un drap suau i sec. No utilitzeu netejadors líquids ni aerosols.
- Muntatge: When wall-mounting, ensure the mount is suitable for the TV's weight and the wall structure.
- Nens: Supervise children to ensure they do not play with the TV.
2. Producte acabatview
The CHiQ U55QM8E is a 55-inch 4K QLED Smart TV featuring Google TV. It offers stunning visual clarity with 4K resolution and QLED technology, providing a wide color gamut and HDR support. The integrated Google TV platform allows access to a vast array of streaming content and applications. It also includes voice control, built-in Chromecast, and immersive audio technologies like Dolby Audio and DBX-TV.

Figura 2.1: Davant view of the CHiQ 55-inch 4K QLED Google TV, highlighting its slim design and QLED display.

Figura 2.2: lateral view of the CHiQ 55-inch 4K QLED Google TV, showing its thin profile.

Figura 2.3: posterior view of the CHiQ 55-inch 4K QLED Google TV, illustrating the various input and output ports.
3. Configuració i instal·lació
3.1 Contingut del paquet
Marqueu la casella per als elements següents:
- CHiQ 55-inch 4K QLED Google TV
- Control remot (amb 2 piles AAA)
- Stand Bases (2 pcs)
- Cargols per al suport
- Cable d'alimentació
- Manual d'usuari (aquest document)
3.2 Desembalatge
Traieu amb cura el televisor i tots els accessoris de l'embalatge. Conserveu els materials d'embalatge per a futures necessitats de transport o manteniment.
3.3 Col·locació del suport
Place the TV face down on a soft, flat surface. Align the stand bases with the corresponding slots on the bottom of the TV. Secure them with the provided screws.
3.4 Muntatge a la paret (opcional)
This TV supports VESA wall mounts. The recommended wall mount support is 200*200/M6. Ensure you use a compatible wall mount kit (sold separately) and follow its instructions carefully. It is recommended to have professional installation for wall mounting.
3.5 Connexió de perifèrics
El televisor ofereix diverses opcions de connectivitat:
- HDMI 2.1: For connecting high-definition devices like Blu-ray players, game consoles, or set-top boxes. (3 ports available)
- USB 2.0: Per connectar dispositius d'emmagatzematge USB per reproduir contingut multimèdia files. (2 ports available)
- LAN (Ethernet): Per a una connexió a Internet per cable.
- Ranura CI: For Common Interface modules.
- Auricular: Per connectar auriculars.
- Entrada AV: Per connectar dispositius analògics més antics.
- Sortida d'àudio digital: Per connectar a sistemes d'àudio externs.
- FORMIGA: For connecting an antenna for digital TV broadcasts. (2 ports available)

Figura 3.1: The included remote control for the CHiQ Google TV, featuring dedicated buttons for popular streaming services and voice control.
3.6 Assistent d'encesa inicial i configuració
After connecting all necessary cables, plug the power cord into an electrical outlet. The TV will power on and guide you through the initial setup process, including language selection, network connection (Wi-Fi or Ethernet), and Google account sign-in.
4. Instruccions de funcionament
4.1 Interfície de Google TV
The CHiQ U55QM8E runs on the Google TV operating system, providing a personalized home screen that aggregates content from your subscriptions and apps. You can easily browse movies, TV shows, and live TV from various services.

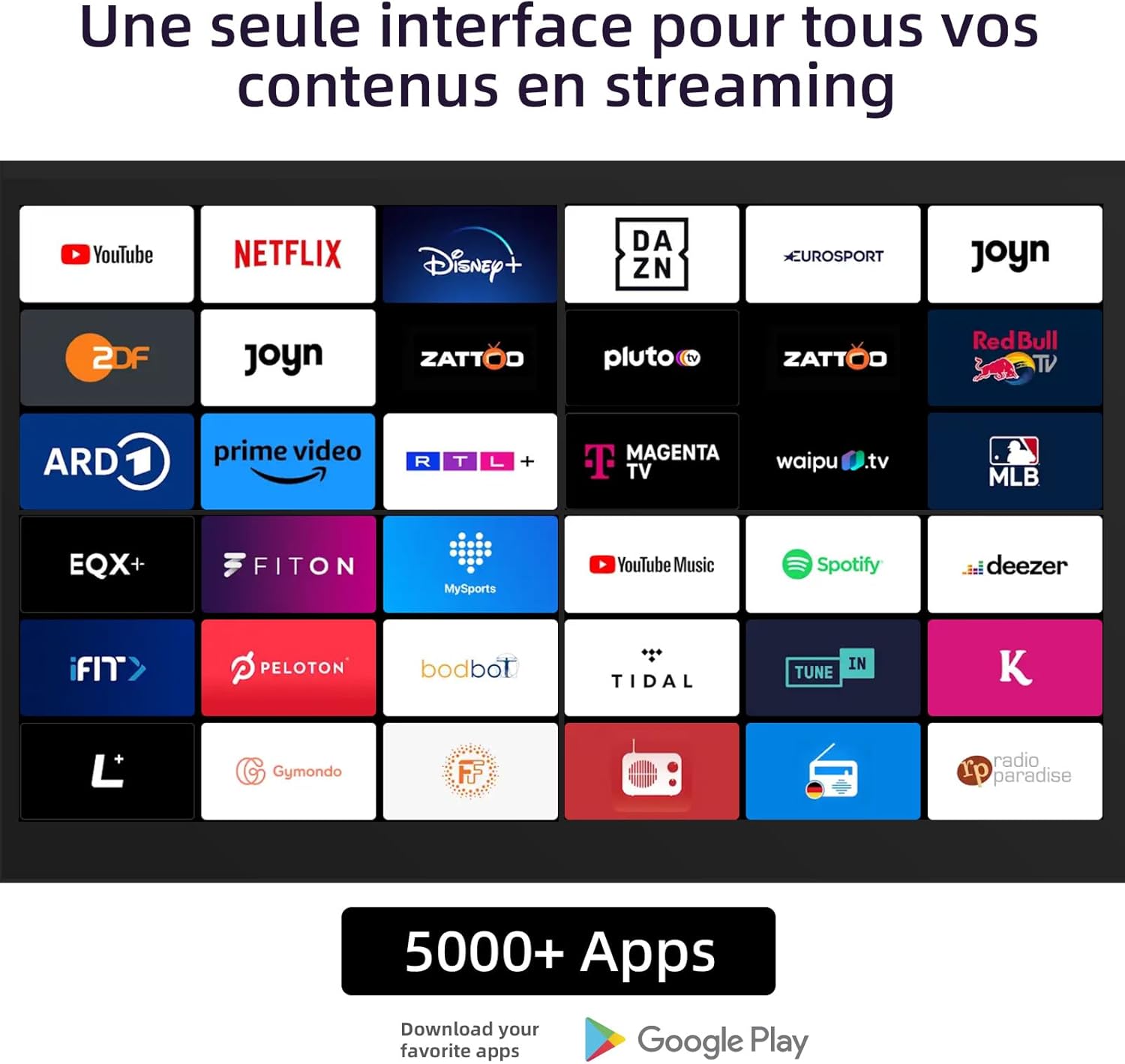

Figura 4.1: The Google TV interface, displaying a wide range of supported streaming applications and content services.
4.2 Control de veu
The included remote control features a built-in microphone for voice commands. Press the Google Assistant button on the remote and speak your command to search for content, control smart home devices, or get information.
4.3 Chromecast integrat
With Chromecast built-in, you can cast content directly from your compatible smartphone, tablet, or computer to the TV screen. Simply tap the Cast icon in your favorite apps.
4.4 Instal·lació de l'aplicació
Access the Google Play Store directly from your TV to download and install over 5,000 popular applications, including streaming services, games, and utility apps.
4.5 Configuració d'imatge i so
Navigate to the settings menu to adjust picture modes (e.g., Standard, Vivid, Movie), brightness, contrast, and color. For audio, you can select sound modes, adjust equalizer settings, and enable/disable Dolby Audio or DBX-TV enhancements.

Figura 4.2: Visual representation of the 4K QLED display technology, highlighting its capability to produce 1.07 billion colors and support HDR for enhanced visual experience.
5. Manteniment i cura
Proper maintenance ensures the longevity of your CHiQ TV.
- Neteja de pantalla: Netegeu suaument la pantalla amb un drap suau i sense borrissol. Per a marques difícils, netegeu lleugerament.ampNetegeu el drap amb aigua o un netejador de pantalles especialitzat (no ruixeu directament sobre la pantalla).
- Neteja d'armaris: Netegeu el moble del televisor amb un drap suau i sec. Eviteu utilitzar productes de neteja o dissolvents abrasius.
- Eliminació de pols: Use a soft brush or a vacuum cleaner with a brush attachment to remove dust from ventilation openings.
- Cable d'alimentació: Regularly check the power cord for any damage. If damaged, replace it immediately with an authorized service part.
6. Solució De Problemes
Si teniu problemes amb el televisor, consulteu els problemes i solucions més comuns següents:
| Problema | Causa possible | Solució |
|---|---|---|
| Sense poder | Cable d'alimentació no connectat; presa de corrent no funciona. | Comproveu la connexió del cable d'alimentació; proveu la presa de corrent amb un altre dispositiu. |
| No hi ha imatge, però hi ha so | Font d'entrada incorrecta seleccionada; problema de retroiluminació. | Verify input source; contact customer support if issue persists. |
| No hi ha so, però hi ha imatge | Volum silenciat o massa baix; configuració de sortida d'àudio incorrecta. | Unmute or increase volume; check audio output settings. |
| El control remot no funciona | Piles esgotades o incorrectament inserides; obstrucció. | Replace batteries (2 AAA included); remove obstructions between remote and TV. |
| No es pot connectar a la Wi-Fi | Contrasenya incorrecta; problema amb el router; televisor massa lluny del router. | Re-enter password; restart router; move TV closer or use Ethernet. |
7. Especificacions
Detailed technical specifications for the CHiQ U55QM8E TV.
| Característica | Especificació |
|---|---|
| Número de model | U55QM8E |
| Marca | XiQ |
| Mida de la pantalla | 55 polzades |
| Tecnologia de visualització | LCD QLED |
| Resolució | 4K (3840 x 2160 píxels) |
| Freqüència d'actualització | 60 Hz |
| Sistema operatiu | Google TV |
| RAM | 2 GB |
| ROM | 16 GB |
| Connectivitat | Ethernet, USB (2.0 x 2), Wi-Fi (Dual-Band 2.4/5GHz), Bluetooth (5.0), HDMI (2.1 x 3), CI, Earphone, AV In, Digital Audio Out, ANT (x 2) |
| Tecnologia d'àudio | Dolby Audio, DBX-TV |
| Característiques especials | Google TV, QLED, Voice Control, Chromecast built-in, HDR, Frameless Metallic Design |
| Font d'alimentació | AC100-240V / 50-60HZ |
| Power Consumption (On-mode SDR) | 84 W |
| Power Consumption (On-mode HDR) | 84 W |
| Consum d'energia (mode d'espera) | 0.7 W |
| Consum d'energia (mode apagat) | 0.5 W |
| Dimensions del producte (W x D x H) | 122.6 x 27.4 x 76.7 cm (amb suport) |
| Suport de muntatge a la paret | 200*200/M6 |
| Classe d'eficiència energètica (SDR) | G |
| Consum d'energia (SDR) | 84 kWh/1000h |
| Classe d'eficiència energètica (HDR) | G |
| Consum d'energia (HDR) | 84 kWh/1000h |
| Actualitzacions de programari garantides fins a | 8 Years (from market placement date) |
| Spare Parts Availability Guaranteed Until | 7 Years (from market placement date) |

Figura 7.1: EU Energy Label for the CHiQ U55QM8E TV, indicating its energy efficiency class and consumption.
Per a més detalls, consulteu la base de dades oficial EPREL de la UE: https://eprel.ec.europa.eu/qr/1742909

Figura 7.2: Dimensional drawing of the CHiQ 55-inch 4K QLED Google TV, showing height, width, and depth measurements.
8. Garantia i Suport
CHiQ provides comprehensive support for its products.
- Garantia del producte: The minimum product warranty is 2 years.
- Actualitzacions de programari: Guaranteed software updates for up to 8 years from the date of market placement.
- Recanvis: Guaranteed availability of spare parts for up to 7 years from the date of market placement.
- Devolucions: Política de devolució de 30 dies sense motiu, devolucions gestionades per Amazon.
- Línia directa en línia: Online hotline supported by professional staff on weekdays.
Per a més ajuda, visiteu el suport oficial de CHiQ. weblloc web o contacteu amb la seva línia directa d'atenció al client.
