Welcome to your new OLEVS Automatic Mechanical Watch. This manual provides detailed instructions for setting up, operating, and maintaining your timepiece to ensure its longevity and accurate performance. Please read this guide carefully before using your watch.
Característiques del producte
Disseny elegant: Features a 42mm grey dial with brilliant diamonds and Roman numerals, complemented by a tourbillon skeleton for a luxurious and high-end appearance.
Moviment mecànic automàtic: Equipped with an imported automatic mechanical movement that supports both self-winding and manual winding. No batteries are required, and it boasts a power reserve of over 45 hours.
Construcció duradora: Crafted from high-quality silver stainless steel, polished multiple times for a refined finish. The butterfly buckle ensures a secure and comfortable fit.
Dial multifuncional: Includes luminous hands for low-light visibility and dedicated windows for Year-month-day-week-calendar, providing accurate time and date information.
Resistència a l'aigua: Rated at 30M (100 ft) water resistance, suitable for splashes or short-term immersion, but not for diving or hot baths.
Preparat per a regals: Comes in an elegant gift box, making it an ideal present.
Configuració
Enrotllament inicial
Your OLEVS automatic watch is powered by the movement of your wrist. For initial setup or after the watch has stopped, it needs to be manually wound to build up a power reserve.
Gently pull out the crown to the first position.
Rotate the crown clockwise approximately 30-40 times.
Empènyer la corona cap a dins.
The watch will then continue to wind itself with regular wear.
Establiment de l'hora
Per configurar l'hora:
Pull the crown out to the outermost position (usually the second click).
Rotate the crown to move the hands clockwise until the correct time is displayed.
Push the crown back in to secure the setting.
Adjusting the Date, Day, and Year/Month
The watch features subdials for day, date, and a window for year/month. Refer to the diagrams below for knob and button locations.
This image displays a detailed side view of the OLEVS watch, highlighting the adjustment points. It shows the main crown on the right for time and winding, and two concealed buttons on the left side for adjusting the year and week.
This image illustrates the various functions on the watch face, including the year and month window, week subdial, date subdial, and the visible skeleton tourbillon. It also shows the main crown for month adjustment and time setting, and left adjustment buttons for year and week.
Date Adjustment (Right Side Knob): Pull the crown out to the first position and rotate it to change the date.
Year/Month Adjustment (Left Side Button 1): Use a small tool (like the provided pin) to gently press the upper concealed button on the left side to advance the year.
Week Adjustment (Left Side Button 2): Use a small tool to gently press the lower concealed button on the left side to advance the day of the week.
Ajust de banda
The watch comes with a strap adjustment tool to help you resize the band for a comfortable fit. For detailed instructions on adding or removing links, please refer to the included separate band adjustment guide or contact customer support if you require assistance.
Funcionament del rellotge
Moviment automàtic
The OLEVS automatic watch is powered by the natural motion of your arm. When worn regularly, the rotor inside the watch winds the mainspring, providing continuous power.
If the watch is not worn for an extended period, it may stop. Simply wind it manually as described in the "Initial Winding" section, or wear it for several hours to restart the movement.
Pantalla lluminosa
The watch features luminous hands and markers for visibility in low-light conditions.
To activate the luminescence, expose the watch to a strong light source (natural sunlight or artificial light) for approximately 15 minutes. The stored light energy will then allow the hands and markers to glow.
This image shows the OLEVS watch in a dark setting, with its hands and hour markers glowing brightly due to the luminous coating, demonstrating its visibility in low light.
Manteniment i cura
Resistència a l'aigua
Your OLEVS watch is 30M (100 ft) water resistant. This means it can withstand splashes, rain, and brief immersion in water.
Important: This watch is NOT suitable for diving, swimming, or hot baths/showers. Exposure to hot water or steam can damage the seals and compromise water resistance.
This image shows the OLEVS watch with water splashing around it, illustrating its 30-meter water resistance feature.
This image depicts the OLEVS watch partially submerged in water, emphasizing its water-resistant capabilities for daily use.
Neteja
Per mantenir l'aspecte del rellotge:
Wipe the case and strap regularly with a soft, dry cloth.
For stainless steel bands, a slightly damp es pot utilitzar un drap, seguit d'assecat immediat.
Eviteu utilitzar productes químics agressius, dissolvents o netejadors abrasius.
Emmagatzematge
When not wearing your watch, store it in a cool, dry place, away from direct sunlight, extreme temperatures, and strong magnetic fields. The original gift box is ideal for storage.
Resolució de problemes
Problema
Causa possible
Solució
Watch stops or runs inaccurately
Insufficient power reserve
Manually wind the watch (30-40 turns of the crown) or wear it consistently for several hours.
Date/Day/Year not changing correctly
Incorrect setting or setting during restricted hours (e.g., 9 PM - 3 AM)
Adjust the time to avoid the restricted period, then set the date/day/year.
Condensació dins del rellotge
Exposure to extreme temperature changes or compromised water resistance
Immediately take the watch to a qualified watchmaker for inspection and repair. Do not attempt to open it yourself.
Band is too tight/loose
Incorrect band size
Use the provided tool to adjust links, or seek professional assistance.
Especificacions
Característica
Detall
Diàmetre de la caixa
42 mm
Gruix de la caixa
13 mm
Amplada de la corretja
20 mm
Longitud de la corretja
21 cm
Pes net
149 g
Moviment
Imported Automatic Mechanical Movement
Resistència a l'aigua
30 M (100 peus)
Número de model de l'article
TJ-S-G6701GB-BG
Fabricant
OLEVS
Garantia i Suport
OLEVS watches are designed for durability and precision. If you encounter any problems with your watch, please feel free to contact OLEVS customer support via email. They are committed to resolving any issues as soon as possible.
For specific warranty details, please refer to the warranty card included with your purchase or visit the official OLEVS weblloc.
Producte acabatview (Imatges)
Imatges del producte

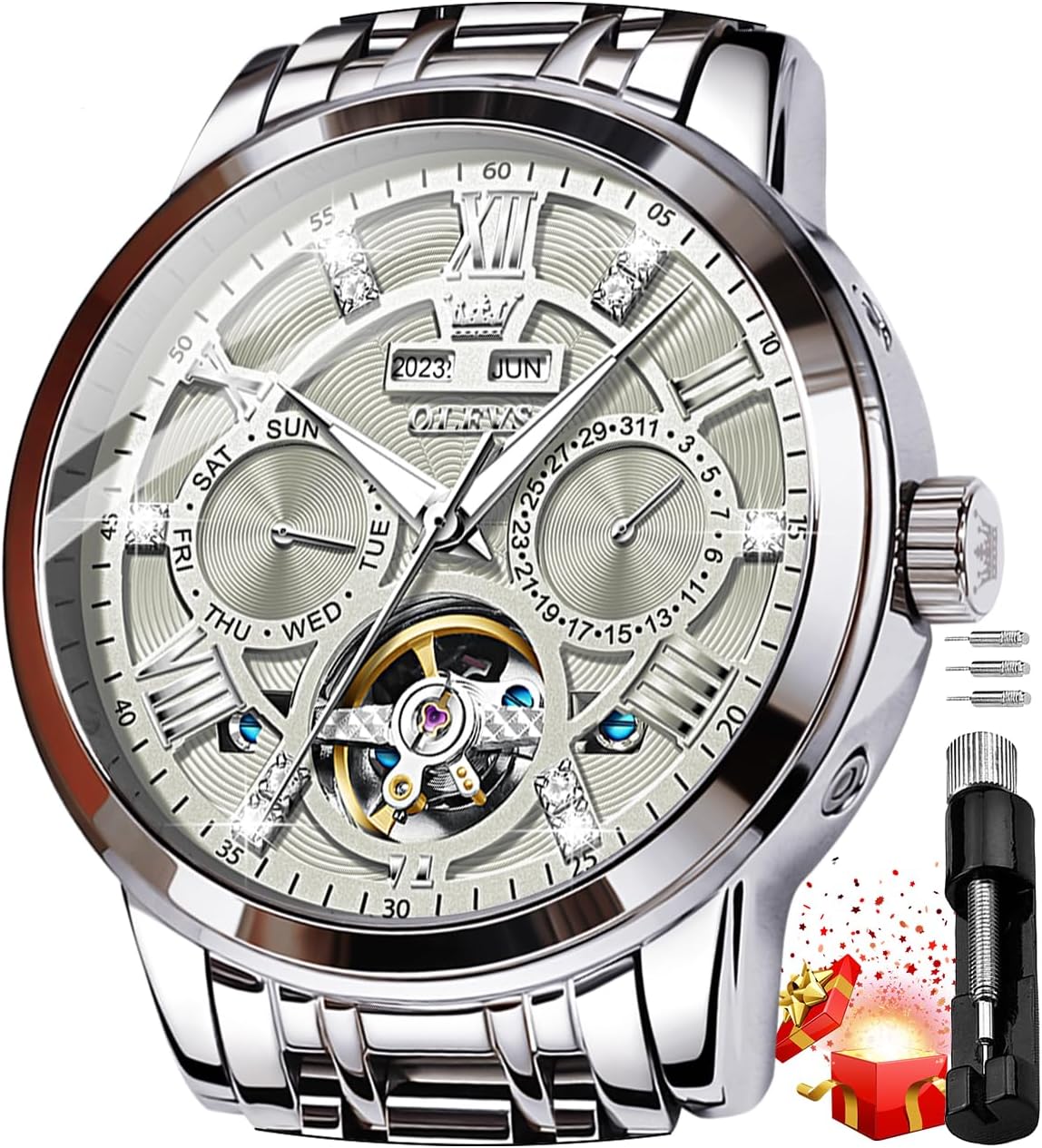

The main product image showcasing the OLEVS automatic watch along with its included accessories like the strap adjustment tool and gift box.
A lifestyle shot of the OLEVS watch being worn on a man's wrist, highlighting its stylish appearance.
Un primer pla detallat view of the watch's skeleton flywheel mechanical movement, showcasing its intricate craftsmanship.
An image illustrating the multi-functional dial design, highlighting the day, date, and year/month subdials.
