1. Producte acabatview
The ALLPOWERS R2500 Portable Power Station is a high-capacity, versatile power solution designed for both indoor and outdoor use. Featuring a robust 2016Wh LiFePO4 battery, it delivers a pure sine wave output of 2500W (with a peak of 4000W), capable of powering a wide range of appliances. This unit is bundled with the ALLPOWERS SP037 400W Foldable Solar Panel, offering efficient solar recharging capabilities. Advanced Battery Management System (BMS) ensures safe and reliable operation, while the integrated Uninterruptible Power Supply (UPS) function provides seamless power during outages.
Image 1.1: ALLPOWERS R2500 Portable Power Station with SP037 Solar Panel.
The R2500 is equipped with multiple output ports, including AC outlets, USB-C and USB-A ports, DC ports, and a 30A RV outlet, making it suitable for various applications from home backup to remote work sites and camping. The accompanying SP037 solar panel is foldable, lightweight, and boasts up to 22% energy conversion efficiency, allowing for effective solar energy harvesting.
Vídeo 1.1: Acabatview of the ALLPOWERS R2500 Portable Power Station features and components.
2. Guia de configuració
2.1 Desembalatge i inspecció inicial
Upon receiving your ALLPOWERS R2500 and SP037 Solar Panel, carefully unbox all components. Verify that the package contains the R2500 Power Station, SP037 Solar Panel, AC charging cable, solar charging cables (MC4 to XT60), and the user manual. Inspect all items for any signs of damage during transit. If any components are missing or damaged, contact customer support immediately.
2.2 Power Station Placement
Place the R2500 Power Station on a stable, flat surface. Ensure adequate ventilation around the unit to prevent overheating. Avoid placing it in direct sunlight or in environments with extreme temperatures or high humidity.
2.3 Solar Panel Deployment
Unfold the SP037 Solar Panel. Utilize the integrated adjustable kickstands to position the panel at an optimal angle towards the sun for maximum energy absorption. Ensure the panel is stable and not prone to falling over.
Image 2.1: SP037 Solar Panel deployed with adjustable kickstands for optimal sun exposure.
3. Instruccions de funcionament
3.1 Engegada/apagada
Press and hold the main power button on the front panel of the R2500 to turn the unit on or off. The display will illuminate, showing battery percentage, entrada/sortida wattage, i el temps d'execució restant.
3.2 ports de sortida
The R2500 offers a variety of output options:
- AC Outlets (4x 2500W): For standard household appliances. Press the AC button to activate.
- RV Outlet (1x 30A): For recreational vehicles.
- USB-C Ports (2x PD 100W): For fast charging laptops and compatible mobile devices.
- USB-A Ports (4x, 18W/12W): For charging various USB-powered devices.
- DC Ports (2x): For specific DC-powered devices.
- Car Socket (1x): For 12V car accessories.
Activate specific output sections (USB, AC, DC) by pressing their respective buttons on the front panel.

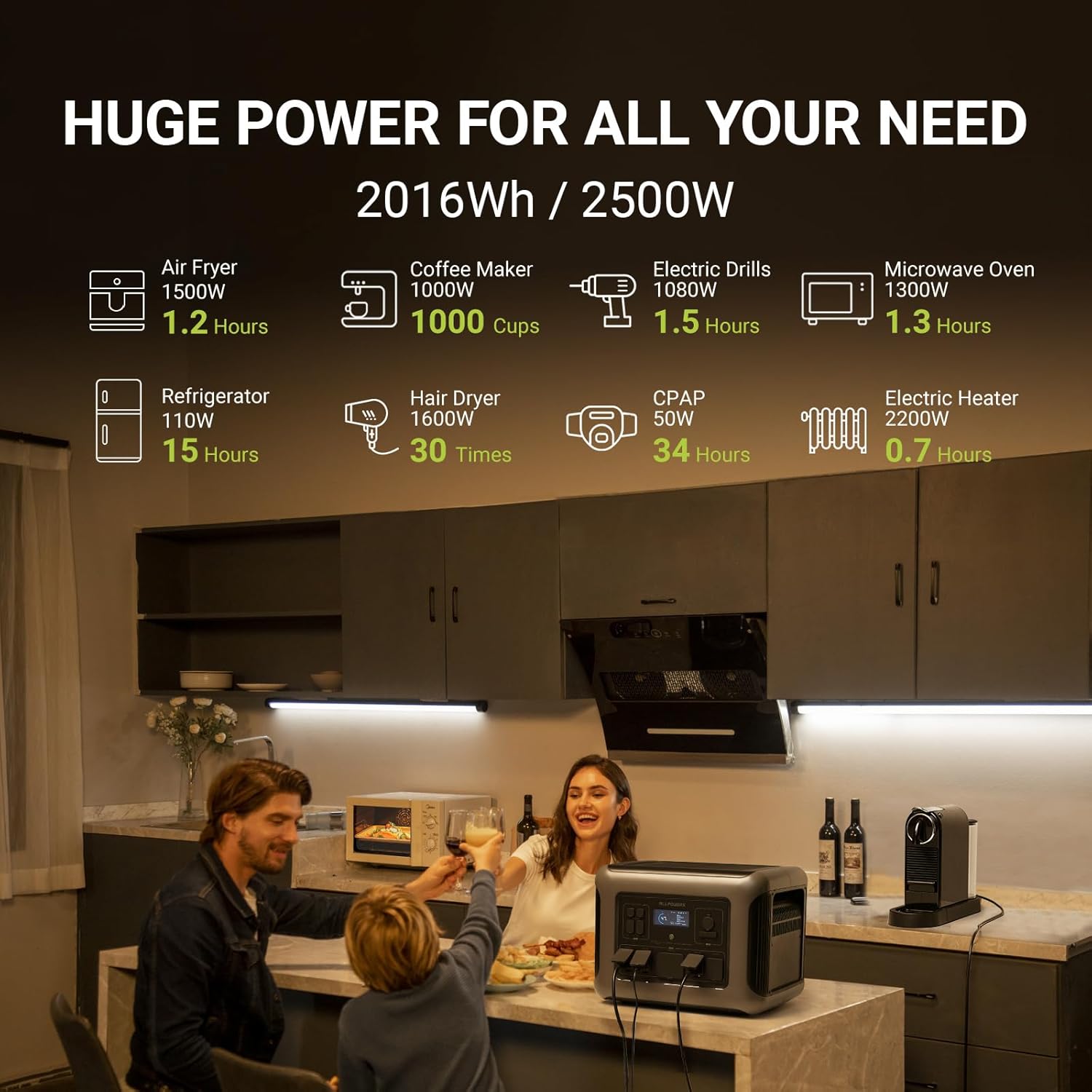

Image 3.1: The R2500 powering multiple household appliances simultaneously.
3.3 Càrrega de la central elèctrica
L'R2500 admet diversos mètodes de càrrega:
- Càrrega de paret de CA: Connect the provided AC charging cable to the input port on the back of the R2500 and then to a wall outlet. This method offers fast recharging.
- Càrrega solar: Connect the SP037 Solar Panel to the solar input port on the back of the R2500 using the provided MC4 to XT60 cable. Position the solar panel in direct sunlight for optimal charging.
- Càrrega del cotxe: Use a DC car charging cable (not always included, check package contents) to charge the R2500 from your vehicle's 12V car socket.

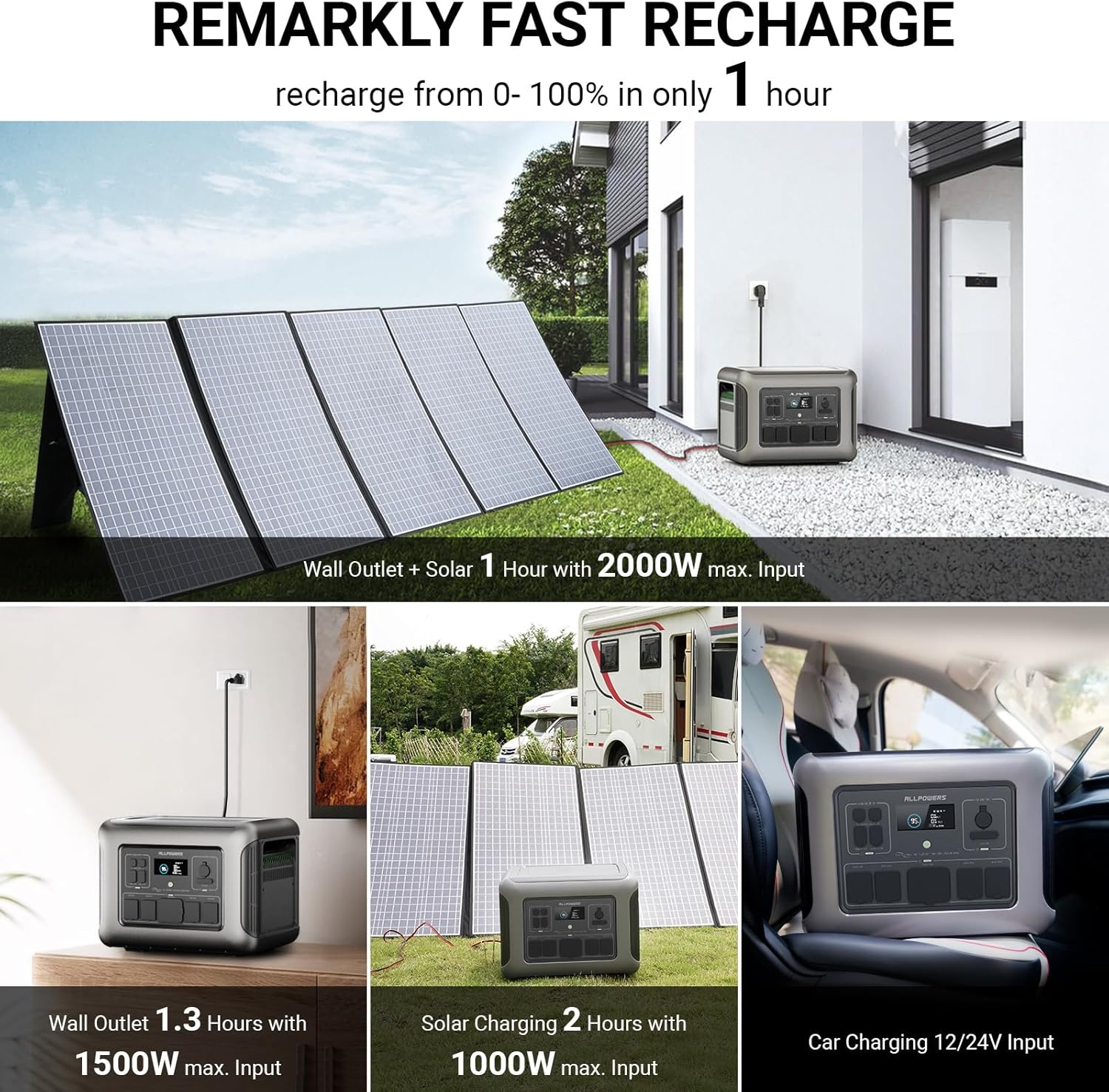

Image 3.2: Various fast charging methods for the R2500 Power Station.
3.4 UPS Function
The R2500 features an Uninterruptible Power Supply (UPS) function. When connected to an AC wall outlet and simultaneously powering devices, the R2500 can automatically switch to battery power in less than 15 milliseconds during a power outage. This ensures continuous operation for critical devices like CPAP machines, computers, and refrigerators.
Image 3.3: R2500 providing uninterrupted power during an outage.
3.5 App Smart Remote Control
Monitor, control, and optimize your power usage with the ALLPOWERS app. The app connects via Wi-Fi or Bluetooth, allowing you to check power levels, adjust settings, and perform firmware updates remotely.
4. Manteniment
4.1 Battery Lifespan
The R2500 utilizes a LiFePO4 battery designed for longevity. It maintains over 80% of its maximum capacity after 3500 charge cycles and over 50% after 6500 cycles, ensuring a lifespan of more than 10 years under normal usage conditions.
4.2 Sistema de gestió de la bateria (BMS)
The advanced BMS protection system continuously monitors voltage, current, and temperature to ensure the safety and optimal performance of the R2500 in all circumstances. This includes protection against overcharge, overcurrent, and short circuits.
4.3 Mode Eco
Utilize the Eco mode feature to automatically shut down the R2500 at a fixed time, conserving battery life when not in active use.
4.4 Cura dels panells solars
The SP037 Solar Panel is IP67 water-resistant, making it durable for various outdoor conditions. However, avoid submerging it in water. Clean the solar panel surface regularly to ensure maximum efficiency.
5. Solució De Problemes
While the R2500 is designed for reliable operation, should you encounter any issues, refer to the user manual for detailed troubleshooting steps. The integrated BMS provides multiple layers of protection, and error codes may appear on the display to indicate specific issues. For persistent problems, contact ALLPOWERS customer support.
6. Especificacions
6.1 ALLPOWERS R2500 Portable Power Station
- Marca: ALPODERS
- Nom del model: R2500
- Tipus de bateria: LiFePO4
- Capacitat: 2016 Wh
- Potència nominal: 2500 W (pic 4000 W)
- Vol. De sortidatage: 110 volts (CA)
- Total de preses de corrent: 4x AC, 1x RV, 2x USB-C (PD 100W), 4x USB-A (18W/12W), 2x DC, 1x Car Socket
- Funció UPS: <15ms switchover
- Connectivitat: Wi-Fi, Bluetooth
- Dimensions del producte: 17.95 cm de llargada x 14.17 cm d'amplada x 13.62 cm d'alçada
- Material: Steel/Aluminum, Plastic/Rubber, LiFePO4
- Color: Negre
6.2 ALLPOWERS SP037 400W Solar Panel
- Potència màxima: 400W
- Laminació de cèl·lules solars: ETFE
- Tipus de cel·la: Silici policristalí
- Eficiència: Fins al 22%
- Circuit obert Voltage (Voc): 45.3 V
- Potència màxima Voltage (Vmp): 37.4 V
- Corrent de curtcircuit (ISC): 11.45A
- Corrent de potència màxima (Imp): 10.6A
- Resistència a l'aigua: IP67
- Mida desplegada: 105 * 266 * 0.5 cm
- Mida plegada: 105 * 53.2 * 6.5 cm
- Pes net: 18.5 kg
Image 6.1: Detailed specifications of the SP037 400W Solar Panel.
7. Garantia i Suport
The ALLPOWERS R2500 Portable Power Station is eligible for a 4-Year Protection Plan. For warranty activation and further support, please refer to the warranty card included in your package or visit the official ALLPOWERS website. The user manual also contains contact information for customer service.
