Introducció
This manual provides essential instructions for setting up, operating, maintaining, and troubleshooting your Radxa RS308-D4W Rock Pi S single-board computer. Please read this manual carefully before using the device to ensure proper functionality and longevity.
The Radxa RS308-D4W Rock Pi S is a compact and versatile single-board computer designed for various embedded projects, development, and educational purposes. It features a Rockchip RK3588 chipset, 512MB DDR3 RAM, and multiple connectivity options including Bluetooth and 4 HDMI ports.

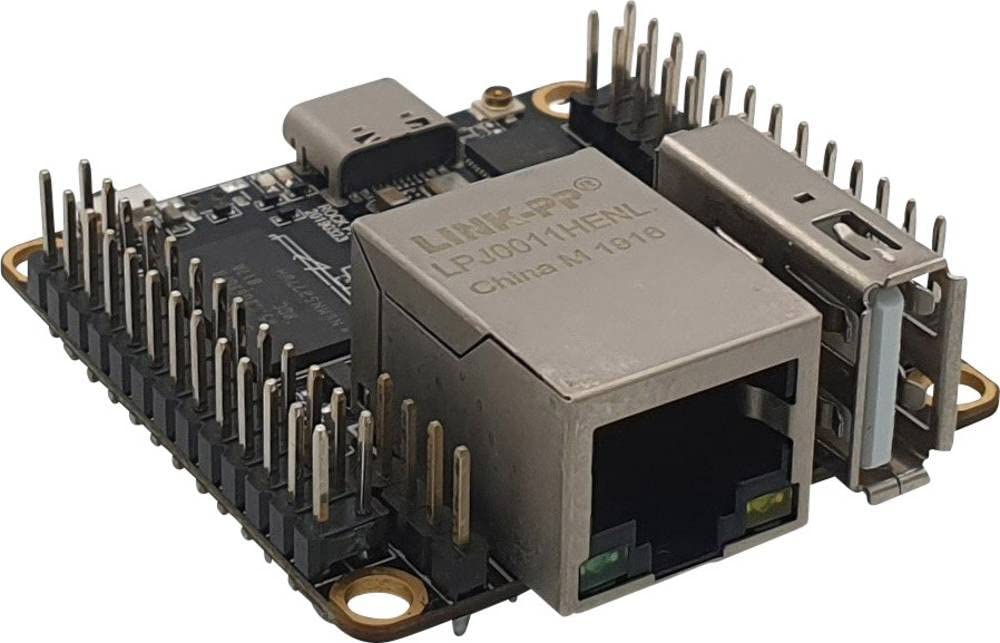

Figura 1: The Radxa RS308-D4W Rock Pi S single-board computer, showcasinel seu disseny compacte i els seus diversos ports.
Configuració
1. Contingut del paquet
Assegureu-vos que tots els components siguin presents al vostre paquet:
- Radxa RS308-D4W Rock Pi S board
- (Optional, depending on retailer) Power adapter
- (Optional, depending on retailer) MicroSD card with pre-installed OS
2. Connexions inicials
- Font d'alimentació: Connect a compatible 5V power supply to the board's power input. Ensure the power supply provides sufficient current for stable operation.
- Emmagatzematge: Insert a MicroSD card (with a compatible operating system image) into the MicroSD card slot.
- Visualització: Connect a monitor or display device to one of the available HDMI ports using an HDMI cable.
- Perifèrics: Connect any necessary USB peripherals (keyboard, mouse) to the USB ports.
- Xarxa: For wired network access, connect an Ethernet cable to the Ethernet port (if available on your specific variant). For wireless, ensure Bluetooth is enabled and configured in your OS.
Nota: Always ensure the power supply is disconnected before making or changing any connections to prevent damage to the board or peripherals.
Instruccions de funcionament
1. Encès
Once all connections are made, connect the power supply to a wall outlet. The board should automatically power on, and the operating system will begin to boot. Observe the status LEDs for boot indicators.
2. Operating System Access
Follow the on-screen prompts to complete the initial setup of your operating system. This typically involves setting up user accounts, network connections, and system preferences.
3. Connectivitat Bluetooth
The Radxa RS308-D4W supports Bluetooth connectivity. To connect Bluetooth devices:
- Assegureu-vos que el dispositiu Bluetooth estigui en mode d'emparellament.
- Navigate to the Bluetooth settings within your operating system.
- Scan for available devices and select your device to pair.
- Seguiu les instruccions a la pantalla per completar el procés de vinculació.
4. Using HDMI Ports
The board is equipped with 4 HDMI ports. These can be used for connecting multiple displays or for specific applications requiring multiple video outputs. Refer to your operating system's display settings for configuring multi-monitor setups.
Manteniment
1. Neteja
To maintain optimal performance, keep the board clean and free from dust. Use a soft, dry cloth or a can of compressed air to gently remove dust from the components and ports. Avoid using liquid cleaners directly on the board.
2. Actualitzacions de programari
Regularly update your operating system and installed software to ensure security, stability, and access to the latest features. Refer to your operating system's documentation for instructions on how to perform updates.
Nota: Software updates are guaranteed until an unknown date. It is recommended to check the official Radxa website for the latest information and support resources.
3. Consideracions ambientals
Operate the Radxa RS308-D4W in a well-ventilated area, away from direct sunlight, excessive heat, humidity, and strong electromagnetic fields. Avoid exposing the board to liquids or corrosive substances.
Resolució de problemes
- Sense energia:
- Assegureu-vos que l'adaptador de corrent estigui connectat correctament i funcioni.
- Verifiqueu que la presa de corrent estigui activa.
- Check the power supply specifications to ensure it meets the board's requirements.
- Sense sortida de pantalla:
- Confirm the HDMI cable is securely connected to both the board and the monitor.
- Prova un altre port o cable HDMI.
- Assegureu-vos que el monitor estigui configurat a la font d'entrada correcta.
- Verify that the operating system image on the MicroSD card is valid and properly installed.
- Problemes de connectivitat Bluetooth:
- Ensure Bluetooth is enabled in the operating system settings.
- Check if the Bluetooth device is in pairing mode and within range.
- Restart the board and try pairing again.
- Inestabilitat/congelació del sistema:
- Ensure adequate cooling for the board, especially under heavy load.
- Verify the power supply is stable and provides sufficient current.
- Check for corrupted files a la targeta MicroSD.
- Update the operating system and drivers.
Especificacions
| Característica | Detall |
|---|---|
| Marca | Radxa |
| Número de model | RS308-D4W |
| Socket de CPU | LGA 200 |
| Tipus de xipset | Rockchip RK3588 |
| Tecnologia de RAM | DDR3 |
| Maximum RAM Size | 512 MB |
| Interfície gràfica | Integrat |
| Tipus sense fil | Bluetooth |
| Ports HDMI | 4 |
| Connector d'alimentació principal | 24 pins |
| Dispositius compatibles | PC |
| Primera data disponible | 14 d'octubre de 2023 |
Informació de la garantia
Radxa provides a warranty for a minimum period of 2 years from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
For detailed warranty terms and conditions, please refer to the official Radxa weblloc o contacteu amb el servei d'atenció al client.
Suport
For further assistance, technical support, or to download the latest documentation and software images, please visit the official Radxa weblloc.
Weblloc: www.radxa.com
When contacting support, please have your product model number (RS308-D4W) and purchase information readily available.
