Manual d'usuari de Bush Furniture Westbrook High Bookcase amb 5 prestatgeries i portes de vidre

Introducció

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your Bush Furniture Westbrook Tall 5 Shelf Bookcase with Glass Doors. Please read this manual thoroughly before beginning assembly or use to ensure proper installation and safe operation.

The Bush Furniture Westbrook Tall 5 Shelf Bookcase features a modern farmhouse style with windowpane glass doors and matte black handles. It offers versatile storage with two fixed shelves and three adjustable shelves, designed to accommodate various items. The unit includes Tip Guard™ safety features for enhanced stability.

Informació important de seguretat

ADVERTÈNCIA: Si no es segueixen aquestes instruccions de seguretat, es poden produir lesions o danys materials.

• Always anchor the bookcase to the wall using the provided Tip Guard™ safety hardware to prevent tipping. This is crucial for household safety, especially in homes with children or pets.
• Each shelf supports a maximum weight of 50 pounds. Do not exceed this weight limit to prevent structural damage or collapse.
• Ensure all fasteners are securely tightened during assembly. Periodically check and re-tighten fasteners as needed.
• Do not climb on or stand on the bookcase.
• Keep small parts and assembly hardware away from children during assembly to prevent choking hazards.
• Assemble the unit on a soft, clean surface to prevent scratching.

For additional safety information, refer to the pàgina del producte or contact Bush Furniture customer support.

Contingut del paquet

Before beginning assembly, verify that all parts and hardware are present. If any items are missing or damaged, do not proceed with assembly. Contact customer service for replacement parts.

Components:

• Panells laterals (2)
• Tauler superior (1)
• Panell inferior (1)
• Fixed Shelves (2)
• Prestatgeries ajustables (3)
• Panell posterior (1)
• Portes de vidre (2)
• Door Handles (2)
• Assembly Hardware (screws, dowels, cam locks, shelf pins, wall anchor kit)

Eines necessàries (no incloses):

• Tornavís Phillips
• Martell
• Cinta mètrica
• Nivell
• Drill (for wall anchoring)

Muntatge i muntatge

Assembly is required for this product. It is recommended to have two people for assembly. Follow the step-by-step instructions provided in the packaging. Below are general guidelines and important considerations.

Pas 1: preparar l'àrea

Clear a spacious area for assembly. Lay down a blanket or cardboard to protect both the furniture components and your flooring from scratches.

Pas 2: munta el marc

Attach the side panels to the bottom panel using the specified hardware. Ensure all cam locks and dowels are properly aligned and secured. Then, attach the fixed shelves.

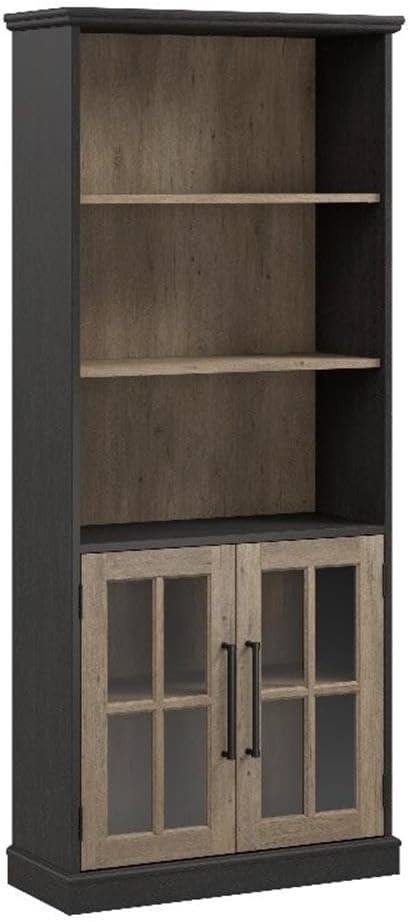

Imatge: Frontal view of the assembled Bush Furniture Westbrook Tall 5 Shelf Bookcase.

Step 3: Install Back Panel and Top Panel

Carefully align and attach the back panel. Ensure it is square with the frame before securing it with small nails. Then, attach the top panel.

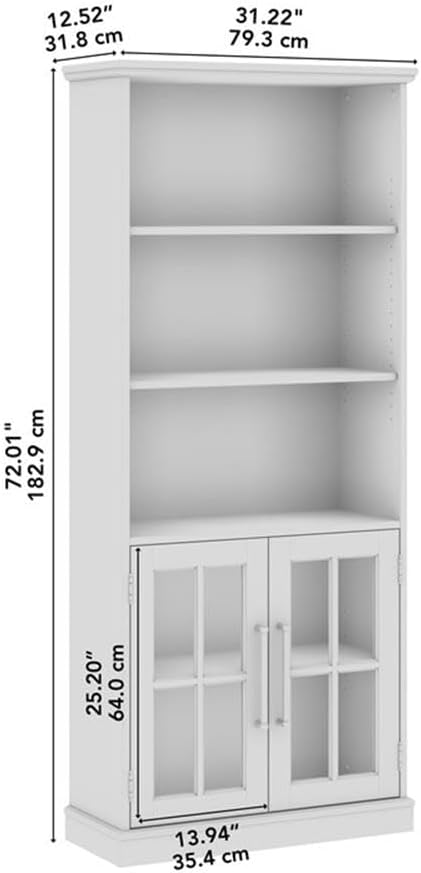

Image: Diagram showing the dimensions of the Bush Furniture Westbrook Tall 5 Shelf Bookcase.

Step 4: Install Adjustable Shelves and Doors

Insert shelf pins into the desired holes for the adjustable shelves. Place the adjustable shelves onto the pins. Attach the glass doors using the provided hinges and install the matte black handles.

Image: Diagram highlighting key features of the bookcase, including wall attachment hardware, modern farmhouse styling, attractive windowpane glass doors, long matte black handles, and three adjustable shelves.

Step 5: Wall Anchoring (Crucial Safety Step)

It is mandatory to anchor the bookcase to a wall to prevent tipping. Use the included Tip Guard™ safety hardware. Locate a wall stud for secure attachment or use appropriate wall anchors for your wall type.

1. Position the bookcase in its final desired location.
2. Mark the wall where the anti-tip strap will attach.
3. Drill a pilot hole if necessary and secure the wall bracket.
4. Attach the strap to the bookcase and then to the wall bracket, ensuring it is taut.

Instruccions de funcionament

Your Westbrook Bookcase is designed for organizing and displaying items in your home office or living room.

• Prestatges ajustables: To adjust a shelf, remove all items from it, then carefully lift the shelf and remove the shelf pins. Reinsert the pins into the desired holes and place the shelf back on the pins. Ensure pins are fully seated before placing items on the shelf.
• Portes de vidre: The glass doors provide enclosed storage. Use the handles to open and close them gently. Avoid slamming the doors to prevent damage to hinges or glass.
• Distribució de pes: Distribute weight evenly across shelves. Place heavier items on lower shelves for better stability. Do not overload any single shelf beyond 50 pounds.

Manteniment

Regular maintenance will help prolong the life and appearance of your bookcase.

• Neteja: Netegeu les superfícies amb un suau, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the finish. For glass doors, use a standard glass cleaner.
• Maquinari: Periodically check all screws, bolts, and cam locks to ensure they are tight. Re-tighten as necessary.
• Condicions ambientals: Avoid placing the bookcase in direct sunlight or near heat sources, as this can cause fading or warping. Maintain a stable room temperature and humidity.

Resolució de problemes

Especificacions

• Model: WBB132V2R-03
• Marca: Bush Home
• Approximate Dimensions (W x D x H): 31.22" x 12.52" x 72.01" (79.3 cm x 31.8 cm x 182.9 cm)
• Pes: 93.1 lliures
• Material: Engineered Wood, Glass (doors)
• Color: Vintage Black/Restored Tan Hickory
• Nombre de prestatgeries: 5 (2 fixes, 3 ajustables)
• Límit de pes per prestatge: 50 lliures
• Muntatge requerit: Sí
• Característiques especials: Adjustable Shelves, Wall Mount (Tip Guard™ safety features)

Informació de la garantia

This Bush Furniture product is backed by the Bush Furniture 1 Year Manufacturer’s Warranty. This warranty covers defects in materials and workmanship under normal use. For specific terms, conditions, and to make a warranty claim, please refer to the official Bush Furniture weblloc o poseu-vos en contacte amb el seu departament d'atenció al client.

Atenció al client

If you have any questions regarding assembly, missing parts, or product functionality, please contact Bush Furniture customer support:

• Weblloc: Visita el Bush Home Store on Amazon per a més informació i opcions de contacte.
• Telèfon: Refer to the contact information provided in your product packaging or on the official Bush Furniture weblloc.
