1. Introducció
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your iMaihom 60W LED Flood Light. Please read these instructions thoroughly before use and retain them for future reference.
Figure 1: iMaihom 60W LED Flood Light
2. Informació de seguretat
- Desconnecteu sempre l'alimentació abans de la instal·lació o el manteniment.
- Assegureu-vos que la font d'alimentació voltage coincideix amb els requisits del producte.
- This product is designed for outdoor use and has an IP65 waterproof rating. Ensure all connections are secure to maintain water resistance.
- Do not look directly into the LED light source when illuminated, as it may cause eye strain.
- Do not modify or alter the product in any way. Unauthorized modifications may void the warranty and create safety hazards.
- Mantenir allunyat de materials inflamables.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents i no estiguin danyats:
- 1 x iMaihom 60W LED Flood Light with attached power cord
- 1 x Suport de muntatge
- 1 x Junta
- Screws and Wall Anchors (various sizes for different mounting surfaces)
- Manual d'instruccions
4. Característiques del producte
- Alta brillantor i eficiència energètica: Equipped with 98 high-quality LED chips, this 60W flood light delivers up to 6000 lumens of bright 6500K daylight white illumination, equivalent to a 500W halogen bulb, saving over 80% on electricity costs.
- Disseny de connectors: Features a convenient 4.9ft power cord with a plug for easy installation into any standard wall outlet, eliminating complex wiring.
- Capçals ajustables: Three independently adjustable light heads allow for flexible aiming, providing a wide lighting area of up to 1150 sq. ft.
- Impermeable IP65: Constructed with an IP65 rating, ensuring reliable operation in various outdoor weather conditions, including rain, sleet, and snow.
- Construcció duradora: Made from resilient die-cast aluminum with a fin-shaped design for efficient heat dissipation, extending the product's lifespan and maintaining consistent performance.
Figure 2: Bright illumination for outdoor areas.
Figure 3: Adjustable heads provide broad lighting coverage.

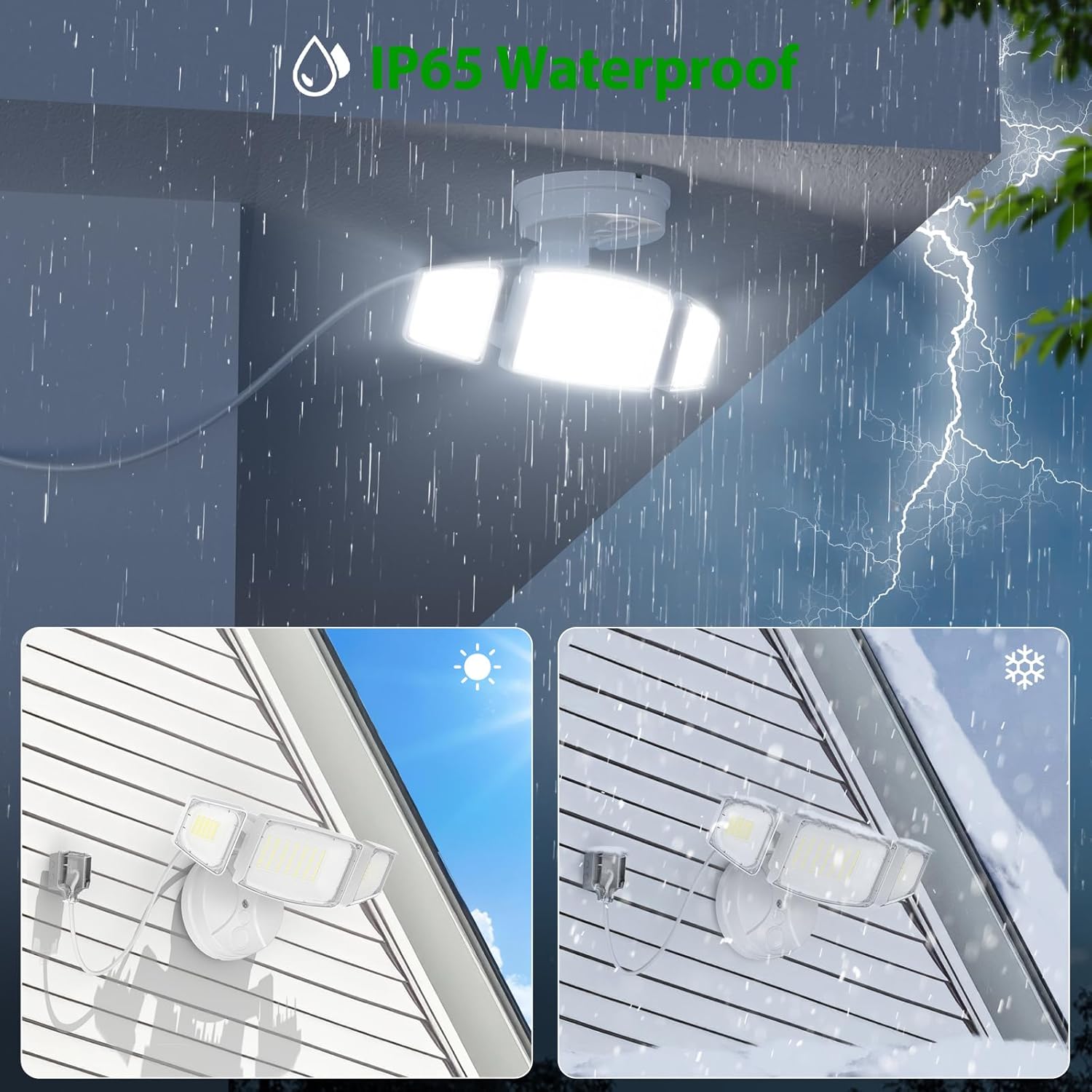

Figure 4: IP65 waterproof design for all-weather reliability.
5. Instal·lació
The iMaihom 60W LED Flood Light is designed for easy, plug-in installation. It can be wall-mounted or soffit-mounted.
- Prepareu la superfície de muntatge: Choose a suitable location on a wall or soffit that can support the light's weight and provides access to a standard outdoor electrical outlet.
- Col·loqueu el suport de muntatge: Use the provided screws and wall anchors to securely attach the mounting bracket to the desired surface. Ensure the bracket is level.
- Mount the Flood Light: Align the flood light's base with the mounting bracket and secure it using the provided screws. Ensure the gasket is properly seated between the light's base and the mounting surface to maintain water resistance.
- Connecteu-vos a l'alimentació: Plug the 4.9ft power cord into a standard outdoor electrical outlet. For optimal weather protection, use a weatherproof outlet cover (not included).
- Ajustar els capçals de llum: Loosen the screws on the side of each light head to adjust their angle and direction as needed. Tighten the screws once the desired position is achieved.
Figure 5: Installation steps for the plug-in flood light.
Guia de vídeo d'instal·lació
Video 1: Official product video demonstrating installation and features of the iMaihom 60W Flood Light.
6. Instruccions de funcionament
The iMaihom 60W LED Flood Light is controlled by an external switch (not included). Once properly installed and plugged into a power source, simply use the wall switch connected to the outlet to turn the light ON or OFF.
Figura 6: El focus es controla mitjançant un interruptor de paret estàndard.
7. Manteniment
- Neteja: Netegeu periòdicament la lluminària amb un drap suau iamp cloth. Do not use abrasive cleaners or solvents. Ensure the light is off and unplugged before cleaning.
- Inspecció: Regularly check the power cord and plug for any signs of damage. Inspect the mounting hardware for tightness.
- LED: The LED light source is not replaceable. The expected lifespan of the LEDs is long, ensuring years of maintenance-free operation.
8. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s'encén. | No hi ha corrent a la presa de corrent. Connexió fluixa. Faulty light fixture. | Comproveu l’interruptor automàtic. Assegureu-vos que l'endoll estigui completament inserit a la presa de corrent. Contacteu amb el servei d'atenció al client si el problema persisteix. |
| La llum és tènue o parpelleja. | Font d'alimentació inestable. Damaged cord or internal components. | Assegureu-vos que la font d'alimentació sigui estable. Unplug and re-plug the light. Contacta amb l'assistència al client. |
9. Especificacions
| Característica | Especificació |
|---|---|
| Marca | iMaihom |
| Nom del model | BDD65-3 |
| Wattage | 60 watts |
| Brillantor | 6000 lúmens |
| Temperatura de color | 6500 Kelvin (blanc llum del dia) |
| Nivell de resistència a l'aigua | Impermeable IP65 |
| Material | Alumini |
| Font d'alimentació | Elèctric amb cable |
| Voltage | 120 volts (CA) |
| Dimensions del producte | 12.3 cm de llargada x 5.1 cm d'amplada x 5.4 cm d'alçada |
| Pes de l'article | 1.79 lliures |
| Característiques especials | 3 Adjustable Heads, Plug-in, Switch Controlled |
10. Garantia i Suport
This iMaihom 60W LED Flood Light comes with a 2 any de garantia from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use. It does not cover damage caused by improper installation, misuse, accidents, or unauthorized modifications.
For warranty claims, technical support, or any questions regarding your product, please contact iMaihom customer service through the retailer where the product was purchased or visit the official iMaihom store online.
Thank you for choosing iMaihom.
