Hetoy 24V Ride On Truck for Kids - Instruction Manual

1. Informació de seguretat

Please read this entire manual before assembling or operating the Hetoy 24V Ride On Truck. Failure to follow these instructions may result in serious injury or property damage. Keep this manual for future reference.

Pautes generals de seguretat:

• Límits d'edat i pes: This product is designed for children aged 3 to 8 years old. The maximum weight capacity is 88 lbs (40 kg). Do not exceed these limits.
• Supervisió d'adults: Constant adult supervision is required during operation. Never leave a child unattended while using the ride-on truck.
• Equip de protecció: Always ensure the child wears appropriate safety gear, such as a helmet and knee pads, when operating the vehicle.
• Seients: Ensure all occupants are properly seated and secured with the safety belts provided. This vehicle is designed for 1-2 children.
• Entorn de funcionament: Operate the vehicle on flat, dry surfaces away from roads, swimming pools, steep inclines, or other hazardous areas. Avoid operating in wet conditions, snow, or on loose terrain like sand or gravel, which can affect stability and control.
• Frenatge: The vehicle features a soft start mode and uniform deceleration for safe stopping. Braking time is approximately 0.5 seconds.
• Seguretat de la bateria: Only use the provided charger and battery. Do not modify the electrical system. Keep the battery away from heat sources and moisture.

Figure 1: Illustration of the vehicle's safety soft driving system, demonstrating quick braking and uniform deceleration for enhanced child safety.

2. Producte acabatview

The Hetoy 24V Ride On Truck is an electric UTV designed for children, featuring a robust build and multiple functionalities for an engaging play experience.

Característiques principals:

• Motors potents: Equipped with four 200W motors for 4WD capability.
• Bateria de llarga durada: Features a 24V 7AH rechargeable battery, providing 60-120 minutes of drive time per charge.
• Sistema de suspensió: Four-wheel spring suspension ensures a smooth and comfortable ride over various terrains.
• Disseny de dos places: Spacious cabin accommodates 1-2 children.
• Comandament a distància: Parental remote control for younger children (1-3 years) with emergency brake and speed settings.
• Multi-Function Console: Includes one-key start, pre-set music, USB/Bluetooth connectivity for external audio, horn, engine sounds, and LED lights.
• Llit d'abocament: Functional tipping bucket trunk for storage.
• Certificacions de seguretat: ASTM and CPSIA certified for product safety.

Figure 2: The Hetoy 24V Ride On Truck, illustrating its two-seater capacity and overall design.

Figure 3: Details of the powerful 24V 7AH battery and four 200W motors, highlighting the vehicle's power system.

Figura 4: Detallada view of the truck's features, including the light switch, safety seatbelt, handrails, and functional dump bed.

3. Muntatge i muntatge

This section provides general guidance for assembling your Hetoy Ride On Truck. Refer to the detailed assembly instructions included in your product packaging for specific steps and diagrams.

Desembalatge i inspecció inicial:

1. Traieu amb cura tots els components de l'embalatge.
2. Verify that all parts listed in the packing list are present and undamaged. Contact customer support immediately if any parts are missing or damaged.

General Assembly Steps (Consult included manual for details):

1. Instal·lació de rodes: Fixeu les rodes als eixos, assegurant-vos que estiguin ben fixades.
2. Muntatge del volant: Connect the steering column and attach the steering wheel.
3. Instal·lació del seient: Secure the seat(s) into position.
4. Connexió de la bateria: Connect the battery terminals as instructed. Ensure proper polarity.
5. Accessori adjunt: Install any remaining accessories such as mirrors, windshield, or the dump bed.

Initial Battery Charging:

Before first use, fully charge the battery for 8-12 hours. Do not overcharge. Refer to the 'Maintenance' section for detailed charging instructions.

4. Instruccions de funcionament

The Hetoy Ride On Truck offers two primary operating modes: manual driving by the child and parental remote control.

Manual Driving Mode (Ages 3-8):

1. Encès: Press the 'One-Key Start' button on the dashboard.
2. Seleccioneu la velocitat: Use the High/Low Speed switch on the dashboard to select the desired speed.
3. Direcció: Use the Forward/Backward switch to select driving direction.
4. Acceleració: Premeu el pedal per accelerar. Deixeu anar el pedal per frenar.
5. Direcció: Utilitzeu el volant per controlar la direcció.
6. Lights/Sounds: Use the dedicated buttons on the dashboard for LED lights, horn, and engine sounds.

Parental Remote Control Mode (Ages 1-3):

The remote control allows parents to fully control the vehicle for younger children, ensuring their safety and guiding their ride.

1. Maridatge: Seguiu les instruccions del manual específic per emparellar el comandament a distància amb el vehicle.
2. Encès: Ensure the vehicle is powered on.
3. Moviment: Use the joystick or directional buttons on the remote to move the vehicle forward, backward, left, and right.
4. Control de velocitat: Use the 'S' button on the remote to select one of the 3 variable speeds.
5. Fre d'emergència: Press the 'P' button on the remote to activate the emergency brake, stopping the vehicle immediately.

Figure 5: Illustration of both manual and remote control operation modes, with a child driving and an adult using the remote.

Figure 6: Detailed layout of the multifunction dashboard and remote control, indicating buttons for speed, lights, music, power, and direction.

Funcions multimèdia:

• Reproductor de música: The control console has pre-set music. Use the 'Music Switch' and 'Volume +/-' buttons to control playback.
• Àudio extern: Connect a phone via Bluetooth or insert a USB drive to play your child's favorite songs or stories.

5. Manteniment

Proper maintenance ensures the longevity and safe operation of your Hetoy Ride On Truck.

Cura i càrrega de la bateria:

• Temps de càrrega: Charge the battery for 8-12 hours before first use and after each use. Do not charge for more than 18 hours to prevent battery damage.
• Indicador de càrrega: The dashboard may display a charging indicator.
• Emmagatzematge: If storing the vehicle for an extended period, charge the battery fully every 30 days to maintain battery health.
• Carregador: Utilitzeu només el carregador subministrat amb el producte.

Neteja i emmagatzematge:

• Neteja: Netegeu el vehicle amb un suau, damp drap. No utilitzeu productes de neteja abrasius ni dissolvents. Eviteu ruixar aigua directament sobre els components elèctrics.
• Emmagatzematge: Store the vehicle in a dry, cool place, away from direct sunlight and moisture.

6. Solució De Problemes

This section addresses common issues you might encounter with your Hetoy Ride On Truck.

Problemes comuns i solucions:

• Vehicle Does Not Move:
  • Comproveu si la bateria està completament carregada.
  • Assegureu-vos que totes les connexions elèctriques siguin segures.
  • Verifiqueu que l'interruptor d'alimentació estigui en la posició 'ON'.
  • Check if the remote control is paired and not overriding manual operation.
• No Sound from Music Player/Horn:
  • Check the volume level on the dashboard.
  • Ensure external devices (USB/Bluetooth) are properly connected and playing.
  • Inspect speaker connections (if accessible and safe to do so).
• El control remot no funciona:
  • Substituïu les piles del comandament a distància.
  • Re-pair the remote control with the vehicle according to the pairing instructions.
• Reduced Power or Short Drive Time:
  • Ensure the battery is fully charged for the recommended duration (8-12 hours).
  • La bateria pot estar a punt d'esgotar-se i calgui substituir-la.
  • Operating on rough terrain or carrying maximum weight can reduce drive time.

If you encounter issues not listed here or if the problem persists after attempting these solutions, please contact Hetoy customer support.

7. Especificacions

Detailed technical specifications for the Hetoy 24V Ride On Truck.

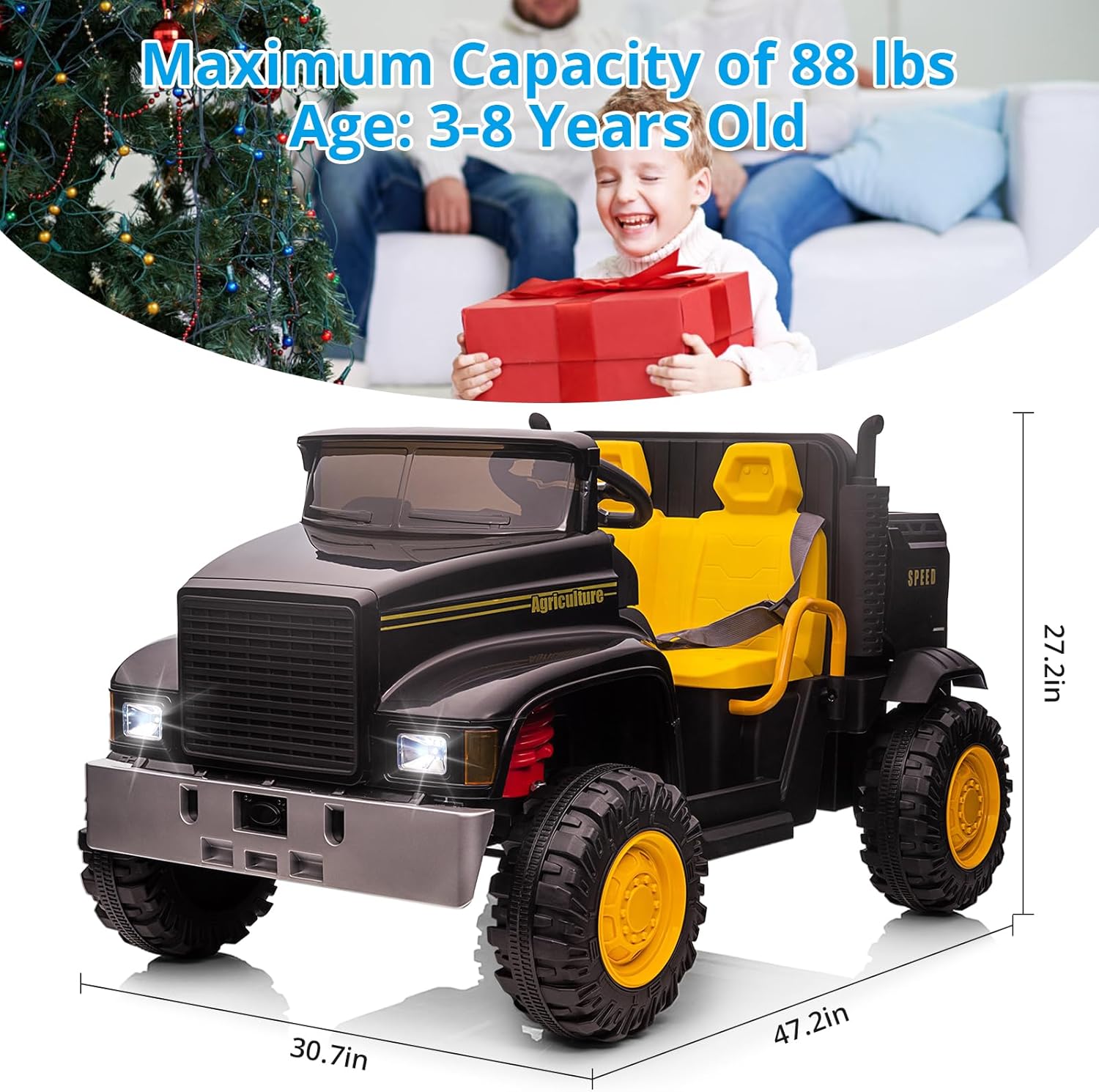

Figure 7: Visual representation of the truck's dimensions and maximum weight/age recommendations.

8. Garantia i Suport

Hetoy is committed to providing quality products and customer satisfaction.

Atenció al client:

For any questions, concerns, or assistance with your Hetoy Ride On Truck, please contact our customer support team. Refer to your purchase documentation or the Hetoy official weblloc per obtenir informació de contacte.

Informació de la garantia:

Specific warranty details are typically provided with your product at the time of purchase. Please retain your proof of purchase for any warranty claims. The warranty generally covers manufacturing defects under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
