PAGANI DESIGN 1777 Men's Multifunction Automatic Mechanical Watch User Manual

1. Introducció

Thank you for choosing the PAGANI DESIGN 1777 Automatic Mechanical Watch. This manual provides essential information for the proper setup, operation, and maintenance of your timepiece. Please read it carefully to ensure optimal performance and longevity of your watch.

Contingut del paquet:

• PAGANI DESIGN 1777 Watch
• Caixa Original
• Manual d'usuari (aquest document)
• Drap de neteja
• Eina d'ajust de corretja

Image 1.1: The PAGANI DESIGN 1777 watch, showcasing its skeleton dial and stainless steel bracelet.

2. Producte acabatview

The PAGANI DESIGN 1777 is a multifunction automatic mechanical watch featuring a distinctive skeleton dial, allowing visibility of the intricate HZ2196G movement. It is equipped with a rainbow bezel, luminous hands and markers, and a durable stainless steel construction.

Imatge 2.1: Un primer pla view of the watch dial, highlighting the skeletonized design and sub-dials.

3. Configuració

3.1 Enrotllament inicial

As an automatic mechanical watch, the 1777 is powered by the motion of your wrist. However, for the first use or after a period of inactivity, manual winding is required to initiate power reserve.

1. Assegureu-vos que la corona estigui a la posició 1 (completament empenta cap a dins).
2. Rotate the crown clockwise 20-25 times. This will build up sufficient power reserve for the watch to start running.

3.2 Configuració de l'hora i la data

The watch features a crown with multiple positions for setting the time and date functions.

• Position 1 (Pushed In): Normal operating position. Manual winding (clockwise rotation) is possible in this position.
• Position 2 (Pulled Out One Click): Rotate the crown to adjust the date and day of the week. Avoid setting the date between 9 PM and 3 AM to prevent damage to the movement.
• Position 3 (Pulled Out Two Clicks): Rotate the crown to set the time. Once the time is set, push the crown back to Position 1.

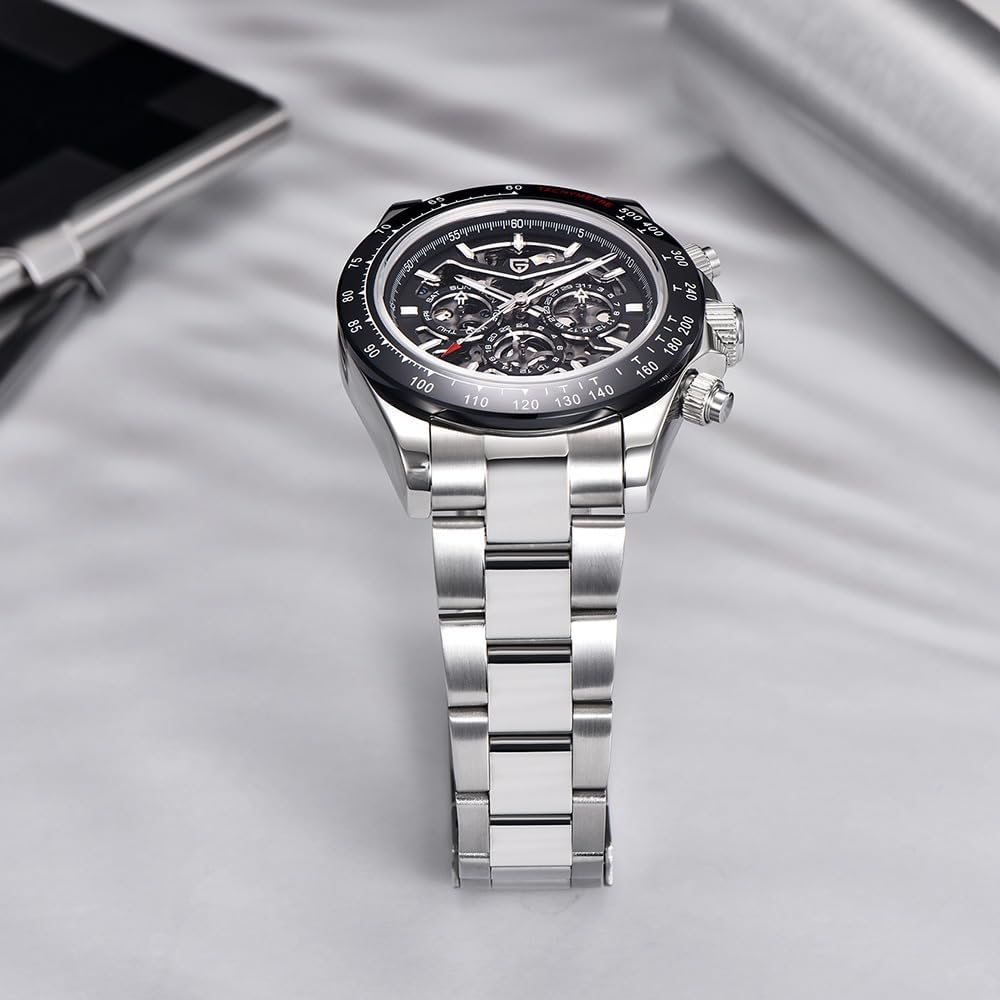

Imatge 3.1: Lateral view of the watch, illustrating the crown and its positions for setting.

3.3 Ajust de la corretja

The stainless steel strap can be adjusted to fit your wrist using the included strap adjustment tool. If you are unfamiliar with this process, it is recommended to seek assistance from a professional watchmaker to avoid damaging the bracelet.

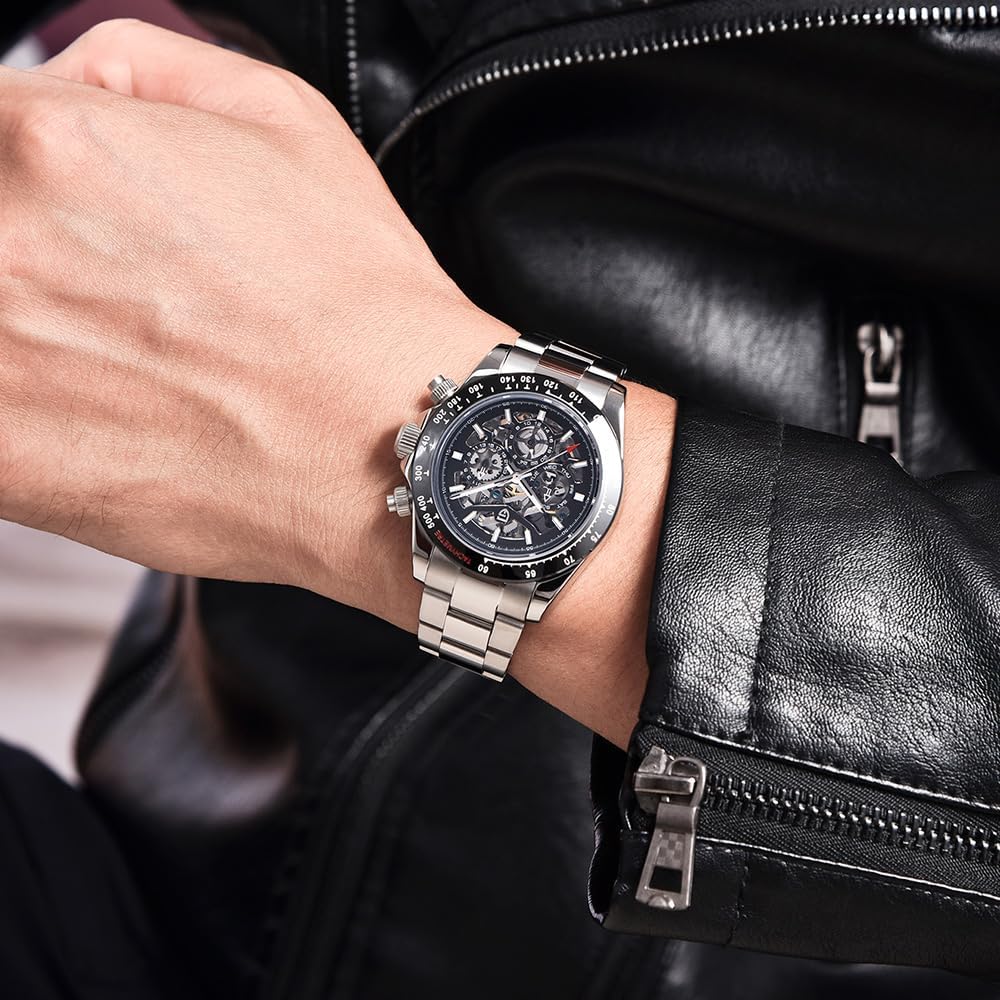

Image 3.2: The watch worn on a wrist, demonstrating its fit and appearance.

4. Funcionament del rellotge

4.1 Moviment automàtic

Your PAGANI DESIGN 1777 watch is equipped with an automatic mechanical movement. This means it is powered by the natural motion of your arm. When worn regularly, the watch will self-wind and maintain its power reserve. If the watch is not worn for an extended period, it may stop and require manual winding as described in Section 3.1.

4.2 Multifunction Dials

The watch features sub-dials that display additional information:

• Indicador de dia: Mostra el dia actual de la setmana.
• Date Indicator: Mostra la data actual.
• 24-Hour Indicator: Provides a 24-hour display, useful for distinguishing AM/PM.

4.3 Luminous Features

The hands and hour markers are coated with an environmentally friendly luminescent material. This material absorbs light and emits a glow in dark conditions, allowing for clear time readability.

5. Manteniment

5.1 Resistència a l'aigua

The watch has a water resistance rating of 100 meters (10 ATM), suitable for daily use such as hand washing and accidental splashes. However, it is important to observe the following precautions:

• Do not press any buttons or operate the crown underwater.
• Ensure the crown is fully tightened before any exposure to water.
• Avoid using the watch in extremely hot or cold temperatures, such as showers, saunas, or hot tubs, as temperature fluctuations can compromise seals.
• Do not wear this watch while diving or engaging in high-impact water sports.
• Excessive exposure to water can shorten the life of the watch.

5.2 Neteja i cura

Per mantenir l'aspecte del rellotge:

• Regularly clean the watch case and strap with the provided soft cleaning cloth.
• Per a la brutícia persistent, una mica deamp es pot utilitzar un drap, seguit d'assecat immediat.
• Avoid contact with harsh chemicals, solvents, or detergents, as these can damage the watch's finish and seals.

Image 5.1: The back of the watch, displaying the transparent case back and the safety folding clasp.

6. Especificacions

7. Solució De Problemes

If you encounter any issues with your watch, please refer to the following common troubleshooting steps:

• Mira No Corrent: If the watch has stopped, it may have run out of power reserve. Manually wind the watch 20-25 times (Section 3.1) and wear it for several hours to allow the automatic movement to build up power.
• Temps inexacte: Ensure the watch is fully wound. If inaccuracy persists, it may require adjustment by a professional watchmaker.
• Data/dia sense canvis: Check if the time is set correctly (AM/PM). Avoid setting the date between 9 PM and 3 AM. If the issue persists, consult a professional.

Per a problemes que no es cobreixen aquí, o si els problemes persisteixen, poseu-vos en contacte amb l'atenció al client.

8. Garantia i Suport

Your PAGANI DESIGN 1777 Automatic Mechanical Watch is covered by a garantia d'un any against manufacturing defects. Additionally, we offer a Garantia de devolució de 30 dies for quality-related issues from the date of purchase.

For warranty claims, technical support, or any questions regarding your watch, please contact our customer service team. Customer satisfaction is our priority.
