Introducció
The KLIM Journey Portable CD Player is a versatile audio device designed for modern listening while embracing classic CD playback. It offers multiple connectivity options including Bluetooth, FM transmission, and AUX, along with an SD card reader and FM radio. This manual provides comprehensive instructions for setting up, operating, maintaining, and troubleshooting your device to ensure an optimal listening experience.
Image: The KLIM Journey Portable CD Player, shown with its accessories including wired earphones, an AUX cable, a USB-C charging cable, and a protective carry pouch.
Contingut del paquet
- Reproductor de CD portàtil KLIM Journey
- KLIM Fusion Wired Earphones
- Earphone Accessories (e.g., different size ear tips)
- Cable de càrrega USB-C
- Bossa de transport
- Manual d'usuari (aquest document)

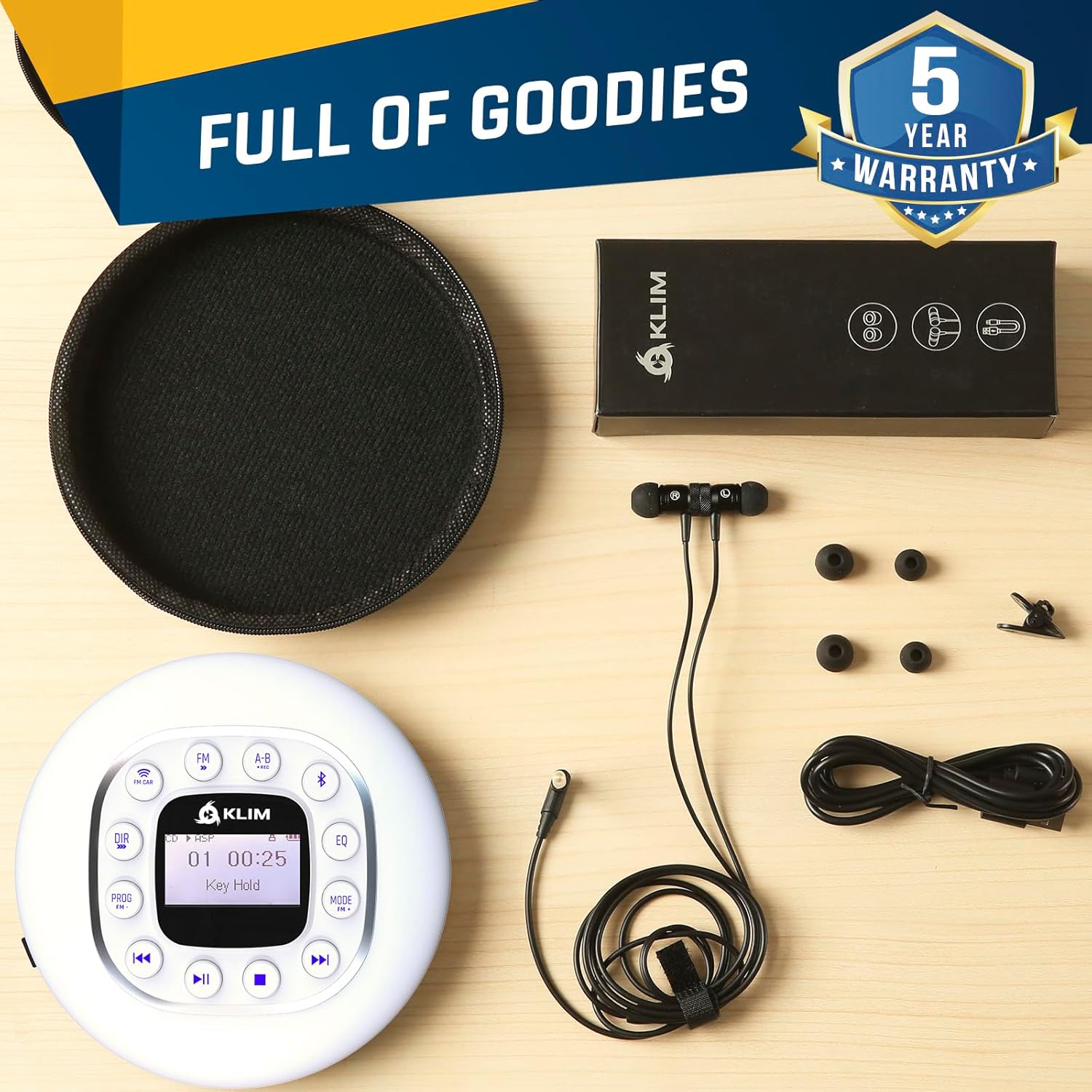

Image: A flat lay of all items included in the KLIM Journey package, neatly arranged on a wooden surface. This includes the white CD player, black wired earphones, a USB-C cable, and a black zippered carry pouch.
Configuració
1. Càrrega del dispositiu
Before first use, fully charge your KLIM Journey CD Player. Connect the included USB-C charging cable to the player's USB-C port and the other end to a compatible USB power adapter (not included) or a computer's USB port. The charging indicator light will show the charging status. A full charge provides over 14 hours of playback.

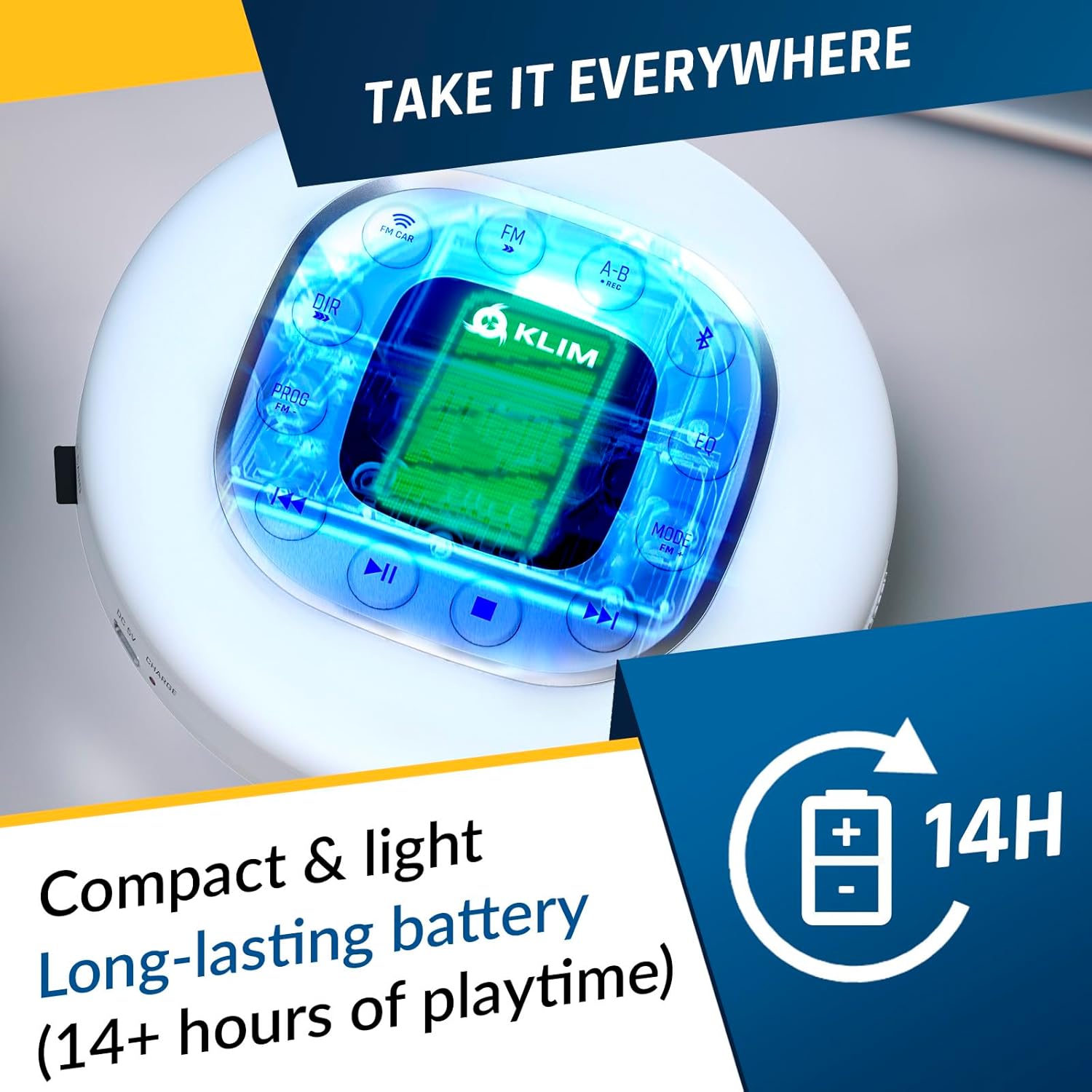

Image: The KLIM Journey CD Player with a bright, illuminated screen, emphasizing its compact design and long-lasting battery, indicated by a "14H" battery icon.
2. Connexió d'auriculars
Insert the 3.5mm jack of the included KLIM Fusion earphones into either of the two audio output ports on the side of the player. The KLIM Journey supports two sets of earphones simultaneously for shared listening.
3. Inserting a CD
Gently slide the "OPEN" switch on the side of the player to open the CD compartment. Place your CD (CD, CD-R, CD-RW, HDCD, MP3 CD) onto the spindle, ensuring it clicks into place. Close the lid firmly until it latches.
Instruccions de funcionament
Device Controls Overview

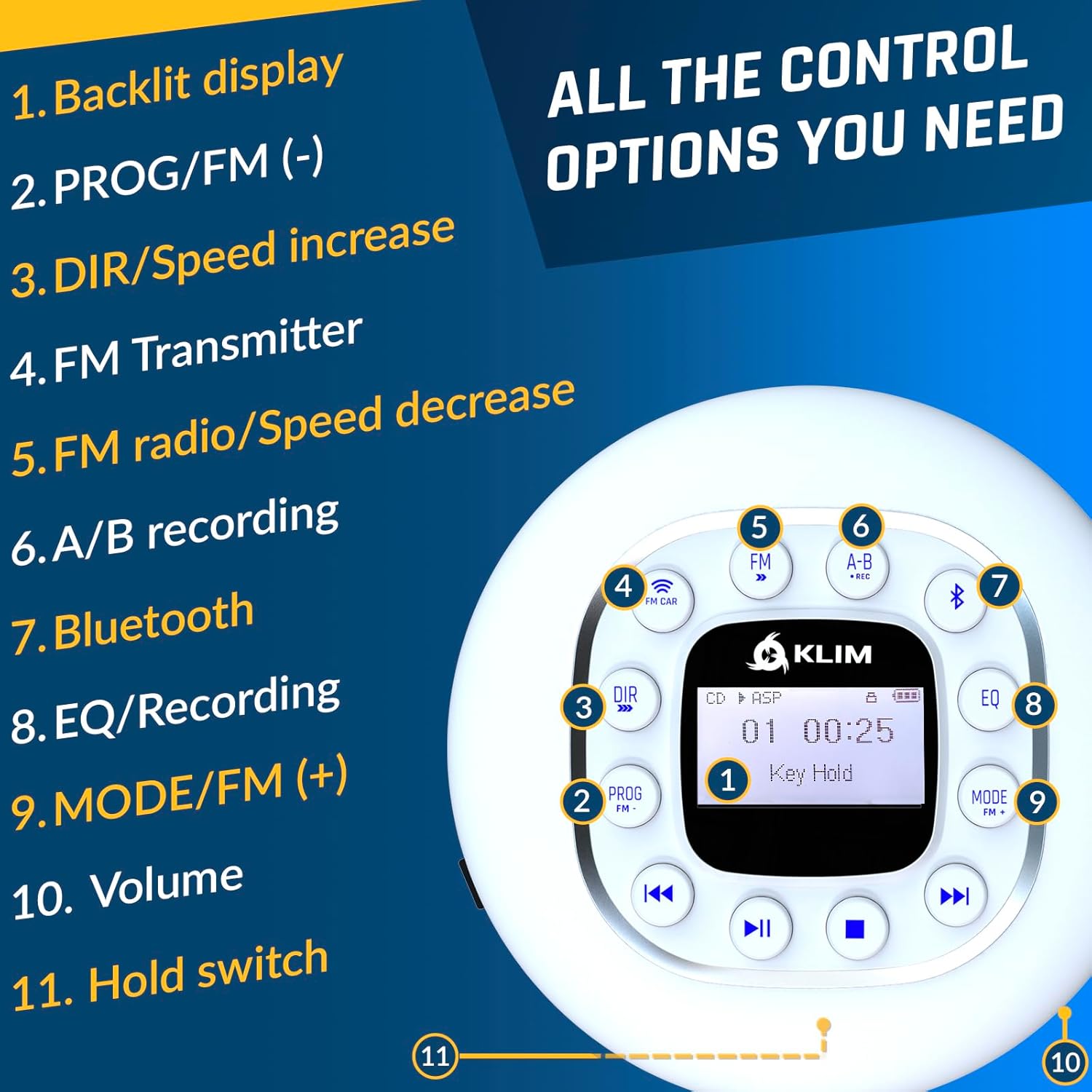

Image: A detailed diagram of the KLIM Journey CD Player's top panel, highlighting and numbering each control button and feature for easy identification and understanding.
- Pantalla retroil·luminada: Shows track information, mode, battery status, etc.
- PROG/FM (-): Program playback order; in FM mode, decreases frequency.
- DIR/Speed Increase: Directory navigation for MP3 CDs; increases playback speed.
- FM CAR: Activates FM Transmitter mode for car connection.
- FM: Toggles FM radio mode.
- A-B/REC: A-B repeat function; long press for recording.
- Bluetooth: Activa el mode d'emparellament Bluetooth.
- EQ/Recording: Toggles equalizer presets; short press for recording.
- MODE/FM (+): Changes playback mode (Repeat, Random, Intro); in FM mode, increases frequency.
- Volum: Ajusta el volum de sortida d'àudio.
- Interruptor premut: Locks all buttons to prevent accidental presses.
- Previous Track/Rewind: Skips to previous track; long press to rewind.
- Reproduir/pausa: Inicia o posa en pausa la reproducció.
- Atura: Atura la reproducció.
- Next Track/Fast Forward: Skips to next track; long press to fast forward.
Reproducció de CD
- After inserting a CD, press the Reproduir/Pausa botó per començar la reproducció.
- Utilitza el Pista/Rebobinat anterior i Pista següent/Avançament ràpid buttons to navigate tracks. Long press for fast forward/rewind.
- Premeu Atureu-vos per finalitzar la reproducció.
- The device features an anti-skip/anti-shock protection chip that preloads 100 seconds of music to prevent interruptions during movement.
Connecting to Your Car
The KLIM Journey offers three primary methods for connecting to your car's audio system:
Image: A visual representation of the three connection methods for the KLIM Journey to a car: Bluetooth, FM Transmitter, and AUX Cable, with corresponding icons and example car interiors.
- Connexió AUX:
Use the included AUX cable to connect the player's audio output to your car's AUX input port. This provides a direct, high-quality audio connection. Ensure your car has an AUX port.
- Connexió Bluetooth:
Premeu el botó Bluetooth button on the player to enter pairing mode. On your car's infotainment system, search for available Bluetooth devices and select "KLIM Journey". Once paired, audio will stream wirelessly. Note: Bluetooth compatibility may vary with different car models.
- Transmissió FM:
Premeu el botó FM CAR button. The player will display available FM frequencies. Tune your car's FM radio to the same frequency displayed on the KLIM Journey. This allows you to broadcast your music wirelessly to your car's radio. Choose a frequency that is clear of existing radio stations for best performance.
Funcionament de la ràdio FM
- Premeu el botó FM botó per canviar al mode de ràdio FM.
- Utilitza el PROG/FM (-) i MODE/FM (+) botons per sintonitzar les freqüències desitjades.
- The wired earphones act as an antenna for improved reception.
SD Card Playback & Recording
- Insert an SD card into the designated slot. The player will automatically detect and play compatible audio files (per exemple, MP3).
- To record audio (e.g., from a CD or FM radio), press and hold the A-B/REC botó o premeu breument el EQ/Recording button (refer to specific model instructions for exact recording initiation). Ensure an SD card is inserted for recording functionality.
Equalizer (EQ) and Speed Control
- Premeu el botó EQ button repeatedly to cycle through different equalizer presets (e.g., Pop, Jazz, Rock, Classic, Bass, Normal) to customize your audio experience.
- Utilitza el DIR/Speed Increase button to adjust the playback speed of audio, useful for podcasts or audiobooks.
Manteniment i cura
- Neteja: Use a soft, dry cloth to clean the exterior of the player. For the CD lens, use a specialized CD lens cleaner. Do not use abrasive cleaners or solvents.
- Emmagatzematge: Store the player in a cool, dry place away from direct sunlight and extreme temperatures. Use the included carry pouch for protection when not in use or during transport.
- Cura de la bateria: Per allargar la durada de la bateria, eviteu descarregar-la completament amb freqüència. Carregueu el dispositiu regularment, fins i tot si no l'utilitzeu constantment.
- Maneig de CD: Always handle CDs by their edges to avoid fingerprints and scratches. Store CDs in their cases when not in use.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El reproductor no s'encén. | Low battery; Hold switch engaged. | Charge the device; Disengage the Hold switch. |
| CD skips or playback is interrupted. | CD is dirty or scratched; Excessive vibration. | Clean the CD; Ensure the player is on a stable surface or use the anti-shock feature. |
| No se sent so dels auriculars. | Headphones not properly connected; Volume too low; Headphones faulty. | Ensure headphones are fully plugged in; Increase volume; Test with another pair of headphones. |
| No es pot connectar per Bluetooth. | Player not in pairing mode; Device too far; Interference. | Press Bluetooth button to enter pairing mode; Move devices closer; Turn off other Bluetooth devices. |
| FM transmission has static/interference. | Chosen FM frequency is occupied. | Select a different, clear FM frequency on the player and car radio. |
Especificacions
| Característica | Detall |
|---|---|
| Nom del model | KLIM Nòmada |
| Dimensions | 14 x 14 x 2.8 cm |
| Pes | 250 grams |
| Tipus de suports compatibles | CD, CD-R, CD-RW, HDCD, MP3 CD |
| Formats d'àudio compatibles | MP3 |
| Tecnologia de connectivitat | Bluetooth, AUX, FM Transmission |
| Font d'alimentació | Alimentat per bateria (recarregable de liti-cobalt) |
| Durada de la bateria | Més de 14 hores (aprox.) |
| Característiques especials | Anti-skip/Anti-shock protection, SD Card Reader, FM Radio, Recording, Speed Control, Equalizer |
Image: The rear packaging of the KLIM Journey, displaying technical specifications and product features in English, French, German, Italian, and Spanish, along with manufacturing details.
Garantia i Suport
KLIM Technologies offers a 5 any de garantia on the KLIM Journey Portable CD Player. This warranty covers manufacturing defects and ensures long-term reliability of your device.
For technical support, warranty claims, or any questions regarding your KLIM Journey, please visit the official KLIM website or contact their customer service directly. Refer to the contact information provided in your product packaging or on the KLIM Technologies Australia Amazon store page.
If you are not satisfied with the product, you may return it within 30 days for a full refund, as per Amazon's return policy.
