1. Producte acabatview
The maXpeedingrods Universal Adjustable Sway Bar End Links are engineered to provide a superior replacement for your vehicle's factory sway bar end links. These components are crucial for maintaining vehicle stability and handling, especially when modifying suspension height. Designed for versatility, they are suitable for a wide range of applications where a vehicle's ride height has been lifted or lowered.
Image 1.1: A pair of maXpeedingrods Universal Adjustable Sway Bar End Links.
Each package includes two front sway bar end links, offering a comprehensive solution for suspension upgrades. The adjustable design allows for precise length tuning to accommodate various vehicle setups, ensuring optimal performance and fitment.
2. Característiques clau
- Rendiment superior: These adjustable end links are designed to replace factory sway bar end links, providing an ideal solution for vehicles that have been lifted or lowered, helping to restore proper sway bar geometry.
- Wide Adjustment Range: The links offer a stud-to-stud adjustment range of 180mm to 230mm, making them adaptable for various vehicle heights and suspension configurations.
- Fàcil instal·lació: Featuring an M10 stud and a 12mm spacer washer, these end links are designed for straightforward installation, fitting both 10mm and 12mm holes on the sway bar.
- Materials premium: Constructed with durability in mind, the center rods are made from lightweight and corrosion-resistant aluminum, while the ball joints are crafted from strong steel for long-lasting reliability.
- Paquet complet: Each purchase includes two front sway bar end links, providing all necessary components for a complete upgrade.

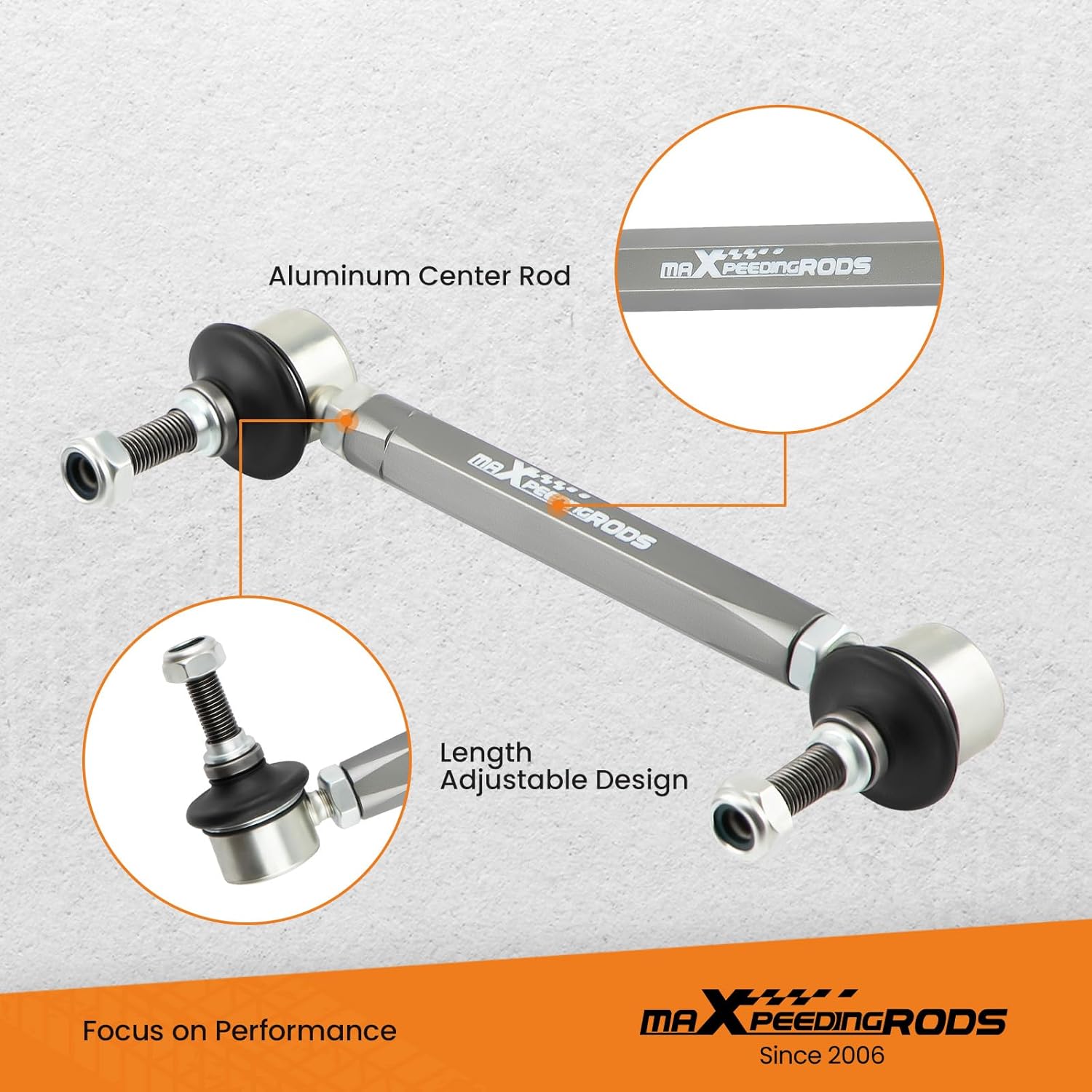

Imatge 2.1: Detallada view highlighting the aluminum center rod and adjustable length design.
Image 2.2: Illustration of the adjustable length range from 180mm to 230mm.
3. Especificacions
| Fabricant | maXpeedingrods |
| Marca | maXpeedingrods |
| Número de model | QV463GU |
| ASIN | B0CL4JTVH8 |
| Pes de l'article | 2.43 lliures |
| Dimensions del producte | 10.24 x 6.3 x 2.76 polzades |
| Adjustment Range (Stud-to-Stud) | 180 mm - 230 mm |
| Mida de la tanca | M10 |
| Spacer Washer Size | 12 mm |
| Material | Aluminum (center rods), Steel (ball joints) |
| Data de primera disponibilitat | 16 d'octubre de 2023 |
4. Configuració i instal·lació
Installation of sway bar end links requires mechanical aptitude and appropriate tools. It is recommended that installation be performed by a qualified automotive technician. Always prioritize safety by using jack stands and ensuring the vehicle is stable before beginning work.
4.1 Comprovacions prèvies a la instal·lació
- Ensure the vehicle is on a level surface and properly supported.
- Verify that the new end links match the required length for your vehicle's suspension setup (180mm-230mm adjustable range).
- Inspeccioneu tots els components per detectar qualsevol dany durant l'enviament o defectes de fabricació.
4.2 Passos d'instal·lació
- Safely lift the vehicle and support it with jack stands. Remove the wheels to gain access to the sway bar and existing end links.
- Locate the existing sway bar end links. Using appropriate wrenches, carefully remove the nuts securing the old end links to the sway bar and the suspension component (e.g., strut or control arm).
- Remove the old end links.
- Adjust the new maXpeedingrods end links to the desired length. The links feature left-hand and right-hand threads for easy adjustment by rotating the center rod. Refer to Image 4.1 for thread orientation.
- Install the new end links. The M10 stud and 12mm spacer washer are designed to fit both 10mm and 12mm holes on the sway bar. Securely attach one end of the link to the sway bar and the other to the suspension component.
- Tighten all nuts to the vehicle manufacturer's specified torque settings. Do not overtighten.
- Reinstall the wheels and carefully lower the vehicle.
- Perform a final check of all connections to ensure they are secure.
Image 4.1: Illustration of the easy adjustment mechanism with left-hand and right-hand threads.
Image 4.2: Detail showing the M10 stud and M12 spacer for versatile fitment.
5. Principi de funcionament
Sway bar end links are integral components of a vehicle's suspension system, connecting the sway bar (also known as an anti-roll bar or stabilizer bar) to the suspension's control arms or struts. The primary function of the sway bar is to reduce body roll during cornering, thereby improving handling and stability.
When a vehicle turns, the suspension on the outer side compresses, and the suspension on the inner side extends. The sway bar twists in response to this differential movement, transferring force from the compressing side to the extending side. The end links facilitate this transfer, ensuring the sway bar effectively counteracts body roll.
Adjustable sway bar end links, like the maXpeedingrods product, are particularly beneficial for vehicles with modified suspension heights. When a vehicle is lifted or lowered, the geometry of the suspension changes, which can affect the angle and effectiveness of the factory sway bar end links. Adjustable links allow the user to restore the correct operating angle of the sway bar, ensuring it functions optimally and prevents premature wear or binding. This maintains the vehicle's intended handling characteristics and ride quality.
Image 5.1: The adjustable sway bar end links help maintain proper suspension geometry when a vehicle is lifted or lowered.
6. Manteniment
Regular inspection and maintenance are crucial for the longevity and performance of your maXpeedingrods adjustable sway bar end links.
6.1 Calendari d'inspecció
- Every 5,000 miles or 6 months: Visually inspect the end links for any signs of wear, damage, or corrosion. Check the rubber boots around the ball joints for cracks or tears.
- During any suspension work: Always inspect the end links when performing other suspension maintenance or repairs.
- After off-road use or heavy impacts: Immediately inspect the links if the vehicle has been subjected to harsh driving conditions or impacts.
6.2 Consells de manteniment
- Comprovació del parell de pressió: Periodically check the torque of the mounting nuts to ensure they remain tightened to the manufacturer's specifications. Loose connections can lead to noise and premature wear.
- Neteja: Keep the end links free from excessive dirt, mud, and road salt, which can accelerate corrosion.
- Avaluació de danys: Look for bent rods, damaged ball joint boots, or excessive play in the ball joints. Any significant damage warrants replacement.
- Lubricació: These end links feature sealed ball joints and typically do not require external lubrication. Do not attempt to lubricate sealed components unless specifically instructed by the manufacturer.
7. Solució De Problemes
If you experience issues after installing or during the use of your adjustable sway bar end links, consider the following common problems and solutions:
7.1 Problemes comuns i solucions
| Problema | Causa possible | Solució |
|---|---|---|
| Clunking or knocking noise from suspension | Loose mounting nuts; Worn or damaged ball joints; Incorrect length adjustment causing binding. | Check and re-torque all mounting nuts. Inspect ball joints for play or damage; replace if necessary. Re-evaluate and adjust link length to ensure proper sway bar angle. |
| Premature wear of ball joint boots | Exposure to harsh elements; Incorrect installation angle; Manufacturing defect. | Regularly clean the suspension area. Ensure the link is installed at the correct angle for your suspension setup. Contact maXpeedingrods support if defect is suspected. |
| Poor handling or excessive body roll after installation | Incorrect length adjustment; Sway bar not properly connected; Other suspension components are worn. | Verify the end link length is appropriate for your vehicle's ride height. Ensure both ends of the link are securely attached. Inspect other suspension components (bushings, shocks, springs) for wear. |
| Difficulty adjusting length | Threads are seized or dirty. | Clean threads thoroughly. Apply penetrating oil if necessary. Ensure the correct rotation direction for left-hand and right-hand threads. |
If troubleshooting steps do not resolve the issue, it is recommended to consult with a professional automotive technician.
8. Garantia i Suport
Specific warranty information for maXpeedingrods Universal Adjustable Sway Bar End Links (Model QV463GU) is not provided in this manual. For detailed warranty terms, conditions, and to register your product, please visit the official maXpeedingrods weblloc web o contacteu directament amb el seu servei d'atenció al client.
For technical assistance, installation queries, or any other support needs, please refer to the contact information available on the maXpeedingrods official weblloc.
Fabricant: maXpeedingrods
Weblloc: www.maxpeedingrods.com (Please verify the official weblloc per obtenir la informació més actualitzada.)
