Producte acabatview
The Jebao AP-399 Submersible Fountain Pump is designed for use in medium to large fountains, offering efficient water circulation with adjustable flow control. This UL-listed pump is built for durability and quiet operation, making it a convenient choice for various water features.
Image: The Jebao AP-399 pump, showing its compact black body, attached power cord, and included hose adapters.
Característiques clau
- Ideal for medium to large fountains
- Built-in variable flow control
- 6 ft power cord with US 3-prong plug
- Ideal pumping height: 3-5.6 ft.
- Fits 1/2, 5/8, and 3/4 in. ID tubing (tubing not included)
- Dimensions: 3.5" x 2.8" x 3.2", 12 Watts
- Voltage: 110-120V 60Hz
Guia d'instal·lació
- Desempaquetar la bomba: Carefully remove the pump and all accessories from the packaging. Ensure all components listed in the "Included Components" section are present (water pump, hose adapters).
- Choose Tubing: Select the appropriate ID tubing (1/2, 5/8, or 3/4 inch) for your fountain setup. Tubing is not included.
- Connecteu l'adaptador de mànega: Securely attach the chosen hose adapter to the pump's outlet.
- Connexió de tubs: Connect your fountain tubing to the attached hose adapter. Ensure a snug fit to prevent leaks.
- Posició de la bomba: Place the pump fully submerged in the water at the bottom of your fountain or water feature. The integrated suction cups on the base can be used to secure the pump to a smooth surface, if desired.
- Ruta del cable d'alimentació: Route the 6-foot power cord safely out of the water and to a grounded electrical outlet.

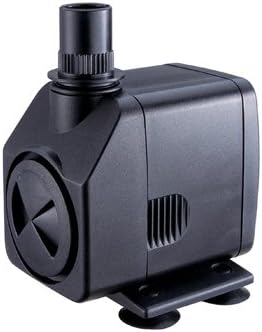

Imatge: Un costat view of the Jebao AP-399 pump, highlighting the water outlet and suction cups on the base.
Funcionament
Once the pump is installed and fully submerged, plug the power cord into a standard 110-120V 60Hz grounded electrical outlet. The pump will begin operating.
Ajust del cabal d'aigua
The Jebao AP-399 features a built-in flow control mechanism. Locate the regulator on the front plate of the pump. Rotate the regulator to increase or decrease the water flow rate according to your fountain's requirements.
Image: The Jebao AP-399 pump, showing the adjustable flow control dial on the front.
Neteja i cura
Regular maintenance is crucial for the longevity and optimal performance of your pump.
- Desconnecteu l'alimentació: Always unplug the pump from the electrical outlet before performing any maintenance.
- Treure de l'aigua: Carefully remove the pump from the fountain.
- Disassemble (Refer to Diagram):
- Remove Front Plate: Gently detach the front plate (regulator) from the pump body.
- Access Impeller: The impeller holder, seal ring, shaft, and impeller will become accessible. Carefully remove these components.
- Components nets: Rinse all parts (pump body, impeller, shaft, front plate, etc.) with clean water to remove any debris, algae, or mineral buildup. A soft brush can be used for stubborn deposits.
- Inspeccionar per danys: Check the impeller and shaft for any signs of wear or damage. Replace if necessary.
- Torneu a muntar: Reassemble the pump by reversing the disassembly steps. Ensure the seal ring is properly seated to prevent leaks.
- Submerge and Test: Place the cleaned pump back into the water, ensuring it is fully submerged, and then reconnect power to test operation.
Imatge: Una explosió view diagram illustrating the internal components of the pump, including the motorhead, impeller, shaft, seal ring, front plate, and regulator.
Problemes comuns i solucions
| Problema | Causa possible | Solució |
|---|---|---|
| La bomba no funciona | No power; Impeller jammed; Motor failure | Check power connection and outlet; Disconnect power and clean impeller; Contact customer support if motor failure is suspected |
| Baix cabal d'aigua | Clogged impeller/intake; Flow control set too low; Insufficient water level | Clean pump and impeller; Adjust flow control to higher setting; Add water to fountain |
| La bomba és sorollosa | Debris in impeller; Pump not fully submerged; Worn impeller | Clean impeller; Ensure pump is fully submerged; Inspect and replace impeller if worn |
Dades tècniques
| Característica | Detall |
|---|---|
| Model | AP-399 |
| Caudal | 264 GPH (galons per hora) |
| Alçada màxima d'elevació | 5.6 peus |
| Consum d'energia | 12 watts |
| Voltage | 110-120V |
| Freqüència | 60 Hz |
| Dimensions (L x A x A) | 3.5" x 2.8" x 3.2" |
| Material | Plàstic |
| Longitud del cable d'alimentació | 6 peus |
| Compatibilitat de tubs | 1/2", 5/8", 3/4" ID (not included) |
Corba de rendiment
- 243 GPH @ 0.7 FT
- 209 GPH @ 1.3 FT
- 179 GPH @ 2.0 FT
- 134 GPH @ 3.3 FT
- 92 GPH @ 4.6 FT
- 0 GPH @ 5.6 FT
Suport al producte
For warranty information or technical support regarding your Jebao AP-399 Submersible Fountain Pump, please refer to the contact information provided with your purchase documentation or visit the official Jebao weblloc.
Si us plau, conserveu el comprovant de compra per a qualsevol reclamació de garantia.
