1. Introducció
This manual provides essential information for the safe operation, assembly, and maintenance of your X-PRO Hawk Mini 40CC 4-Stroke Dirt Bike. Please read this manual thoroughly before operating the dirt bike to ensure proper use and to prevent injury or damage.
Image 1.1: The X-PRO Hawk Mini 40CC 4-Stroke Dirt Bike, showcasing its design and compact size.
2. Informació de seguretat
WARNING: Operating this vehicle can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
IMPORTANT: This 4-Stroke 40cc Mini Dirt Bike cannot be shipped to California due to state regulations.
Pautes generals de seguretat:
- Always wear appropriate safety gear, including a helmet, eye protection, gloves, long pants, and sturdy footwear.
- Adult supervision is required for riders aged 7-10 years.
- Do not operate the dirt bike on public roads, sidewalks, or in traffic. Use only on private property with permission.
- Ensure the emergency kill switch is easily accessible and understood by the rider.
- Perform pre-ride inspections before each use, checking brakes, tires, chain, and fuel levels.
Image 2.1: Rider demonstrating proper use, with callouts for the adjustable throttle grip and emergency kill switch, crucial safety features.
3. Muntatge i muntatge
The X-PRO Hawk Mini Dirt Bike requires some assembly upon arrival. Follow these general steps. Specific instructions may vary slightly by model; refer to the detailed assembly guide included in your packaging.
Passos de muntatge:
- Instal·lació del manillar: Attach the handlebar brackets securely. Ensure handlebars are aligned and tightened to prevent movement during operation.
- Fixació de la roda: Install the front and rear wheels. Verify that all nuts and bolts are properly torqued.
- Brake System Setup: Connect and adjust the brake levers and calipers. Test both front and rear brakes for proper function and responsiveness.
- Number Plate and Fender: Securely attach the front number plate and fenders.
- Chain Alignment: After initial assembly, carefully check and adjust the chain alignment. Incorrect alignment can lead to chain slippage or breakage.
Comprovacions prèvies a l'operació:
- Canvi d'oli: It is highly recommended to change the factory oil before the first use. The initial oil may be low quality or insufficient. Use 10W-40 4-stroke small engine oil.
- Combustible: Fill the fuel tank with appropriate gasoline. This is a 4-stroke engine, so no oil mixing is required.
- Pressió dels pneumàtics: Check and adjust tire pressure to the recommended levels.
4. Instruccions de funcionament
Familiarize yourself with the controls and starting procedure before attempting to ride.
Arrencada del motor:
- Ensure the emergency kill switch (red button on the left handlebar) is in the 'ON' position.
- Introduïu la clau al contacte i gireu-la a la posició "ON".
- Open the air choke (if applicable, consult your specific model's diagram).
- Use the pull start mechanism firmly and smoothly until the engine starts.
- Once started, allow the engine to warm up for a short period before riding.
Riding and Control:
- The 40cc 4-stroke engine provides smooth and steady acceleration, suitable for beginners.
- Control speed using the adjustable throttle grip.
- Utilize both front and rear disc brakes for effective stopping power. Practice braking in a safe, open area.
- The dirt bike is designed for various terrains, including gravel roads, grassy fields, dirt trails, and forest paths.
Image 4.1: Rider demonstrating operation, highlighting key performance metrics such as maximum speed, fuel capacity, and range.
Image 4.2: The X-PRO Hawk Mini Dirt Bike is suitable for diverse off-road environments.
5. Manteniment
Un manteniment regular és crucial per a la longevitat i el funcionament segur de la teva moto de cross.
Tasques clau de manteniment:
- Canvis d'oli: Change the engine oil every 10 hours of operation. This is a simple procedure and requires only a small amount of 10W-40 4-stroke small engine oil.
- Manteniment de la cadena: Regularly inspect the drive chain for proper tension, lubrication, and wear. Ensure the chain is correctly aligned to prevent slippage or breakage. Lubricate the chain periodically.
- Inspecció de frens: Check brake pads for wear and brake fluid levels (if applicable). Ensure brake levers operate smoothly and provide adequate stopping power.
- Inspecció de pneumàtics: Check tire pressure before each ride. Inspect tires for cuts, punctures, or excessive wear.
- Comprovació general de fixacions: Periodically check all nuts, bolts, and fasteners for tightness. Vibration from riding can cause them to loosen.
6. Solució De Problemes
This section addresses common issues you might encounter with your X-PRO Hawk Mini Dirt Bike.
Problemes comuns i solucions:
- El motor no arrenca:
- Check if the kill switch is in the 'ON' position.
- Ensure the ignition key is turned 'ON'.
- Verify there is fuel in the tank.
- Check the air choke setting.
- Chain Slipping or Breaking:
- Inspect chain alignment. Adjust if necessary.
- Check chain tension. Adjust to the recommended slack.
- Examine the chain for wear or damage. Replace if worn or broken.
- Engine Overheating / Shutting Off:
- Deixeu que el motor es refredi.
- Ensure proper ventilation around the engine.
- Check oil level and quality.
7. Especificacions
Detailed technical specifications for the X-PRO Hawk Mini 40CC 4-Stroke Dirt Bike.
| Característica | Especificació |
|---|---|
| Número de model | DB-Z010 |
| Tipus de motor | 40cc, 4-Stroke, Single Cylinder |
| Tipus de combustible | Gasoline (No oil mixing required) |
| Sistema d'arrencada | Tirar d'inici |
| Velocitat màxima | Fins a 22 mph |
| Capacitat de combustible | 0.47 galons |
| Interval màxim | Approximately 15 Miles (varies with rider weight and terrain) |
| Rodes | 10 polzades |
| Frens | Frens de disc davanter i posterior |
| Dimensions del producte (L x A x A) | 50 x 22.8 x 29.5 polzades |
| Pes de l'article | 52 lliures |
| Edat recomanada | 7 - 10 anys |

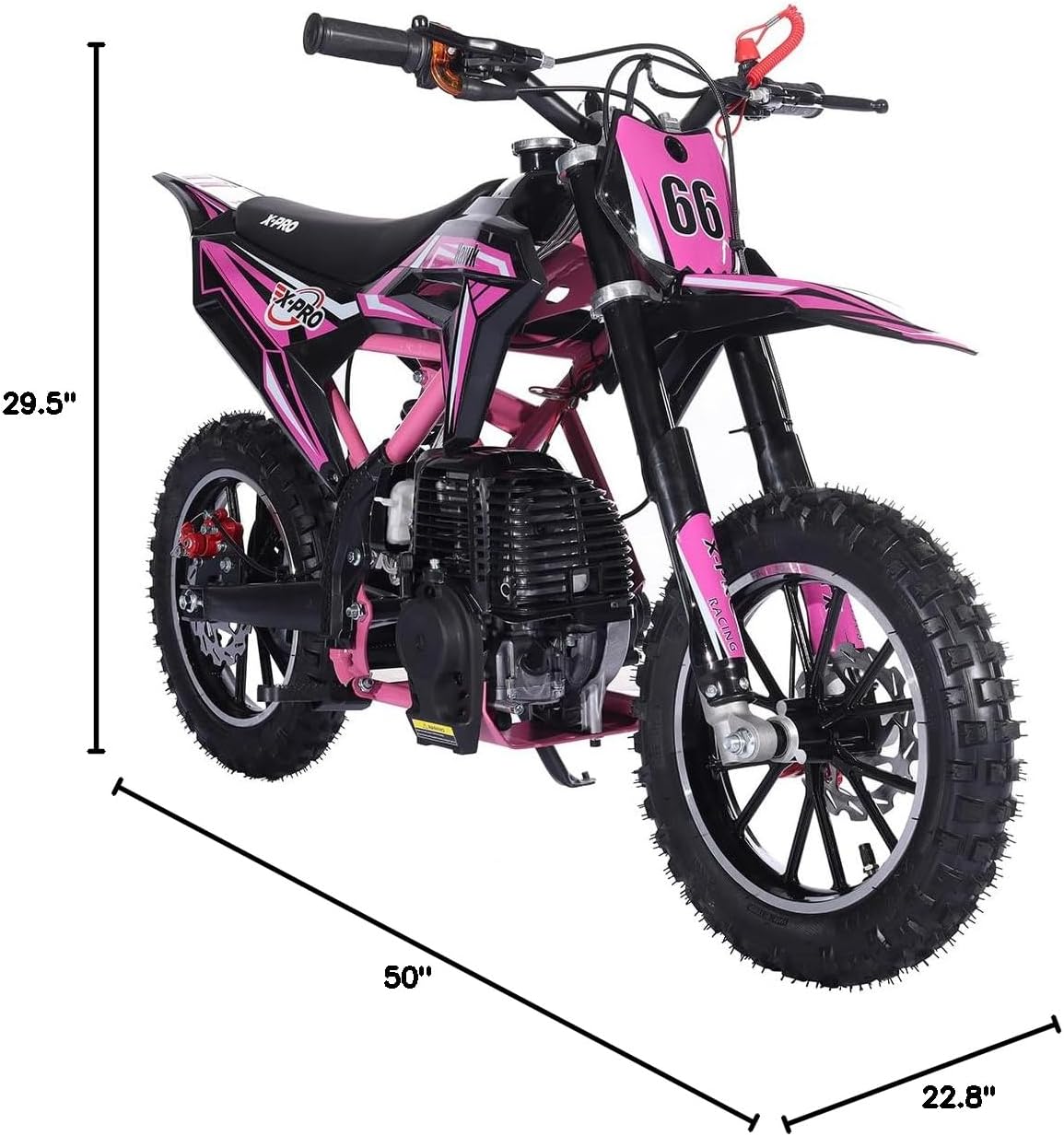

Image 7.1: Visual representation of the dirt bike's dimensions.
Image 7.2: The rear suspension system, designed for a comfortable riding experience.
Image 7.3: The 4-stroke engine, known for reliability and ease of maintenance.
8. Garantia i Suport
X-PRO is committed to product quality and customer satisfaction. We maintain a stock of replacement parts for most vehicles we sell, ensuring reliable support.
Atenció al client:
For technical assistance, parts inquiries, or warranty claims, please contact X-PRO customer service. Refer to your purchase documentation for specific contact details or visit the official X-PRO weblloc.
Our dedicated after-sales team provides quick response times and strong commitment to customer satisfaction, offering professional technical support and a reliable supply chain for parts.
