1. Producte acabatview
The RadioShack N409 rechargeable battery charger is designed to power your devices efficiently, whether at home, in the office, or during travel. This versatile charger supports both AA and AAA rechargeable batteries, including high-capacity 2500mAh batteries. Its compact and portable design makes it convenient for on-the-go use. The charger features LED indicators to display charging progress and incorporates intelligent charging technology to optimize charging speed and protect batteries from overcharging, extending their lifespan. It includes a Micro USB cable and a USB adapter for flexible charging options.

Figure 1: RadioShack N409 Charger with included AA batteries.
2. Contingut del paquet
Verifiqueu que tots els elements siguin presents al paquet:
- 1 x RadioShack N409 AA/AAA Rechargeable Battery Charger
- 2 x AA 2500 mAh Rechargeable Batteries
- 1 x cable de càrrega micro USB
- 1 x USB Wall Adapter

Figura 2: Tots els components inclosos al paquet.
3. Configuració
- Connecteu el carregador: Insert the Micro USB end of the charging cable into the charger's Micro USB port. Connect the standard USB end of the cable to the included USB wall adapter, a computer's USB port, or another compatible USB power source.
- Encès: Plug the USB wall adapter into a standard electrical outlet. The charger's LED indicators may briefly illuminate.
- Insereix les piles: Carefully insert AA or AAA rechargeable batteries into the charging slots, ensuring correct polarity (+ and - ends match the markings on the charger). The charger can accommodate up to four batteries simultaneously.

Figure 3: Charger connected to a power source.
4. Instruccions de funcionament
- Procés de càrrega: Once batteries are correctly inserted and the charger is powered, the corresponding LED indicators will illuminate to show that charging is in progress.
- Indicadors LED: The LED indicators provide information on the charging status. When a battery is fully charged, the charger's intelligent technology will automatically reduce the charging current or shut off the charging process for that slot to prevent overcharge and conserve energy.
- Extracció de la bateria: Once charging is complete, carefully remove the batteries from the charger.

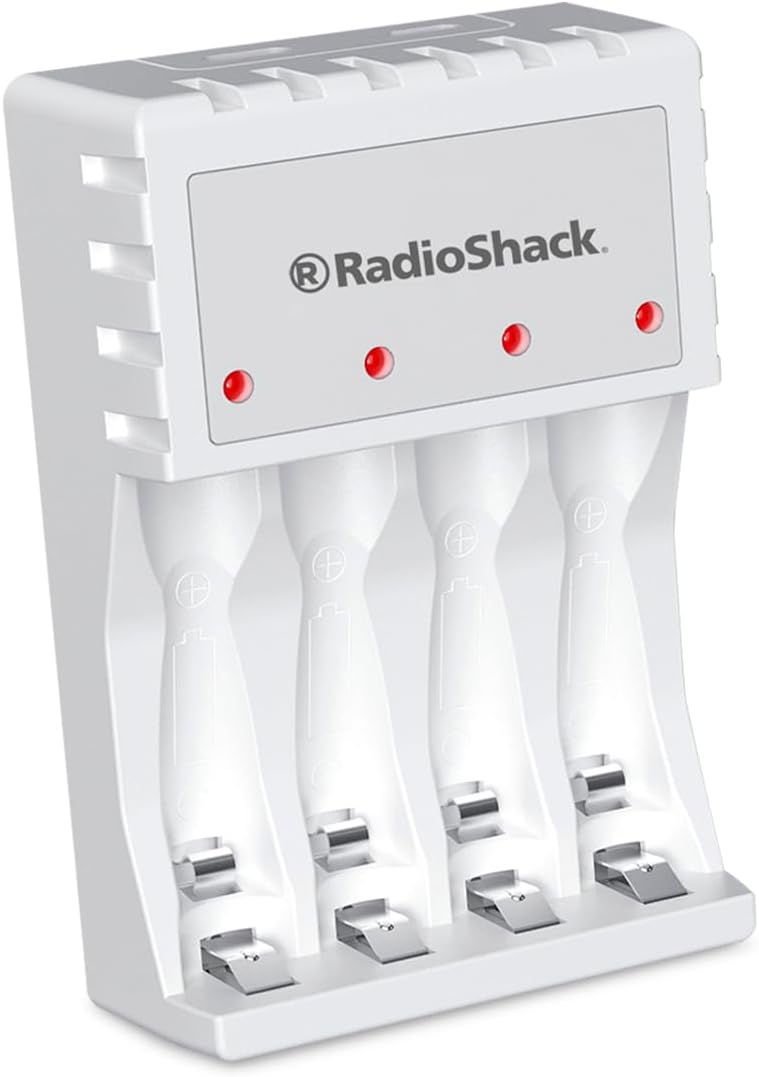

Figure 4: LED indicators on the charger.
5. Manteniment
- Neteja: Disconnect the charger from the power source before cleaning. Use a soft, dry cloth to wipe the surface of the charger. Do not use liquid cleaners or abrasive materials.
- Emmagatzematge: Guardeu el carregador en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes quan no l'utilitzeu.
- Cura de la bateria: For optimal battery life, avoid completely draining rechargeable batteries before recharging them.
6. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| L'indicador LED no s'encén. | Charger not connected to power, or battery inserted incorrectly. | Ensure the charger is securely plugged into a working power outlet. Re-insert batteries, verifying correct polarity. |
| Les bateries no es carreguen. | Batteries are non-rechargeable, damaged, or fully charged. | Confirm batteries are rechargeable (NiMH or NiCd). Try charging different batteries. If batteries are already full, the charger will stop charging. |
| Càrrega lenta. | Low power USB source or high-capacity batteries. | Use the included USB wall adapter for optimal charging speed. Charging high-capacity batteries naturally takes longer. |
7. Especificacions
| Característica | Detall |
|---|---|
| Model | N409 |
| Tipus de bateries compatibles | AA, AAA (Rechargeable) |
| Entrada Voltage | 5 Volts |
| Vol. De sortidatage | 1.5 Volts |
| Dimensions (L x A x A) | 6.3 x 2.4 x 9.3 cm |
| Pes | 200 g |
| Piles incloses | 2 x AA 2500 mAh |
| Interfície de càrrega | Micro USB |
| Característiques | LED Indicators, Intelligent Charging Protection (Overcharge protection) |
8. Informació de seguretat
- Use only with rechargeable AA and AAA batteries. Do not attempt to charge non-rechargeable batteries.
- No exposeu el carregador a l'aigua ni a una humitat excessiva.
- No desmunteu ni modifiqueu el carregador.
- Mantenir fora de l'abast dels nens.
- Desendolleu el carregador de la font d'alimentació quan no l'utilitzeu o durant tempestes elèctriques.
- Assegureu-vos que hi hagi una ventilació adequada durant la càrrega. No tapeu el carregador.
9. Garantia i Suport
For product support, technical assistance, or warranty inquiries, please contact RadioShack customer service. Refer to your purchase documentation for specific warranty terms and contact information.
Nota: Aquest manual proporciona directrius generals. Els termes de garantia específics poden variar segons la regió i el distribuïdor.
