1. Introducció
Thank you for choosing the Ledvion LV40015 LED TL Luminaire. This high-quality LED luminaire is designed for both indoor and outdoor use, featuring a robust, impact-resistant plastic housing and an IP65 rating for protection against dust and water. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new luminaire.
2. Informació de seguretat
Llegiu atentament totes les instruccions de seguretat abans de la instal·lació i l'ús. Si no seguiu aquestes instruccions, podeu patir descàrregues elèctriques, incendis o altres perills.
- Seguretat elèctrica: Installation must be performed by a qualified electrician in accordance with local electrical codes. Ensure the power supply is disconnected before any installation, maintenance, or repair work.
- Classificació IP65: The luminaire is protected against dust ingress and low-pressure water jets from any direction. While suitable for damp and outdoor environments, it is not designed for submersion.
- Vol. Operatiutage: This luminaire operates at 230 Volts. Verify your power supply matches this requirement.
- Calor: Although LED luminaires generate less heat than traditional lighting, ensure adequate ventilation around the fixture. Do not cover the luminaire with insulating material.
- Danys: Do not operate the luminaire if it is damaged. Contact customer support for assistance.
3. Què hi ha a la caixa
Verifiqueu que tots els components siguin presents abans de començar la instal·lació:

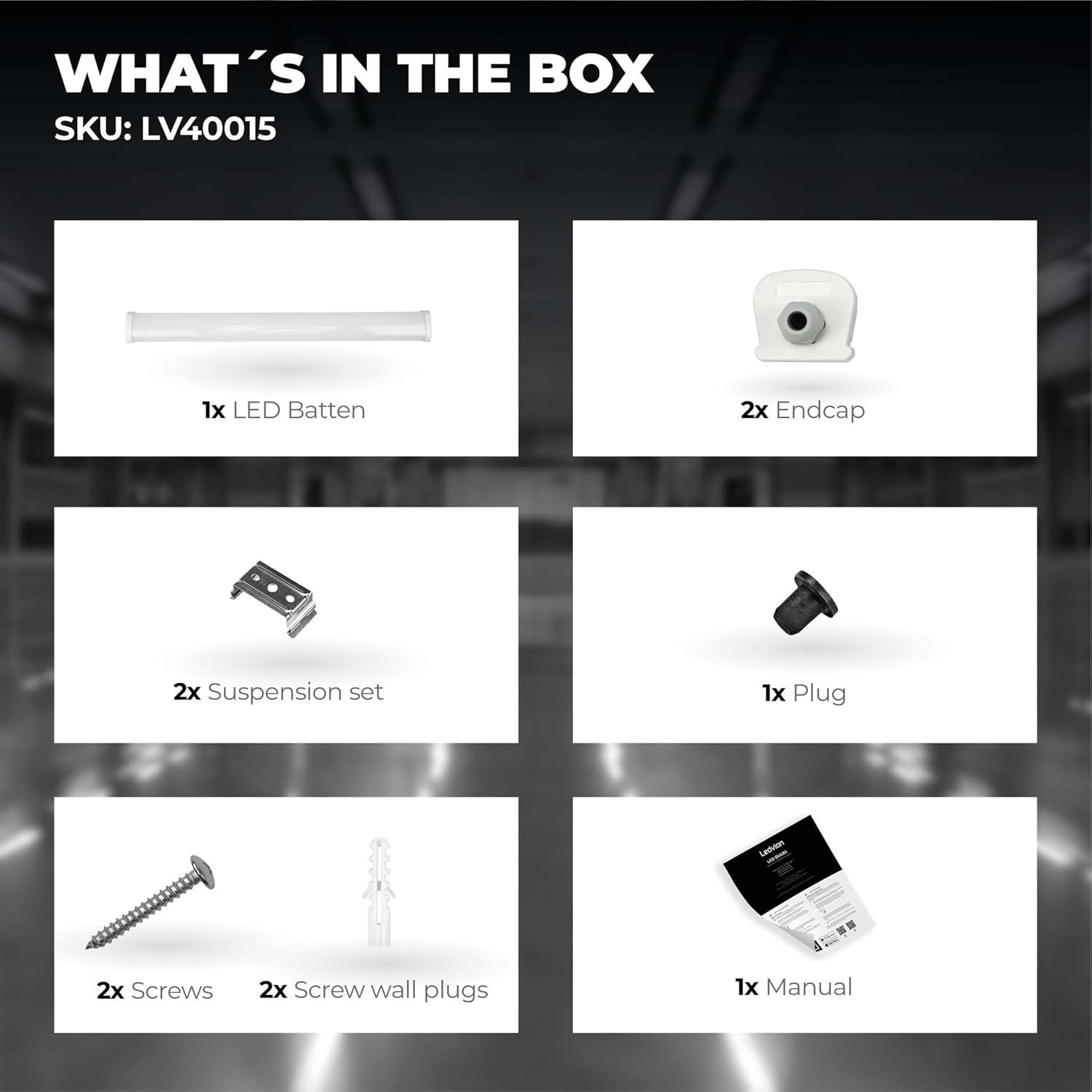

Image: Contents of the Ledvion LV40015 packaging, including the LED luminaire, endcaps, suspension set, plug, screws, wall plugs, and the instruction manual.
- 1x Ledvion LED TL Luminaire (Batten)
- 2x Endcaps
- 2x Suspension Set (Mounting Brackets)
- 1x Connection Plug
- 2x cargols
- 2x Screw Wall Plugs
- 1 x manual d'instruccions
4. Configuració i instal·lació
Follow these steps for proper installation of your Ledvion luminaire.
4.1 Mounting the Luminaire
- Tria la ubicació: Select a suitable mounting location on a wall or ceiling, ensuring it can support the luminaire's weight (approximately 1.02 kg).
- Marca els punts de perforació: Use the provided suspension set (mounting brackets) to mark the drilling points for the screws. The luminaire measures 158 cm in length.
- Forats: Drill holes at the marked points. Insert the screw wall plugs into the drilled holes.
- Col·loca els suports: Securely fasten the suspension set brackets to the mounting surface using the provided screws.
- Muntanya Luminaire: Carefully clip the LED luminaire into the installed suspension set brackets. Ensure it is firmly seated.
4.2 Connexió elèctrica
ADVERTIMENT: Ensure the main power supply is switched off at the circuit breaker before making any electrical connections.
- Cablejat d'accés: Open the wiring compartment of the luminaire.
- Connecteu els cables: Connect the live (L), neutral (N), and ground (E) wires from your power supply to the corresponding terminals inside the luminaire. Ensure all connections are tight and secure.
- Compartiment tancat: Close the wiring compartment, ensuring it is sealed to maintain the IP65 rating.
4.3 Connecting Multiple Luminaires (Toolless Linkable Feature)
This luminaire features a toolless linkable design, allowing you to connect multiple units in series (up to 20 pieces) for extended lighting runs.
Image: Toolless linkable feature, showing how multiple luminaires can be connected directly.
- Align Luminaires: Position the luminaires end-to-end.
- Connectar: Simply push the connection plug from one luminaire into the receptacle of the next luminaire until it clicks securely into place.
- Extrems del segell: Use the provided endcaps to seal the open ends of the connected luminaires to maintain the IP65 rating.
Image: Product dimensions, indicating a length of 1500 mm and a width of 63.2 mm.
5. Instruccions de funcionament
Once installed and connected to the power supply, the Ledvion LV40015 luminaire operates as a standard lighting fixture.
- Encès/apagat: Control the luminaire using an external wall switch connected to its power supply.
- Sortida de llum: The luminaire provides a cold white light at 6500 Kelvin with a luminous flux of 6720 lumens, suitable for various applications requiring bright, clear illumination.
6. Manteniment
Regular maintenance ensures optimal performance and longevity of your luminaire.
- Neteja: Disconnect power before cleaning. Wipe the luminaire with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the plastic housing and compromise the IP65 seal.
- Inspecció: Periodically inspect the luminaire for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and consult a qualified technician.
- Sense peces reparables per l'usuari: The LED components are integrated and not designed for user replacement. Do not attempt to open or repair the luminaire yourself.
7. Solució De Problemes
If you encounter issues with your luminaire, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| Luminaire does not turn on | No power supply; Loose wiring; Faulty switch | Check power supply at the circuit breaker; Verify all electrical connections are secure (with power off); Test the switch. |
| La llum parpelleja | Unstable power supply; Loose connection | Ensure stable power source; Check electrical connections. |
| Reducció de la producció de llum | Dirt or dust on diffuser | Clean the luminaire's diffuser with a soft, damp tela. |
| Water inside luminaire | Improperly sealed endcaps or wiring compartment; Damage to housing | Immediately disconnect power. Inspect and reseal endcaps and wiring compartment. If housing is damaged, replace the unit. |
If the problem persists after attempting these solutions, contact Ledvion customer support.
8. Especificacions
Technical details for the Ledvion LV40015 LED TL Luminaire:
Image: Key specifications including 48W power, 6912 lumens, and Energy Class E.
- Número de model: LV40015
- Marca: Ledvion
- Dimensions del producte: 158 x 7 x 7 cm
- Pes del producte: 1.02 kg
- Material: Plàstic
- Protection Index (IP Rating): IP65 (protegit contra la pols, contra els dolls d'aigua)
- Voltage: 230 Volts
- Wattage: 48 watts
- Flux lluminós: 6720 lúmens
- Temperatura de color: 6500 Kelvin (blanc fred)
- Tipus de llum: LED
- Classe d'eficiència energètica: E
- Font d'alimentació: Elèctric amb cable
- Connectable: Yes, toolless linkable (up to 20 units)
- País d'origen: Xina
Image: IP65 rating details, confirming water and dust resistance.
9. Garantia i Suport
Ledvion products are manufactured to high-quality standards and come with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Ledvion weblloc.
If you require technical assistance, have questions about installation, or need to report a defect, please contact Ledvion customer support through the retailer where the product was purchased or via the contact information provided on the Ledvion weblloc.
