BougeRV Green 23-Quart Portable Refrigerator User Manual

Introducció

The BougeRV Green 23-Quart Portable Refrigerator is a versatile 12V/24V DC and 110-240V AC compressor cooler designed for various applications, including trucks, vans, RVs, and campers. It offers fast cooling capabilities, low power consumption, and a wide adjustable temperature range from -8℉ to 50℉, allowing it to function as both a refrigerator and a freezer. This manual provides essential information for the safe and efficient operation and maintenance of your portable refrigerator.

Figure 1: BougeRV Green 23-Quart Portable Refrigerator.

Què hi ha a la caixa

En desempaquetar, comproveu que hi hagi tots els components següents:

• CR22 Green Car Refrigerator x1
• 100-240V AC Adapter (6.56 ft, for Wall Socket/Power Station etc.) x1
• 12V/24V DC Power Cord (10.82 ft) x1
• Manual d'usuari x1

Configuració

Col·locació

Place the portable refrigerator on a stable, level surface. Ensure adequate ventilation around the unit. Important: Do not place the refrigerator in direct sunlight, as this may cause the refrigerator door to become deformed and affect performance.

Connexió d'alimentació

The BougeRV portable refrigerator supports multiple power input options:

• 12V/24V DC Power: Connect the provided DC power cord to your vehicle's 12V/24V DC outlet (e.g., cigarette lighter socket) or a compatible portable power station.
• 110-240V AC Power: Use the provided AC adapter to connect the refrigerator to a standard household wall socket or a power station with AC output.
• Panell solar (opcional): For off-grid use, the unit can be powered via a solar panel connected to a solar charge controller and a 12V battery, or directly to a compatible power station.

Figure 2: Three ways to power your portable refrigerator.

Figure 3: Detailed power connection diagrams.

Refrigeració inicial

For optimal performance, it is recommended to pre-cool the refrigerator before loading it with items, especially if you plan to use it as a freezer. Connect the unit to AC power at home to bring it down to the desired temperature before your trip.

Instruccions de funcionament

Tauler de control acabatview

The control panel features an LED display and touch keys for easy operation:

Figure 4: Control Panel and Functions.

• Pantalla LED: Mostra la temperatura i la configuració actuals.
• On/Off Touch Screen Key: Encén o apaga la unitat.
• Unlock / Set Touch Screen: Used to unlock the panel and enter settings mode.
• Temperature Increase Touch Key (+): Augmenta la temperatura objectiu.
• Temperature Decrease Touch Key (-): Disminueix la temperatura objectiu.
• Port de càrrega USB: Per carregar petits dispositius electrònics.

Control de temperatura

The refrigerator's temperature can be adjusted from -8℉ (-22℃) to 50℉ (10℃). This wide range allows it to function as either a refrigerator or a freezer. Use the + i - buttons on the control panel to set your desired temperature.

Figure 5: Adjustable temperature range for refrigeration or freezing.

Power Modes (ECO & MAX)

The unit features two operating modes to optimize performance and energy consumption:

• Mode ECO (estalvi d'energia): Operates at less than 36W, consuming less than 1kWh/day. Ideal for maintaining temperature and maximizing battery life.
• MAX Mode (Fast Cooling): Operates at 45W for rapid cooling. This mode is recommended when you need to quickly reach a low temperature, such as when initially cooling down the unit or freezing items.

Figura 6: Modes de potència ECO i MAX.

Protecció de la bateria

The refrigerator is equipped with a 3-level battery monitor to prevent excessive discharge of your vehicle's battery. You can select the cut-off voltage (High, Medium, Low) at which the fridge will automatically shut off to protect your battery. The factory default is set to High mode.

Figura 7: Volum de protecció de la bateriatage Levels.

Funcionament de baix soroll

The truck freezer is designed to run with low noise (45dB) to ensure a comfortable environment, especially during long drives or overnight use. It also features a shock-proof design, allowing it to operate without issues even with a 30° inclination on uneven roads.

Manteniment

Neteja

Regular cleaning will help maintain the efficiency and longevity of your portable refrigerator. Wipe the interior and exterior surfaces with a damp cloth and mild detergent. Ensure the unit is unplugged before cleaning. Avoid using abrasive cleaners or harsh chemicals.

Emmagatzematge

When not in use for extended periods, ensure the refrigerator is clean and dry. Store it in a cool, dry place with the lid slightly ajar to prevent odors and mildew buildup.

Resolució de problemes

If you encounter issues with your BougeRV portable refrigerator, please refer to the following common troubleshooting tips. For more detailed solutions, consult the included user manual or contact customer support.

• La unitat no s'encén: Check power connections (DC/AC), ensure the power source is active, and verify battery protection settings are not cutting off power due to low voltage.
• No refreda prou: Ensure the lid is properly sealed, check for obstructions in ventilation holes, verify temperature settings, and consider switching to MAX mode for faster cooling.
• Soroll inusual: While designed for low noise, excessive noise might indicate an uneven surface or an issue with internal components. Ensure the unit is stable.

Especificacions

Key technical specifications for the BougeRV Green 23-Quart Portable Refrigerator:

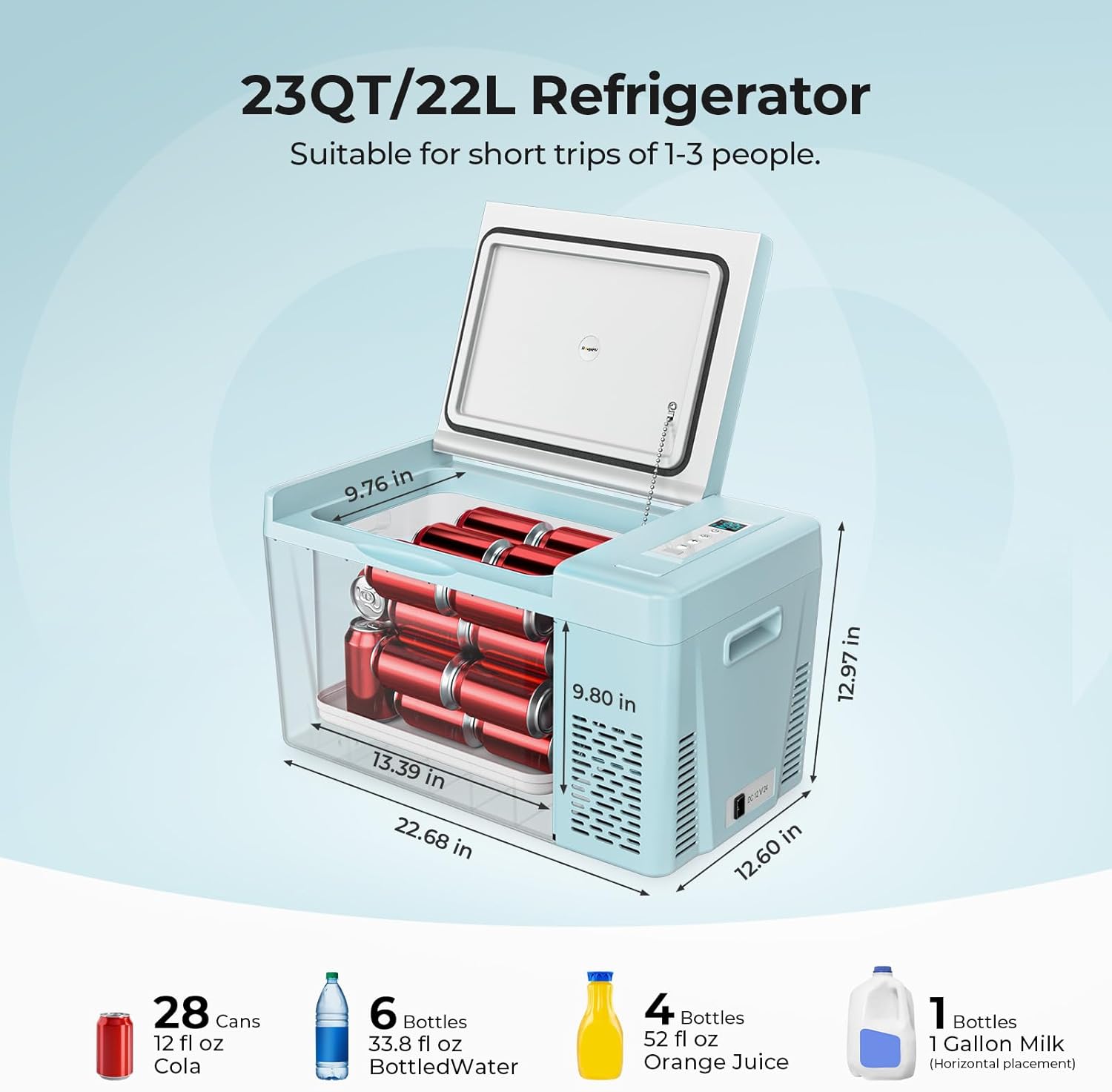

Figura 8: Il·lustració de les dimensions del producte i la capacitat.

Garantia i Suport

BougeRV stands behind its products with comprehensive support:

• Suport al producte: The CR22 12V refrigerator comes with a 2-year technical support.
• Garantia del compressor: Enjoy a 10-year lifespan warranty on the compressor.
• Atenció al client: BougeRV provides friendly 24-hour customer service. If you have any questions about the product, please reach out to BougeRV directly.

Figure 9: BougeRV Product Support and Warranty.
