Milex Wonder MWC005 Chef 18in1 Multi-Cooker Master User Manual

1. Introducció

Congratulations on your purchase of the Milex Wonder MWC005 Chef 18in1 Multi-Cooker Master. This versatile appliance is designed to simplify your cooking experience, offering a wide range of functions including steaming, sautéing, slow cooking, and more. Please read this manual thoroughly before first use to ensure safe and optimal operation of your new multi-cooker.

Figura 1: Frontal view of the Milex Wonder MWC005 Chef 18in1 Multi-Cooker Master. The image shows the sleek black exterior with green accents, the control panel with two rotary dials, and the transparent lid.

2. Instruccions de seguretat importants

AVÍS: Per reduir el risc d'incendi, descàrrega elèctrica o lesions, seguiu sempre aquestes precaucions de seguretat bàsiques.

• Llegiu totes les instruccions abans d'utilitzar l'aparell.
• No toqueu superfícies calentes. Utilitzeu nanses o poms.
• Per protegir-vos contra les descàrregues elèctriques, no submergiu el cable, els endolls ni la unitat principal en aigua ni en altres líquids.
• És necessària una supervisió estreta quan qualsevol aparell és utilitzat per o a prop dels nens.
• Desendolleu la presa de corrent quan no utilitzeu i abans de netejar. Deixeu refredar abans de posar o treure peces.
• No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi fet malbé de cap manera.
• L'ús d'accessoris no recomanats pel fabricant de l'aparell pot causar lesions.
• No utilitzar a l'aire lliure.
• No deixeu que el cable pengi de la vora de la taula o del taulell, ni toqui superfícies calentes.
• No col·loqueu-lo sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.
• Cal extremar la precaució quan es mou un aparell que contingui oli calent o altres líquids calents.
• Connecteu sempre primer l'endoll a l'aparell i després el cable a la presa de corrent. Per desconnectar-lo, gireu qualsevol control a la posició "off" i, a continuació, retireu l'endoll de la presa de corrent.
• No utilitzeu l'aparell per a un altre ús que el previst.
• Aquest aparell cuina sota pressió. Un ús incorrecte pot provocar cremades. Assegureu-vos que la unitat estigui correctament tancada abans de fer-la funcionar.
• Ensure the drain and steam outlet is clear and unobstructed during operation.

3. Producte acabatview

3.1 Components

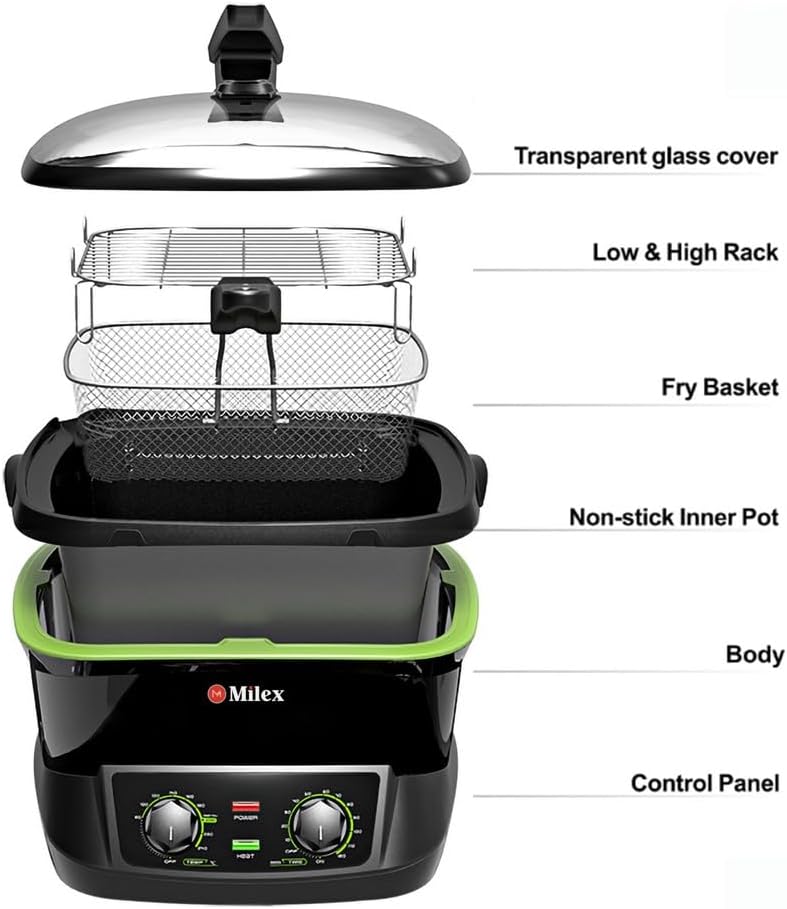

Figura 2: Explotat view of the Milex Wonder MWC005 Multi-Cooker showing its main components. From top to bottom: Transparent glass cover, Low & High Rack, Fry Basket, Non-stick Inner Pot, Body, and Control Panel.

1. Transparent Glass Cover: Permet controlar el progrés de la cocció sense aixecar la tapa.
2. Low & High Rack: Used for steaming or elevating food within the pot.
3. Cistella de fregir: Designed for deep frying or blanching.
4. Recipient interior antiadherent: The main cooking vessel with an 8L capacity and ceramic non-stick coating.
5. Cos: The main housing of the multi-cooker, containing heating elements and electronics.
6. Tauler de control: Located on the front, featuring two rotary dials for temperature/function and timer settings, along with indicator lights.

3.2 Tauler de control

The control panel features two main rotary dials and indicator lights:

• Left Dial (Temperature/Function): Used to select desired cooking temperature or function (e.g., OFF, WARM, TEMP °C).
• Right Dial (Timer): Used to set the cooking time (e.g., OFF, MINS, HRS).
• Llum indicadora POWER: S'il·lumina quan la unitat està engegada.
• HEAT Indicator Light: S'il·lumina quan l'element calefactor està actiu.

4. Configuració

1. Desembalatge: Carefully remove all packaging materials and accessories from the box. Retain packaging for future storage or transport.
2. Neteja inicial: Before first use, wash the inner pot, glass cover, racks, and fry basket with warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the main body with a damp tela. No submergiu el cos principal a l'aigua.
3. Col·locació: Place the multi-cooker on a stable, flat, heat-resistant surface, away from walls or cabinets to allow for proper ventilation. Ensure there is sufficient space around the unit.
4. Connexió d'alimentació: Assegureu-vos que el voltage of your power outlet matches the specifications of the appliance (220-240V, 50Hz). Plug the independent power cord into the multi-cooker's power inlet, then into a grounded wall outlet.
5. Muntatge: Place the non-stick inner pot securely into the main body. Ensure it sits flat and is properly seated.

5. Instruccions de funcionament

The Milex Wonder MWC005 offers various cooking functions. Always ensure the inner pot is correctly placed before adding ingredients or turning on the appliance.

5.1 Funcionament general

• Plug in the multi-cooker. The POWER indicator light will illuminate.
• Turn the left dial to select your desired temperature or function.
• Turn the right dial to set the cooking time.
• The HEAT indicator light will turn on when the heating element is active and cycle on/off to maintain the set temperature.
• Once cooking is complete, turn both dials to "OFF" and unplug the appliance.

5.2 Funcions de cocció específiques

5.2.1 Sauté/Sear

This function is ideal for browning meats or sautéing vegetables before other cooking methods.

1. Add a small amount of cooking oil or fat to the inner pot.
2. Turn the left dial to a desired temperature for sautéing (e.g., 180°C - 200°C).
3. Allow the pot to preheat for a few minutes.
4. Add ingredients and cook, stirring as needed.
5. When finished, turn dials to "OFF".

5.2.2 vapor

Perfect for vegetables, fish, or dumplings. Utilize the Low & High Rack for steaming.

1. Add the appropriate amount of water to the inner pot (ensure water level is below the rack).
2. Place the Low & High Rack into the inner pot.
3. Arrange food on the rack.
4. Cobrir amb la tapa de vidre.
5. Turn the left dial to a suitable steaming temperature (e.g., 100°C).
6. Set the desired steaming time using the right dial.
7. Ensure the drain and steam outlet is clear.

5.2.3 Cocció lenta

Ideal for tenderizing meats and developing rich flavors over extended periods.

1. Afegiu els ingredients a l'olla interior.
2. Cobrir amb la tapa de vidre.
3. Turn the left dial to a low temperature setting (e.g., 80°C - 90°C).
4. Set the desired slow cooking time using the right dial (e.g., several hours).
5. Monitor liquid levels for longer cooking times.

5.2.4 Other Functions (e.g., Yogurt, Deep Fry)

The 18-in-1 functionality allows for various cooking methods. For specific recipes and detailed instructions on functions like yogurt making or deep frying (using the fry basket), refer to dedicated recipe books or online resources for multi-cookers. Adjust temperature and time dials according to recipe requirements.

The multi-cooker supports three-layer cooking, allowing you to cook different components of a meal simultaneously. This typically involves placing ingredients directly in the inner pot, and then using the racks to steam or cook items above the main dish.

6. Neteja i Manteniment

Regular cleaning ensures the longevity and optimal performance of your multi-cooker.

1. Desconnecta sempre l'aparell de la presa de corrent i deixeu-lo refredar completament abans de netejar-lo.
2. Inner Pot, Glass Cover, Racks, and Fry Basket: These parts are dishwasher safe. Alternatively, wash them with warm, soapy water and a non-abrasive sponge. Rinse thoroughly and dry completely before storing. Do not use harsh chemicals or abrasive cleaning pads, as this may damage the non-stick coating.
3. Cos principal: Wipe the exterior of the multi-cooker body with a soft, damp cloth. Do not immerse the main body in water or any other liquid. Ensure no water enters the control panel area.
4. Drain and Steam Outlet: Periodically check and clean the drain and steam outlet to ensure it is free from food debris or blockages.
5. Emmagatzematge: Store the multi-cooker in a dry place, away from direct sunlight and out of reach of children.

7. Solució De Problemes

If you encounter issues with your Milex Wonder MWC005, please refer to the following common problems and solutions:

Si el problema persisteix després de provar aquestes solucions, poseu-vos en contacte amb l'atenció al client.

8. Especificacions

9. Garantia i Suport

For warranty information and details regarding your Milex Wonder MWC005 Chef 18in1 Multi-Cooker Master, please refer to the warranty card included with your purchase or visit the official Milex weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.

If you require technical assistance or have questions not covered in this manual, please contact Milex customer support. Contact details can typically be found on the manufacturer's weblloc web o a l'embalatge del producte.

This manual is subject to change without prior notice. The latest version can be found on the manufacturer's official weblloc.
