TecTake Garden Patio Retractable Awning User Manual

1. Introducció

This manual provides essential information for the safe and effective use of your TecTake Garden Patio Retractable Awning. Please read this manual thoroughly before assembly and operation, and retain it for future reference.

The TecTake manual awning is designed to provide protection from sun and rain, enhancing the usability of your patio, garden, or outdoor area in various weather conditions. It features a smooth-running hand crank for easy operation and is constructed from durable, UV and rain-resistant materials.

Figure 1: TecTake Garden Patio Retractable Awning, extended view.

2. Informació de seguretat

AVÍS: Si no es segueixen aquestes instruccions de seguretat, es poden produir lesions o danys al producte.

• Always ensure the awning is securely attached to the surface.
• Do not use the awning in high winds or severe storms. Retract the awning immediately under such conditions.
• Keep children and pets away from the moving parts of the awning during operation.
• Always follow the manufacturer's instructions for installation and use.
• Regularly inspect the awning for any signs of wear, damage, or loose components. Do not use if damaged.

3. Àmbit de lliurament

Abans de començar el muntatge, comproveu que tots els components que s'enumeren a continuació siguin presents i no estiguin danyats.

• 1x Retractable Awning unit
• 1x Set of Assembly Materials (fasteners, etc.)
• 1x Assembly Instructions manual (this document)

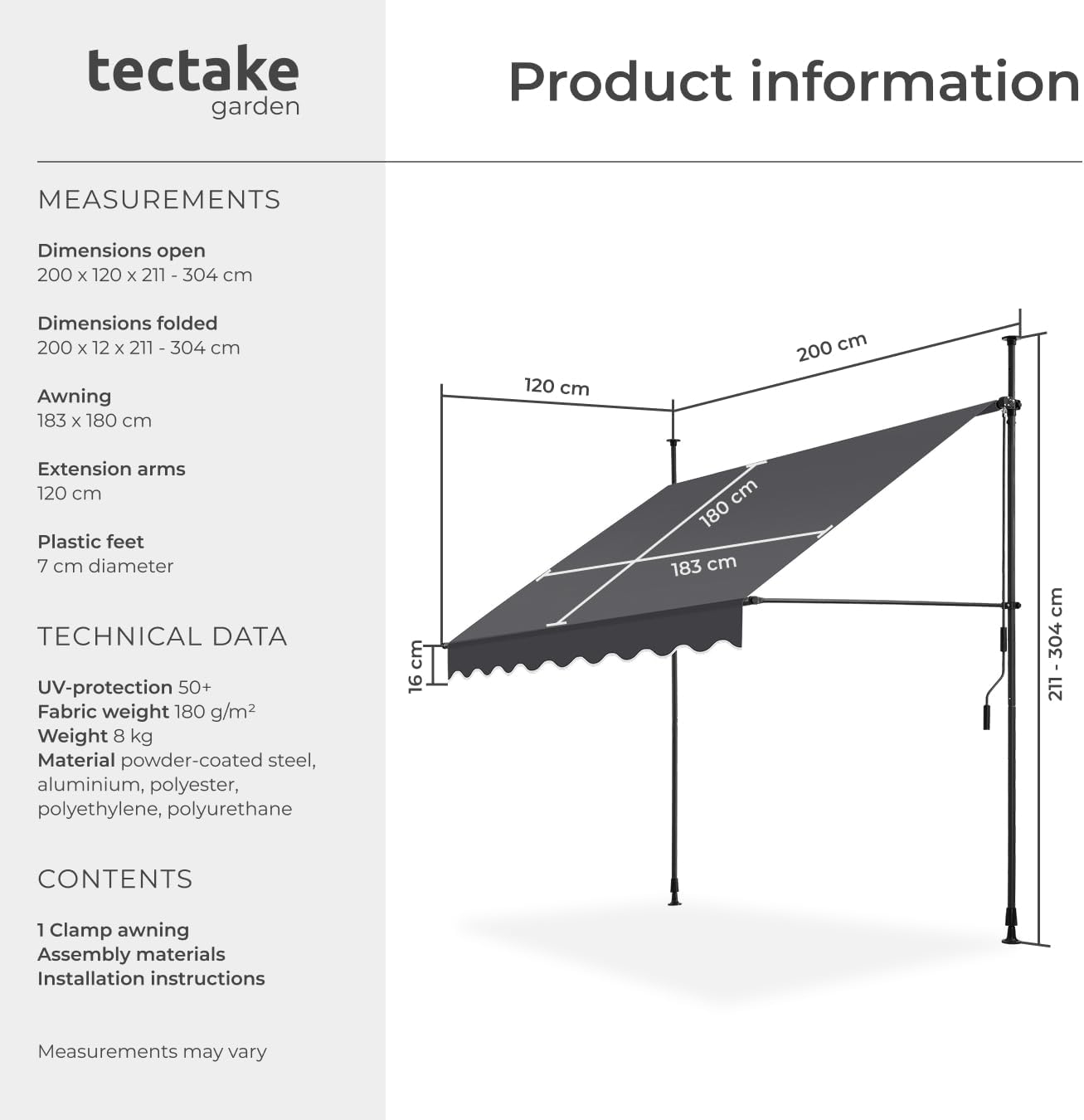

Figura 2: Mésview of product information, including dimensions and package contents.

4. Configuració i instal·lació

The TecTake Retractable Awning features a practical clamp system designed for quick and effortless installation, requiring no drilling into your exterior walls. This allows for flexible placement on patios, balconies, or other suitable outdoor areas.

4.1 Passos de muntatge

Refer to the included detailed assembly instructions for step-by-step guidance. It is recommended to have two people for assembly to ensure stability and ease of installation.

• Unpack all components and verify against the Scope of Delivery list.
• Assemble the main frame components according to the diagrams in the separate assembly instructions.
• Attach the awning fabric to the frame.
• Position the awning in the desired location. The clamp system allows for installation without permanent fixtures.
• Adjust the height of the telescopic rods using the screw feet. The height can be adjusted between approximately 211 cm and 304 cm to fit your space.
• Premeu bé tots els clamping mechanisms to ensure the awning is stable and firmly in place.
• Mount the hand crank on either the left or right side of the awning for convenient operation.

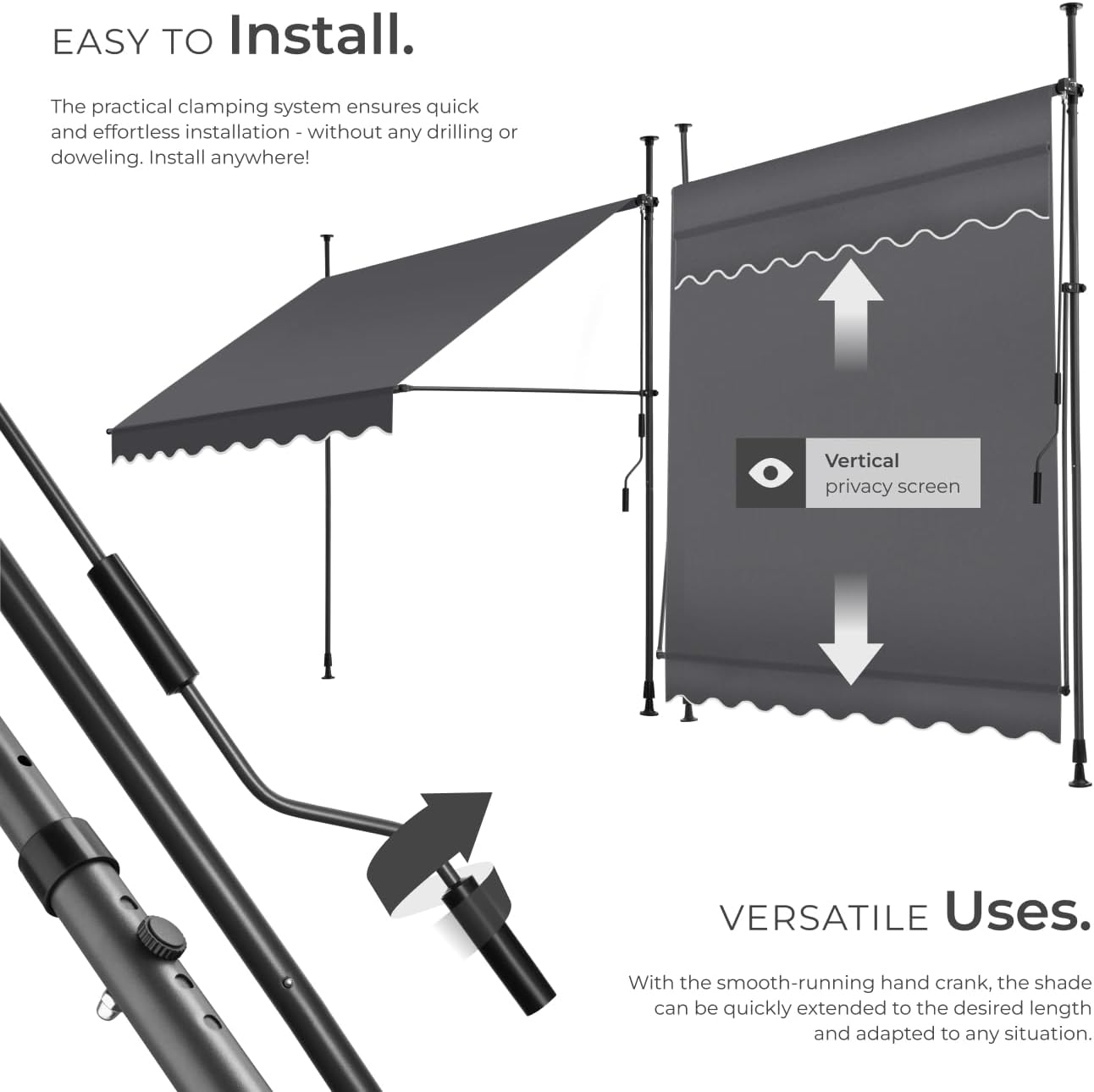

Figure 3: Visual guide to the easy installation process and versatile usage options.

Figure 4: Details of the hand crank mechanism, robust frame, and adjustable height feature.

5. Instruccions de funcionament

The TecTake awning is designed for effortless operation using its smooth-running hand crank system. This allows you to easily extend or retract the canopy to your desired length and angle.

5.1 Extending and Retracting the Awning

• To extend the awning, turn the hand crank clockwise. The canopy will smoothly unroll, providing shade.
• To retract the awning, turn the hand crank counter-clockwise. The canopy will roll back into its compact position.
• Adjust the extension to achieve the desired amount of shade or coverage.

5.2 Adjusting Awning Angle and Versatility

• The awning's arms allow for flexible angle adjustment, from a diagonal sunshade to a completely vertical privacy screen.
• Adjust the angle by manipulating the extension arms as described in the assembly instructions or by adjusting the height of the telescopic poles.
• This versatility allows you to adapt the awning for sun protection, light rain shelter, or as a privacy screen for your outdoor space.

Figure 5: Key features for operation and adjustment, including UV protection and hand crank system.

6. Manteniment

Proper maintenance will extend the life and performance of your TecTake Retractable Awning.

• Neteja: Clean the awning fabric periodically with mild soap and water. Do not use harsh chemicals or abrasive cleaners. Allow the fabric to air dry completely before retracting to prevent mildew.
• Inspecció del marc: Regularly check the powder-coated steel and aluminum frame for any signs of rust, corrosion, or damage. Clean any dirt or debris from the frame.
• Comprovació de components: Periodically inspect all screws, bolts, and clamping mechanisms to ensure they are tight and secure. Tighten any loose fasteners.
• Emmagatzematge: During prolonged periods of non-use or in anticipation of severe weather, it is recommended to fully retract the awning to protect it from damage.

Figure 6: The awning's weather-resistant properties, crucial for long-term maintenance.

7. Solució De Problemes

Aquesta secció tracta els problemes habituals que podeu trobar amb el vostre tendal.

If you encounter issues not listed here or if solutions do not resolve the problem, please contact TecTake customer support.

8. Especificacions tècniques

9. Garantia i Suport

For information regarding warranty coverage, returns, or technical support, please refer to your purchase documentation or contact TecTake customer service directly. Contact details can typically be found on the TecTake official weblloc web o a través del vostre distribuïdor.

Si us plau, tingueu a mà el número de model (404959) i la data de compra quan us poseu en contacte amb el servei d'assistència.
