TROND Long Extension Cord 15 FT, ETL, Surge Protector Power Strip with 12 AC Outlets and 4 USB Ports, Flat Plug Power Strip, 4000J, Wall Mount for Factory Home Kitchen Office Garage 15 FT 12 AC User Manual

Introducció

The TROND Long Extension Cord and Surge Protector is designed to provide extensive power distribution and protection for your electronic devices. This unit features a comprehensive set of outlets and USB ports, a durable long cord, and advanced safety mechanisms, making it suitable for various environments including homes, offices, and workshops.

Please read this manual thoroughly before using the product to ensure safe and optimal operation.

Informació de seguretat

Per evitar incendis, descàrregues elèctriques o lesions, seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu aquest producte:

Do not exceed the maximum power rating of 1875W (125V~15A).
No utilitzeu en ambients humits ni a prop de l'aigua.
No desmunteu ni modifiqueu la unitat.
Mantenir fora de l'abast dels nens.
Assegureu-vos que l'endoll estigui completament inserit a la presa de corrent.
This power strip is equipped with 4000 Joules surge protection and is made of UL94 V-0 flame-retardant material for enhanced safety.
The unit provides protection against overload, short circuit, and voltage fluctuacions.

Diagram illustrating multiple safety protections including surge, grounded, fire resistance, short-circuit, overload, over-current, over-voltage, i protecció de sobretemperatura.

Figure 1: Multi-Safety Protection Features

This image highlights the comprehensive safety features built into the TROND power strip, including protection against surges, grounding issues, fire, short circuits, overloads, over-currents, over-voltages, and over-temperatures, ensuring the safety of connected devices and the user.

Característiques del producte

TROND Long Extension Cord and Surge Protector, showing 12 AC outlets, 3 USB-A ports, and 1 USB-C port, with a 15-foot cord and flat plug.

Figure 2: TROND Power Strip Overview

This image provides a full view of the TROND power strip, showcasing its sleek black design, the arrangement of its 12 AC outlets, and the integrated USB-A and USB-C ports at one end. The attached 15-foot power cord with its flat plug is also visible, emphasizing the product's design for versatile placement.

12 Widely-Spaced AC Outlets: Dissenyat amb ample space and different orientations to accommodate large power adapters and odd-shaped plugs without blocking adjacent outlets.
Figure 3: Spacious Outlet Layout

This image highlights the intelligent design of the TROND power strip's outlets, showcasing the generous spacing and varied orientation that allows users to plug in multiple large adapters or 'wall warts' without obstructing neighboring outlets. This feature maximizes the usability of all 12 AC outlets.
Càrrega USB integrada: Features 3 USB-A ports (5V/2.4A Max each) and 1 USB-C port (5V/3A Max), allowing you to charge up to 4 USB-powered devices directly.

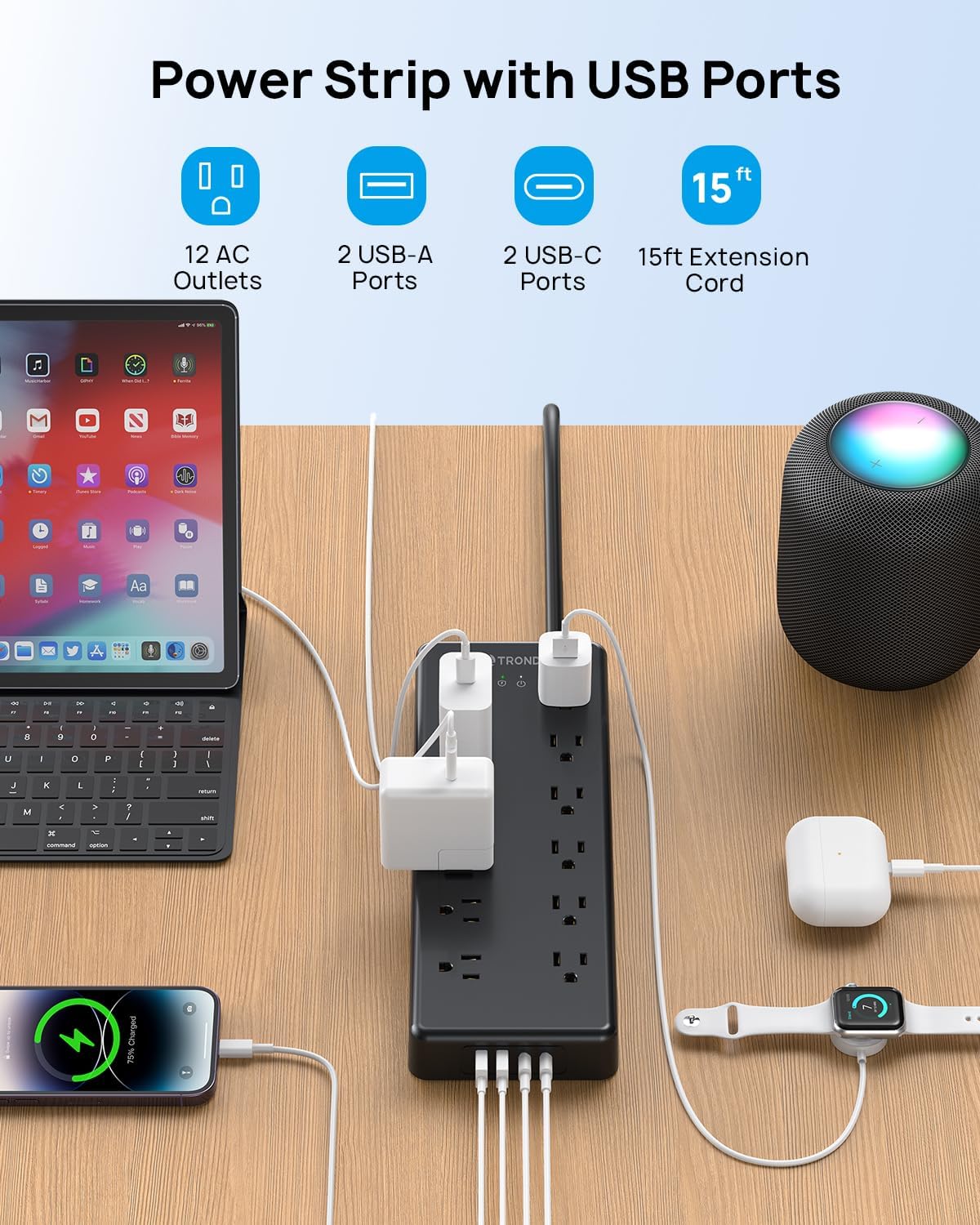

Figure 4: Power Strip with USB Ports in Use
This image demonstrates the TROND power strip in an active setup, with various devices such as a laptop, smartphone, and smartwatch connected and charging via its AC outlets and USB ports. It visually confirms the product's capability to power and charge multiple devices simultaneously, highlighting the convenience of its integrated USB charging functionality.
15 FT Flat Power Cord: The durable 14AWG pure copper extension cord measures 15 feet, providing extended reach. The 0.55-inch flat plug and 45-degree angled design allow for discreet placement behind furniture and ensure the second wall outlet remains accessible.
Figure 5: Flat Wall Plug Design
This image focuses on the innovative 0.55-inch flat wall plug of the TROND power strip, demonstrating how its slim profile and 45-degree angled design allow it to fit snugly behind furniture without protruding. This design ensures that the power strip can be used in tight spaces while keeping the wall outlet neat and accessible.
Figure 6: 15ft Extension Cord Reach

This image illustrates the practical benefit of the TROND power strip's 15-foot extension cord, showing it extending comfortably from a wall outlet to a coffee table where devices are being charged. The visual emphasizes the long reach and flexibility provided by the heavy-duty 14AWG cord, making it suitable for various room layouts.
Protecció contra sobretensions de 4000 joules: Provides robust protection for your connected devices against power surges and voltage pics.
Figure 7: 4000 Joules Surge Protection
This image provides a conceptual transparent view of the TROND power strip, visually emphasizing its internal surge protection circuitry. A lightning bolt icon and the "4000 Joules" rating are prominently displayed, illustrating the product's capability to safeguard electronic devices from damaging power disturbances and voltage fluctuacions.
Desk and Wall Mountable: Equipped with 4 non-slip rubber feet for stable desktop placement and 2 mounting holes on the reverse side for secure wall or under-desk installation.
Figure 8: Mountable Power Strip
This image illustrates the versatility of the TROND power strip's mounting options. It clearly shows the four rubber feet for stable desktop use and the two mounting holes on the back, along with a visual example of the power strip securely mounted under a desk, demonstrating its space-saving potential and adaptability to various setups.

Configuració

Desembalar: Carefully remove the TROND power strip from its packaging.
Col·locació: Choose a suitable location for the power strip. Consider the length of the 15-foot cord and the proximity to your devices. The flat plug design allows for placement behind furniture.
Muntatge (opcional): If wall-mounting or under-desk mounting is desired, use appropriate screws (not included) with the two mounting holes on the back of the unit. Ensure the mounting surface is secure.
Connecteu-vos a l'alimentació: Plug the power strip's flat plug into a standard 3-prong 125V AC wall outlet.
Encès: Press the ON/OFF switch located on the power strip to activate it. The indicator light will illuminate.

Instruccions de funcionament

Dispositius de connexió: Insert the power cords of your electronic devices into any of the 12 AC outlets. The wide spacing accommodates larger adapters.
Càrrega USB: Connect your USB-powered devices (smartphones, tablets, smartwatches, etc.) to the USB-A or USB-C ports using their respective charging cables.
Protecció contra sobretensions: The power strip continuously monitors for power surges and will automatically protect connected devices up to 4000 Joules. In the event of an extreme surge, the surge protector may sacrifice itself to protect your equipment.
Protecció de sobrecàrrega: If the total power draw of connected devices exceeds 1875W (15A), the built-in circuit breaker will trip to prevent overload. If this occurs, unplug some devices, then press the reset button (usually combined with the ON/OFF switch) to restore power.
Indicador d'alimentació: A small LED indicator light on the power strip confirms that the unit is receiving power and the surge protection is active.

Manteniment

Neteja: Desconnecteu el reglet de la presa de corrent abans de netejar-lo. Feu servir un drap sec i suau per netejar la superfície. No utilitzeu netejadors líquids ni aerosols.
Inspecció: Inspeccioneu periòdicament el cable d'alimentació i la unitat per detectar qualsevol signe de danys, com ara cables desfilats o esquerdats.asing. If damage is found, discontinue use and contact customer support.
Emmagatzematge: Quan no l'utilitzeu durant períodes prolongats, guardeu el reglet en un lloc fresc i sec, allunyat de la llum solar directa i de la humitat.

Resolució de problemes

Problema	Causa possible	Solució
No hi ha alimentació a les preses de corrent/ports USB.	Regleta no endollada. L'interruptor ON/OFF està apagat. L'interruptor automàtic s'ha saltat a causa d'una sobrecàrrega. L'endoll de paret no té corrent.	Assegureu-vos que el reglet estigui ben connectat a una presa de corrent. Premeu l'interruptor ON/OFF a la posició 'ON'. Unplug some devices, then press the reset button (often integrated with the ON/OFF switch). Prova la presa de corrent amb un altre dispositiu. Comprova l'interruptor de casa teva.
Els dispositius no es carreguen per USB.	El cable USB està defectuós. El dispositiu requereix més energia de la disponible. El dispositiu no és compatible.	Prova amb un cable USB diferent. Ensure your device's charging requirements are within the USB port specifications (USB-A: 5V/2.4A Max, USB-C: 5V/3A Max). Verify device compatibility with standard USB charging.
El llum indicador de protecció contra sobretensions està apagat.	Surge protection has been compromised (e.g., by a major surge).	If the indicator light is off, the surge protection feature may no longer be active. While the power strip may still function as an extension cord, it will not protect against surges. Consider replacing the unit.

Especificacions

Marca: TROND
Model: 15 FT 12 AC
Preses de CA: 12
Ports USB-A: 3 (5V/2.4A màx. per port)
Port USB-C: 1 (5V/3A Max)
Max. Power Rating: 1875W (125V~15A)
Protecció contra sobretensions: 4000 Joules
Longitud del cable: 15 Feet (14AWG pure copper)
Tipus d'endoll: Flat, 45° Angled
Material: UL94 V-0 Flame-Retardant
Muntatge: Wall-mountable (2 holes), Desk placement (4 rubber feet)
Color: Negre
Dimensions: Aproximadament 13.43 x 7.8 x 2.32 polzades (dimensions del paquet)
Pes de l'article: 2.66 lliures

Garantia i Suport

TROND products are designed for reliability and performance. For warranty information, technical support, or any questions regarding your TROND Long Extension Cord and Surge Protector, please contact TROND Official customer service.

You can typically find contact information on the TROND official weblloc web o a través de la vostra plataforma de compra.

Assistència en línia: Visita el TROND Official Store on Amazon per a preguntes freqüents i recursos de suport.
