1. Introducció
Thank you for choosing the Midea 18.7 Cu. Ft. Bottom Mount Freezer Refrigerator. This appliance is designed to provide efficient and convenient food storage with its thoughtful layout, placing frequently accessed items at eye level. It features an electronic control system, reversible door swing, and bright LED interior lighting. This manual provides essential information for the safe installation, operation, and maintenance of your new refrigerator.
Figura 1: Frontal view of the Midea 18.7 Cu. Ft. Bottom Mount Freezer Refrigerator.
2. Informació important de seguretat
Before operating your refrigerator, please read all safety instructions carefully to reduce the risk of fire, electric shock, or injury. Keep this manual for future reference.
2.1 Precaucions generals de seguretat
- Ensure the refrigerator is properly grounded. Use a dedicated electrical outlet.
- No utilitzeu cables d'extensió ni adaptadors sense connexió a terra.
- Desendolleu la nevera abans de netejar-la o fer-ne cap manteniment.
- Mantenir les obertures de ventilació lliures d'obstruccions.
- No emmagatzemeu substàncies explosives com ara llaunes d'aerosol amb un propulsor inflamable en aquest aparell.
- This appliance contains R-290 or R-600A refrigerant. Handle with care and ensure proper ventilation during installation and servicing.
- No danyeu el circuit de refrigerant.
- Els nens han de ser supervisats per assegurar-se que no juguin amb l'aparell.
- Do not touch cold surfaces, especially when hands are damp or wet, as skin may stick to extremely cold surfaces.
3. Configuració i instal·lació
3.1 Desembalatge
Remove all packaging materials, including foam and adhesive tape. Inspect the refrigerator for any shipping damage. Keep packaging materials out of reach of children.
3.2 Requisits d'ubicació
Place the refrigerator on a strong, level floor. Allow adequate space around the unit for proper air circulation (at least 2 inches at the back and sides). Avoid direct sunlight or heat sources. Ensure the ambient temperature is suitable for appliance operation.
3.3 Anivellació
Ajusteu els peus anivelladors a la part inferior de la nevera per assegurar-vos que estigui estable i anivellat. Això evita vibracions i garanteix un segellat correcte de la porta.
3.4 Reversible Door Swing
The door swing of this refrigerator can be reversed to open from either the left or right side, accommodating various kitchen layouts. Refer to the detailed instructions in your full user manual for the door reversal procedure. This process typically involves removing hinges and reattaching them on the opposite side.

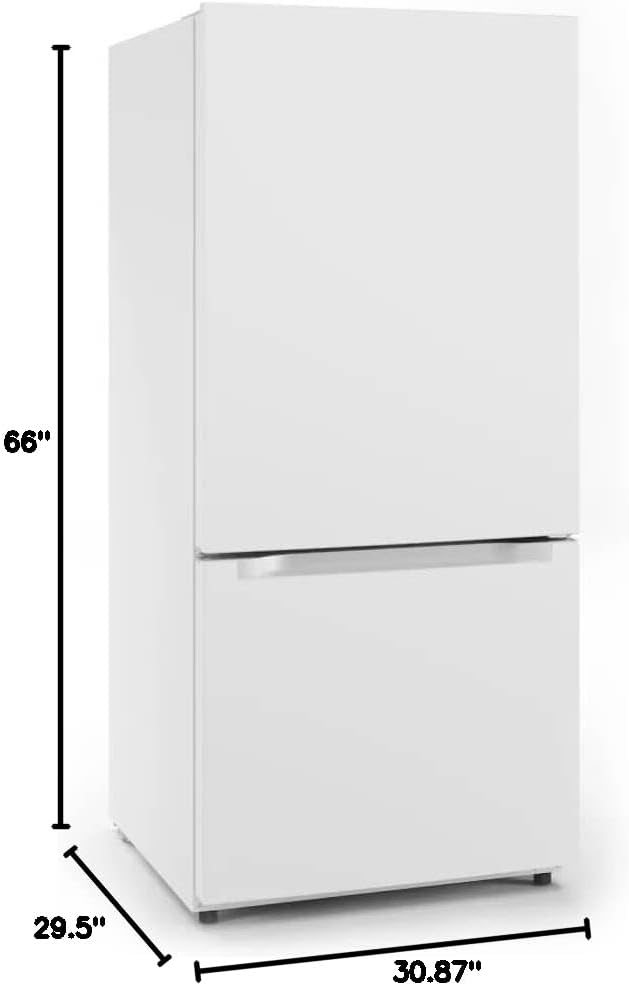

Figura 2: Dimensions del producte per a la planificació de la instal·lació.
4. Funcionament de la nevera
4.1 Control electrònic
Your Midea refrigerator is equipped with an electronic control panel, typically located inside the fresh food compartment. This panel allows you to adjust temperature settings for both the refrigerator and freezer sections. Consult the full manual for specific button functions and temperature range settings.
4.2 Compartiment de la nevera
The upper compartment is the refrigerator section, designed for fresh food storage. It features:
- Prestatges ajustables: Three toughened glass or plastic shelves can be repositioned to accommodate items of various heights.
- Humidity-Controlled Crisper Bins: Two crisper drawers are located at the bottom of the refrigerator compartment. These bins are designed to maintain optimal humidity levels, extending the freshness of fruits and vegetables.
- Il·luminació interior LED: Bright LED lights illuminate the interior, making it easy to find items even in low-light conditions.
Figure 3: Interior layout of the refrigerator compartment.
Figure 4: Humidity-controlled crisper drawers for produce storage.
4.3 Compartiment congelador
The lower compartment is the freezer section, featuring a 2-level freezer drawer system. This design provides easy access and organization for your frozen foods.
4.4 prestatgeries de la porta
The refrigerator door is equipped with full-width door shelves, including gallon door storage, providing ample space for larger items like milk jugs and beverage bottles.
5. Cura i Manteniment
5.1 Neteja
Regular cleaning helps maintain the appearance and efficiency of your refrigerator.
- Interior: Netegeu l'interior amb una solució de sabó suau i aigua tèbia. Assequeu-lo amb un drap suau. Traieu els prestatges i els calaixos per a una neteja a fons.
- Exterior: Netegeu les superfícies exteriors amb adamp drap i detergent suau. Per a acabats d'acer inoxidable, feu servir un netejador d'acer inoxidable.
- Juntes de la porta: Netegeu les juntes de les portes regularment per assegurar-ne un segellat hermètic.
- Bobines del condensador: Periodically clean the condenser coils (located at the back or bottom) to ensure efficient operation. Unplug the unit before cleaning coils.
5.2 Descongelació
Aquesta nevera disposa d'una Sistema de descongelació automàtica, eliminating the need for manual defrosting of the freezer compartment. Frost buildup is automatically melted and evaporated.
5.3 Power Outtage
En cas d'una potènciatage, keep the refrigerator and freezer doors closed to maintain temperature for as long as possible. Avoid opening the doors unnecessarily.
5.4 Vacances i emmagatzematge
For short vacations, leave the refrigerator operating normally. For long absences, empty the refrigerator, unplug it, clean it thoroughly, and leave the doors slightly ajar to prevent odors and mold growth.
6. Guia de resolució de problemes
Abans de trucar al servei tècnic, comproveu els següents problemes i solucions habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| La nevera no funciona. | No connectat; interruptor automàtic saltat; corrent apagattage. | Comproveu la connexió del cable d'alimentació; reinicieu l'interruptor automàtic; comproveu el corrent de la llar. |
| La temperatura és massa càlida. | Temperatura massa alta; porta oberta massa sovint; gran quantitat de menjar calent afegit; mala ventilació. | Adjust temperature setting lower; minimize door openings; allow food to cool before placing in fridge; ensure proper clearance around unit. |
| Sorolls inusuals. | Refrigerator not level; items vibrating inside; normal operating sounds (e.g., refrigerant flow, defrost cycle). | Level the unit; rearrange items; normal sounds are expected. |
| La porta no es tanca completament. | Door gasket dirty or damaged; food package blocking door; refrigerator not level. | Clean or replace gasket; rearrange food; level the unit. |
| Aigua a terra. | Defrost drain clogged; excessive humidity. | Clear drain; ensure proper door sealing. |
7. Especificacions del producte
Below are the key specifications for the Midea 18.7 Cu. Ft. Bottom Mount Freezer Refrigerator (Model: MRB19B7AWW):
| Característica | Especificació |
|---|---|
| Marca | Midea |
| Informació del model | MRB19B7AWW |
| Capacitat | 18.7 peus cúbics |
| Dimensions del producte (P x A x A) | 30.87 x 29.5 x 66 polzades |
| Tipus d'instal·lació | Autònom |
| Factor de forma | Part inferior del congelador |
| Sistema de descongelació | Automàtic |
| Tipus de prestatge | Toughened Glass or Plastic |
| Nombre de prestatgeries | 3 |
| Nombre de portes | 2 |
| Certificació | Energy Star |
| Components inclosos | Emmagatzematge de la porta de galons |
| Refrigerant | R-290 o R-600A |
| Tipus d'acabat | Mat |
8. Garantia i Suport
Midea provides a limited warranty for this appliance. Please refer to the warranty card included with your product for specific terms, conditions, and duration of coverage. Keep your proof of purchase for warranty claims.
8.1 Atenció al client
For technical assistance, service requests, or to order replacement parts, please contact Midea Customer Service. Contact information can typically be found on the Midea official website or on the warranty card provided with your appliance.
When contacting support, please have your model number (MRB19B7AWW) and serial number ready.
