1. Producte acabatview
The Raddy VP7 Weather Station is a comprehensive system designed to provide accurate and real-time weather data for your home and surroundings. It includes a main display unit and a versatile outdoor sensor, capable of measuring various environmental parameters. The system is expandable with additional R5 remote sensors.
Figure 1.1: Raddy VP7 Weather Station components including the main display, outdoor sensor, and R5 remote sensor.
Figura 1.2: Mésview of Raddy VP7 Weather Station features, including temperature, humidity, wind speed & direction, rainfall, barometer, atomic clock, weather forecast, calendar, adjustable backlight, dual alarm, and snooze.
2. Què hi ha a la caixa
- Raddy VP7 Weather Station Display Unit
- Raddy 5-in-1 Outdoor Sensor
- Raddy R5 Remote Sensor
- Manual d'instruccions
3. Configuració
3.1 Powering the Display Unit
The main display unit can be powered by a power adapter or AAA batteries. For continuous backlight, use the power adapter. If using batteries, the backlight will turn off after 15 seconds to conserve power.
Figure 3.1: Powering options for the display unit, showing power adapter input and AAA battery compartment.
3.2 Instal·lació del sensor exterior
The versatile outdoor sensor includes a rain funnel, wind vane & speed cup, thermo-hygrometer radiation shield, and a solar panel. It is designed for accurate data collection and can withstand harsh weather conditions.
Figura 3.2: Detallada view of the accurate outdoor sensor, highlighting the rain funnel, wind speed cups, wind vane, solar panel, and thermo-hygrometer radiation shield.
The outdoor sensor offers various mounting options to suit your location. Ensure it is mounted securely and in a location that allows for accurate readings of wind, rain, and temperature.
Figure 3.3: Various mounting options for the outdoor sensor (on top, on pole, on side) and details of the sensor's reset button, LED indicator, battery compartment, and manual transmit signal button.
3.3 Remote Sensor Placement (R5)
The R5 remote sensor can be placed in various locations to monitor additional areas. Proper placement is crucial for accurate readings and reliable wireless transmission.
Figure 3.4: The Raddy R5 remote sensor mounted on a wall, indicating its wireless capability.
Follow these guidelines for optimal performance of the remote sensor:
Figure 3.5: Guidelines for correct remote sensor usage, including standing upright, being covered by shade with fresh air, far from interfering sources, and at least 1.2m from the ground. Incorrect placements are also shown.
- Stand Upright: Ensure the sensor is positioned vertically.
- Shaded & Ventilated: Place it in a shaded area with good air circulation to avoid direct sunlight or rain.
- Eviteu interferències: Keep it away from large metal objects or strong electromagnetic sources.
- Alçada: Mount at least 1.2 meters (approximately 4 feet) from the ground.
3.4 Display Unit Placement
The main display unit can be placed on a table using its integrated stand or mounted on a wall.
Figure 3.6: The display unit can be used with its table stand or mounted on a wall for flexible placement.
4. Funcionament de l'estació meteorològica
4.1 Funcions de visualització
The 7.4-inch color display provides a wealth of information at a glance.

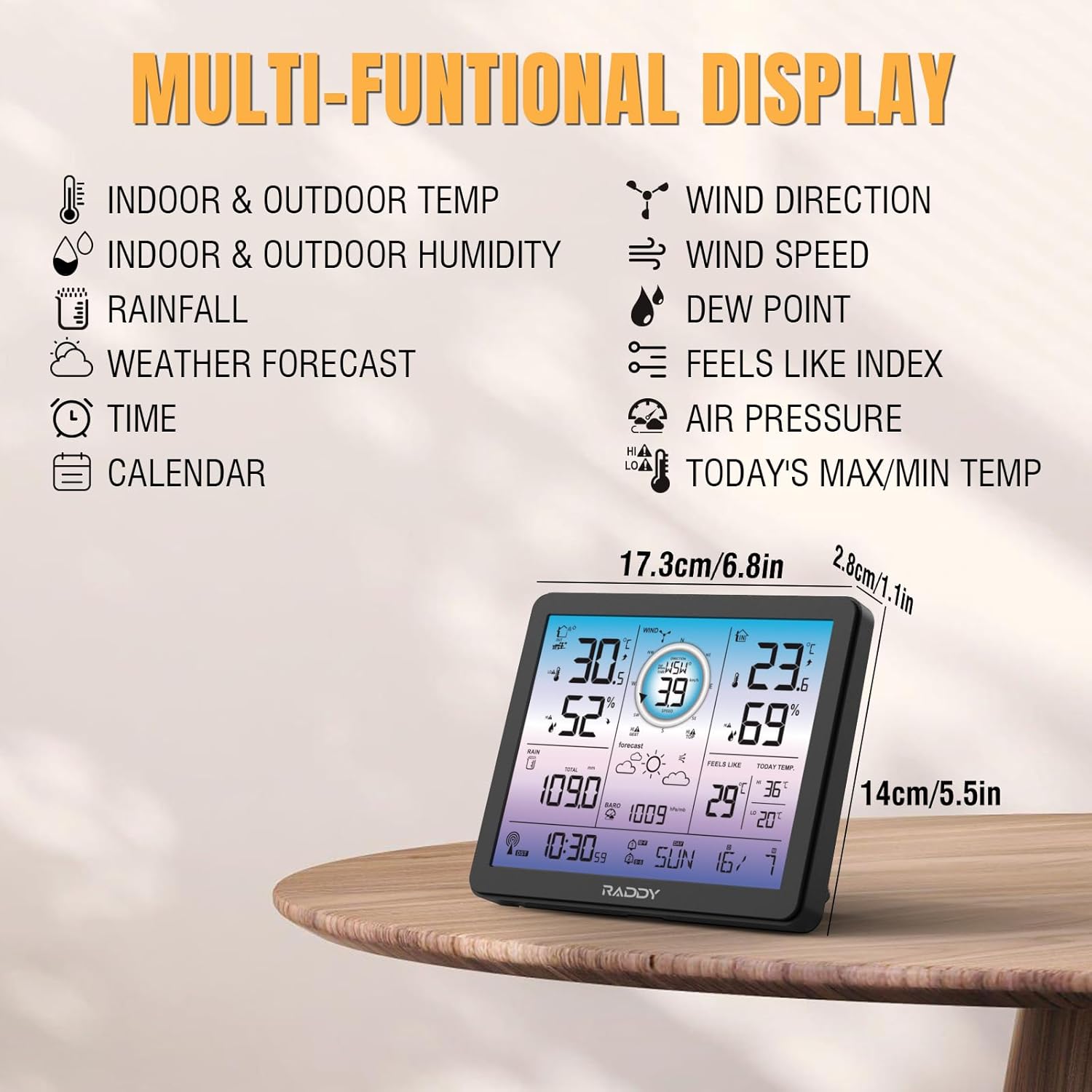

Figure 4.1: The multi-functional display showing indoor & outdoor temperature, humidity, rainfall, weather forecast, time, calendar, wind direction & speed, dew point, feels like index, air pressure, and today's max/min temperature.
La informació clau que es mostra inclou:
- Temperatura interior i exterior
- Humitat interior i exterior
- Dades de precipitacions
- 12-hour Weather Forecast
- RCC Atomic Clock and Calendar
- Wind Direction and Speed
- Punt de rosada
- Feels-like Temperature
- Pressió de l'aire
- Today's Max & Min Temperatures
Figure 4.2: The 7.4-inch display features a visually appealing color scheme for easy readability.
4.2 Ajust de la llum de fons
The display features 4 adjustable backlight levels to suit different lighting conditions and preferences.
Figure 4.3: The display offers four levels of adjustable backlight (LV0 to LV3) for optimal viewing.
4.3 Transmissió de dades sense fil
The system supports wireless data transmission up to 330 feet (100 meters) between the outdoor sensor and the indoor display console.
Figure 4.4: Illustration of wireless data transmission up to 330ft (100m) between the indoor display console and the outdoor sensor, including a high/low temperature alert example.
4.4 Expandable Monitoring
Connect up to three additional R5 remote sensors to monitor up to five different areas, providing comprehensive coverage for your home or property.
Figure 4.5: The system's capability to monitor up to five areas, including indoor, outdoor, and three optional remote sensor locations like a baby's room, garden, living room, or kitchen.
4.5 Atomic Clock Feature
The display unit features an atomic clock with WWVB functionality, ensuring precise timekeeping and automatic adjustments for Daylight Saving Time (DST).
Figure 4.6: The display unit's atomic clock feature, which automatically synchronizes time via WWVB signal and adjusts for DST.
4.6 Weather Forecast and Wind Direction
The station provides a 12-hour weather forecast and displays current wind direction and speed.
Figure 4.7: The display showing the weather forecast, indicating various weather conditions.
Figure 4.8: The display showing current wind direction and speed.
5. Manteniment
To ensure the longevity and accuracy of your Raddy Weather Station, regular maintenance is recommended.
- Neteja del sensor exterior: Periodically check the rain funnel and wind cups for debris (leaves, dirt) and clean them gently. Ensure the solar panel is free of dust for optimal charging.
- Substitució de la bateria: Replace batteries in the display unit and remote sensors as needed. Low battery indicators will appear on the display.
- Comprovació de la col·locació del sensor: Regularly verify that all sensors are in their optimal positions, free from obstructions, and securely mounted. Refer to Section 3.3 for remote sensor placement guidelines.
6. Solució De Problemes
If you encounter issues with your Raddy Weather Station, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| No outdoor data displayed | Outdoor sensor not paired or out of range; low batteries. | Ensure sensor is within 330ft (100m) of display. Replace batteries in outdoor sensor. Re-pair the sensor with the display unit (refer to manual for pairing steps). |
| Lectures de temperatura/humitat inexactes | Sensor exposed to direct sunlight or heat sources; sensor vents blocked. | Relocate sensor to a shaded, well-ventilated area. Clean any debris from sensor vents. |
| Wind speed/direction not registering | Wind cups/vane obstructed or stuck. | Check for physical obstructions (e.g., spiderwebs, leaves). Ensure cups/vane spin freely. |
| Rainfall data incorrect | Rain funnel blocked; sensor not level. | Clear any debris from the rain funnel. Ensure the outdoor sensor is mounted level. |
| Display backlight not working | Using battery power without pressing backlight button; power adapter issue. | If on battery power, press the backlight button. If using power adapter, check connection and adapter functionality. |
7. Especificacions
| Característica | Detall |
|---|---|
| Marca | Raddy |
| Model | VP7 (Main Station), R5 (Remote Sensor) |
| Mida de la pantalla | 7.4 polzades |
| Tecnologia de connectivitat | Sense fil, 433 MHz |
| abast sense fils | Fins a 330 peus (100 metres) |
| Font d'alimentació (pantalla) | Battery Powered (AAA) / Power Adapter |
| Precisió de la temperatura | 0.5 °C |
| Característica especial | Adjustable Brightness, Atomic Clock (WWVB) |
| Expandabilitat | Supports up to 3 additional R5 remote sensors |
8. Garantia i Suport
Raddy provides lifetime technical support for the VP7 Weather Station and R5 Remote Sensor. If you require assistance with installation, setup, or troubleshooting, please do not hesitate to contact customer service for support.
