1. Introducció
Thank you for choosing the CHiQ CFL80-14586IM3XWA 8kg Front-Load Washing Machine. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read this manual thoroughly before using the washing machine and keep it for future reference.
2. Informació de seguretat
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. This appliance is designed for household use only.
- Assegureu-vos que la rentadora estigui correctament connectada a terra.
- Do not allow children to play with or operate the appliance. The machine features a child lock for safety.
- The electromagnetic door lock prevents the door from opening during operation, especially if the water level or temperature is too high.
- Do not wash items that have been pre-treated with flammable liquids.
- Anti-microbial door seals are designed to inhibit bacterial growth.
- Desconnecteu sempre l'aparell abans de netejar-lo o fer-ne el manteniment.
3. Producte acabatview
The CHiQ CFL80-14586IM3XWA is an 8kg front-load washing machine designed for efficient and quiet operation, featuring an Inverter motor and a variety of wash programs.
Davant view of the CHiQ 8kg washing machine with a full load of laundry.
Detallada view of the intuitive control panel, showing the program selection dial and digital display.
The washing machine with its door open, revealing the spacious drum and laundry.
4. Configuració i instal·lació
The CHiQ CFL80-14586IM3XWA is a freestanding appliance designed for easy integration into your home. Its compact dimensions (600mm width x 520mm depth x 847mm height) make it suitable for various spaces.
Desembalatge i col·locació
- Traieu amb cura tots els materials d'embalatge.
- Ensure the washing machine is placed on a firm, level surface to minimize vibration and noise during operation.
- Connect the included drain hose to a suitable drainage point.
Connexió elèctrica
This appliance operates on 220 Volts. Ensure your electrical outlet meets the required specifications before plugging in the machine.
5. Instruccions de funcionament
Your CHiQ washing machine offers 15 standard wash programs and smart features for optimal laundry care.
Tauler de control acabatview
The control panel features a central program dial, a digital display, and touch-sensitive buttons for various functions.
Selecció d'un programa de rentat
Turn the program dial to select one of the 15 available cycles, including:
- Barreja: Per a càrregues de teixits mixtos.
- Cotó: Standard cotton items.
- Antial·lèrgia: Dissenyat per eliminar al·lèrgens.
- Llana: Cicle suau per a llanes.
- Cura del nadó: For delicate baby clothes.
- Samarretes: Specific care for shirts.
- Roba de llit: For larger items like duvets and sheets.
- Eco 40-60: Energy-efficient wash for normally soiled cotton, linen, or mixed fibers.
- Quick Wash 15': A rapid 15-minute cycle for lightly soiled items.
- Roba interior: Gentle wash for delicate undergarments.
- Jaqueta baix: Specialized cycle for down-filled items.
- Rinse+Spin: Només per esbandir i centrifugar.
- Gira: Només per a filar.
- Neteja del tambor: Cicle d'autoneteja per al tambor.
Característiques especials
- AI Smart Wash (One-Touch Wash): Intelligently detects laundry weight and adapts wash programs for efficiency. In this mode, manual program selection is not available.
- Funció de vapor: Reduces wrinkles and helps eliminate odors and allergens.
- Mid-Cycle Laundry Refill: Allows adding forgotten items during the wash cycle (subject to water level and temperature safety).
- Alta velocitat de gir: Up to 1400 revolutions per minute (rpm) for effective water extraction.
The 15-minute quick wash feature provides efficient cleaning for time-saving.
The steam wash function helps reduce wrinkles and provides a deeper clean.
AI Smart Wash automatically optimizes settings based on laundry load for convenience.
6. Manteniment i cura
Un manteniment regular garanteix la longevitat i el rendiment òptim de la teva rentadora.
Neteja de bidons
Use the dedicated 'Drum Clean' program regularly (e.g., once a month) to prevent dirt and bacteria accumulation. This cycle heats water to 85°C for thorough cleaning.

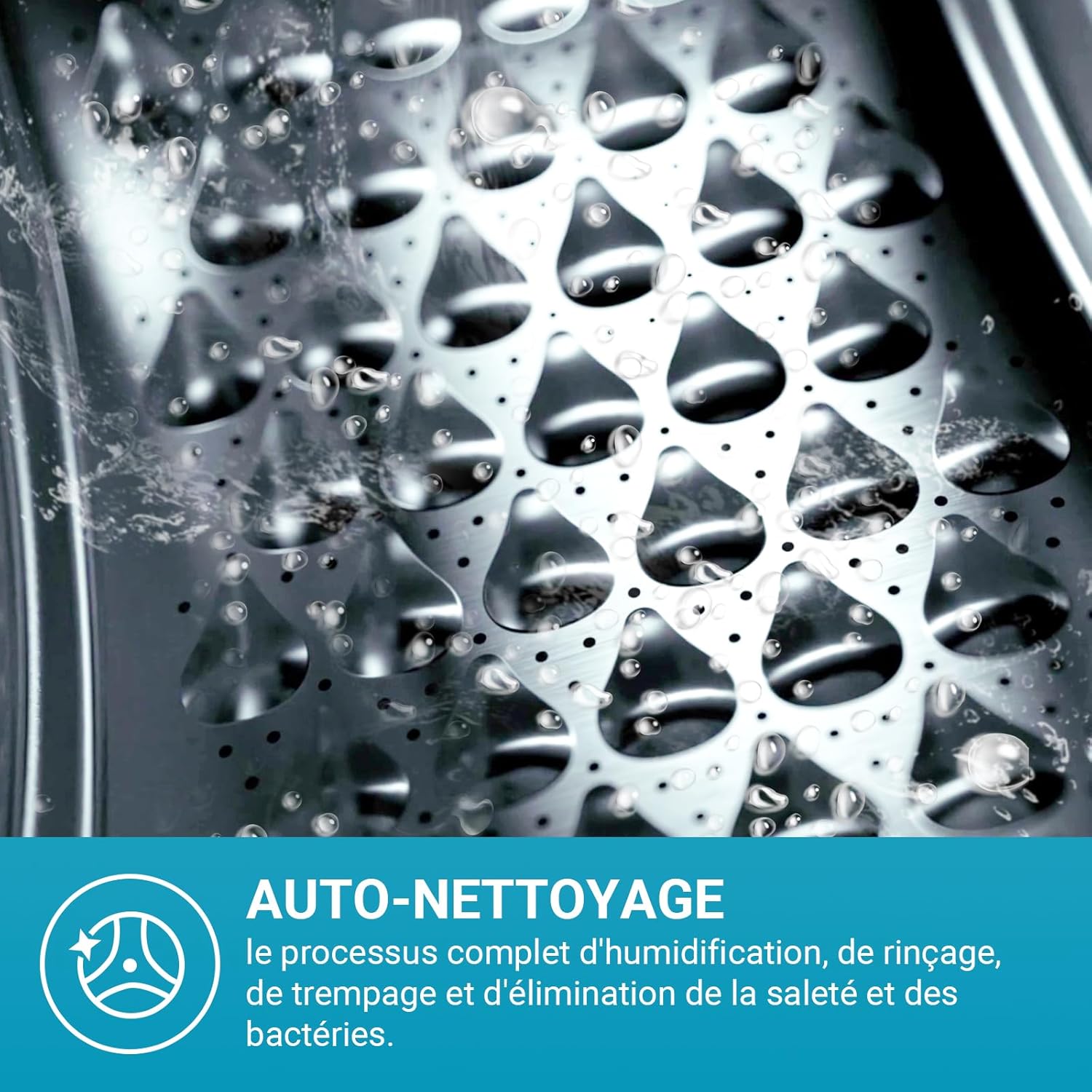

The auto-cleaning feature ensures a hygienic drum by removing dirt and bacteria.
Calaix de detergent
The diffusion open detergent drawers are designed for easy cleaning. Regularly remove and clean the detergent drawer to prevent residue buildup.
Segell de la porta
Wipe the anti-microbial door seal after each wash to remove any moisture or lint, which helps maintain hygiene and prevent mold growth.
7. Solució De Problemes
If you encounter issues with your washing machine, please refer to the following common solutions. For more complex problems, contact customer support.
- La màquina no arrenca: Ensure the power cord is securely plugged in and the door is fully closed. Check if the child lock is activated.
- Door not opening: The electromagnetic door lock will prevent the door from opening if the water level or temperature inside the drum is too high for safety. Wait until the cycle is complete and the machine has cooled down.
- Vibració/soroll excessiu: Ensure the machine is level and all transit bolts (if applicable) have been removed during installation. Check that the load is balanced inside the drum.
- Fuga d'aigua: Check all hose connections for tightness and ensure the drain hose is not blocked or kinked.
8. Especificacions
| Característica | Especificació |
|---|---|
| Marca | CHIQ |
| Número de model | CFL80-14586IM3XWA |
| Dimensions (L x A x A) | 52 x 60 x 84.7 cm |
| Pes | 60 quilos |
| Capacitat | 8 quilos |
| Velocitat de centrifugat | 1400 rpm |
| Nivell de soroll | 76 dB |
| Tipus d'instal·lació | Autònom |
| Característiques especials | Steam Program, Quick Wash, Electromagnetic Lock, Mid-cycle Laundry Refill, Child Lock, Anti-microbial Door Seals |
| Color | Blanc |
| Tipus de control | Tactile (Touch) |
| Nombre de programes estàndard | 15 |
| Tipus de càrrega | Càrrega frontal |
| Voltage | 220 Volts |
| Material | ABS Aluminium |
| Components inclosos | Mànega de desguàs |
| Classificació d'eficiència energètica | A |
Per obtenir informació detallada sobre energia, consulteu la base de dades EPREL: https://eprel.ec.europa.eu/qr/1812250
9. Garantia i Suport
CHiQ es compromet a oferir productes fiables i un excel·lent servei al client.
Informació de la garantia
This washing machine comes with a 12 anys de garantia del motor, ensuring long-term durability and peace of mind. Please refer to your purchase documentation for full warranty terms and conditions for the entire product.

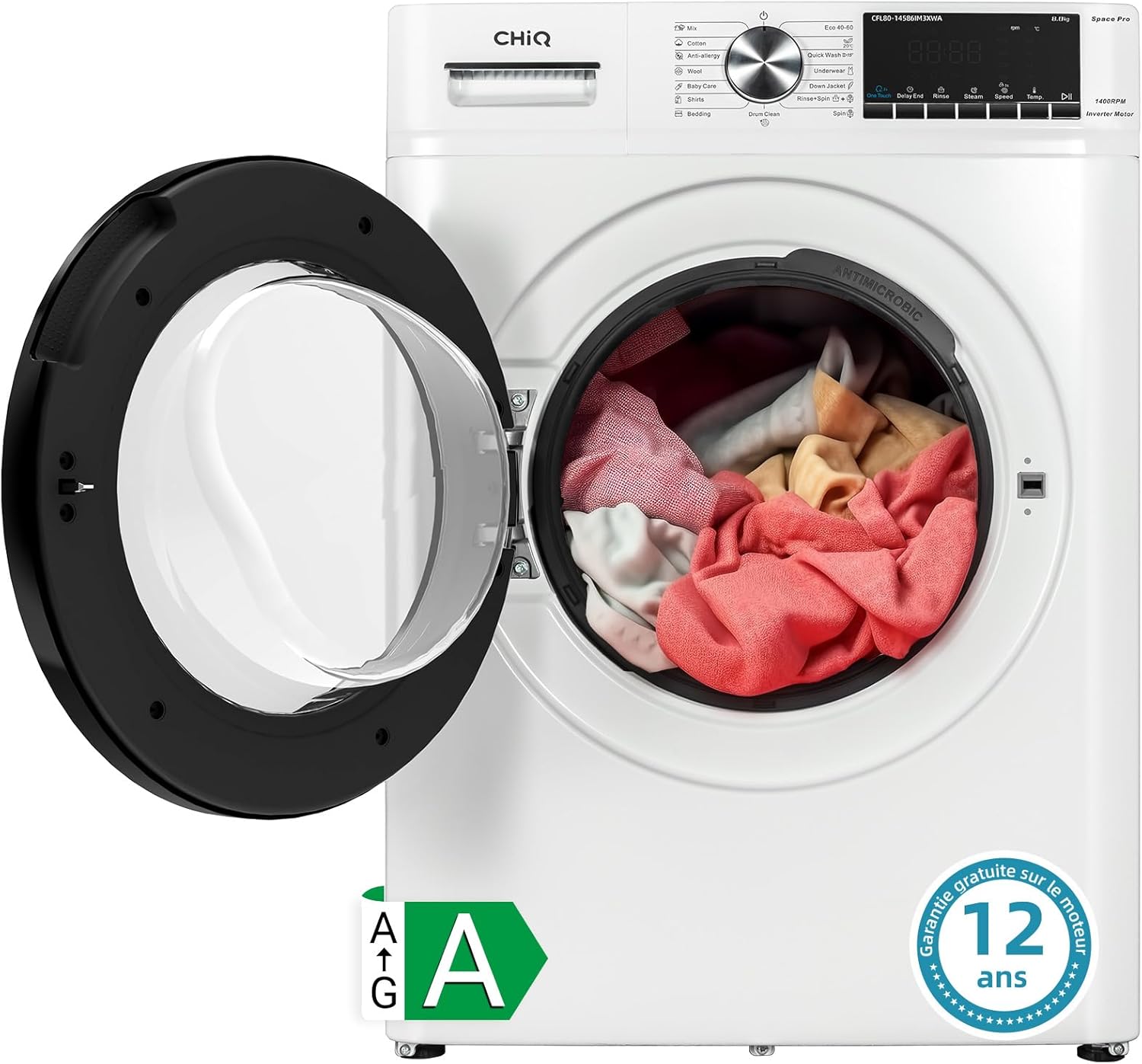

The washing machine highlighting its 'A' energy rating and 12-year motor warranty.
Atenció al client
For any questions, technical assistance, or warranty claims, please contact CHiQ local after-sales service. Contact details can typically be found on the CHiQ official weblloc web o el vostre rebut de compra.
