1. Producte acabatview

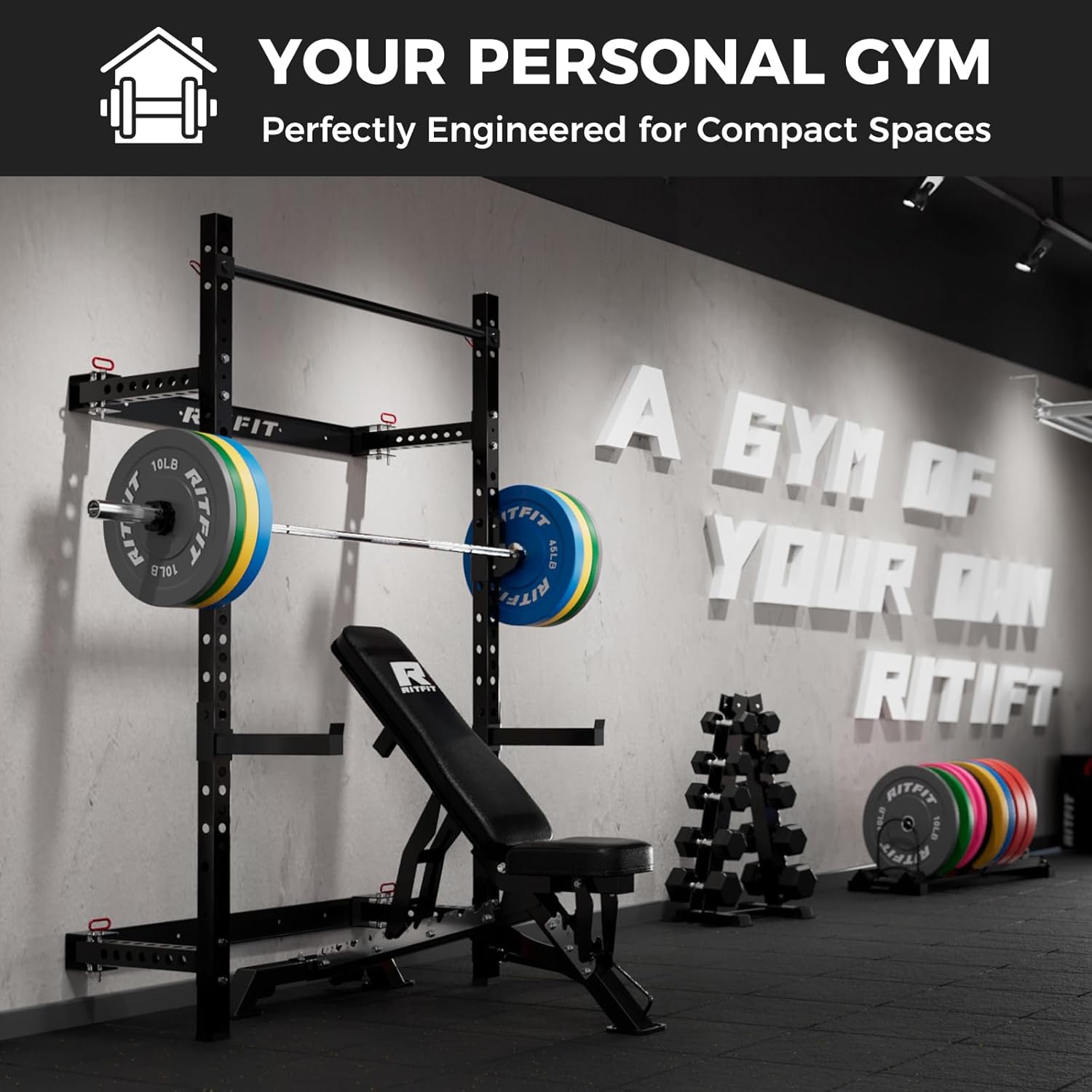

The RitFit Multi-Functional Folding Squat Rack is designed for home gym use, offering a robust and space-saving solution for strength training. This wall-mounted power rack provides versatility for various exercises, including squats, bench presses, and pull-ups, while allowing for convenient storage when not in use.
Característiques principals:
- Multi-Functional Folding Equipment: Designed to fold easily, with overall dimensions of 47"L x 19.7"W x 85.5"H when fully opened and 47"L x 2"W x 85.8"H when folded.
- Disseny per estalviar espai: Conveniently stores away when not in use, maximizing workout space.
- Wall-Mounted & Easy to Assemble: Reduces tipping risk, can be mounted on any wall (excluding weight-bearing walls). Includes illustrative instructions and necessary hardware.
- Construcció robusta: Made with 1.8mm thick steel, 60mm x 60mm uprights, supporting up to 1000 lbs. Includes J-hooks, pin-on pull-up bar, and 360° landmine.
2. Configuració i instal·lació
Proper installation is crucial for the safety and stability of your RitFit Folding Squat Rack. It is designed for wall mounting. Ensure you have the necessary tools and assistance before beginning installation.
Consideracions importants:
- Tipus de paret: The rack can be mounted on any wall, except for weight-bearing walls. It is recommended to determine drilling positions carefully before drilling.
- Requisits d'espai: When fully opened, the rack measures 47"L x 19.7"W x 85.5"H. When folded, it reduces to 47"L x 2"W x 85.8"H. Ensure adequate space for both configurations and exercise movements.
Passos d'instal·lació:

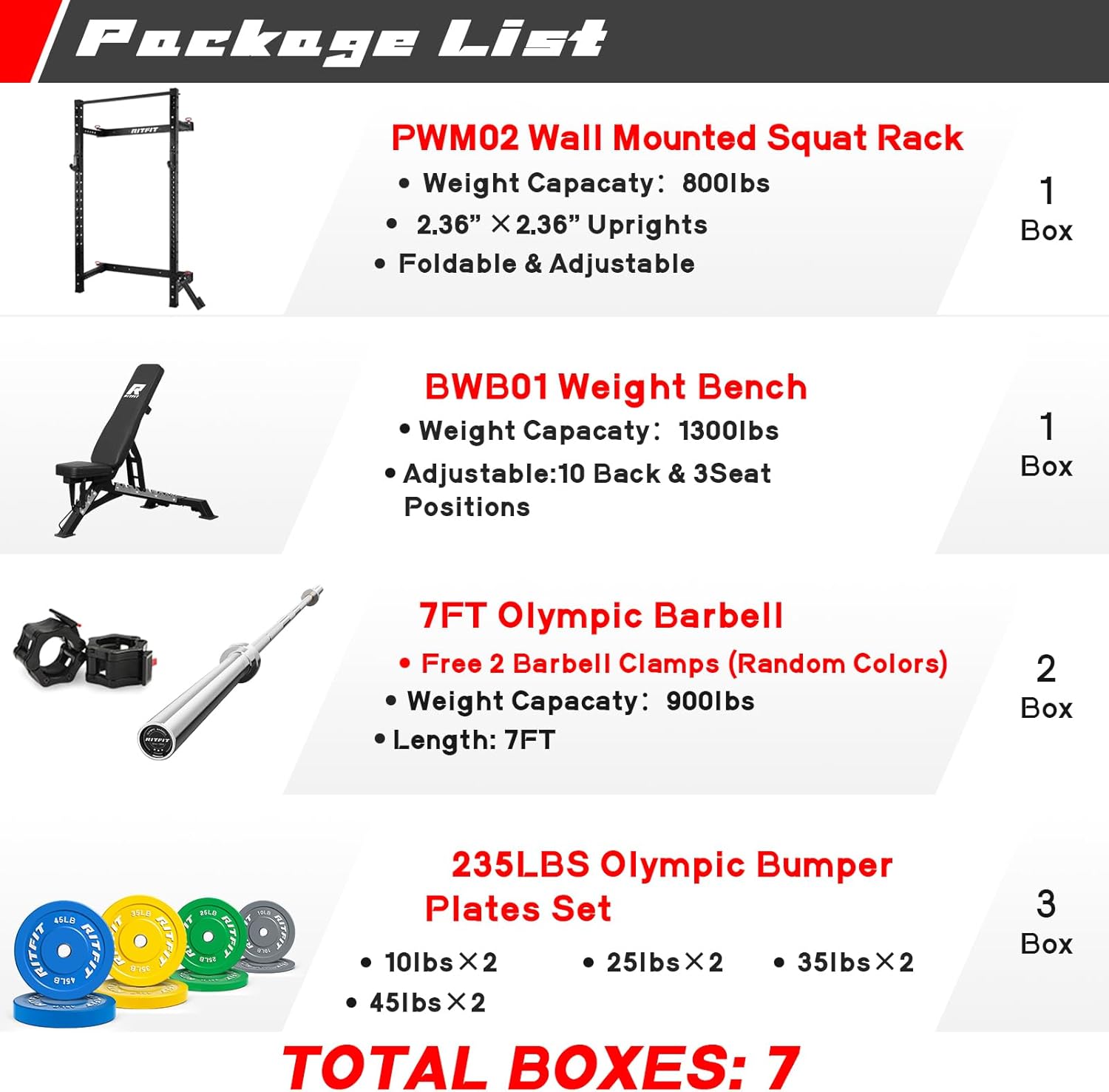

- Unpack all components and verify against the package list (Figure 2).
- Identify suitable wall studs or a solid mounting surface.
- Mark drilling positions accurately on the wall.
- Securely attach the wall-mounted brackets and uprights according to the provided instructions.
- Assemble the remaining components, including the pull-up bar and J-hooks.
- Perform a stability check by gently pulling and pushing on the installed rack to ensure it is firmly secured.
Installation and Usage Video:
Video 1: Official RitFit video demonstrating the setup, folding mechanism, and various exercises possible with the PWM02 Folding Squat Rack.
3. Instruccions de funcionament
The RitFit Folding Squat Rack offers multiple functionalities for a comprehensive workout. Familiarize yourself with its features for safe and effective use.
Mecanisme de plegat:
The rack features a 180-degree rotatable arm design with a four-pin lock system, allowing it to fold flat against the wall. To fold, remove the pins, rotate the arms inward, and re-insert the pins to secure. To unfold, reverse the process.
Attachments and Usage:
- Ganxos en J: These are fitted with padding to protect your barbell and reduce noise during placement and lift-off. Adjust their height by inserting them into the desired holes on the uprights.
- Pin-on Pull-Up Bar: Easily attachable to the top crossbar, providing a stable bar for pull-ups and other bodyweight exercises.
- 360° Landmine: This attachment allows for dynamic movements like rows, lifts, and presses, engaging various muscle groups. Insert the barbell into the landmine sleeve.
Exercici Examples:
The rack supports a variety of exercises. Always ensure the rack is stable and all pins are securely in place before beginning any exercise.
- Squats: Position the J-hooks at the appropriate height for your squat.
- Premsa de banc: Use with a compatible weight bench (included in this package) and adjust J-hooks for bench press height.
- Pull-ups: Utilize the pin-on pull-up bar for various grip pull-ups.
- Landmine Exercises: Attach a barbell to the 360° landmine for rotational and pressing movements.
4. Manteniment
Regular maintenance ensures the longevity and safe operation of your RitFit Squat Rack.
- Neteja: Netegeu el marc i els components amb anuncisamp drap després de cada ús per eliminar la suor i la pols. Eviteu productes de neteja abrasius.
- Inspecció: Periodically check all bolts, nuts, and pins to ensure they are tight and secure. Tighten any loose fasteners immediately.
- Comprovació de components: Inspect J-hooks, pull-up bar, and landmine attachment for any signs of wear or damage. Replace worn parts as needed.
- Lubricació: Apply a small amount of silicone-based lubricant to moving parts, such as the folding mechanism hinges, if they become stiff.
5. Solució De Problemes
If you encounter issues with your RitFit Squat Rack, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| Rack feels unstable or wobbly. | Loose bolts or improper wall mounting. | Ensure all mounting bolts are securely tightened. Verify the rack is mounted to solid studs or appropriate anchors. |
| El mecanisme de plegat és rígid o difícil d'operar. | Lack of lubrication or minor misalignment. | Apply silicone-based lubricant to hinges and pivot points. Check for any obstructions or bent components. |
| Attachments (J-hooks, pull-up bar) do not fit properly. | Incorrect orientation or debris in holes. | Ensure attachments are oriented correctly. Clear any debris from the adjustment holes. |
If the issue persists after attempting these solutions, please contact RitFit customer support.
6. Especificacions
| Atribut | Detall |
|---|---|
| Marca | RitFit |
| Model | PWM02 Squat Rack with CLBP230LB |
| Material | Acer d'aliatge |
| Product Dimensions (Opened) | 47 "P x 19.7" W x 85.5" H |
| Dimensions del producte (plegat) | 47"L x 2"W x 85.8"H (approximate, based on feature bullets) |
| Límit de pes | 1000 lliures |
| Tipus de marc | Alloy Steel (60mm x 60mm uprights, 1.8mm thick steel) |
| Components inclosos | Folding squat rack, Weight Bench, Olympic Barbell, Bumper Plates Set, Workout Post, Instruction, Tool |
7. Garantia i Suport
RitFit stands behind the quality of its products. For any concerns or assistance, please refer to the following information:
Informació de la garantia:
- Main Steel Frames: Basic Warranty lasts for 36 months.
- Accessoris: Basic Warranty lasts for 12 months.
This warranty covers manufacturing defects and material flaws under normal use. It does not cover damage caused by misuse, neglect, unauthorized modifications, or normal wear and tear.
Atenció al client:
For technical assistance, warranty claims, or any other inquiries, please contact RitFit customer service. Contact details are typically found on the RitFit official website or through your purchase platform. Please have your product model number and purchase date ready when contacting support.
