Yato YT-81980 Diamond Core Drill User Manual

1. Introducció

Thank you for choosing the Yato YT-81980 Diamond Core Drill. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before use and keep it for future reference. This diamond core drilling machine is designed for a range of applications, including drilling holes in stone, concrete, brickwork, porcelain, tiles, and glass.

2. Instruccions de seguretat

Prioritzeu sempre la seguretat quan feu servir eines elèctriques. Si no seguiu aquestes instruccions, podeu patir descàrregues elèctriques, incendis i/o lesions greus.

Seguretat general

• Seguretat de l'àrea de treball: Mantingueu la zona de treball neta i ben il·luminada. Les zones desordenades o fosques conviden als accidents. No feu servir eines elèctriques en atmosferes explosives, com ara en presència de líquids, gasos o pols inflamables.
• Seguretat elèctrica: Els endolls de les eines elèctriques han de coincidir amb la presa de corrent. No modifiqueu mai l'endoll de cap manera. No utilitzeu cap adaptador d'endoll amb eines elèctriques amb connexió a terra. Eviteu el contacte corporal amb superfícies amb connexió a terra, com ara canonades, radiadors, fogons i neveres.
• Seguretat personal: Always wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, and sturdy work gloves. Dress properly; avoid loose clothing or jewelry that can get caught in moving parts.
• Ús i cura de l'eina: No forceu l'eina elèctrica. Feu servir l'eina elèctrica adequada per a la vostra aplicació. Desconnecteu l'endoll de la font d'alimentació abans de fer qualsevol ajust, canviar accessoris o guardar eines elèctriques.

Specific Diamond Core Drill Safety

• Refrigeració per aigua: This tool requires water cooling for diamond core bits. Ensure a continuous water supply during operation to prevent overheating of the bit and material.
• Protecció GFCI: Always use a Ground Fault Circuit Interrupter (GFCI) when operating this tool, especially when working with water. This provides crucial protection against electric shock.

Image: Ground Fault Circuit Interrupter (GFCI) plug. Always use a GFCI for electrical safety, especially when operating the drill with water.

• Muntatge segur: When using the drill stand, ensure it is securely anchored to the work surface to prevent movement during drilling.
• Funcionament de l'embragatge: The machine is equipped with a clutch. Familiarize yourself with its operation. It is designed to prevent sudden jerks if the drill bit binds, enhancing user safety.
• Material Stability: Ensure the material being drilled is stable and properly supported.

3. Producte acabatview

The Yato YT-81980 is a powerful diamond core drilling machine designed for precision drilling in various hard materials. It can be used handheld or mounted on its included stand.

Característiques clau

• Universal diamond core drilling machine for handheld or fixed work.
• Powerful 2200W motor with a speed range of 0-1200 RPM.
• Enables drilling holes in a wide range, from 30mm to 180mm.
• Equipped with a safety clutch for smooth operation, preventing jerks when drilling in reinforced concrete.
• Standard 1 1/4" Inch drill chuck, compatible with most core bits on the market.
• Includes a robust tripod stand with gear mechanism for effortless drilling in hard materials.

Components

Image: The Yato YT-81980 Diamond Core Drill main unit, showing the motor housing, handles, and chuck.

Image: The Yato YT-81980 Diamond Core Drill mounted on its included stand, ready for fixed operation.

Image: Spanner wrench, used for securely attaching and detaching diamond core bits.

4. Configuració

4.1 Assembling the Drill Stand

1. Unpack all components: drill unit, stand base, vertical column, feed handle, and mounting hardware.
2. Attach the vertical column to the stand base using the provided bolts and nuts. Ensure it is firmly secured.
3. Mount the drill unit onto the carriage of the vertical column. Secure it using the appropriate clamps or bolts, ensuring the drill is stable and aligned.
4. Attach the feed handle to the gear mechanism on the carriage.

Image: The Yato YT-81980 Diamond Core Drill fully assembled on its stand, showing the feed handle and stable base.

4.2 Attaching the Diamond Core Bit

1. Assegureu-vos que el trepant estigui desendollat ​​de la font d'alimentació.
2. The drill features a standard 1 1/4" Inch chuck. Select a diamond core bit appropriate for your drilling material and desired diameter (30mm to 180mm).
3. Thread the core bit onto the chuck spindle. Use the provided spanner wrench to tighten it securely. Do not overtighten.

4.3 Connexió de subministrament d'aigua

1. Locate the water coupling port on the drill unit (1/2" or 12.5mm connection).
2. Connect a suitable water hose to this port. Ensure the connection is secure and leak-free.
3. Ensure a clean water source is available and ready to be turned on before drilling.

4.4 Connexió d'alimentació

1. Ensure the drill's power switch is in the 'OFF' position.
2. Plug the drill into a suitable power outlet (230V~ 50Hz). Always use a Ground Fault Circuit Interrupter (GFCI) for safety.

5. Instruccions de funcionament

5.1 Preparing for Drilling

• Mark the exact drilling location on your material.
• If using the stand, securely anchor the stand to the work surface to prevent movement.
• Position the drill bit directly over the marked center point.
• Turn on the water supply to ensure a steady flow to the drill bit.

5.2 Procediment de perforació

1. Switch the drill to the 'ON' position. The motor will start, and the drill bit will begin to rotate.
2. Slowly and steadily apply pressure to the drill using the feed handle (for stand-mounted operation) or by hand (for handheld operation). Avoid excessive force, especially at the start of drilling.
3. Maintain a consistent feed rate. Allow the diamond segments to cut the material. The water flow will cool the bit and flush away debris.
4. The drill's clutch will engage if the bit binds or encounters excessive resistance, preventing sudden rotation of the tool. Reduce pressure if the clutch engages frequently.
5. Continue drilling until the desired depth is reached or the core passes through the material.
6. Once drilling is complete, withdraw the drill bit from the hole.
7. Switch the drill to the 'OFF' position and turn off the water supply.

5.3 Post-Drilling

• Carefully remove the core from the drill bit or the drilled material.
• Clean the drill bit and the work area.

6. Manteniment

Regular maintenance ensures the longevity and optimal performance of your Yato YT-81980 Diamond Core Drill.

• Neteja: After each use, clean the drill unit, stand, and core bits. Remove any dust, slurry, or debris. Use a damp cloth; do not use harsh chemicals or solvents.
• Inspecció: Regularly inspect the power cord for damage, cuts, or fraying. Check the chuck for wear and ensure it tightens securely. Inspect the stand for any loose bolts or signs of damage.
• Lubricació: Refer to the manufacturer's guidelines for any specific lubrication points on the gear mechanism of the stand.
• Emmagatzematge: Store the drill and its components in a clean, dry place, away from direct sunlight and extreme temperatures.
• Servei: Any repairs or internal maintenance should be performed by qualified service personnel.

7. Solució De Problemes

This section addresses common issues you might encounter with your diamond core drill.

Problem: Drill does not start.

• Possible causa: Sense font d'alimentació. Solució: Check if the power cord is securely plugged in. Test the outlet with another device. Check the GFCI for tripping and reset if necessary.
• Possible causa: Interruptor d'alimentació defectuós. Solució: Poseu-vos en contacte amb personal de servei qualificat.

Problem: Drill bit overheats or wears quickly.

• Possible causa: Insufficient water cooling. Solució: Ensure a continuous and adequate flow of water to the drill bit during operation. Check for kinks in the water hose or blockages in the water coupling.
• Possible causa: Pressió d'alimentació excessiva. Solució: Reduce the feed pressure. Allow the diamond segments to do the cutting.
• Possible causa: Incorrect bit for material. Solució: Ensure you are using a diamond core bit suitable for the material being drilled.

Problem: Drill binds or clutch engages frequently.

• Possible causa: Pressió d'alimentació excessiva. Solució: Reduce the feed pressure.
• Possible causa: Bit is dull or damaged. Solució: Replace the diamond core bit.
• Possible causa: Material is unstable or contains rebar. Solució: Assegureu-vos que el material estigui ben tancatamped. Proceed with caution if drilling through reinforced concrete.

For issues not covered here, please contact Yato customer support or a qualified service center.

8. Especificacions

The following are the technical specifications for the Yato YT-81980 Diamond Core Drill:

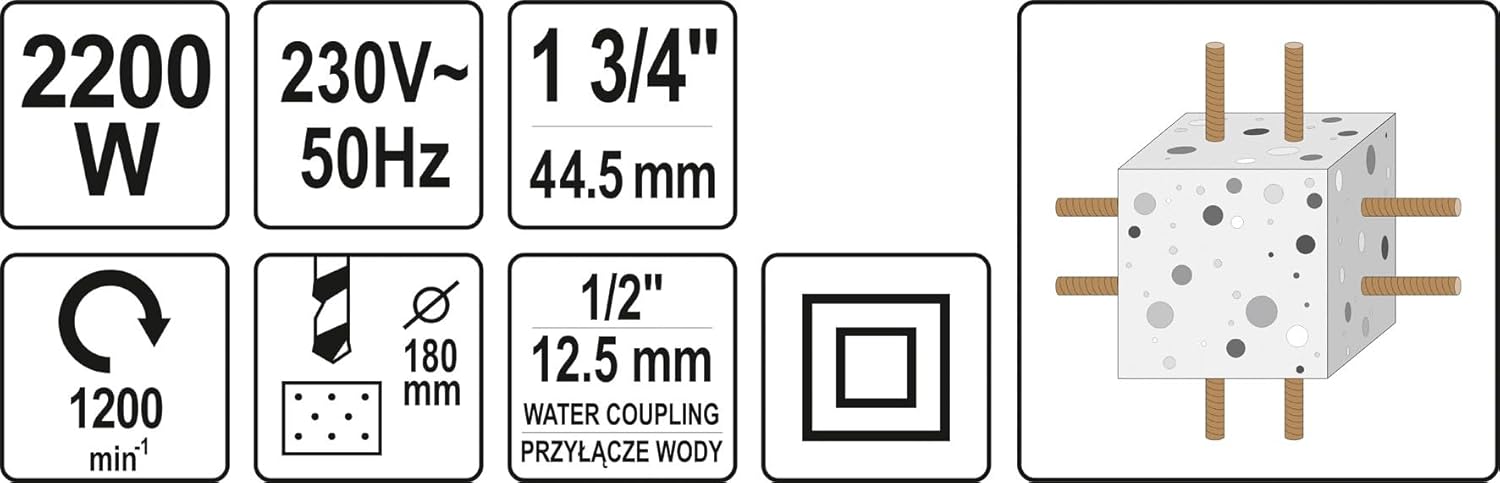

Image: Product packaging displaying key specifications of the Yato YT-81980 Diamond Core Drill.

Image: Detailed diagram illustrating the technical specifications and features of the Yato YT-81980 Diamond Core Drill.

9. Garantia i Suport

Yato products are manufactured to high-quality standards. For warranty information, please refer to the documentation included with your purchase or visit the official Yato website. For technical support, service, or spare parts, please contact your local Yato dealer or authorized service center.

You can also find more information and support by scanning the QR code or visiting the link below:

http://qr.yato.pl/YT-81980
