Smartby Universal Voice Remote Control User Manual

1. Introducció

This manual provides detailed instructions for the Smartby Universal Voice Remote Control, model BN59-01363A. This remote is designed to be fully compatible with various Samsung Smart TV models, including QLED, UHD, LED, LCD, 4K, and 8K TVs. It features voice control capabilities and dedicated buttons for popular streaming services like Netflix, Prime Video, and Samsung TV Plus.

Please read this manual carefully before using the remote control to ensure proper setup and operation.

Imatge 1: Frontal view of the Smartby Universal Voice Remote Control. The remote is black with a sleek design, featuring a circular directional pad, dedicated buttons for streaming services, and a voice control button.

2. Configuració

2.1 Instal·lació de la bateria

The remote control requires two (2) AAA batteries for operation. Batteries are not included with the remote.

1. Localitzeu la tapa del compartiment de la bateria a la part posterior del comandament a distància.
2. Feu lliscar la tapa cap avall o premeu el pestell (si n'hi ha) per obrir el compartiment.
3. Introduïu dues piles AAA, assegurant-vos que els terminals positiu (+) i negatiu (-) s'alineïn correctament amb les marques de l'interior del compartiment.
4. Tanqueu bé la tapa del compartiment de la bateria.

2.2 Pairing the Remote Control with Your TV

Before using the remote, it must be paired with your Samsung Smart TV. Follow these steps to establish a connection:

1. Assegureu-vos que el televisor estigui encès.
2. Point the remote control directly at the front of your Samsung TV.
3. Simultàniament, manteniu premut el botó Tornar botó i el Reproduir/Pausa botó durant aproximadament 5 segons.
4. Release the buttons when a pairing message appears on your TV screen, indicating successful pairing.

If pairing is unsuccessful, repeat the steps. Ensure there are no obstructions between the remote and the TV.

Image 2: Visual guide for pairing the remote control. It shows the remote and highlights the Return and Play/Pause buttons, indicating they should be pressed simultaneously for 5 seconds to initiate pairing.

3. Instruccions de funcionament

3.1 Funcions dels botons

Familiarize yourself with the functions of each button on your remote control:

• Poder: Press to turn the TV ON or OFF.
• Number Button (123): When pressed, a number strip appears on the bottom of the TV screen. Select numbers and then select Done to enter a numeric value.
• EXTRA (Four colored dots): While watching content, press to display extra information from the content provider.
• Select (Center of directional pad): When pressed while you are watching content, detailed program information appears.
• Directional Pad (Up / Down / Left / Right): Moves the focus and changes the values seen on the TV's menu.
• Tornar: Returns to the previous menu. When pressed for 1 second or more, the running function is terminated. When pressed while you are watching a program, the previous channel appears.
• Reproduir / Pausa: When pressed, the playback controls appear. Using these controls, you can control the media content that is playing.
• Smart Hub: Returns to the Home Screen.
• Volume (VOL): Move the button up or down to adjust the volume. To mute the sound, press the button. When pressed for 1 second or more, the Accessibility Shortcuts menu appears.
• Canal (CH): Move the button up or down to change the channel. To see the Guide screen, press the button.
• Botó de Netflix: Launches the Netflix application.
• Botó Prime Video: Launches the Prime Video application.
• Samsung TV Plus Button: Launches the Samsung TV Plus application.

Image 3: Diagram illustrating the various function buttons on the remote control, including Power, Number, EXTRA, Select, Directional Pad, Return, Play/Pause, Smart Hub, Volume, Channel, Netflix, Prime Video, and Samsung TV Plus. Each button is labeled with its primary function.

3.2 Voice Control Feature

The remote control includes a voice control feature for convenient operation.

1. Manteniu premut el botó Botó de control de veu.
2. Speak your command clearly into the microphone on the remote.
3. Deixa anar el botó quan hagis acabat de parlar.

Examples of voice commands include "Open Netflix," "Change to Channel 5," or "Cerca action movies."

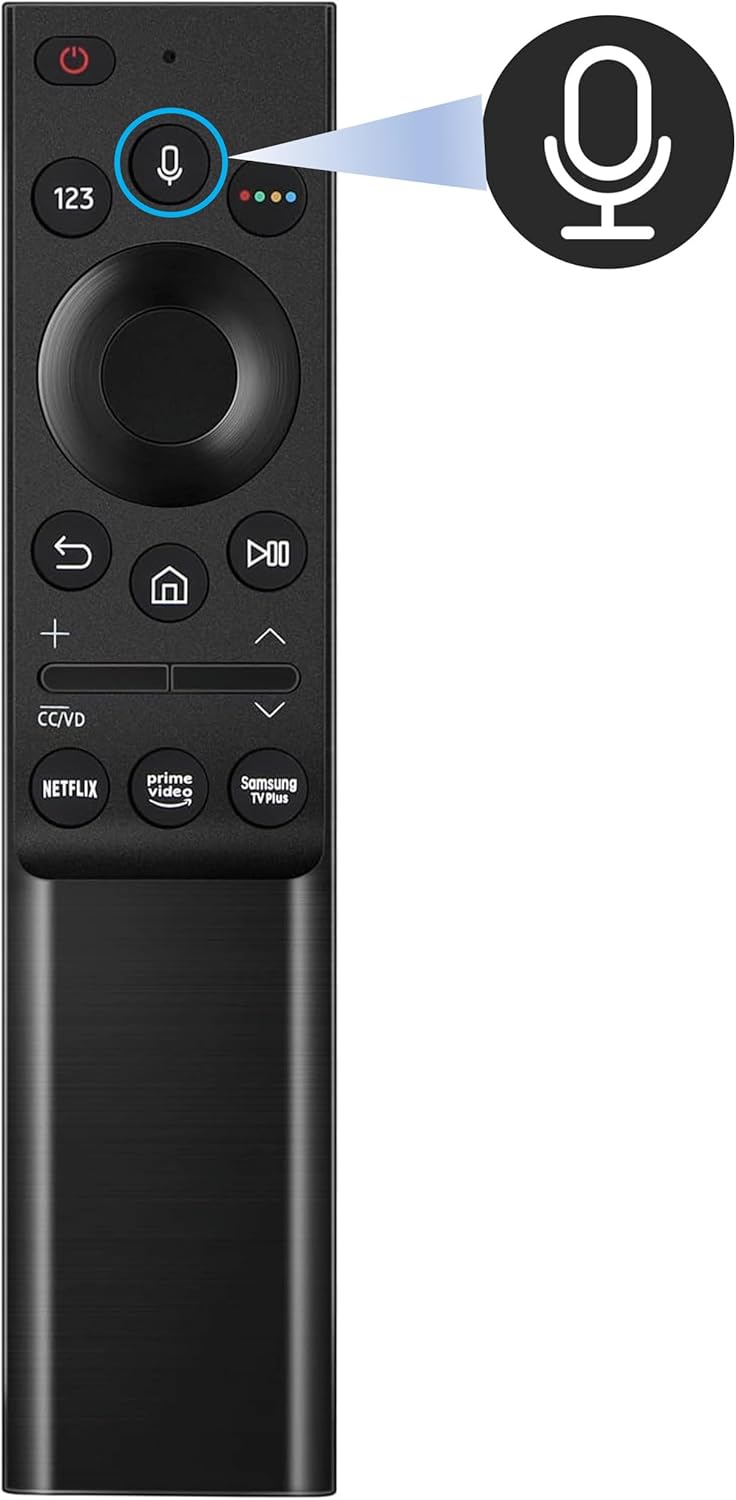

Image 4: The remote control with the voice control button highlighted. This button activates the microphone for voice commands.

4. Manteniment

Per garantir la longevitat i el rendiment òptim del comandament a distància, seguiu aquestes pautes de manteniment:

• Neteja: Netegeu el comandament a distància amb un drap suau i sec. No utilitzeu netejadors líquids ni materials abrasius, ja que poden danyar la superfície o els components interns.
• Cura de la bateria:
  • Replace batteries when the remote's performance degrades or it becomes unresponsive.
  • Traieu les piles si no heu d'utilitzar el comandament a distància durant un període prolongat per evitar fuites.
  • Eliminar les bateries usades de manera responsable d'acord amb la normativa local.
• Emmagatzematge: Guardeu el comandament a distància en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
• Eviteu les gotes: Protegiu el comandament a distància d'impactes físics, ja que les caigudes poden danyar els circuits interns.

5. Solució De Problemes

Si teniu problemes amb el comandament a distància, consulteu els passos habituals següents per a la resolució de problemes:

• El comandament a distància no respon:
  • Comproveu si les piles estan inserides correctament amb la polaritat correcta.
  • Substitueix les piles per piles AAA noves.
  • Assegureu-vos que no hi hagi obstacles entre el comandament a distància i el receptor d'infrarojos del televisor.
• El comandament a distància no s'està emparellant:
  • Assegureu-vos que el televisor estigui encès.
  • Repeat the pairing process as described in Section 2.2.
  • Try moving closer to the TV during the pairing process.
• El control per veu no funciona:
  • Ensure the remote is properly paired with the TV.
  • Parla clar i directament al micròfon.
  • Revisa la configuració del televisor per assegurar-te que el control per veu estigui activat.
• Botons específics que no funcionen:
  • Clean the remote control, especially around the unresponsive buttons, to remove any dirt or debris.
  • If only specific app buttons (Netflix, Prime Video) are not working, ensure your TV has an active internet connection and the apps are installed and updated.

Si el problema persisteix després de provar aquests passos, poseu-vos en contacte amb l'atenció al client.

6. Especificacions

This remote is compatible with a wide range of Samsung TV remote control models, including but not limited to: BN59-01259E, BN59-01259B, BN59-01260A, BN59-01241A, BN59-01265A, BN59-01259D, BN59-01266A, BN59-01242A, BN59-01292A, BN59-01312A, BN59-01199F, BN59-01301A, AA59-00594A, AA59-00666A, AA59-00741A, AA59-00784C, AA59-00666A, BN59-01178W.

Image 5: A visual representation of various Samsung remote control models, indicating the broad compatibility of the Smartby BN59-01363A remote.

7. Garantia i Suport

For specific warranty information regarding your Smartby Universal Voice Remote Control, please refer to the documentation provided at the time of purchase or contact the seller directly. Warranty terms may vary depending on the retailer and region.

If you require further assistance or have questions not covered in this manual, please contact Smartby customer support through their official channels or the retailer from whom you purchased the product.
