VINGLI 33-Inch Outdoor Wood Burning Fire Pit with Swivel Cooking Grates Instruction Manual

1. Introducció

This manual provides essential information for the safe assembly, operation, and maintenance of your VINGLI 33-Inch Outdoor Wood Burning Fire Pit. This versatile unit functions as both a fire pit for warmth and ambiance, and a grill for outdoor cooking. Please read all instructions carefully before use to ensure proper function and safety.

Figure 1: VINGLI 33-Inch Outdoor Fire Pit in use with cooking grates.

2. Informació de seguretat

• Només per a ús a l'aire lliure. No utilitzeu en interiors ni en espais tancats.
• Place the fire pit on a non-combustible surface, away from structures, trees, and other flammable materials.
• Keep children and pets away from the fire pit during use.
• Always use a fire poker to adjust logs and grates.
• No deixeu un foc ardent sense vigilància.
• Ensure the fire is completely extinguished and the unit is cool before covering or storing.
• Use caution when handling hot surfaces. Protective gloves are recommended.

3. Contingut del paquet

Verify all components are present before beginning assembly:

• Bol de foc
• Base Legs (4)
• Circular Base Ring
• Outer Tabletop Panels (segmented)
• Inner Fire Grate / Charcoal Pan
• Adjustable Grill Post
• Large Swivel Cooking Grate
• Small Swivel Cooking Grate
• Rotisserie Spit (optional attachment)
• Kettle Handle Hook
• Fire Poker
• Tabletop Lid
• Assembly Hardware (bolts, wing nuts, wrenches)

Figure 2: Key components of the VINGLI Fire Pit.

4. Muntatge

Assembly typically takes around 30 minutes. Follow these steps carefully:

1. Attach Legs to Fire Bowl: Secure the four base legs to the main fire bowl using the provided bolts. Ensure all bolts are tightened securely. Note: Some users have reported issues with leg alignment. Carefully match bolt holes and ensure the legs are evenly spaced and stable before tightening.
2. Install Circular Base Ring: Attach the circular base ring to the bottom of the legs. This ring provides additional stability.
3. Assemble Tabletop Panels: Connect the segmented tabletop panels around the rim of the fire bowl.
4. Place Inner Fire Grate: Position the inner fire grate (charcoal pan) at the bottom of the fire bowl.
5. Insert Adjustable Grill Post: Insert the adjustable grill post into its designated slot on the tabletop. Secure it with the wing nut, allowing for height adjustment.
6. Attach Swivel Cooking Grates: Mount the large and small swivel cooking grates onto the adjustable post. These grates can be rotated 360 degrees and their height adjusted using the wing nuts on the post.
7. Attach Rotisserie Spit (Optional): If using, attach the rotisserie spit to the adjustable post.
8. Attach Kettle Handle Hook: Secure the kettle handle hook to the adjustable post.

Figure 3: Fully assembled VINGLI Fire Pit.

Assembly Video Reference

Vídeo 1: Muntatge i més enllàview of the Florise 36 Inch Outdoor Large Fire Pit with 2 Grills (similar model).

Video 2: Assembly and features of the OutVue Fire Pit with 2 Grills (similar model).

5. Instruccions de funcionament

5.1 As a Fire Pit

1. Ensure the inner fire grate is in place.
2. Place dry firewood or charcoal on the grate.
3. Ignite the fuel safely.
4. Use the fire poker to manage the fire.
5. For ambiance, remove the cooking grates and rotisserie spit.

5.2 As a Grill

1. Prepare your fire as described above, allowing coals to reach optimal cooking temperature.
2. Position the large swivel cooking grate over the fire. Adjust its height using the wing nut on the post to control cooking temperature.
3. Use the small swivel cooking grate for warming food or for additional cooking space.
4. The rotisserie spit can be used for roasting larger items.
5. After cooking, swivel the grates away from the direct heat to cool or to access the fire.

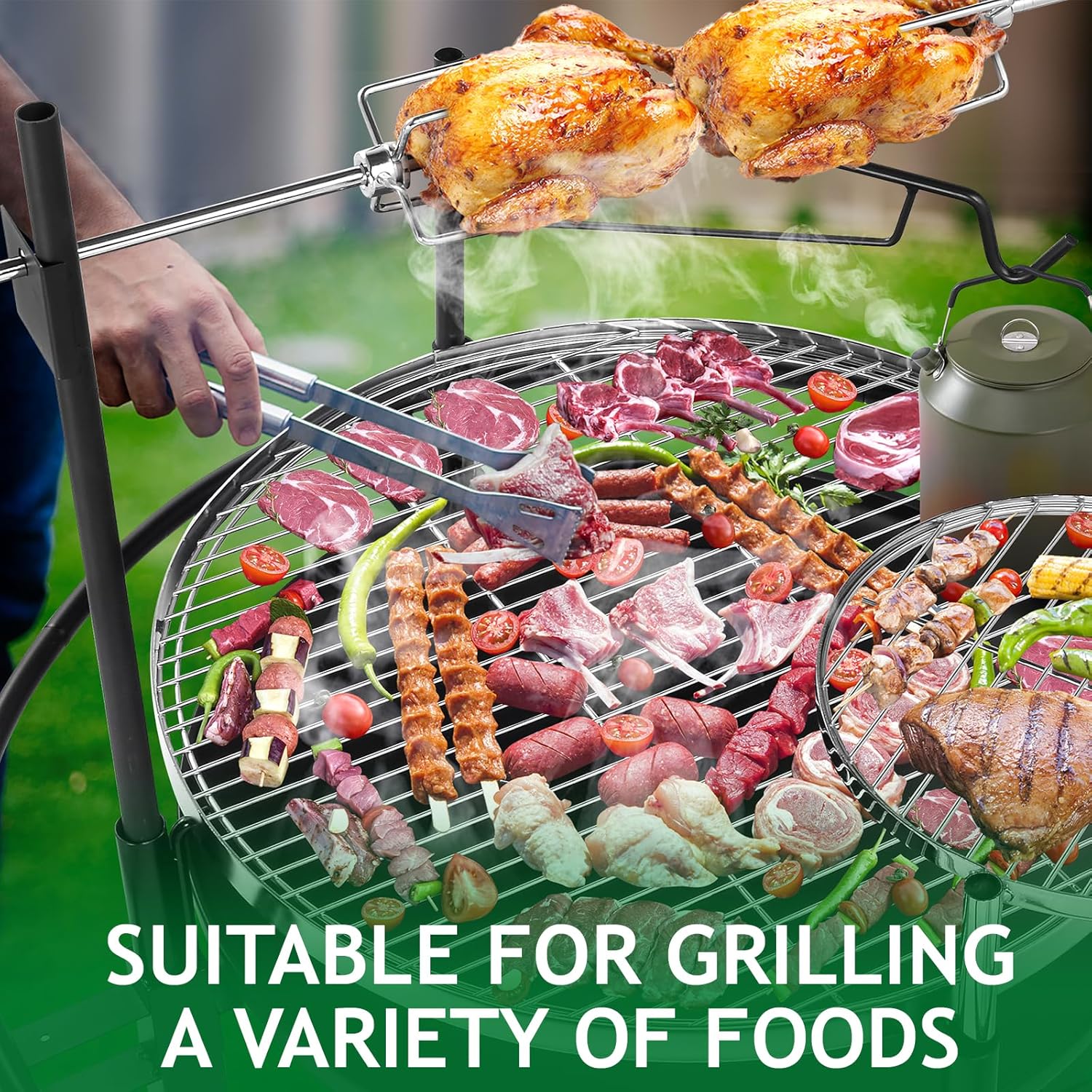

Figure 4: Food being grilled on the VINGLI Fire Pit's swivel grates.

6. Manteniment

• Neteja: Allow the fire pit to cool completely. Remove the inner fire grate and dispose of ashes responsibly. Clean cooking grates with a wire brush and warm soapy water. Rinse thoroughly and dry.
• Emmagatzematge: When not in use, especially during inclement weather, cover the fire pit with the provided tabletop lid or a weather-resistant cover to protect it from the elements.
• Inspecció: Periodically inspect all bolts and connections to ensure they remain tight and secure.

7. Solució De Problemes

• Trontollar/Inestabilitat: Ensure all legs are correctly aligned and securely fastened to the fire bowl and the circular base ring. Double-check that all bolts are fully tightened.
• Les peces no s'ajusten: Verify that you are using the correct parts for each step as per the assembly instructions. If parts appear misaligned, gently adjust them before fully tightening bolts. Do not force components.
• Grates/Accessories are Loose: Ensure the wing nuts on the adjustable post are tightened to secure the cooking grates and other accessories at the desired height.

8. Especificacions

Figura 5: Dimensions del producte.

9. Garantia i assistència

This product comes with a manufacturer's warranty. For specific warranty details, product support, or to report missing/damaged parts, please refer to the documentation included in your product packaging or contact VINGLI customer service directly. Contact information can typically be found on the manufacturer's weblloc web o a través del vostre distribuïdor.
