Introducció
The FGI TEROS 12 Spot Soil Sensor is an advanced 3-in-1 device designed for accurate measurement of soil moisture, electrical conductivity (EC), and temperature. This sensor is a replacement component for systems like the Aroya Solus, providing essential data for optimizing plant health and growth in various substrates.
Its robust design and precise measurement technology ensure reliable performance in demanding field conditions.
Producte acabatview
Imatge: Anglesa view of the TEROS 12 Spot Soil Sensor, showing its white body and three stainless steel needles.
Imatge: Lateral view of the TEROS 12 Spot Soil Sensor, highlighting the three parallel stainless steel needles extending from the white sensor body.
The TEROS 12 sensor integrates three key measurement capabilities: soil moisture, electrical conductivity (EC), and temperature. It features a robust epoxy body and durable stainless steel needles designed for longevity in various soil types and substrates.
The sensor utilizes 70 MHz capacitance technology for precise readings, minimizing the impact of salinity and textural variations in the medium.
Configuració i instal·lació
-
Desembalatge i inspecció
Carefully remove the TEROS 12 sensor from its packaging. Inspect the sensor body, needles, and cable for any signs of damage. Ensure the universal twist-lock connector is intact.
-
Compatibilitat de substrats
The TEROS 12 is designed for use in soil, coco coir, and rockwool substrates. It is no intended for use in liquids.
-
Col·locació del sensor
For accurate readings, ensure good contact between the sensor needles and the substrate. Avoid air gaps around the needles. For spot-checks, insert the sensor directly into the desired measurement location.
Image: A hand holding the TEROS 12 sensor, demonstrating how to grip it for insertion into a substrate.

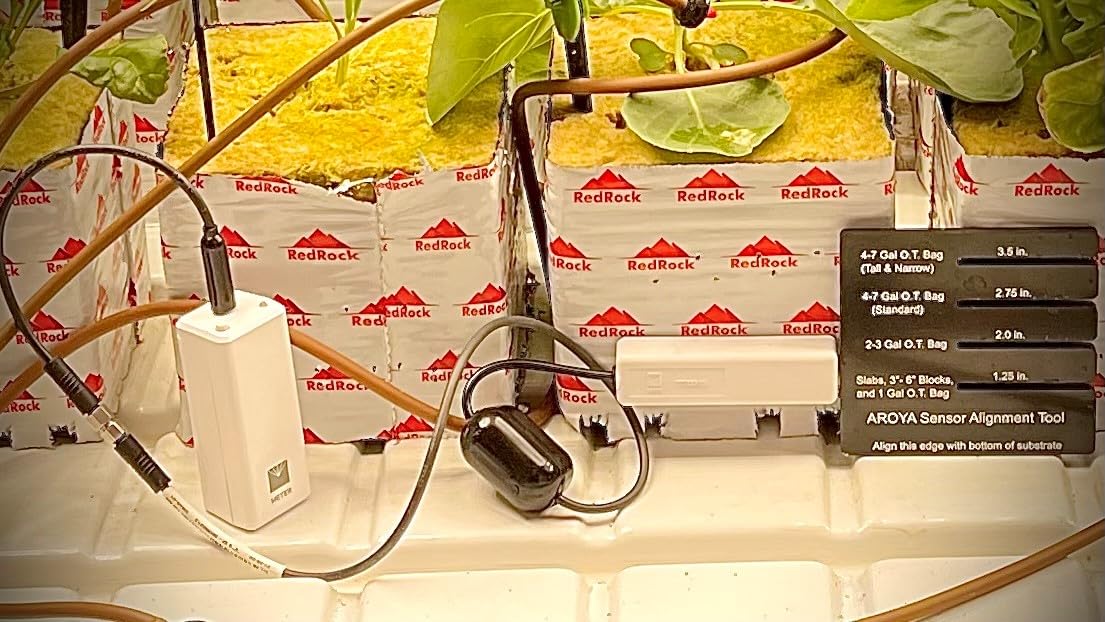

Image: The TEROS 12 sensor installed in a plant growing setup, with its cable connected to a white module, demonstrating typical usage.
-
Connexió del sensor
Connect the sensor's stereo connector to the appropriate port on your data logger or measurement device (e.g., Aroya Solus, ZSC Bluetooth module). Ensure the connection is secure.

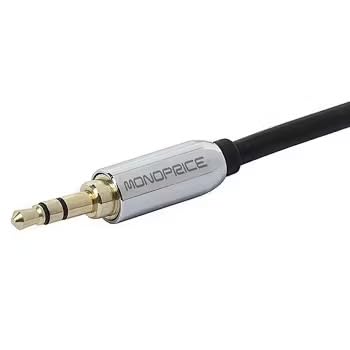

Imatge: Un primer pla view of the stereo connector on the TEROS 12 sensor's cable, which connects to the data acquisition system.
Instruccions de funcionament
The TEROS 12 sensor operates by sending data to a compatible data logger or monitoring system. Refer to the manual of your specific data logger (e.g., Aroya Solus, ZSC Bluetooth module) for instructions on data acquisition, calibration, and interpretation.
- Humitat del sòl: The sensor measures volumetric water content. Readings will vary based on substrate type and density.
- Electrical Conductivity (EC): The sensor provides bulk EC readings. This is crucial for managing nutrient levels.
- Temperatura: The sensor measures the temperature of the substrate at the point of insertion.
For optimal results, ensure the sensor is fully inserted into the substrate and that the needles are not bent or damaged.
Manteniment
- Neteja: After use, especially when moving the sensor between different substrates, gently clean the sensor body and needles with a soft cloth and clean water. Avoid abrasive materials or harsh chemicals.
- Emmagatzematge: Store the sensor in a clean, dry environment when not in use. Protect the needles from bending or damage.
- Inspecció: Periodically inspect the sensor for any physical damage, particularly to the needles and cable.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Lectures inexactes | Poor sensor-substrate contact; air gaps; damaged needles; incorrect calibration of data logger. | Re-insert sensor ensuring full contact; check needles for damage; refer to data logger manual for calibration. |
| Sense lectures | Loose connection; faulty cable; incompatible data logger; sensor malfunction. | Check cable connection; try a different cable if available; ensure data logger compatibility; contact support if sensor is suspected faulty. |
| Readings fluctuate wildly | Electrical interference; unstable power supply to data logger; sensor not fully immersed. | Ensure sensor is away from strong electrical fields; check power supply; ensure full insertion into substrate. |
Especificacions
- Model: Teros_12
- Dimensions del producte: 6 x 2 x 7 inches; 1 Pound
- Paràmetres de mesura: Soil Moisture (Volumetric Water Content), Electrical Conductivity (EC), Temperature
- Tecnologia: 70 MHz Capacitance
- Needle Material: Acer inoxidable
- Material del cos: Epoxi
- Compatibilitat: Designed for use with Aroya Solus and similar systems (requires ZSC Bluetooth module or equivalent for full functionality).
- Substrate Use: Soil, Coco Coir, Rockwool (Not for use in liquids)
- Fabricant: Aroya - Meter Group
- Data de primera disponibilitat: 27 de novembre de 2023
Garantia i Suport
For warranty information and technical support, please refer to the official documentation provided by the manufacturer, Aroya - Meter Group, or contact your point of purchase. Details regarding specific warranty periods and support channels are typically available on the manufacturer's weblloc web o dins de l'embalatge original del producte.
For general inquiries or assistance, you may also visit the FGI Store on Amazon.
