Deaf Bonce Machete Lite-R 10" Dual 2 Ohm 1000W Subwoofer ML-10R-D2 User Manual

1. Introducció

This manual provides essential information for the proper installation, operation, and maintenance of your Deaf Bonce Machete Lite-R 10-inch Dual 2 Ohm 1000W Subwoofer (ML-10R-D2). Please read this manual thoroughly before using the product to ensure optimal performance and safety.

The Machete Lite-R series subwoofer is designed to deliver powerful bass performance in car audio systems and can also be integrated into home theater setups. Its lightweight design and robust construction ensure durability and efficient sound reproduction.

2. Instruccions de seguretat

Observeu sempre les següents precaucions de seguretat per evitar lesions o danys a l'equip:

Maneig de potència: Do not exceed the maximum power handling of 1000 Watts. Overpowering can cause permanent damage to the subwoofer.
Cablejat: Ensure all wiring is correctly connected and insulated to prevent short circuits. Incorrect wiring can lead to amplifier damage or fire.
Muntatge: Securely mount the subwoofer using appropriate brackets and hardware. Loose mounting can cause vibration, damage, or injury.
Ventilació: Assegureu-vos que la ventilació sigui adequada al voltant del subwoofer i amplificador per evitar el sobreescalfament.
Nivells de volum: L'exposició prolongada a nivells de volum elevats pot causar danys auditius.
Humitat: This product is not waterproof. Avoid exposure to water or excessive moisture.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

Deaf Bonce Machete Lite-R 10" Subwoofer (ML-10R-D2)
Cable d'alimentació

4. Instal·lació

4.1 Muntatge

The subwoofer is designed for bracket mount installation. Ensure the mounting surface is sturdy and capable of supporting the subwoofer's weight (approximately 15 pounds). Use appropriate fasteners to secure the subwoofer firmly in place, preventing any movement during operation.

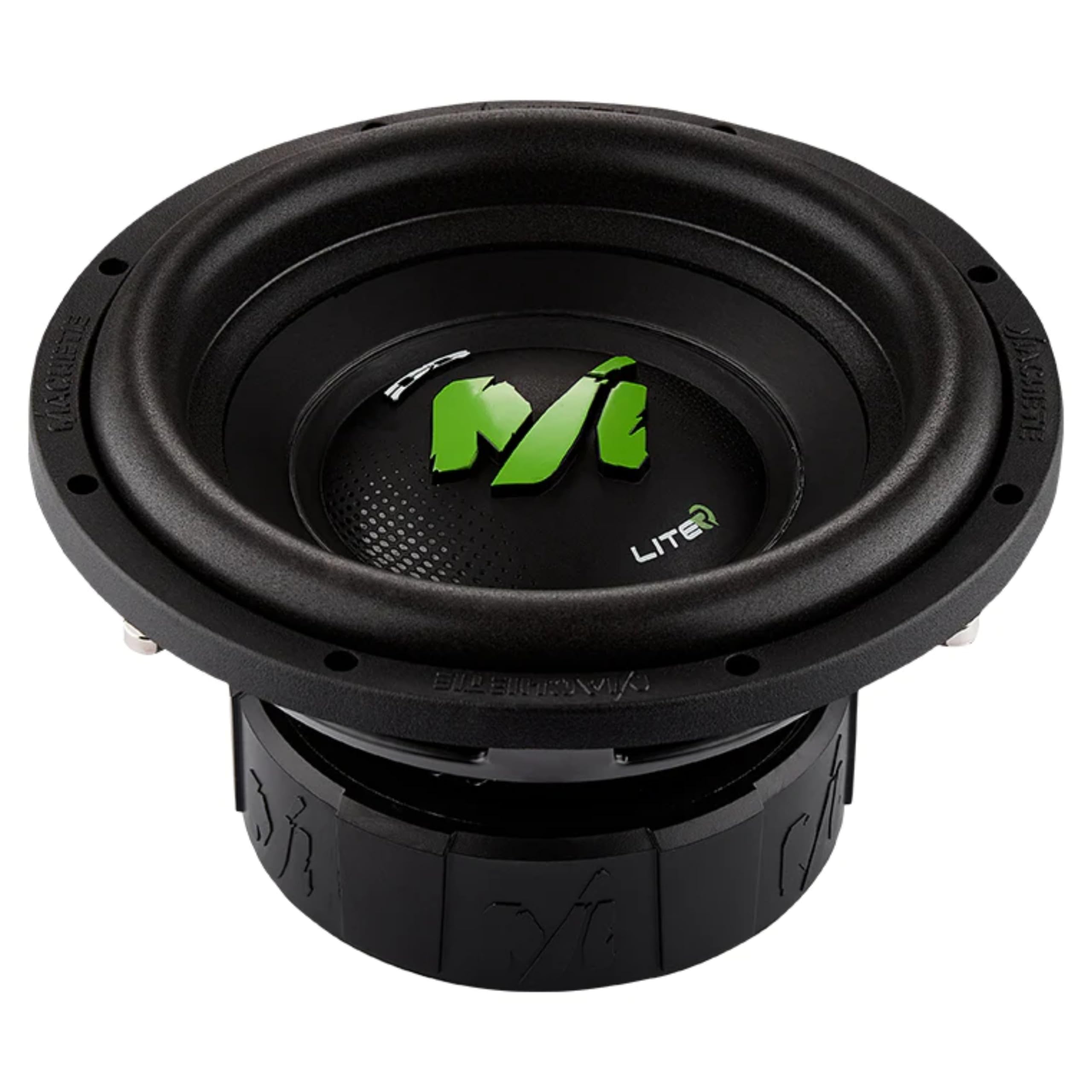

Deaf Bonce Machete Lite-R 10-inch Subwoofer front view

This image shows the front of the Deaf Bonce Machete Lite-R 10-inch subwoofer, highlighting the cone, foam surround, and the 'Machete Lite-R' branding.

4.2 Cablejat

The ML-10R-D2 features a Dual 2 Ohm Voice Coil, offering versatile wiring options to match your amplifier's impedance requirements. Proper wiring is crucial for optimal performance and to prevent damage to the subwoofer or ampmés viu.

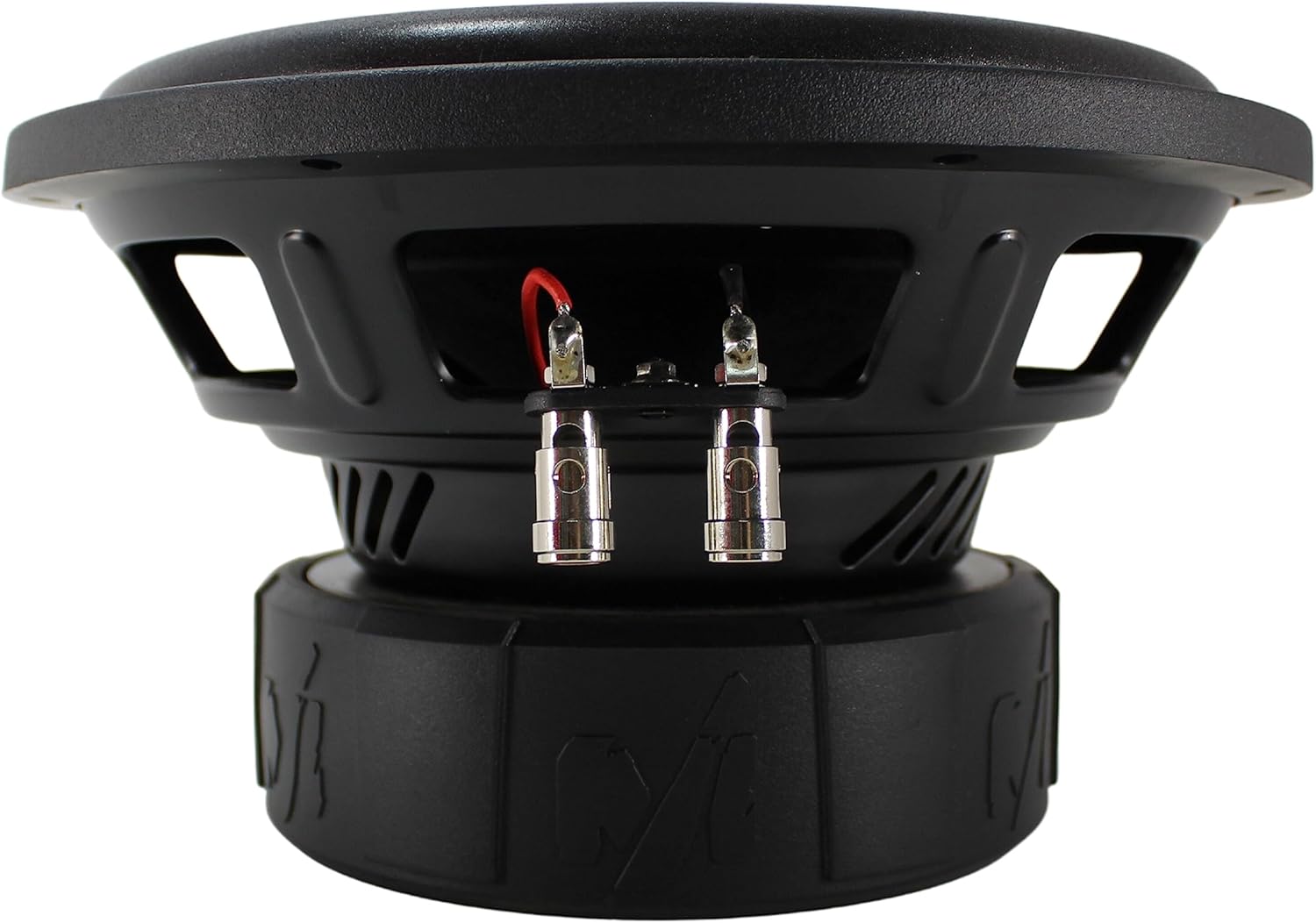

Deaf Bonce Machete Lite-R 10-inch Subwoofer wiring terminals

This image displays the dual wiring terminals on the side of the subwoofer, indicating connection points for the voice coils.

Common Wiring Configurations for Dual 2 Ohm Voice Coils:

Parallel Wiring (1 Ohm total impedance): Connect the positive terminal of Voice Coil 1 to the positive terminal of Voice Coil 2, and the negative terminal of Voice Coil 1 to the negative terminal of Voice Coil 2. Then, connect the combined positive to the ampla sortida positiva del lificador i la negativa combinada a la amplifier's negative output. This configuration results in a 1 Ohm load.
Series Wiring (4 Ohm total impedance): Connecteu el terminal positiu de la bobina mòbil 1 al amplifier's positive output. Connect the negative terminal of Voice Coil 1 to the positive terminal of Voice Coil 2. Then, connect the negative terminal of Voice Coil 2 to the amplifier's negative output. This configuration results in a 4 Ohm load.

Consulta el teu amplifier's manual to determine the stable impedance it can handle before wiring the subwoofer.

4.3 Connexió d'alimentació

Connect the provided power cable to your amplifier segons el amplifier's instructions. Ensure all connections are secure and properly insulated. The subwoofer requires a corded electric power source, typically supplied by a car audio amplifier or a dedicated home theater ampmés viu.

Deaf Bonce Machete Lite-R 10-inch Subwoofer magnet and model label

This image shows the rear of the subwoofer, featuring the magnet structure and a label with the model number 'ML-10R D2' and power specifications.

5. Funcionament

Once installed and wired correctly, the subwoofer is ready for operation. It is recommended for use in car audio systems and home theater systems.

Engegada inicial: Turn on your audio system at a low volume level. Gradually increase the volume to ensure proper function and to identify any issues.
Període d'entrada: Allow a break-in period of several hours of moderate use before operating the subwoofer at high volumes. This allows the suspension components to loosen and perform optimally.
AmpConfiguració del lifier: Ajusta el teu amplifier's gain, crossover, and phase settings to achieve balanced sound with your other speakers. Refer to your amplifier's manual for detailed instructions on these adjustments.
Qualitat del so: The subwoofer is designed to reproduce low-frequency sounds. If the sound is distorted, reduce the volume or check your ampConfiguració del lifier.

6. Manteniment i cura

Proper care will extend the life and performance of your subwoofer:

Neteja: Use a soft, dry cloth to clean the subwoofer. Avoid using harsh chemicals or abrasive cleaners.
Foam Surround: The subwoofer features a foam surround. Inspect it periodically for cracks or damage. Avoid touching the foam with sharp objects or applying excessive pressure.
Medi ambient: Keep the subwoofer in a dry environment, away from direct sunlight and extreme temperatures.
Connexions: Reviseu periòdicament totes les connexions del cablejat per assegurar-vos que es mantinguin segures.

7. Solució De Problemes

Si teniu problemes amb el subwoofer, consulteu els problemes i solucions més comuns següents:

Problema	Causa possible	Solució
No hi ha so del subwoofer	Sense poder ampmés viu Cablejat incorrecte Amplificador en mode de protecció Source unit issue	Comproveu amplifier power connections and fuses. Verifiqueu totes les connexions del cablejat (alimentació, terra, senyal, altaveu). Apagueu i reinicieu amplifier; check for overheating or short circuits. Ensure source unit is sending audio signal.
So distorsionat o poc clar	Guany massa alt Configuració incorrecta del crossover Subwoofer danyat Poor enclosure	Reduir ampguany lifier. Ajusta el filtre de pas baix activat amplificador o unitat principal. Inspect subwoofer cone and surround for physical damage. Ensure enclosure is sealed and properly sized.
El subwoofer s'escalfa	Aclaparador Ventilació insuficient Desajust d'impedància	Reduce volume or check ampsortida més elevada. Assegureu-vos que hi hagi un flux d'aire adequat al voltant del subwoofer i ampmés viu. Verificar les coincidències d'impedància del cablejat ampcàrrega estable del lifter.

Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb l'atenció al client.

8. Especificacions tècniques

Característica	Especificació
Nom del model	ML-10R-D2
Tipus d'altaveu	Subwoofer
Diàmetre del subwoofer	10 polzades
Potència de sortida màxima dels altaveus	1000 watts
Configuració de la bobina de veu	Dual de 2 ohms
Tipus d'imant	Ferrita
Resposta de freqüència	40 Hz
Tecnologia de connectivitat	Amb cable
Tipus de muntatge	Suport de suport
Material	Foam (Surround)
Dimensions del producte	10 "P x 10" W x 1" H
Pes de l'article	15 lliures
Usos recomanats	For Car Audio Systems, For Home Theater Systems
Fabricant	Bonce sord
GTIN (UPC)	04650185706752

9. Informació de la garantia

This Deaf Bonce Machete Lite-R 10" Subwoofer (ML-10R-D2) comes with a Garantia limitada. Please refer to the official Deaf Bonce warranty policy for specific terms, conditions, and duration of coverage. The warranty typically covers manufacturing defects under normal use. Damage resulting from improper installation, abuse, or exceeding specified power limits may not be covered.

10. Atenció al client

For technical assistance, warranty claims, or further information regarding your Deaf Bonce Machete Lite-R subwoofer, please contact Deaf Bonce customer support through their official channels. You can often find support contact information on the manufacturer's weblloc web o a través del venedor on es va comprar el producte.
