Introducció
The Raddy R4 is a wireless indoor and outdoor remote sensor designed to provide accurate temperature and humidity readings. It is compatible with Raddy WF-80C Home weather stations, extending their monitoring capabilities to various environments. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your R4 sensor.
Figura 1: Frontal view of the Raddy R4 Wireless Remote Sensor, showing the LCD display.
Configuració
1. Instal·lació de la bateria
The Raddy R4 sensor requires dues (2) piles AA (not included). For optimal performance, especially in cold environments (below -10 °C), it is recommended to use low-temperature resistant batteries.
- Locate the battery compartment on the back of the sensor.
- Feu lliscar la tapa de la bateria.
- Introduïu dues piles AA, assegurant-vos de la polaritat correcta (+ i -).
- Tanqueu la tapa de la bateria amb seguretat.
Figure 2: Battery compartment of the Raddy R4 sensor with batteries installed.
2. Pairing with Main Unit (WF-80C)
To ensure proper synchronization, always insert batteries into the main WF-80C unit before installing batteries in the R4 remote sensor.
- Ensure your Raddy WF-80C weather station is powered on.
- Install batteries into the R4 sensor as described above. The sensor will automatically attempt to pair with the main unit.
- Allow a few minutes for the sensor to establish a connection. Once connected, the temperature and humidity readings will appear on the main unit's display.
3. Mounting and Placement Recommendations
The Raddy R4 sensor offers versatile mounting options and can be placed on a shelf or hung on a wall using the integrated keyhole slot on its back.

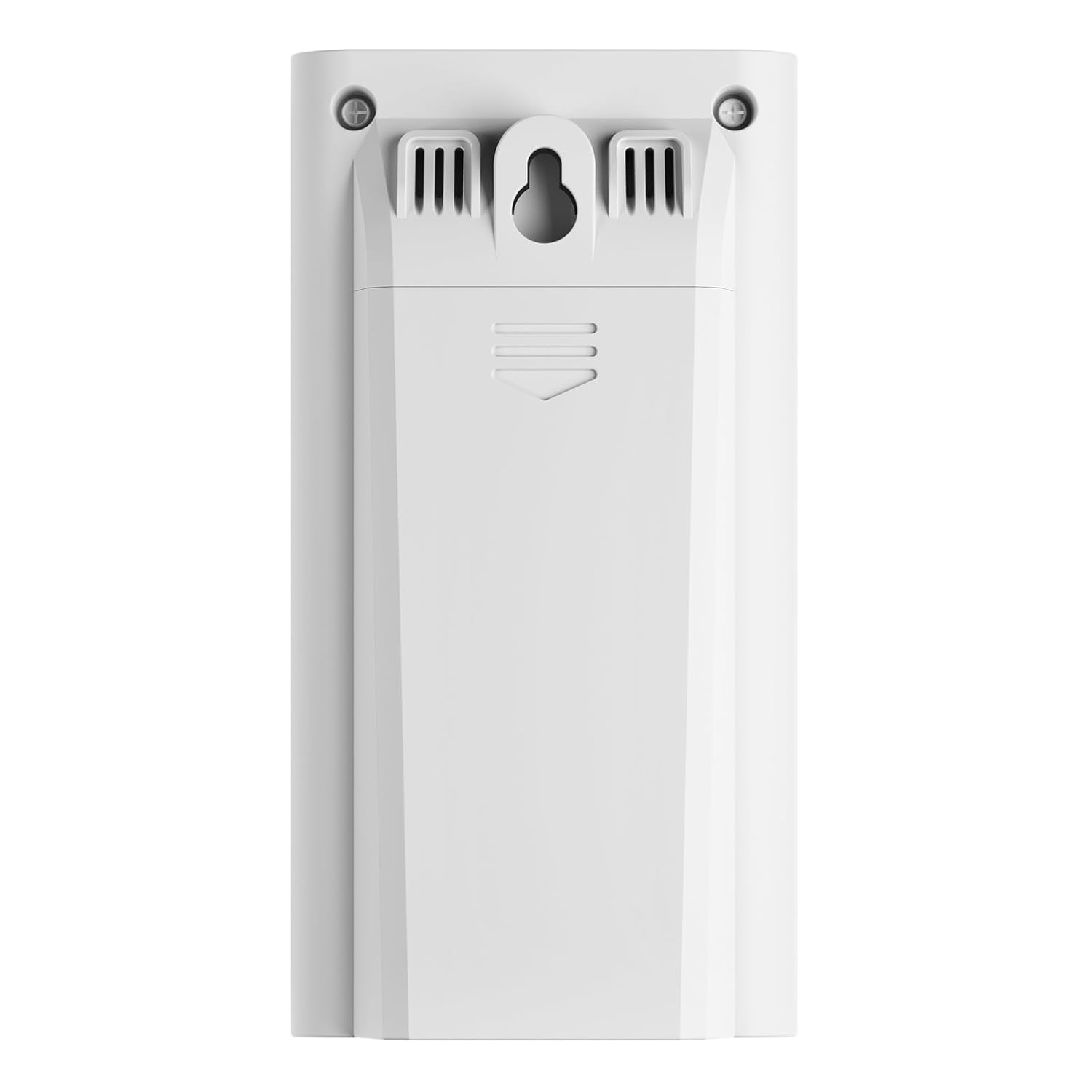

Figura 3: posterior view of the Raddy R4 sensor, highlighting the mounting features.
For accurate readings and optimal wireless transmission, observe the following placement guidelines:
- Posició: Place the remote sensor in a posició vertical.
- Flux d'aire: Position it in an area with free air circulation, ideally with a shelter to protect it from direct elements.
- Interferència: Keep it away from potential interfering sources such as large metal objects, electronic devices, or thick walls that can obstruct the wireless signal.
- Alçada: For outdoor use, place the sensor at least 47 inches (1.2 meters) from the ground.
Figure 4: Guidelines for correct and incorrect placement of the remote sensor.
Figura 5: Example of the Raddy R4 sensor mounted in an indoor environment.
Instruccions de funcionament
1. Pantalla LCD
The R4 sensor features a clear digital LCD display that shows the current channel number, temperature, and humidity. It supports both Celsius (℃) and Fahrenheit (℉) temperature units.
Figura 6: Angle view of the Raddy R4 sensor display.
2. Transmissió sense fil
The sensor transmits data wirelessly to the main WF-80C unit. The wireless transmission range is up to 100 metres (aproximadament 328 peus) in an open area. Obstacles such as walls, metal structures, and electronic interference can reduce this range.
Manteniment
1. Substitució de la bateria
When the battery indicator on the main unit or the sensor's display shows low power, replace both AA batteries promptly to ensure continuous operation and accurate readings. Follow the battery installation steps in the Setup section.
2. Neteja
Netegeu el sensor amb un drap suauamp drap. No utilitzeu productes de neteja abrasius ni submergiu la unitat en aigua.
3. Consideracions ambientals
While the sensor is designed for outdoor use, prolonged exposure to extreme weather conditions (e.g., heavy rain, direct sunlight, or temperatures significantly outside its operating range) can affect its lifespan and accuracy. Ensure it is placed under a shelter if used outdoors.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Sensor not communicating with main unit. |
|
|
| Lectures de temperatura/humitat inexactes. |
|
|
| La pantalla LCD està tènue o en blanc. |
|
|
Especificacions
| Característica | Detall |
|---|---|
| Número de model | R4 |
| Marca | Raddy |
| Compatibilitat | Raddy WF-80C Weather Station |
| Font d'alimentació | 2 piles AA (no incloses) |
| Interval de temperatura | -40 °C a 70 °C (-40 °F a 165 °F) |
| Gamma d’humitat | 20% de HR a 95% de HR |
| Interval de transmissió sense fil | Up to 100m (328 ft) in open area |
| Dimensions (L x A x A) | 9.65 x 5.08 x 3.05 cm (3.8 x 2 x 1.2 polzades) |
| Pes | 200 g (0.44 lliures) |
| Característica especial | Pantalla LCD gran |
| Ús recomanat | Home, Air Humidity Monitoring |
Figure 7: Dimensions of the Raddy R4 Wireless Remote Sensor.
Figure 8: Versatile usage scenarios for the Raddy R4 remote sensor.
Garantia i Suport
Raddy products are designed for reliability and performance. For any issues or inquiries, please contact Raddy Support. While specific warranty details are not provided in this manual, customers typically benefit from a 30-day free return policy. For technical assistance or warranty claims, please refer to the contact information provided with your purchase or visit the official Raddy weblloc.
Note: One customer reported that Raddy Support was responsive and resolved an issue with a non-communicating sensor.
