Aqua-Scope WiFi Rain Sensor Instruction Manual RANWIE01

1. Introducció

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Aqua-Scope WiFi Rain Sensor. Please read this manual carefully before using the device to ensure proper functionality and longevity.

2. Producte acabatview

The Aqua-Scope WiFi Rain Sensor is designed to accurately measure rainfall at its location. It utilizes a tipping bucket mechanism to quantify precipitation in milliliters and transmits this data, along with temperature, at configurable intervals. The device supports communication via WiFi to the Aqua-Scope Cloud, MQTT, or a Smart Home Gateway.

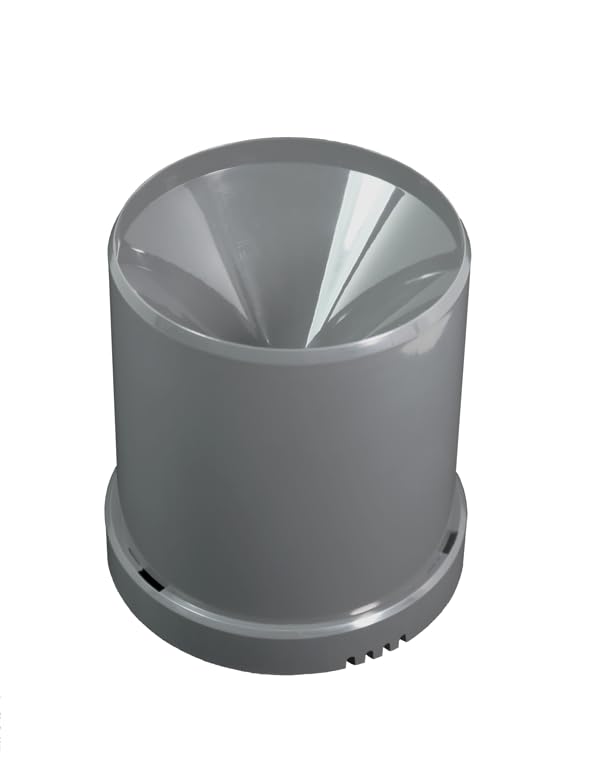

Figure 2.1: Aqua-Scope WiFi Rain Sensor main unit. This image shows the compact, cylindrical design of the rain sensor, ready for outdoor placement.

3. Característiques

• Accurate rainfall measurement at the sensor's location.
• Data transfer via WiFi for remote monitoring.
• Suitable for outdoor use with IP67 rating.
• Funciona amb piles per a una col·locació flexible.
• Integration with free Aqua-Scope app or MQTT/Smart Home Gateway.
• Measures temperature alongside rainfall.
• Configurable heavy rain alarm and measurement interval.

4. Contingut del paquet

Si us plau, verifiqueu que tots els elements siguin presents al vostre paquet:

• Aqua-Scope WiFi Rain Sensor (Model RANWIE01)
• 2 x AAA Batteries (VARTA, pre-installed or included separately)
• Manual d'instruccions (aquest document)

5. Configuració

5.1 Instal·lació de la bateria

The device operates on two AAA batteries. Ensure they are correctly inserted for proper functionality.

1. Locate the battery compartment on the underside of the sensor.
2. Obriu la tapa del compartiment de la bateria.
3. Insert the two AAA batteries, observing the correct polarity (+/-).
4. Tanqueu de manera segura la tapa del compartiment de la bateria.

Figure 5.1: Open battery compartment. This image displays the internal battery compartment designed for two AAA batteries, showing the spring contacts and polarity markings.

5.2 Muntatge del sensor

For accurate readings, place the sensor in an open area, away from obstructions like trees or buildings that could block rain. Ensure the sensor is level.

1. Choose a suitable outdoor location that is exposed to direct rainfall.
2. Place the sensor on a flat, stable surface or mount it using appropriate hardware (not included) through the mounting holes on the base.
3. Verify the sensor is level using the integrated bubble level (if present) or a separate leveling tool.

Figure 5.2: Sensor base with tipping bucket mechanism. This image shows the sensor disassembled, revealing the internal tipping bucket mechanism and a small bubble level for accurate installation.

Figure 5.3: Sensor in an outdoor setting. This image depicts the rain sensor positioned outdoors, collecting rainfall, demonstrating its intended use.

5.3 WiFi Connection and App Setup

The sensor communicates via WiFi. You can connect it to the Aqua-Scope Cloud for app access, or integrate it with other systems via MQTT or JSON.

1. Download the Aqua-Scope app from your device's app store (iOS/Android).
2. Obriu l'aplicació i seguiu les instruccions a la pantalla per crear un compte o iniciar sessió.
3. Within the app, select "Add Device" and follow the pairing process for the WiFi Rain Sensor. This typically involves putting the sensor into pairing mode (refer to app instructions for specific steps) and connecting it to your local WiFi network.
4. Alternatively, for MQTT or Smart Home Gateway integration, refer to the Aqua-Scope developer documentation for specific API and configuration details.

Figura 5.4: Example of Aqua-Scope app interface. This image shows a screenshot of the Aqua-Scope application displaying rainfall data over 30 days, current status, temperature, and battery usage. (Note: Image not embedded as URL not available in product images, but described for context.)

6. Instruccions de funcionament

6.1 Mesura de la pluja

The sensor continuously measures rainfall. Each tip of the internal bucket corresponds to a specific amount of precipitation (0.5 mm water column). The accumulated data is transmitted at regular intervals.

6.2 Transmissió de dades

Rainfall and temperature data are transmitted via WiFi every 15 minutes by default. This interval can be adjusted through the Aqua-Scope app or integrated system settings.

6.3 Heavy Rain Alarm

The sensor features a heavy rain alarm that activates when rainfall exceeds 15 liters per hour (L/h). The threshold for this alarm is configurable within the app or connected system.

6.4 Configuració

Through the Aqua-Scope app or your chosen Smart Home Gateway, you can configure various settings, including:

• Measurement interval (default 15 minutes)
• Heavy rain alarm threshold (default 15 L/h)
• Configuració de la xarxa WiFi

7. Manteniment

7.1 Neteja

Periodically inspect the sensor's funnel and tipping bucket mechanism for debris such as leaves, dirt, or insects. Gently clean with a soft cloth and water if necessary. Avoid using abrasive cleaners or high-pressure water, which could damage the sensor.

7.2 Substitució de la bateria

The sensor will report a low battery level via radio to your connected app or system. This notification allows you to replace the batteries before the device ceases operation. The included VARTA batteries typically provide approximately 2 years of operation.

1. When a low battery warning is received, prepare two new AAA batteries.
2. Follow the steps in Section 5.1 to open the battery compartment and replace the old batteries with new ones.
3. Ensure the compartment is securely closed to maintain the IP67 rating.

8. Solució De Problemes

• No Data Transmission:
  • Comproveu el nivell de la bateria. Substituïu-la si és baixa.
  • Verify WiFi connectivity. Ensure the sensor is within range of your WiFi router.
  • Restart the sensor by temporarily removing and reinserting the batteries.
  • Check app or gateway settings for correct configuration.
• Inaccurate Rainfall Readings:
  • Ensure the sensor is level. Use the integrated bubble level or a separate tool.
  • Check for obstructions above the sensor (trees, eaves, etc.) that might block rain.
  • Clean the funnel and tipping bucket mechanism for any debris.
• Durada de la bateria curta:
  • Ensure you are using high-quality AAA batteries.
  • Les temperatures extremes poden afectar el rendiment de la bateria.
  • Frequent WiFi disconnections and reconnections can increase power consumption.

9. Especificacions

Figura 9.1: A baix view of the sensor. This image shows the underside of the sensor, including the product label with model number (RANWIE01) and other regulatory information, including the identifier 0600003C7BEB6682.

10. Garantia i Suport

Aqua-Scope provides a warranty for its products in accordance with local regulations. For specific warranty terms, please refer to the documentation provided with your purchase or visit the official Aqua-Scope weblloc.

Spare parts availability in the EU is guaranteed for 2 years from the date of first availability. Software updates are provided as needed, with no specified end date for guaranteed updates.

For technical support, troubleshooting assistance, or further inquiries, please contact Aqua-Scope customer service through their official weblloc web o la informació de contacte que es proporciona a l'embalatge del producte.
