occiam T19 Active Noise Cancelling Wireless Earbuds Instruction Manual

1. Producte acabatview

The occiam T19 Active Noise Cancelling Wireless Earbuds are designed for an immersive audio experience, featuring hybrid active noise cancellation, extended battery life, and a secure, comfortable fit for active lifestyles. These earbuds are equipped with Bluetooth 5.3 technology for stable connectivity and IPX7 waterproofing, making them ideal for sports, running, and gym workouts.

Image: occiam T19 Wireless Earbuds in their sleek black charging case.

2. Contingut del paquet

• occiam T19 Wireless Earbuds (Left and Right)
• Caixa de càrrega amb pantalla digital
• Cable de càrrega USB-C
• 3 Sizes of Ear Tips (S, M, L)
• Manual d'usuari

3. Configuració i ús inicial

3.1 Càrrega inicial

Before first use, fully charge the charging case and earbuds. Connect the provided USB-C cable to the charging port on the case and a compatible USB power source. The digital display on the case will show the battery percentage and charging status of each earbud.

Image: The charging case displaying 100% battery, indicating a full charge for both the case and earbuds.

3.2 Vinculació Bluetooth

1. Assegureu-vos que els auriculars estiguin a l'estoig de càrrega i que l'estoig estigui obert.
2. Al dispositiu (telèfon intel·ligent, tauleta, etc.), activeu el Bluetooth.
3. Cerca dispositius Bluetooth disponibles i seleccioneu "T19" de la llista.
4. The earbuds will automatically connect to your device. Subsequent connections will be automatic once the case is opened.

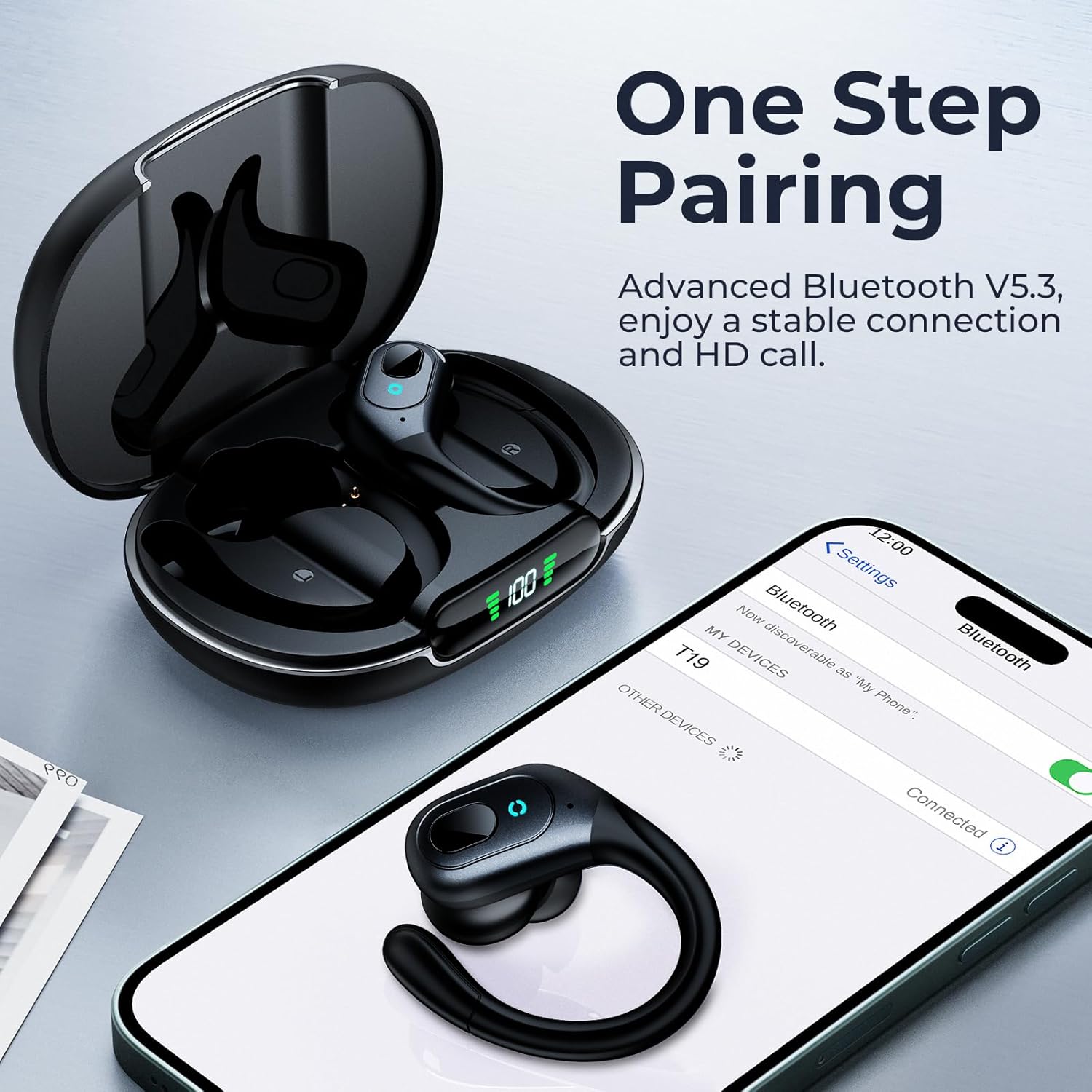

Image: A smartphone displaying the Bluetooth pairing menu, with 'T19' visible for connection, alongside the open earbud charging case.

3.3 Comfort Fit and Ear Tips

The occiam T19 earbuds feature flexible over-ear hooks and come with three sizes of ear tips (S, M, L) to ensure a secure and comfortable fit for various ear shapes during physical activity. Choose the ear tips that provide the best seal and comfort for optimal sound quality and stability.

Image: A person wearing an occiam T19 earbud, demonstrating the secure fit of the flexible ear hook, with an illustration of the included S, M, and L ear tip sizes.

4. Instruccions de funcionament

4.1 Control d'un botó

Each earbud is equipped with a multi-function button for easy control of music playback, calls, and voice assistant activation. The button controls are designed to prevent accidental touches during exercise.

• Reproduir/pausa: Prem una sola vegada a qualsevol dels auriculars.
• Pista següent: Premeu dues vegades l'auricular dret.
• Pista anterior: Premeu dues vegades l'auricular esquerre.
• Pujar el volum: Single press and hold the right earbud.
• Baixar el volum: Single press and hold the left earbud.
• Respondre/Finalitzar la trucada: Prem una sola vegada a qualsevol dels auriculars.
• Rebutja la trucada: Prem i mantén premut qualsevol dels auriculars.
• Activa l'Assistent de veu: Premeu tres vegades qualsevol dels auriculars.

Image: A user demonstrating the one-button control functions on the occiam T19 earbud, with visual cues for play/pause, track navigation, call management, and volume adjustment.

5. Característiques i rendiment

5.1 Hybrid Active Noise Cancellation

Experience enhanced audio clarity with hybrid active noise cancellation, effectively reducing ambient noise by up to 45dB. This feature allows for an undisturbed listening experience in various environments.

5.2 Durada de la bateria estesa

Each earbud provides up to 8 hours of playback on a single charge. The portable charging case extends total listening time to 48 hours when using both earbuds, or up to 90 hours when using a single earbud alternately.

Image: An infographic detailing the occiam T19's battery performance: 8 hours per earbud, 48 hours total with the charging case for two earbuds, and up to 90 hours using one earbud at a time with the case.

Classificació d'impermeabilitat IPX7 5.3

The earbuds feature an IPX7 waterproof rating, making them resistant to sweat and splashes. This ensures durability and reliable performance during intense workouts or in light rain.

5.4 Stable Bluetooth 5.3 Connectivity

Equipped with Bluetooth 5.3, the earbuds offer a strong and stable connection within a 30ft range, providing a low-latency audio experience. They support both binaural (stereo) and mono modes for flexible listening.

6. Especificacions

7. Manteniment

• Regularly clean the earbuds and charging contacts with a dry, soft cloth to prevent debris buildup.
• Eviteu utilitzar materials abrasius o productes químics durs.
• Store the earbuds in their charging case when not in use to protect them and maintain battery charge.
• Assegureu-vos que el port de càrrega estigui sec abans de connectar el cable USB-C.

8. Solució De Problemes

• Auriculars que no s'emparellan: Ensure both earbuds are charged and in the open case. Turn off and on your device's Bluetooth, then try re-pairing.
• No sound/Low volume: Check the volume levels on both your device and the earbuds. Ensure earbuds are properly seated in your ears.
• Problemes de càrrega: Verify the USB-C cable is securely connected and the power source is functional. Clean charging contacts on both earbuds and case.
• Connexió intermitent: Ensure your device is within the 30ft Bluetooth range and there are no major obstructions.

9. Garantia i Suport

Your occiam T19 Wireless Earbuds come with a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support or warranty claims, please contact occiam customer service through their official channels or the retailer where the product was purchased.

It is recommended to activate your product warranty upon receipt, if applicable, by following the instructions provided in the packaging.
