Shantui Mini Excavator 2.8 Ton Digger Tracked Crawler Hydraulic Engine EPA

1. Introducció

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Shantui Mini Excavator 2.8 Ton Digger. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent damage or injury.

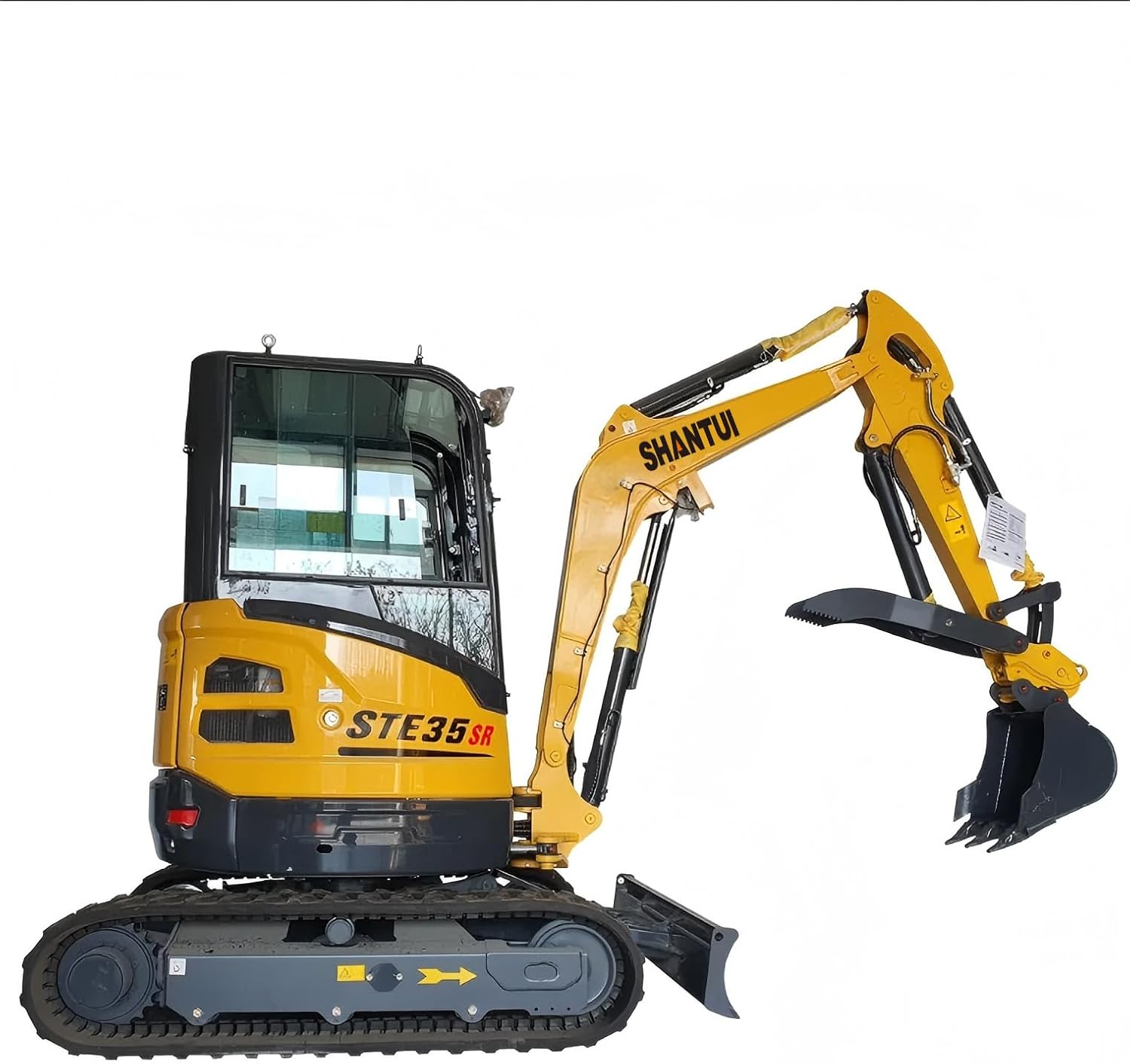

Image 1.1: The Shantui Mini Excavator 2.8 Ton Digger, a compact and powerful tracked crawler designed for various excavation tasks.

2. Informació de seguretat

Always prioritize safety when operating heavy machinery. Failure to follow safety instructions can result in serious injury or death.

• Read and understand all safety decals on the machine.
• Wear appropriate personal protective equipment (PPE), including hard hat, safety glasses, hearing protection, and steel-toed boots.
• Ensure the work area is clear of personnel and obstacles.
• Never operate the excavator under the influence of alcohol or drugs.
• Perform daily pre-operation checks as outlined in the maintenance section.
• Be aware of the zero-tail swing radius to avoid collisions in confined spaces.

3. Producte acabatview i components clau

Familiarize yourself with the main parts and features of your Shantui Mini Excavator.

Image 3.1: Diagram highlighting key components such as the steel protection cover, LED working light, cast aluminum pedal, transport connector, easy service hose design, cylinder protection plate, breaker and auxiliary pipes, and mechanical quick change system.

3.1. Cabin and Controls

The spacious cabin provides a comfortable operation environment with an enlarged front windscreen and sunroof for wider visibility. It includes an air conditioner (warm air only), a touch radio, and stereo acoustics.

Imatge 3.2: View of the excavator's cabin interior, showing the operator's seat, control levers, and the advanced touch-panel monitor.

The advanced touch-panel monitor provides critical operational data, including:

• Informació d'autodiagnòstic
• Horari de treball
• Nivell de combustible
• Temperatura de l'aigua
• Voltage

4. Configuració i funcionament inicial

4.1. Comprovacions prèvies a l'operació

Before starting the excavator, perform the following checks:

1. Check all fluid levels (engine oil, hydraulic fluid, coolant, fuel).
2. Inspect tracks for damage or debris.
3. Verify all safety guards and covers are in place and secure.
4. Ensure all controls move freely and return to neutral.
5. Check for any visible leaks or loose connections.

4.2. Attaching Auxiliary Tools

This excavator is equipped with a breaker pipeline (standard) and auxiliary pipeline, along with a mechanical quick change system. This allows for easy attachment and detachment of various tools without manual labor, meeting diverse construction requirements.

Refer to the specific auxiliary tool's manual for detailed attachment and operation instructions.

5. Instruccions de funcionament

5.1. Engine Start-up

Ensure all controls are in neutral and the parking brake is engaged. Follow the manufacturer's specific engine start-up procedure, typically involving turning the ignition key and allowing the engine to warm up.

5.2. Excavation Techniques

The Shantui Mini Excavator is designed for precise and efficient operation, even in challenging environments.

Image 5.1: The excavator demonstrating its zero-tail swing capability in a confined space and its ability for flat ground operation.

• Zero-Tail Swing: The combination of zero-tail swing and arm deviation is ideal for narrow and complex working conditions. When operating near a wall, the excavator can perform direct excavation without frequent repositioning, ensuring flexible construction.
• Flat Ground Operation: Smooth flat ground operation is achieved through the collaborative use of superstructure swing, boom deviation, dozer blade rising and falling, and the long and short arms, along with the bucket and dozer blade.
• Sistema hidràulic: Equipped with a high-performance hydraulic system and relevant elements, the composite actions of the boom, arm, bucket, and swing motor are harmonious and smooth, providing excellent performance.

5.3. Engine and Power

The excavator is equipped with an engine that conforms to EPA4 and Stage V emission standards, delivering strong power for demanding tasks. This ensures both high performance and environmental compliance.

6. Manteniment

Regular maintenance is crucial for the longevity and optimal performance of your excavator. Refer to the detailed maintenance schedule in the full service manual for specific intervals.

6.1. Controls diaris

• Comproveu el nivell d'oli del motor.
• Comproveu el nivell d’oli hidràulic.
• Inspect coolant level.
• Check fuel level and drain water from the fuel filter.
• Netegeu el filtre d'aire si cal.
• Inspect tracks and undercarriage for debris or damage.
• Lubriqueu tots els punts de greix.

6.2. Refilling Capacities & Lubrications

Note: Always use fluids and lubricants recommended by the manufacturer.

7. Solució De Problemes

This section provides basic troubleshooting steps for common issues. For complex problems, contact qualified service personnel.

Utilize the advanced touch-panel monitor's self-diagnosis feature for initial fault identification.

8. Especificacions

Detailed technical specifications for the Shantui Mini Excavator 2.8 Ton Digger.

Image 8.1: Comprehensive specifications including engine details, hydraulic system performance, digging force, bucket capacity, and dimensions.

9. Garantia i Suport

For information regarding product warranty, please refer to the documentation provided at the time of purchase or contact the seller directly. AGT INDUSTRIAL is committed to providing support for its products.

For technical assistance, parts, or service inquiries, please contact your authorized AGT INDUSTRIAL dealer or the seller from whom you purchased the excavator. Provide your model number (Shantui-STE35SR) and ASIN (B0CPLS65H9) for faster service.
