IFB Laundrimagic Executive ZXB Washer Dryer Instruction Manual

1. Introducció

This manual provides comprehensive instructions for the safe and efficient operation, installation, and maintenance of your new IFB Laundrimagic Executive ZXB Washer Dryer. Please read this manual thoroughly before using the appliance and retain it for future reference.

Figura 1: Frontal view of the IFB Laundrimagic Executive ZXB Washer Dryer, showcasinel seu elegant disseny negre i el panell de control.

2. Característiques clau

• Funcionalitat 3 en 1: Combines washing, drying, and refreshing capabilities in a single unit, suitable for large families with an 8.5 kg washing capacity.
• AI Powered: Utilizes a neural network-based algorithm to detect fabric type and weight, optimizing wash duration, water level, wash actions, and gentleness.


  Figure 2: Illustration of the AI technology in the IFB washer dryer, showing how it detects fabric type and weight to optimize wash cycles.

• Classificació energètica de 5 estrelles: Ensures best-in-class energy efficiency with an annual energy consumption of 250KW.
• Alta velocitat de gir: Features a 1400 RPM spin speed for faster drying.
• 15 programes de rentat: Includes a variety of programs such as Express 15, Mix Daily, Cotton, Synthetic, Anti-Allergen, Baby Wear, Bulky, Cradlewash, Power Steam, Wool, Refresh, Spin&Dry, Wash/Dry 2 hr, Wash/Dry 4hr.
• Tambor d'acer inoxidable: Innovative drum design creates a gentle water cushion to prevent fabric damage, with optimally placed holes for effective mechanical action.
• Power Steam: A dual steam cycle providing antibacterial therapy for clothes, available for 11 programs.


  Figure 3: The IFB washer dryer highlighting its steam option for 99.99% germ-free washing.
• 5 opcions d'assecat: Offers Cupboard Dry, Time Dry, Iron Dry, Gentle Dry, and Eco Dry.


  Figure 4: The control panel of the IFB washer dryer displaying the five available drying options.

• Tauler de control tàctil: For easy operation and program selection.
• Cradle Wash: Provides gentle care for delicate garments.
• Eco Inverter Technology: Enhances energy efficiency and reduces noise.
• WiFi habilitat: Allows for smart connectivity and remote operation.
• Bloqueig per a nens: Evita canvis accidentals a la configuració durant el funcionament.
• Reinici automàtic: Resumes operation from where it left off after a power interruption.

3. Configuració i instal·lació

Proper installation is crucial for the optimal performance and longevity of your appliance. It is recommended to have the installation performed by a qualified technician.

3.1 Desembalatge

• Traieu amb cura tots els materials d'embalatge.
• Check for any visible damage during transit. Report any damage immediately to your dealer.
• Ensure all included components are present: 1 Washing Machine Unit, User Manual, Warranty Card, Drain Hose, Fill Hose, Power Cord.

3.2 Requisits d'ubicació

• Col·loqueu la màquina sobre una superfície ferma i anivellada.
• Assegureu-vos que hi hagi prou espai al voltant de la màquina per a la ventilació i el manteniment.
• Eviteu la llum solar directa o fonts de calor.
• Les dimensions de l'aparell són aproximadament 65 cm (profunditat) x 59.8 cm (amplada) x 87.5 cm (alçada).

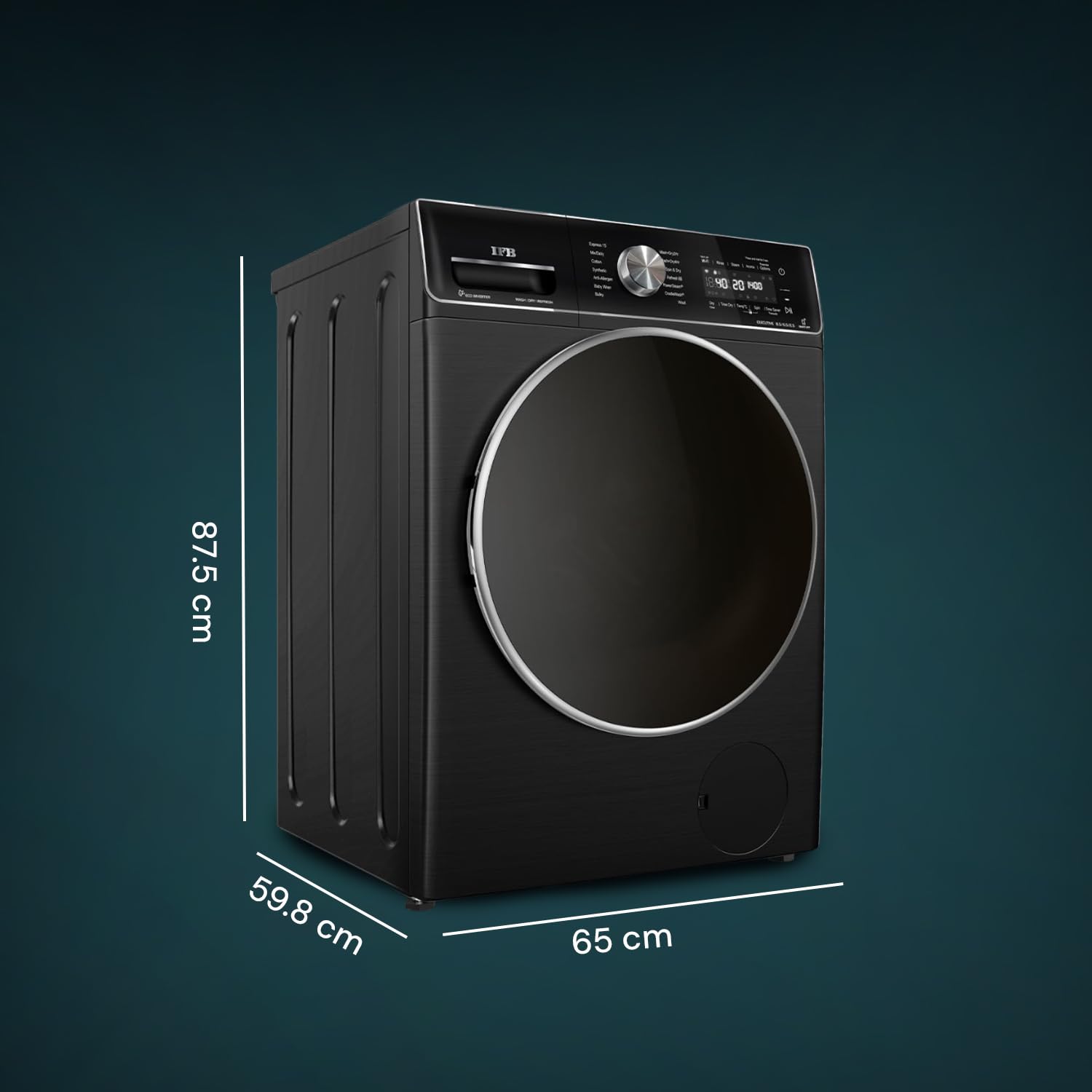

  Figura 5: lateral view of the IFB washer dryer with key dimensions indicated: 87.5 cm height, 59.8 cm width, and 65 cm depth.

3.3 Connexions d'aigua i electricitat

• Connect the fill hose to a cold water tap with sufficient water pressure.
• Ensure the drain hose is properly installed to allow for water discharge.
• Plug the power cord into a grounded electrical outlet. The appliance operates on 240V.

3.4 Anivellació de l'aparell

Use a spirit level to ensure the machine is perfectly level. Adjust the leveling feet at the bottom of the appliance as needed to prevent excessive vibration during operation.

4. Instruccions de funcionament

Familiarize yourself with the control panel and available programs before starting a wash cycle.

Figura 6: Primer pla view of the IFB washer dryer's touch control panel, showing program selections and display.

4.1 Càrrega de la roba

• Classifica la roba per tipus de teixit, color i grau de brutícia.
• Do not overload the machine. The maximum capacity is 8.5 kg for washing.
• Ensure no small items are caught in the door seal.

4.2 Afegir detergent i suavitzant

• Use appropriate detergent for front-load washing machines.
• Add detergent and fabric softener to the designated compartments in the dispenser drawer.

4.3 Selecció d'un programa

Turn the program selection knob or use the touch control panel to choose from the 15 available wash programs:

• Express 15: Quick wash for lightly soiled items.
• Mix Daily: For everyday mixed laundry.
• Cotton: For cotton garments.
• Synthetic: For synthetic fabrics.
• Anti-Allergen: For thorough cleaning and allergen removal.
• Baby Wear: Gentle wash for baby clothes.
• Bulky: For larger items like blankets or duvets.
• Cradlewash: Extra gentle cycle for delicate items.
• Power Steam: Utilizes steam for enhanced cleaning and hygiene.
• Wool: Specific program for woolens.
• Refresh: For quick refreshing of clothes without a full wash.
• Spin&Dry: For spinning and drying only.
• Wash/Dry 2 hr: Complete wash and dry cycle in 2 hours.
• Wash/Dry 4hr: Complete wash and dry cycle in 4 hours.

4.4 opcions d'assecat

After a wash cycle, or for drying only, select one of the 5 drying options:

• Cupboard Dry: Dries clothes to be stored directly in a cupboard.
• Time Dry: Allows setting a specific drying time.
• Iron Dry: Leaves clothes slightly damp per planxar més fàcilment.
• Gentle Dry: For delicate fabrics requiring lower heat.
• Eco Dry: Energy-efficient drying option.

4.5 Smart Connectivity (WiFi Enabled)

The appliance is WiFi enabled, allowing you to control and monitor it remotely via a compatible mobile application. Refer to the app's instructions for pairing and usage.

5. Manteniment

Regular maintenance ensures the longevity and efficient operation of your IFB washer dryer.

5.1 Neteja del dispensador de detergent

• Traieu completament el calaix dispensador.
• Remove any residue from the compartments using warm water and a brush.
• Rinse thoroughly and reinsert the drawer.

5.2 Neteja del tambor

• Run a maintenance wash cycle (e.g., a hot wash with no laundry and a descaling agent) periodically to prevent odor and residue buildup.
• Netegeu l'interior del tambor amb anunciamp drap després de cada ús.

5.3 Neteja de la junta de la porta

• Netegeu regularment la junta de goma de la porta amb anuncis.amp cloth to remove lint, hair, and detergent residue.
• Ensure the seal is dry to prevent mold growth.

5.4 Neteja del filtre de drenatge

• Localitzeu el filtre de drenatge, normalment a la part inferior frontal de la màquina.
• Col·loca un recipient poc profund a sota per recollir l'aigua.
• Unscrew the filter slowly and remove any lint, coins, or foreign objects.
• Netegeu el filtre amb aigua corrent i torneu-lo a col·locar de manera segura.

5.5 Neteja exterior

• Netegeu les superfícies exteriors amb un damp tela.
• Eviteu els productes de neteja o dissolvents abrasius.

6. Solució De Problemes

Abans de contactar amb el servei d'atenció al client, consulteu la taula següent per veure els problemes habituals i les seves solucions.

7. Especificacions

8. Garantia i Suport

Your IFB Laundrimagic Executive ZXB Washer Dryer comes with comprehensive warranty coverage and dedicated support.

• Garantia del producte: 4 years Super Warranty on the product.
• Spare Part Support: 10 years spare part support.
• For service requests, technical assistance, or warranty claims, please refer to the contact information provided in your Warranty Card or visit the official IFB weblloc.
