1. Introducció
This manual provides essential information for the safe and efficient operation of your Jebao JGP-12000 Magnetic Drive Waterfall Fountain Pump. This submersible pump is designed for use in pond skimmers and waterfalls, offering quiet and energy-efficient performance. Its magnetic drive technology ensures continuous operation without seals that wear out, and its epoxy-filled construction prevents oil leakage, making it safe for aquatic life.
2. Informació de seguretat
- Seguretat elèctrica: Always connect the pump to a properly grounded electrical outlet. The pump is equipped with a 30 ft grounded power cord. Do not modify the plug or use ungrounded adapters.
- Submersible Use Only: This pump is designed for complete submersion in water. Do not operate the pump dry.
- Qualitat de l'aigua: The pump is suitable for fresh water applications in ponds and water gardens.
- Fish Safety: The pump's epoxy-filled design ensures no oil leakage, making it safe for fish and plants.
- Manteniment: Desconnecteu l'alimentació abans de realitzar qualsevol manteniment o neteja.
- Nens i animals de companyia: Keep children and pets away from the pump and water features during operation.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents abans de la instal·lació:
- Jebao JGP-12000 Water Pump
- Hose Adapter (multi-size)
Image: The Jebao JGP-12000 pump, its multi-size hose adapter, and the included instruction sheet, laid out on a white surface.
4. Configuració
4.1 Pump Placement
Place the pump completely submerged in the pond or skimmer box. Ensure it rests on a stable, level surface to prevent tipping and ensure optimal water intake. The extra-large clog-resistant filter screen should be clear of debris.

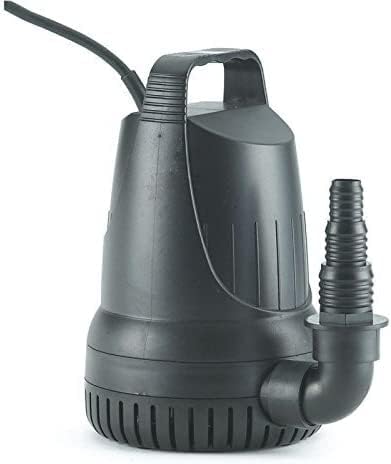

Imatge: Un front view of the Jebao JGP-12000 magnetic drive pump, showing its robust black casing and integrated handle.
4.2 Connexió de la mànega
- Select the appropriate size on the multi-size hose adapter for your pond tubing (3/4", 1", 1-1/4") or use a 1.5" threaded fitting.
- Trim the adapter to the desired diameter if using pond tubing.
- Attach the adapter securely to the pump's outlet.
- Connect your pond tubing or waterfall plumbing to the adapter. Ensure all connections are tight to prevent leaks.
Image: The Jebao JGP-12000 pump with its multi-size hose adapter securely attached to the water outlet, ready for tubing connection.
4.3 Connexió elèctrica
Route the 30 ft power cord to a GFCI (Ground Fault Circuit Interrupter) protected, grounded electrical outlet. Ensure the cord is not pinched or damaged. Do not plug in the pump until it is fully submerged in water.
5. Instruccions de funcionament
- Ensure the pump is fully submerged in water and all hose connections are secure.
- Plug the grounded power cord into a GFCI-protected electrical outlet.
- The pump will begin operating, circulating water for your waterfall or skimmer.
- The JGP-12000 is designed for continuous operation.
6. Manteniment
Un manteniment regular garanteix un rendiment òptim i una llarga vida útil de la bomba.
6.1 Cleaning the Filter Screen
The pump features an extra-large clog-resistant filter screen. Periodically check and clean the screen to maintain consistent flow rate and extend time between cleanings. Disconnect power before cleaning.
Image: A bottom view of the Jebao JGP-12000 pump, highlighting the circular, perforated filter screen designed to prevent clogs.
6.2 Impeller Inspection
The pump has only one moving part, a reliable ceramic shaft and impeller. If flow decreases significantly or the pump makes unusual noises, disconnect power and inspect the impeller for debris or wear. Clean as necessary.
6.3 Hivernització
In freezing climates, remove the pump from the water before temperatures drop below freezing. Clean the pump thoroughly and store it in a frost-free location, submerged in a bucket of water if possible, to keep seals moist.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Pump does not start or hums | No power; Impeller jammed; Air lock | Check power connection and GFCI. Disconnect power, remove pump, inspect impeller for debris. Ensure pump is fully submerged. |
| Reducció del cabal d'aigua | Clogged filter screen; Kinked hose; Debris in impeller; Low water level | Clean filter screen. Check hose for kinks. Disconnect power, inspect impeller. Ensure adequate water level. |
| La bomba s'atura durant el funcionament | Overheating (thermal overload); Power interruption | Disconnect power, allow pump to cool. Check for obstructions. Verify stable power supply. |
8. Especificacions
| Característica | Detall |
|---|---|
| Model | JGP-12000 |
| Caudal màxim | 3170 GPH (galons per hora) |
| Alçada màxima del cap | 15 peus |
| Consum d'energia | 175 watts |
| Voltage | 110-120V |
| Longitud del cable d'alimentació | 30 ft (grounded) |
| Material | Acrilonitril butadiè estirè (ABS) |
| Pes de l'article | 9.72 lliures |
| Dimensions del paquet | 11.77 x 8.39 x 8.35 polzades |
| Hose Adapter Fittings | 1.5" threaded or 3/4", 1", 1-1/4" pond tubing |
9. Garantia i Suport
For warranty information and technical support, please refer to the documentation included with your purchase or contact the retailer/manufacturer directly. Keep your proof of purchase for any warranty claims.
