VINGLI Outdoor Wooden Storage Shed Instruction Manual

1. Introducció

This manual provides essential instructions for the assembly, operation, and maintenance of your VINGLI Outdoor Wooden Storage Shed. Please read this manual thoroughly before beginning assembly or use to ensure proper function and longevity of the product.

Image 1.1: The VINGLI Outdoor Wooden Storage Shed in a garden environment.

2. Informació de seguretat

Adherence to the following safety guidelines is crucial for safe assembly and use of the storage shed.

• Muntatge adequat: Ensure all components are assembled correctly and securely to maintain structural stability. Incorrect assembly can lead to instability and potential hazards.
• Manipulació de components: Handle all components, especially larger panels, with care. It is recommended to have at least two people for assembly to prevent injury and damage to parts.
• Límits de pes: Do not exceed the specified weight limits for shelves or the overall structure. Overloading can compromise the shed's integrity.
• Ús de l'eina: Use appropriate tools for assembly as instructed. Wear protective gear such as gloves and eye protection.
• Ancoratge: Secure the shed to the ground using the provided fixtures to prevent it from being blown over by strong winds.

3. Contingut del paquet

Before beginning assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, contact VINGLI customer support.

• Wooden side panels (left, right, back)
• Wooden door panels
• Wooden roof panels with asphalt felt
• Prestatges de fusta
• Wooden base/floor panel
• Hardware kit (screws, bolts, hinges, latches, ground fixtures)
• Manual d'instruccions

4. Muntatge i muntatge

Assembly typically requires two individuals and basic hand tools. Follow the step-by-step instructions provided in the included assembly guide. The following general tips will aid in a smooth assembly process:

1. Preparació: Lay out all components on a clean, flat, and stable surface. Identify each part according to the assembly diagram. Note that left and right side panels may differ.
2. Forats pilot: The wood is premium fir, which is durable but can split if screws are driven too quickly or without proper guidance. It is highly recommended to drill pilot holes through pre-drilled holes into adjoining panels before inserting screws. Drive screws slowly and avoid over-tightening.
3. Muntatge de la base: Assemble the base structure first, ensuring it is level and square.
4. Panel Attachment: Carefully attach the side and back panels. Ensure all connections are snug but do not overtighten screws, which can strip the wood.
5. Instal·lació del sostre: Install the roof panels, ensuring the asphalt felt is properly aligned to provide maximum weather resistance.
6. Porta i pestell: Attach the door panels and install the safety metal latch. Ensure the door opens and closes smoothly and the latch engages securely.
7. Ground Fixtures: Utilize the provided fixtures on all four feet to anchor the shed to the ground. This significantly enhances stability and prevents displacement due to wind.

Image 4.1: Detail of the ground fixture for enhanced stability.

5. Funcionament

The VINGLI Outdoor Wooden Storage Shed is designed for versatile outdoor storage, offering ample space and secure access.

• Capacitat d'emmagatzematge: The shed features a large storage space (30.3” x 21.4” x 70.5” L x W x H) suitable for garden supplies, pool equipment, lawn tools, sports gear, and other outdoor items. The interior includes shelves for organized storage.

Image 5.1: Interior of the shed showing storage capacity and shelves.

• Seguretat: The shed is equipped with a safety metal latch on the main door to secure your stored items. Ensure the latch is properly engaged when the shed is not in use.

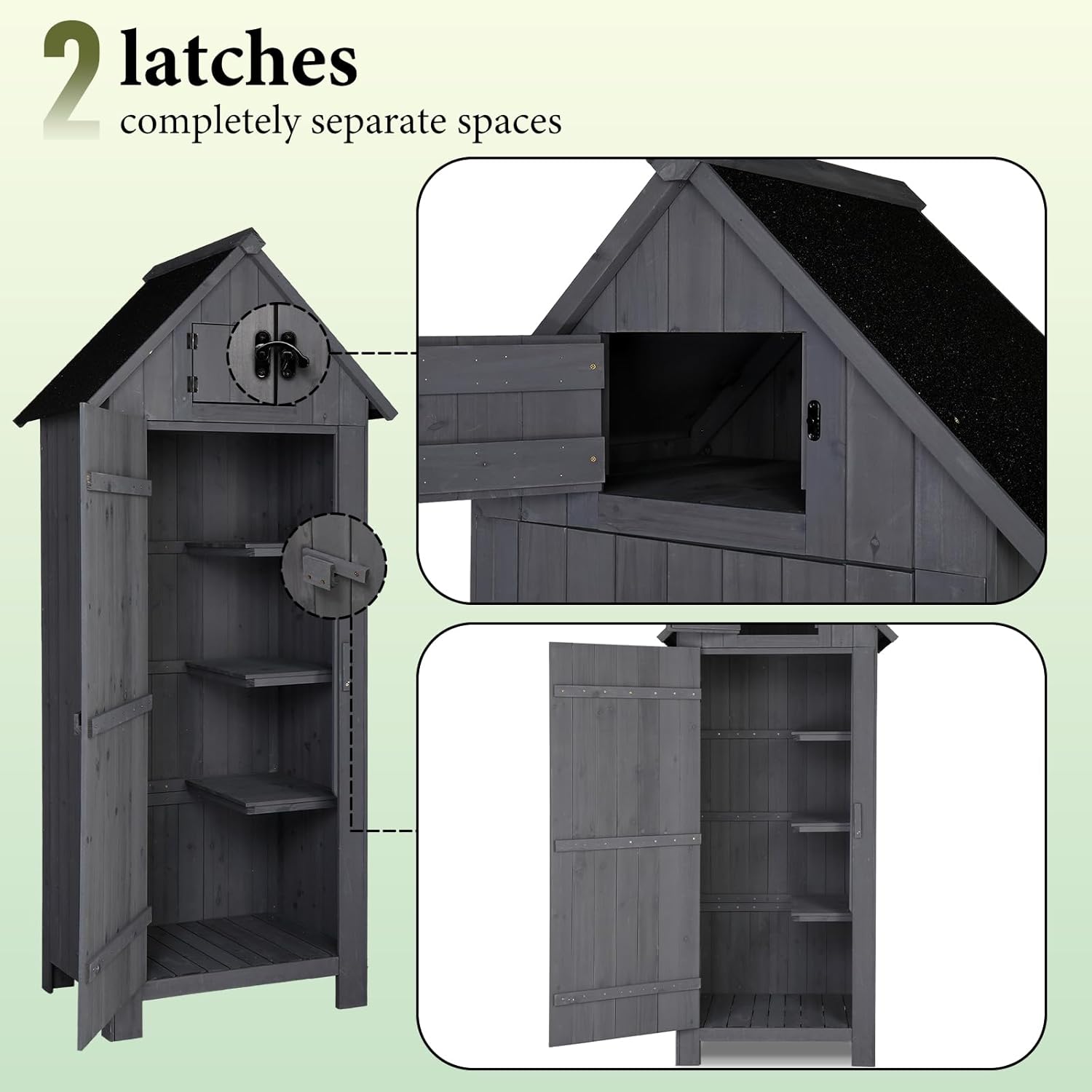

Image 5.2: Detail of the safety metal latches for secure storage.

6. Manteniment

Regular maintenance will help preserve the appearance and functionality of your VINGLI storage shed.

• Resistència a la intempèrie: The shed is constructed from premium fir wood with a waterproof coating and features a sloping asphalt roof. This design helps resist various weather conditions, including rain, sun, and snow.

Image 6.1: The black asphalt felt roof designed to prevent water accumulation.

• Neteja: Clean the exterior periodically with a soft cloth and mild soap solution. Avoid harsh chemicals that could damage the wood finish.
• Cura de la fusta: Inspect the wood annually for any signs of wear, cracking, or decay. Apply a wood sealant or stain as needed to prolong the life of the wood and maintain its appearance.
• Comprovació de maquinari: Periodically check all screws, bolts, and latches to ensure they remain tight and functional. Tighten any loose hardware.

7. Solució De Problemes

Aquesta secció tracta els problemes habituals que podeu trobar amb el vostre magatzem.

• Door Sagging: Over time, the door may sag slightly. This can often be remedied by adjusting the hinges or reinforcing the hinge attachment points. Ensure the shed is on a level surface.
• Fuga d'aigua: If water leakage occurs, inspect the asphalt roof for any damage or gaps. Ensure all roof panels are securely fastened and overlapping correctly. Check for any cracks in the wood panels and seal them if necessary.
• Inestabilitat: If the shed feels unstable, verify that all ground fixtures are properly installed and secured. Ensure the shed is placed on a firm, level surface. Re-tighten all assembly screws.

8. Especificacions

Image 8.1: Exterior dimensions of the storage shed.

Image 8.2: Interior dimensions and shelf layout.

9. Garantia i Suport

For warranty information, product support, or to order replacement parts, please contact VINGLI customer service directly. Refer to your purchase documentation for specific warranty terms and contact details.

Fabricant: VINGLI

ASIN: B0CPSS3WJT
