SHANG WING Lynn Fitness Tracker User Manual

Introducció

This manual provides comprehensive instructions for the SHANG WING Lynn Fitness Tracker. It covers essential information for setup, operation, maintenance, and troubleshooting to ensure optimal use of your device. Please read this manual thoroughly before using the fitness tracker.

Què hi ha a la caixa

• SHANG WING Lynn Fitness Tracker
• Cable de càrrega
• Manual d'usuari (aquest document)

1. Configuració

1.1 Càrrega del dispositiu

Before first use, fully charge your SHANG WING Lynn Fitness Tracker. Connect the provided charging cable to the charging port on the back of the watch and to a USB power source. A full charge typically takes approximately 2.5 hours.

Image: Illustration showing the SHANG WING Lynn Fitness Tracker's dimensions and battery life indicators, including charging time.

A fully charged device can last up to 5 days with normal use and up to 30 days on standby.

1.2 Instal·lació de l'aplicació

To unlock all features and synchronize data, download the companion application on your smartphone. The app is compatible with iOS 9.0 / Android 6.0 or above. Scan the QR code provided in the quick start guide (if available) or search for the app name (usually "SHANG WING" or similar, check packaging) in your phone's app store.

1.3 Emparellament de dispositius

1. Ensure your fitness tracker is charged and powered on.
2. Activa el Bluetooth al teu telèfon intel·ligent.
3. Open the installed companion app.
4. Follow the in-app instructions to search for and connect to your SHANG WING Lynn Fitness Tracker. The device name should appear in the app's device list.
5. Confirma la sol·licitud d'emparellament tant al telèfon com al rellotge si se't demana.

1.4 Personalització de les esferes del rellotge

Personalize your fitness tracker by changing the watch face. You can select from existing dials within the app or upload your own photos to create custom watch faces.

Image: Display of the SHANG WING Lynn Fitness Tracker showing different customizable watch faces, including options to use personal photos.

Access the watch face settings through the companion app to browse and apply new designs.

2. Funcionament del dispositiu

2.1 Navegació bàsica

The SHANG WING Lynn Fitness Tracker features a touchscreen display for navigation. Swipe left, right, up, or down to access different menus and functions. Tap to select an option or confirm an action. The side button typically serves as a power button or a return-to-home function.

2.2 Trucades i notificacions per Bluetooth

Once paired with your smartphone, the fitness tracker allows you to make and answer calls directly from your wrist. It will also vibrate to notify you of incoming calls, text messages, and social media alerts.

Image: The SHANG WING Lynn Fitness Tracker showing an incoming call and various notification icons from messaging apps.

• Contestar trucades: Tap the green phone icon on the watch screen.
• Fer trucades: Access the call function on the watch to dial numbers or select from contacts (requires sync with app).
• Notificacions: Swipe down from the watch face to view notificacions recents.

2.3 Seguiment d'activitat i esports

The device tracks daily activity data including steps, distance, and calories burned. It supports over 100 sports modes, providing real-time data during your workouts.

Image: Collage showing different sports activities and the SHANG WING Lynn Fitness Tracker displaying tracked data like steps, calories, and distance.

To start a workout, navigate to the sports mode menu on the watch, select your activity, and begin. The watch will record your performance data.

2.4 Vigilància de la salut

The SHANG WING Lynn Fitness Tracker continuously monitors key health metrics.

• Freqüència cardíaca: Monitors your heart rate 24/7. View dades en temps real al rellotge o tendències detallades a l'aplicació.
• Oxigen en sang (SpO2): Mesura els nivells de saturació d'oxigen a la sang.
• Seguiment del son: Analyzes your sleep duration and quality, distinguishing between deep sleep, light sleep, and REM sleep.

Image: A user exercising with the SHANG WING Lynn Fitness Tracker, showing graphs for heart rate and blood oxygen levels on the screen.

Image: A person sleeping, with the SHANG WING Lynn Fitness Tracker displaying sleep data including deep sleep, light sleep, and REM duration.

For accurate readings, ensure the watch is worn snugly on your wrist, about one finger's width from your wrist bone.

2.5 Women's Health Tracking

The device includes features for tracking women's physiological cycles, including menstruation, prediction, and ovulation. This feature requires setup and data input within the companion app.

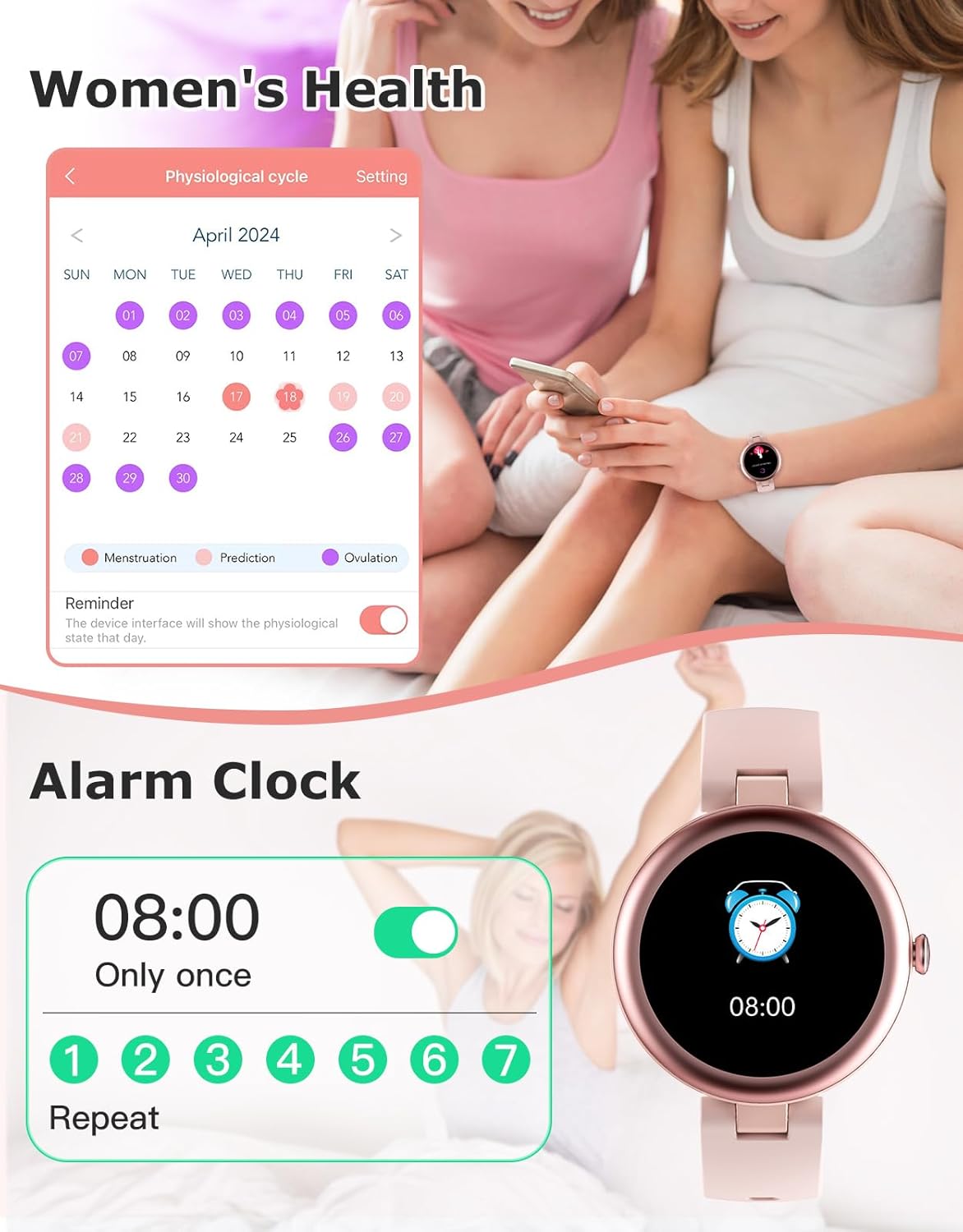

Image: The SHANG WING Lynn Fitness Tracker displaying a calendar for physiological cycle tracking and an alarm clock setting interface.

2.6 característiques addicionals

The SHANG WING Lynn Fitness Tracker offers several other useful functions:

• Rellotges despertadors: Set multiple alarms through the app.
• Pronòstic del temps: Get current weather information (requires app sync and location permissions).
• Entrenament de la respiració: Exercicis de respiració guiats per a la relaxació.
• Control de música: Controla la reproducció de música al teu telèfon intel·ligent.
• Cronòmetre: A basic stopwatch function.
• Troba el teu telèfon: Localitza el teu telèfon intel·ligent emparellat fent-lo sonar.
• No molestis: Silencia les notificacions durant hores específiques.

3. Manteniment

3.1 Resistència a l'aigua (IP68)

The SHANG WING Lynn Fitness Tracker is rated IP68 waterproof, meaning it is resistant to dust and can withstand immersion in water up to 1.5 meters for up to 30 minutes. It is suitable for daily use, including hand washing, rain, and swimming. However, it is not recommended for hot showers, saunas, or diving, as steam and hot water can compromise the seal.

3.2 Neteja

Regularly clean your fitness tracker and strap to prevent skin irritation and maintain device hygiene. Use a soft, damp drap per netejar la pantalla i la corretja. Eviteu utilitzar productes químics agressius o materials abrasius.

3.3 Cura de la bateria

Per allargar la durada de la bateria, eviteu descarregar completament el dispositiu amb freqüència. Carregueu-lo quan el nivell de bateria sigui baix. Guardeu el dispositiu en un lloc fresc i sec quan no l'utilitzeu durant períodes prolongats.

4. Solució De Problemes

4.1 El dispositiu no s'encén

• Assegureu-vos que el dispositiu estigui completament carregat. Connecteu-lo al carregador durant almenys 30 minuts.
• Press and hold the side button for 10-15 seconds to attempt a forced restart.

4.2 Problemes d'aparellament

• Assegureu-vos que el Bluetooth estigui activat al telèfon intel·ligent i que el rellotge estigui dins del seu abast.
• Reinicieu tant el telèfon intel·ligent com el monitor d'activitat física.
• Assegureu-vos que l'aplicació complementària estigui actualitzada a la darrera versió.
• Si ja s'havia emparellat, prova de desemparellar el dispositiu des de la configuració de Bluetooth del telèfon i després torna-lo a emparellar a través de l'aplicació.

4.3 Lectures inexactes

• Assegureu-vos de portar el rellotge ben ajustat al canell, ni massa fluix ni massa ajustat.
• Netegeu els sensors de la part posterior del rellotge.
• Avoid excessive movement or vibrations during measurements.

4.4 Notificacions que no apareixen

• Check if Bluetooth is connected and stable.
• Verify notification permissions for the companion app in your phone's settings.
• Ensure "Do Not Disturb" mode is not active on either the watch or your phone.
• Confirm that notification alerts are enabled within the companion app for specific applications.

5. Especificacions

6. Garantia i Suport

For warranty information and technical support, please refer to the contact details provided on the product packaging or contact the manufacturer directly. Keep your purchase receipt as proof of purchase.

Manufacturer: SHANG WING
