Exquisit WA9214-340A Washing Machine User Manual

Introducció

Thank you for choosing the Exquisit WA9214-340A Washing Machine. This manual provides essential information for the safe installation, efficient operation, and proper maintenance of your appliance. Please read it thoroughly before using the washing machine and keep it for future reference.

Imatge: Frontal view of the Exquisit WA9214-340A washing machine, showcasing its white finish and black porthole door.

Instruccions de seguretat

Seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu aparells elèctrics per reduir el risc d'incendi, descàrrega elèctrica o lesions a les persones.

• Assegureu-vos que l'aparell estigui ben connectat a terra.
• No permeteu que els nens juguin sobre o dins de l'aparell.
• Mantenir els materials d'embalatge fora de l'abast dels nens.
• No instal·leu ni emmagatzemeu l'aparell en llocs on estigui exposat a la intempèrie o a temperatures de congelació.
• No repareu ni substituïu cap peça de l'aparell ni intenteu fer-ne el manteniment, llevat que s'esmenti específicament en aquest manual.
• Desendolleu sempre la rentadora abans de netejar-la o fer-ne cap manteniment.
• The appliance is equipped with an Aquastop system for enhanced safety against water leaks.
• Activeu la funció de bloqueig infantil per evitar que els nens funcionin accidentalment.

Producte acabatview

Característiques principals:

• Capacitat: 9 kg for large loads.
• Eficiència energètica: Class A, ensuring economical consumption.
• Velocitat de centrifugat: Up to 1400 rpm for optimal drying results.
• Programes: 16 diverse wash programs including Cotton, Eco, and Wool.
• Visualització: Digital display with remaining time indication.
• Inici retardat: Schedule your wash cycle to finish at a convenient time.
• Seguretat: Child lock and Aquastop system.

Components:

Familiaritzeu-vos amb les parts principals de la vostra rentadora.

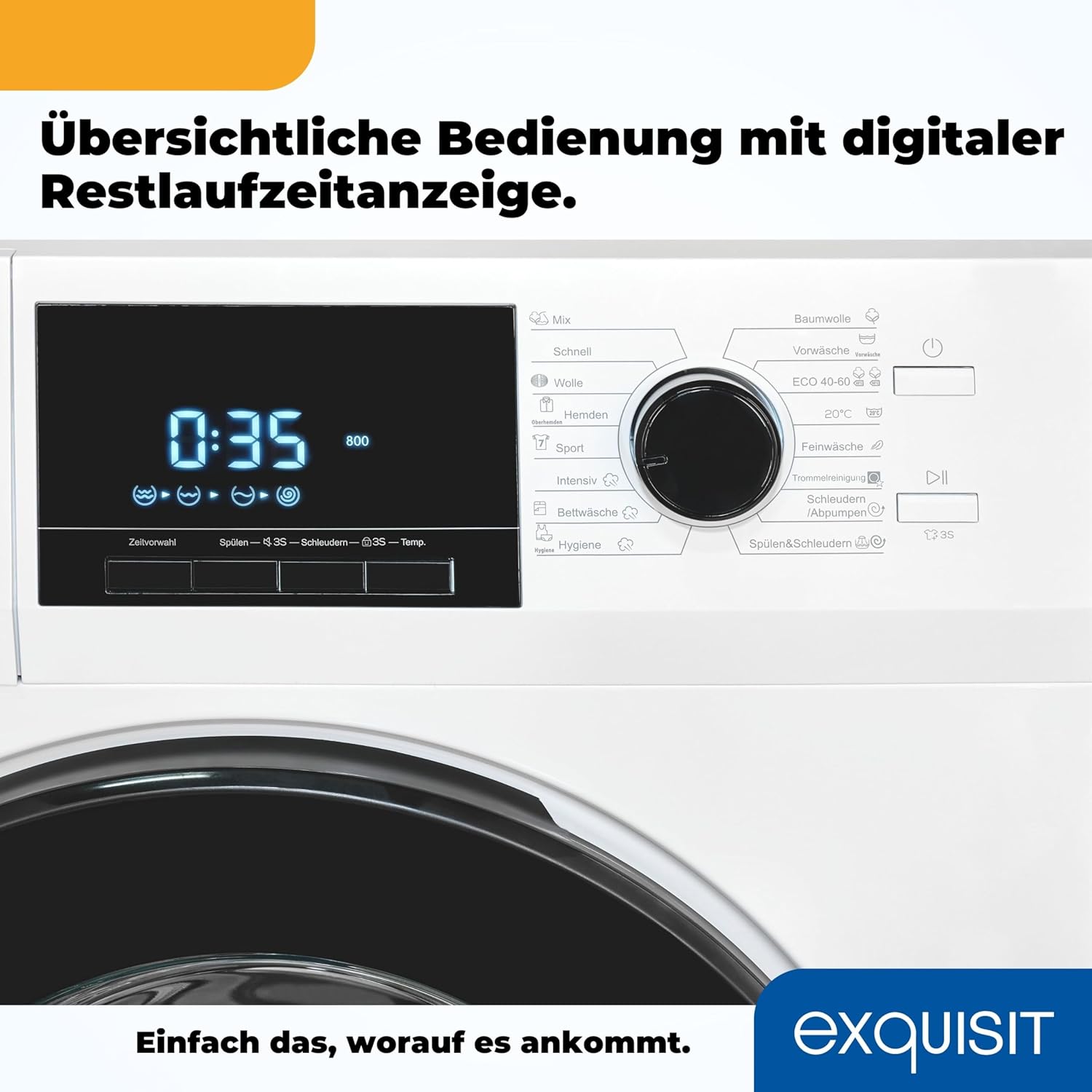

Image: Close-up of the control panel, showing the program selector knob, digital display, and function buttons.

Imatge: Interior view of the stainless steel drum, designed for efficient and gentle washing of up to 9 kg of laundry.

Image: The pull-out detergent dispenser drawer with compartments for pre-wash, main wash, and fabric softener.

Image: The washing machine with its door open, illustrating the large 9 kg capacity, and icons for delayed start and Aquastop.

Instal·lació

1. Desembalatge:

Carefully remove all packaging materials. Remove the transport bolts located at the rear of the machine before use. Keep the transport bolts for future transport of the appliance.

2. Ubicació:

Place the washing machine on a firm, level floor. Ensure there is adequate space around the machine for ventilation and maintenance. Avoid direct sunlight or extreme temperatures.

Image: Diagram showing the dimensions of the washing machine: 85 cm height, 59.5 cm width, and 56 cm depth.

3. Connexió d'aigua:

Connect the water inlet hose to a cold water tap with a 3/4" thread. Ensure all connections are tight to prevent leaks. Position the drain hose into a standpipe or over the edge of a sink, ensuring it is securely fixed to prevent displacement during operation.

Imatge: Part posterior view of the washing machine, showing the water inlet hose, drain hose, and power cord connections.

4. Connexió elèctrica:

Connecteu el cable d'alimentació a una presa de corrent amb connexió a terra. Assegureu-vos que el volumtage matches the specifications of the appliance (240 Volts). Do not use extension cords or adapters.

5. Anivellació:

Adjust the leveling feet at the bottom of the machine to ensure it is perfectly stable and level. This prevents excessive vibration and noise during operation.

Funcionament

1. Càrrega de la roba:

Open the washing machine door and load laundry loosely into the drum. Do not overload the machine; ensure there is enough space for the clothes to tumble freely. Close the door firmly.

2. Afegir detergent:

Pull out the detergent dispenser drawer. Add the appropriate amount of detergent to the main wash compartment and, if desired, fabric softener to its designated compartment. Close the drawer gently.

3. Selecció d'un programa:

Turn the program selector knob to choose one of the 16 available wash programs (e.g., Cotton, Eco, Wool, Mix, Quick, Sport, Intensive, Hygiene). The digital display will show the default time for the selected program.

4. Ajust de la configuració (opcional):

Use the function buttons to adjust temperature, spin speed, or activate options like pre-wash or extra rinse, if available for the selected program.

• Inici retardat: Press the "Delayed Start" button repeatedly to set the desired delay time.
• Bloqueig per a nens: To activate, press and hold the designated child lock button(s) for a few seconds until the indicator appears on the display. Repeat to deactivate.

5. Inici del cicle:

Press the "Start/Pause" button to begin the wash cycle. The machine will automatically proceed through the selected program.

6. Final de cicle:

Once the cycle is complete, the machine will signal with an audible alert or a message on the display. Open the door and remove your laundry promptly to prevent wrinkles.

Manteniment

1. Neteja de l'exterior:

Netegeu les superfícies exteriors amb un damp tela. No utilitzeu netejadors abrasius ni dissolvents.

2. Neteja del calaix del detergent:

Periodically remove the detergent drawer and rinse it under running water to remove any detergent residue. Use a brush if necessary. Reinsert the drawer once clean.

3. Neteja del tambor:

Run a maintenance wash cycle (e.g., a hot wash with no laundry and a descaling agent) every few months to clean the drum and remove any buildup.

4. Cleaning the Drain Filter:

Locate the drain filter at the bottom front of the machine. Place a shallow container underneath to catch any water. Unscrew the filter, clean it of lint and debris, and then screw it back in securely.

Resolució de problemes

Abans de contactar amb el servei tècnic, comproveu els següents problemes habituals:

• La màquina no arrenca: Ensure the power cord is plugged in, the door is closed properly, and the "Start/Pause" button has been pressed. Check the circuit breaker.
• Sense omplir d'aigua: Check if the water tap is open and the water inlet hose is not kinked or blocked.
• L'aigua no s'escorre: Inspeccioneu la mànega de desguàs per si hi ha doblecs o obstruccions. Netegeu el filtre de desguàs.
• Vibració/soroll excessiu: Ensure the machine is level and the transport bolts have been removed. Check that laundry is evenly distributed in the drum.
• Codis d'error: Refer to the full user manual (if provided separately by the manufacturer) for specific error code meanings and solutions.

Especificacions

Image: The EU Energy Label for the Exquisit WA9214-340A washing machine, indicating its A-class energy efficiency, 9 kg capacity, 49 kWh/100 cycles, 50L water consumption, and 76 dB noise level.

Garantia i Suport

Your Exquisit WA9214-340A washing machine comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, spare parts, or service inquiries, please contact Exquisit customer service or your authorized dealer.

Availability of spare parts: Information unavailable on spare parts. Please contact the manufacturer for details.
