Goobay 41074 USB-C Sync & Charge Cable Instruction Manual

1. Introducció

This manual provides instructions for the Goobay 41074 USB-C Sync & Charge Cable. This cable is designed for high-speed data transfer, fast charging, and video/audio transmission between compatible USB-C enabled devices.

Image 1.1: The Goobay 41074 USB-C Sync & Charge Cable, featuring a USB-A connector on one end and a USB-C connector on the other. The image also highlights key specifications such as USB-C compatibility, 1-meter length, 60W power delivery, and 20x faster speed than USB 2.0.

2. Característiques del producte

• Càrrega ràpida: Supports power delivery up to 60 W (20 V / 3 A) for rapid charging of compatible USB-C devices.
• SuperSpeed+ Data Transfer: Achieves data transfer rates up to 10 Gbit/s, which is 20 times faster than USB 2.0.
• USB 3.2 Gen 2 Standard: Utilizes the latest USB 3.2 Gen 2x2 standard for efficient data handling.
• Reversible USB-C Connector: The USB-C plug can be inserted in either orientation.
• Video & Audio Transmission: Capable of transmitting video and audio content to external displays with a USB-C input.
• Ús versàtil: Suitable for transferring movies, music, videos, and various files.

Imatge 2.1: Una imatge detallada view of the Goobay USB-C cable, highlighting its USB-A and USB-C connectors and indicating its 1-meter length, 60W power delivery, and 10 Gbps data transfer speed.

3. Contingut del paquet

El paquet conté el següent article:

• 1x Goobay 41074 USB-C Sync & Charge Cable (1 meter)

4. Configuració

To set up your Goobay 41074 USB-C cable, follow these general steps:

1. Identifica els ports: Locate the appropriate USB-A and USB-C ports on your devices (e.g., computer, charger, smartphone, monitor).
2. Connexió de dispositius: Insert the USB-A end of the cable into a compatible USB-A port on your host device (e.g., computer, wall charger).
3. Connect USB-C Device: Insert the USB-C end of the cable into the USB-C port of your target device (e.g., smartphone, tablet, laptop, monitor). The USB-C connector is reversible, allowing for easy connection in either direction.

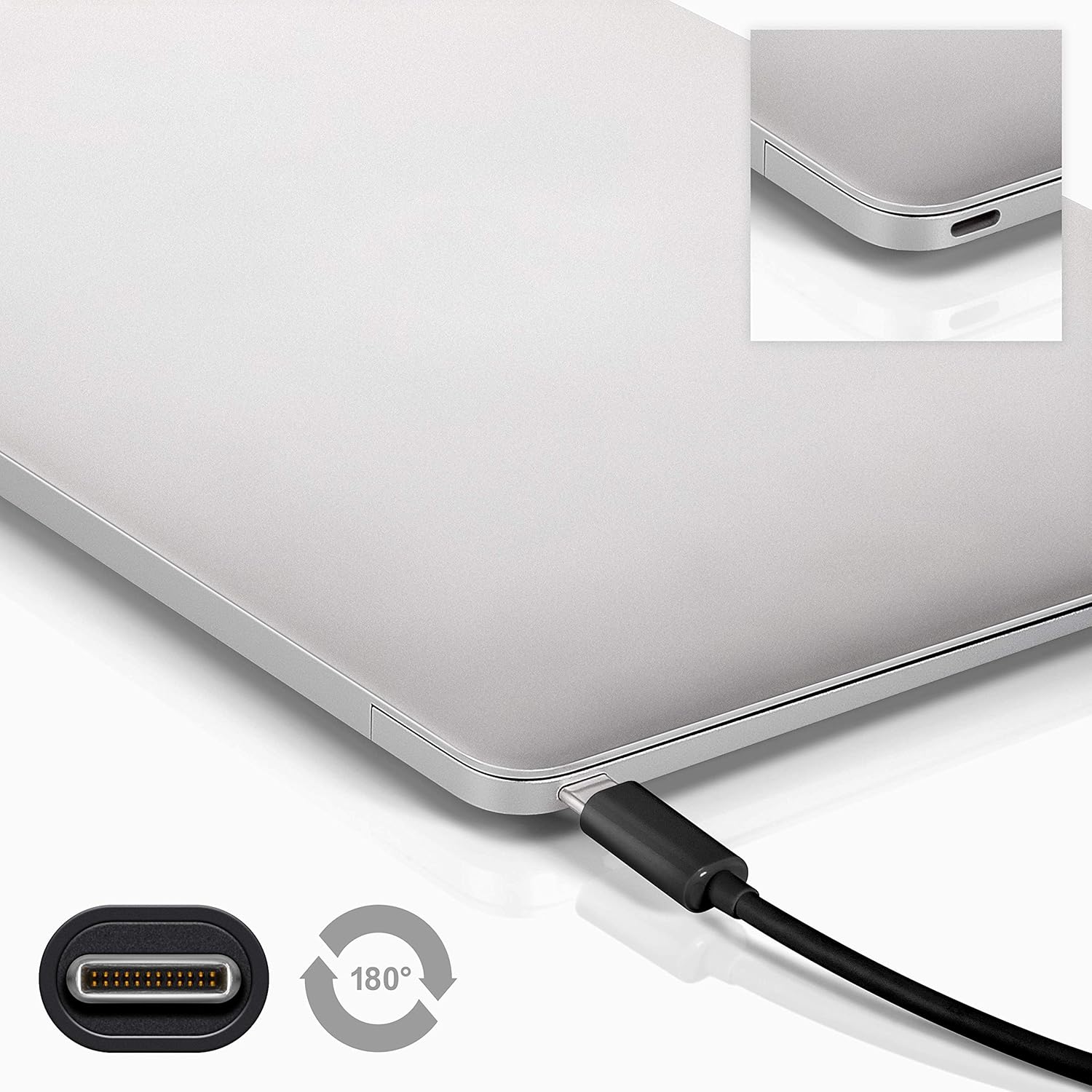

Image 4.1: A Goobay USB-C cable connected to a laptop, demonstrating the reversible nature of the USB-C connector and its ease of use. A close-up of the USB-C port is also shown.

5. Instruccions de funcionament

5.1. Dispositius de càrrega

To charge a USB-C enabled device:

1. Connect the USB-A end of the cable to a compatible USB wall charger or power adapter.
2. Connect the USB-C end of the cable to your USB-C device (e.g., smartphone, tablet, laptop).
3. Ensure the power adapter is plugged into a working power outlet. Your device should begin charging.

5.2. Transferència de dades

To transfer data between a computer and a USB-C device:

1. Connecteu l'extrem USB-A del cable a un port USB-A disponible de l'ordinador.
2. Connecteu l'extrem USB-C del cable al vostre dispositiu USB-C.
3. Your computer should recognize the connected device. Follow the on-screen prompts on your computer and device to manage data transfer (e.g., select 'File Transfer' mode on your smartphone).

Image 5.1: A Goobay USB-C cable connecting a smartphone to a laptop, illustrating its use for data transfer between devices.

5.3. Video and Audio Output

To transmit video and audio to an external display:

1. Connect the USB-A end of the cable to your source device (e.g., laptop with a USB-A port that supports video output via an adapter, or a docking station).
2. Connect the USB-C end of the cable to a compatible monitor or television with a USB-C input that supports video.
3. Ensure your source device and display are configured correctly for video output.

6. Manteniment

• Emmagatzematge: Store the cable in a cool, dry place away from direct sunlight and extreme temperatures. Avoid tightly coiling or bending the cable at sharp angles to prevent internal damage.
• Neteja: Disconnect the cable from all devices and power sources before cleaning. Use a soft, dry, lint-free cloth to gently wipe the cable and connectors. Avoid using liquid cleaners or abrasive materials.
• Manipulació: Always grasp the connector head when plugging or unplugging the cable. Avoid pulling on the cable itself, as this can damage the internal wires or the connector.
• Inspecció: Periodically inspect the cable and connectors for any signs of wear, fraying, or damage. If damage is observed, discontinue use and replace the cable.

Imatge 6.1: Un primer pla view of the USB-C connector, showing its internal pins. Regular inspection of connectors helps ensure proper function and longevity.

7. Solució De Problemes

7.1. Device Not Charging

• Comproveu les connexions: Ensure both ends of the cable are securely plugged into the device and the power source.
• Verifica la font d'alimentació: Confirm that the wall outlet or power adapter is functioning correctly. Try another power source if available.
• Compatibilitat del dispositiu: Ensure your device supports charging via USB-C and that the power adapter provides sufficient wattage.
• Prova un altre cable/port: If possible, test with a different USB-C cable or a different port on your power source/device to isolate the issue.

7.2. No Data Transfer

• Comproveu les connexions: Ensure the cable is firmly connected to both the computer and the USB-C device.
• Configuració del dispositiu: On your USB-C device (e.g., smartphone), check if it's set to 'File Transfer' or 'MTP' mode after connecting to the computer.
• Reconeixement informàtic: Verify that your computer's operating system recognizes the connected device. You may need to install specific drivers for your device.
• Funcionalitat del port: Test the USB-A port on your computer with another known working device/cable.

7.3. No Video/Audio Output

• Compatibilitat: Ensure both your source device (e.g., laptop) and the external display support video output over USB-C. Not all USB-C ports support this feature.
• Display Input: Select the correct input source on your monitor or television.
• Configuració del sistema: Check your computer's display settings to ensure the external monitor is detected and configured correctly (e.g., extended display, duplicate display).

8. Especificacions

9. Garantia i Suport

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official Goobay weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.
