Manual d'usuari del monitor de PC LC-M27-QHD-180 - 27"

Producte acabatview

The LC-M27-QHD-180 is a 27-inch (68.58 cm) PC monitor designed to deliver a high-quality visual experience. It features a QHD resolution of 2560 x 1440 pixels, providing sharp and detailed images. The IPS panel ensures an ultra-fast 1 ms response time, excellent color accuracy, and wide viewing angles. With a refresh rate of 180 Hz, content display is very fluid, making it suitable for fast-paced applications and gaming.

Key features include Adaptive Sync for smooth gameplay, Picture-by-Picture (PbP) and Picture-in-Picture (PiP) for multi-source viewing, and a height-adjustable stand with integrated cable management for ergonomic use. The monitor also supports a pivot feature, allowing it to be rotated 90 degrees for vertical document viewing.

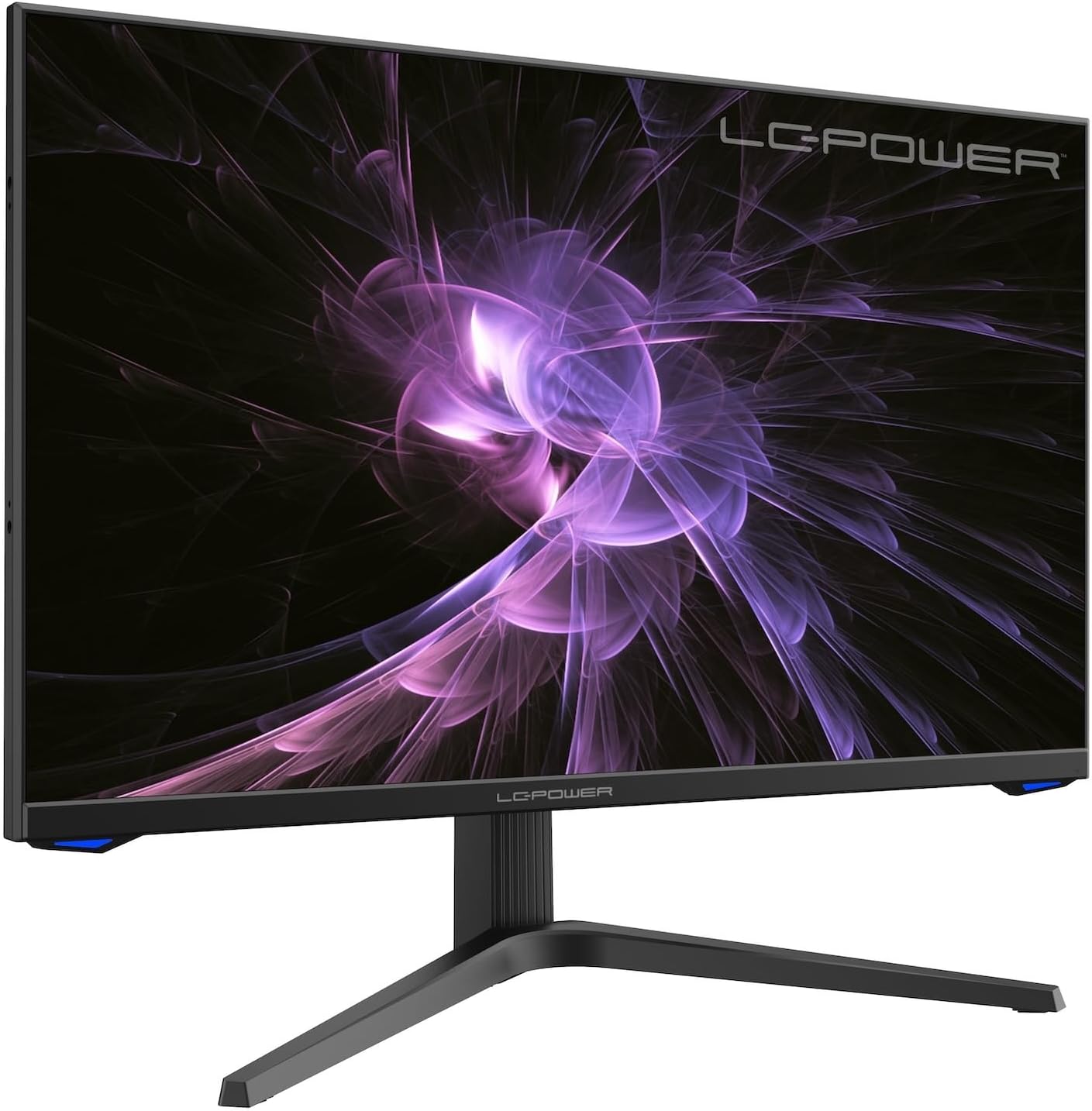

Imatge: Frontal view of the LC-M27-QHD-180 monitor, showcasinla seva pantalla i el seu disseny elegant.

Guia de configuració

1. Desembalatge i contingut

Carefully remove all components from the packaging. Please verify that all items listed below are present:

• LC-M27-QHD-180 Monitor
• Base del monitor
• Cable HDMI
• Adaptador d'alimentació
• Material de muntatge
• Manual d'usuari (aquest document)

2. Muntatge

Col·locació de la base:

1. Col·loqueu la pantalla del monitor cara avall sobre una superfície suau i neta per evitar ratllades.
2. Align the stand arm with the slot on the back of the monitor.
3. Secure the stand arm to the monitor using the provided screws.
4. Attach the base plate to the stand arm and tighten the screws.

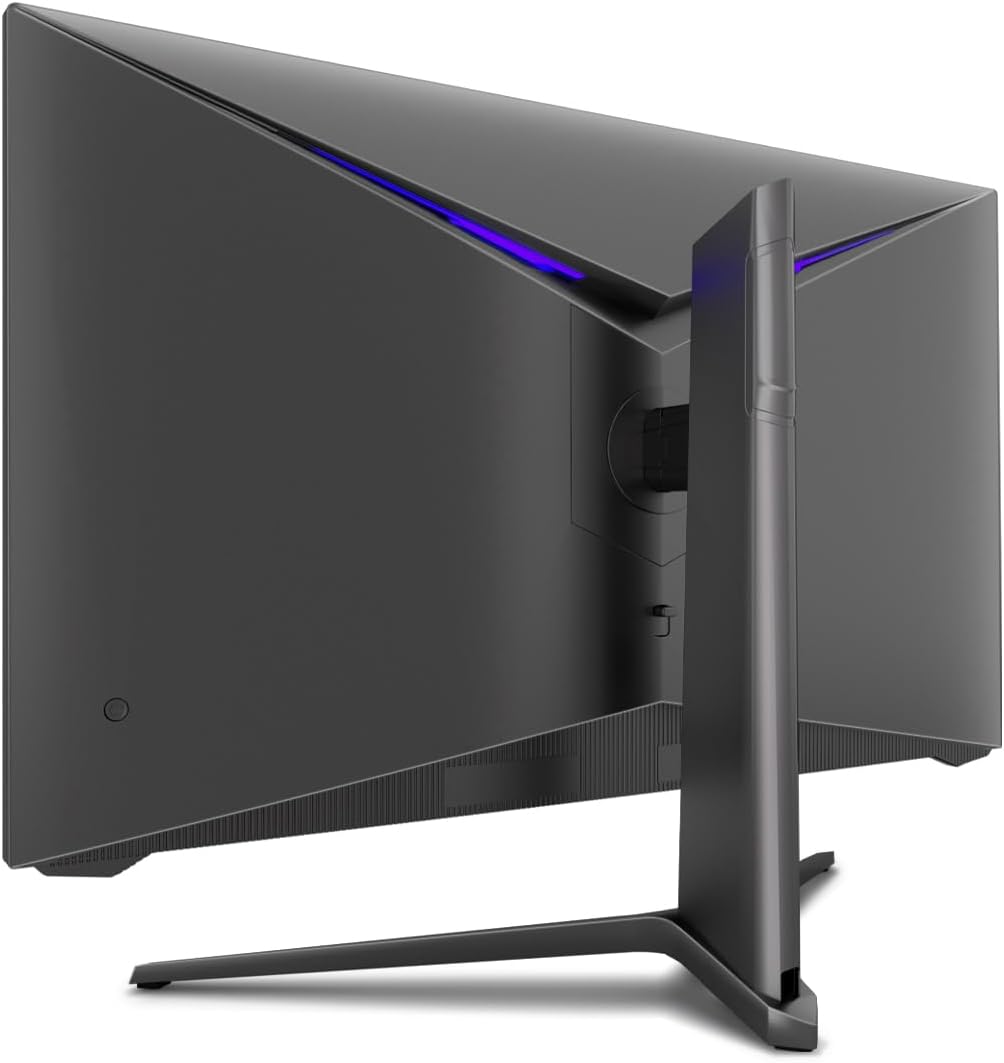

Imatge: Part posterior view of the monitor, illustrating the stand assembly area and cable management design.

Muntatge VESA: The monitor is VESA compatible. If you intend to use a VESA mount, remove the stand arm after assembly and attach your VESA mount according to its instructions.

3. Connexió del monitor

• Connexió d'alimentació: Connect the power adapter to the monitor's power input and then plug the power adapter into a wall outlet.
• Connexió de vídeo: Connect one end of the provided HDMI cable to the HDMI port on your computer's graphics card and the other end to an HDMI input port on the monitor.
• Assegureu-vos que totes les connexions siguin segures.

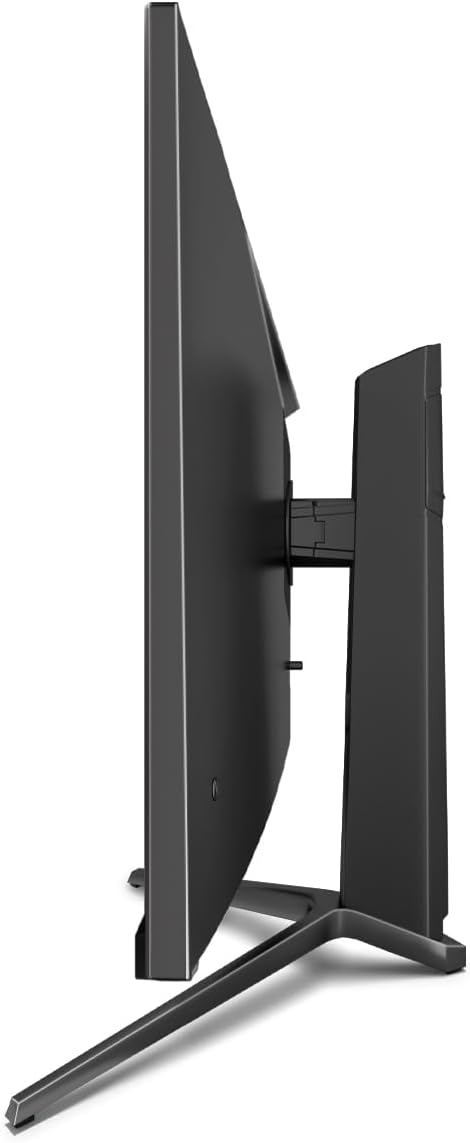

Imatge: Lateral view of the monitor, showing its slim design and connectivity ports.

4. Engegada inicial

Press the power button on the monitor. The power indicator light should illuminate. Your computer should automatically detect the new display. If not, adjust display settings in your operating system.

Instruccions de funcionament

Menú de visualització en pantalla (OSD).

The monitor features an On-Screen Display (OSD) menu for adjusting various settings. Use the control buttons located on the monitor (typically on the back or bottom edge) to navigate the OSD menu.

Funcions i configuracions principals

• Sincronització adaptativa: This technology synchronizes the monitor's refresh rate with your graphics card's frame rate, reducing screen tearing and stuttering for a smoother gaming experience. Enable this feature in your graphics card settings and on the monitor's OSD if applicable.
• Overdrive: Overdrive pre-calculates and accelerates specific pixels, significantly reducing response times for both black-and-white and color nuance changes, resulting in clearer motion.
• Llum blava baixa: The Low Blue Light filter reduces the emission of harmful blue light from the screen, minimizing eye strain and fatigue during prolonged use. This feature can be adjusted via the OSD menu.
• Picture-by-Picture (PbP) / Picture-in-Picture (PiP):
  • PbP: Allows you to display content from two different input sources side-by-side on the same screen.
  • PiP: Displays the image from a second source as a smaller, scalable window (up to 25% of original size) that can be positioned anywhere on the main screen.
  These modes are accessible through the OSD menu.
• FPS / RTS Modes: Dedicated display modes optimized for First Person Shooter (FPS) and Real-Time Strategy (RTS) games. These modes enhance visibility and provide a better gaming experience by adjusting display parameters.
• Funció de pivot: The monitor can be rotated 90 degrees to a vertical (portrait) orientation. This is particularly useful for reading documents, coding, or web navegació.


  Image: Diagram illustrating the monitor's ability to pivot 90 degrees for vertical viewing.

  Note: After physically rotating the monitor, you must adjust the display orientation settings within your operating system (e.g., Windows Display Settings) to match the new physical orientation.

• Height Adjustable Stand & Cable Management: The integrated stand allows for height adjustment to achieve an ergonomic viewing position. Cables can be neatly routed through the stand's built-in cable management system to maintain a tidy workspace.


  Image: Close-up of the monitor's stand, highlighting the integrated cable management feature.

Manteniment

Per garantir la longevitat i el rendiment òptim del monitor, seguiu aquestes pautes de manteniment:

• Neteja de la pantalla: Gently wipe the screen with a soft, lint-free cloth specifically designed for electronics. For stubborn marks, lightly dampen the cloth with water or a non-abrasive, monitor-safe cleaning solution. Do not spray liquid directly onto the screen.
• Neteja de la Casing: Feu servir un drap suau i sec per netejar la part frontal del monitor.asing. Eviteu utilitzar productes químics agressius o materials abrasius.
• Ventilació: Assegureu-vos que les obertures de ventilació del monitor no estiguin bloquejades per evitar el sobreescalfament.
• Apagar: Apagueu sempre el monitor i desendolleu-lo de la presa de corrent abans de netejar-lo o si no el fareu servir durant un període prolongat.
• Eviteu la llum solar directa: No exposeu el monitor a la llum solar directa ni a la calor excessiva.

Resolució de problemes

If you encounter issues with your LC-M27-QHD-180 monitor, please refer to the following common troubleshooting steps:

For more detailed troubleshooting or persistent issues, please consult the full user manual or contact LC-Power customer support.

Especificacions

Image: EU Energy Label for the LC-M27-QHD-180 monitor. For more details, scan the QR code or visit eprel.ec.europa.eu/qr/1758049.

Garantia i Suport

The LC-M27-QHD-180 monitor is manufactured by LC Power.

• Garantia general: The product comes with a 3-year general warranty from the date of purchase.
• Guaranteed Availability of Spare Parts: Spare parts are guaranteed to be available for 7 years from the date of placing the product on the market.
• Guaranteed Product Support: Product support is guaranteed for 7 years.

For technical support, warranty claims, or service inquiries, please contact LC-Power customer support through their official channels. Refer to the packaging or the brand's official weblloc web per obtenir informació de contacte específica.
