VASTFIRE 1200PCS*3M

VASTFIRE 18W Car Roof Fiber Optic Starry Sky Light

Model: 1200PCS*3M

1. Introducció

Thank you for choosing the VASTFIRE 18W Car Roof Fiber Optic Starry Sky Light. This product is designed to create a captivating and romantic starry sky effect in various environments, including cars, home cinemas, and children's rooms. This manual provides detailed instructions for installation, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device.

Contingut del paquet:

  • 1 x 1200pcs Fiber Optic Cable
  • 1 x Light Engine (Motor)
  • 1 x Round Plug
  • 1 x endoll de la UE
  • 1 x comandament a distància sense fil

2. Informació de seguretat

Llegiu atentament totes les instruccions de seguretat abans de la instal·lació i el funcionament. Si no seguiu aquestes instruccions, podeu patir descàrregues elèctriques, incendis o lesions greus.

  • Assegureu-vos que la font d'alimentació coincideixi amb el volum especificattage (12 volts).
  • Do not expose the light engine to water or excessive moisture.
  • Mantingueu el dispositiu lluny de fonts de calor i de la llum solar directa.
  • Do not attempt to disassemble or modify the light engine. Refer all servicing to qualified personnel.
  • Ensure proper ventilation for the light engine to prevent overheating.
  • Keep small components and fiber optic cables out of reach of children to prevent choking hazards.

3. Components del producte

The VASTFIRE Fiber Optic Starry Sky Light system consists of a light engine, fiber optic cables, and a remote control. Understanding each component is key to proper installation and operation.

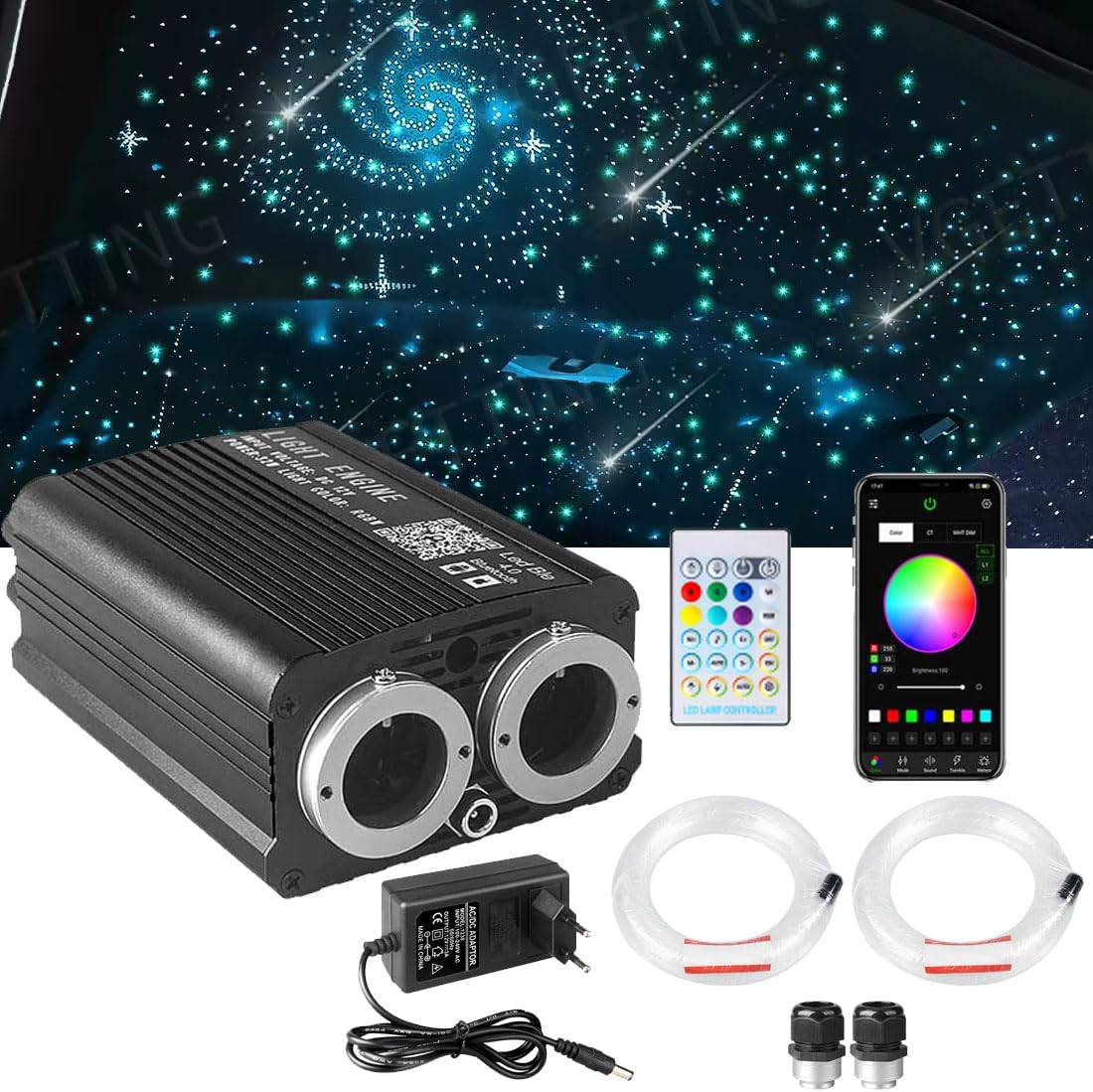

VASTFIRE 18W Car Roof Fiber Optic Starry Sky Light Kit

Figura 3.1: Acabatview of the VASTFIRE Fiber Optic Starry Sky Light kit, showing the light engine, fiber optic bundles, power adapter, and remote control.

VASTFIRE Light Engine with Starry Sky and Meteor Panels

Figura 3.2: Detallada view of the light engine, highlighting the Starry Sky Panel (left) and Meteor Panel (right) fiber optic ports, along with the RGB light source, RF antenna, DC12V socket, and ventilation port.

LED Lamp Controller Remote Control Layout

Figura 3.3: Layout of the LED Lamp Controller remote control, indicating buttons for RGBW brightness adjustment, light source switch, color selection, speed/sensitivity adjustment, dynamic switching, and 10LED meteor control.

4. Configuració i instal·lació

The VASTFIRE Fiber Optic Starry Sky Light features a unique, simplified installation design with pre-grouped meteor fiber optic cables for direct plug-in.

Installation Steps for Fiber Optic Light Kit

Figura 4.1: Step-by-step guide for installation, including making points and drilling holes, inserting and fixing fibers, organizing and bundling, and finally connecting, testing, and trimming the optical fibers.

VASTFIRE Light Engine vs. Others Comparison

Figura 4.2: Comparison highlighting the VASTFIRE light engine's effortless installation and storage compared to complicated setups and bulky equipment from other brands.

Passos d'instal·lació:

  1. Step 1: Make Points & Drill Holes
    Determine the desired pattern for your starry sky effect. Mark points and drill holes on the surface where you intend to install the fibers (e.g., car roof lining, wooden board, gypsum ceiling board).
  2. Step 2: Insert Fiber & Fix
    Insert the fiber optic cables into the drilled holes. Secure the fibers in place using hot glue or glass glue. Ensure the fibers are firmly fixed to prevent movement.
  3. Step 3: Organize & Bundle
    Organize and bundle the optical fibers by zone or as desired. The meteor fiber optic cables are pre-grouped for direct connection to the meteor panel, simplifying this step.
  4. Step 4: Connect, Test & Trim
    After completing the fiber installation, connect the bundled fibers to the light engine's appropriate ports (Starry Sky Panel and Meteor Panel). Turn on the power to test the lighting effect. Once satisfied, carefully trim any excess fiber optic cable ends for a clean finish.

5. Instruccions de funcionament

Your VASTFIRE Fiber Optic Starry Sky Light can be controlled via the included wireless remote control or a Bluetooth application on your mobile device.

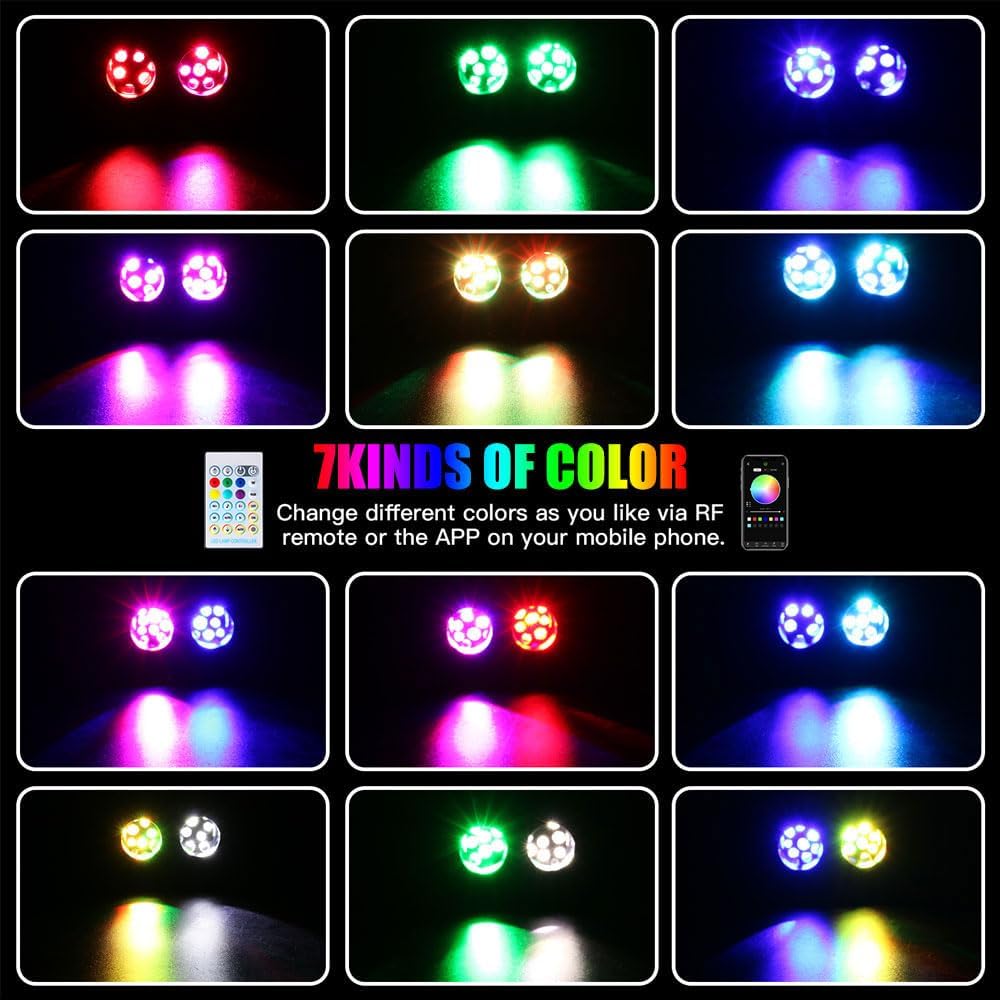

Seven Kinds of Color Display

Figura 5.1: Illustration of the seven primary color options available, demonstrating the vibrant lighting effects achievable with the system.

Various Application Scenarios

Figura 5.2: Examples of the fiber optic light system in various settings, including wedding venues, parties, bars, KTV rooms, cars, and hotels, showcasing la seva versatilitat.

Operació de control remot:

The wireless remote control allows for comprehensive management of the lighting effects:

  • 16 colors estàtics: Select from a range of colors including red, green, blue, yellow, mixed white, pure white, cyan, purple, and more.
  • 5 modes dinàmics: Choose from Fade, Jump, Flash, Breath, and Music modes for animated lighting effects.
  • Ajust de brillantor: Augmentar o disminuir la intensitat de la llum.
  • Ajust de velocitat: Controla la velocitat dels modes dinàmics.
  • Meteor Switch: Activate or deactivate the shooting star effect.
  • Control de so: In music mode, the ceiling light will synchronize with the rhythm of sound.

Control de l'aplicació Bluetooth:

For enhanced control, download the dedicated Bluetooth application to your mobile device. Once connected, the app provides a variety of functions and color conversion options, including advanced sound control where the ceiling light follows the rhythm of your audio.

6. Manteniment

To ensure the longevity and optimal performance of your VASTFIRE Fiber Optic Starry Sky Light, follow these simple maintenance guidelines:

  • Neteja: Gently wipe the light engine and fiber optic ends with a soft, dry cloth to remove dust. Avoid using abrasive cleaners or solvents.
  • Ventilació: Ensure the light engine's ventilation ports are clear and unobstructed to prevent overheating.
  • Cura de la fibra: Avoid bending or kinking the fiber optic cables sharply, as this can damage the light transmission.
  • Emmagatzematge: Si guardeu la unitat durant un període prolongat, desconnecteu-la de l'alimentació i guardeu-la en un lloc fresc i sec.

7. Solució De Problemes

If you encounter any issues with your VASTFIRE Fiber Optic Starry Sky Light, please refer to the following common problems and solutions:

ProblemaCausa possibleSolució
La llum no s’encén.No power supply; Loose connection; Faulty light engine.Check power adapter and wall outlet. Ensure all connections are secure. If problem persists, contact customer support.
El comandament a distància no funciona.Bateria esgotada; comandament a distància fora de l'abast; obstrucció.Replace remote control battery (button cell included). Ensure remote is pointed at the light engine and within range. Remove any obstructions.
Fibers are dim or unevenly lit.Fibers not fully inserted; Damaged fibers; Dust on light source.Ensure all fibers are fully inserted into the light engine ports. Inspect fibers for kinks or damage. Clean the light source area gently.
Problemes de connexió Bluetooth.Bluetooth not enabled; App not installed; Interference.Ensure Bluetooth is enabled on your device. Download and install the correct app. Try restarting the light engine and your device.

If you are unable to resolve the issue using the troubleshooting guide, please contact VASTFIRE customer support for assistance.

8. Especificacions

Detailed technical specifications for the VASTFIRE 18W Car Roof Fiber Optic Starry Sky Light:

  • Fabricant: VASTFIRE
  • Marca: VASTFIRE
  • Model: Car Starry Sky Fiber Light (1200PCS*3M variant)
  • Pes de l'article: 3.05 quilos
  • Dimensions del producte (L x A x A): 30 x 27 x 20 cm (11.8 x 10.6 x 7.9 polzades)
  • Tipus de bombeta: LED
  • Característiques especials: Breath Effect, Multicolor, Bluetooth App Control, Sound Control, Meteor Effect
  • Voltage: 12 Volts
  • Tipus de font de llum: LED
  • Factor de forma: Panell
  • Usos recomanats: Vehicle Interior, Home Cinema, Kids Room, Party Decoration
  • Components inclosos: Double Port Star Car Fiber Optic Lighting Kit (1200pcs fiber optic cable, light engine, plugs, wireless control)

9. Garantia i Suport

VASTFIRE is committed to providing high-quality products and excellent customer service.

Garantia: This product comes with a 2-year warranty covering manufacturing defects.

Suport tècnic: Lifetime technical support is available for all VASTFIRE products.

For any inquiries, technical assistance, or warranty claims, please contact VASTFIRE customer service through the official channels or visit the VASTFIRE brand store on Amazon.

Thank you for choosing VASTFIRE. Enjoy your new starry sky!
