1. Introducció
Thank you for choosing the BESTHERM FREYA 1000W Ceramic Dry Inertia Electric Radiator. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new heating appliance. Please read these instructions carefully before use and retain them for future reference.
This radiator is designed to provide gentle and consistent heat, ensuring comfort while optimizing energy consumption in rooms up to 10 m².
2. Instruccions de seguretat
- Always ensure the radiator is installed by a qualified electrician in accordance with local electrical regulations.
- Do not cover the radiator, as this can lead to overheating and fire hazards.
- Keep children and pets away from the appliance, especially when it is operating. The surface can become hot.
- This appliance is equipped with a child safety lock and overheat protection for enhanced safety.
- The radiator has an IP24 rating, indicating protection against splashing water. However, it should not be immersed in water or exposed to direct water jets.
- Regularly inspect the power cord and plug for any damage. If damaged, contact qualified personnel for repair or replacement.
- Do not attempt to repair or modify the appliance yourself. Refer all servicing to authorized personnel.
3. Producte acabatview
The BESTHERM FREYA 1000W radiator combines advanced heating technology with user-friendly features.
Característiques principals:
- Ceramic Heating Core + Heating Film: Ensures rapid temperature rise, gentle, non-drying heat, and lasting warmth even after the unit is switched off.
- Energy-Efficient Dry Inertia Technology: Consumes less energy than traditional convectors while maintaining stable and comfortable room temperatures.
- Programable: Features 3 pre-recorded weekly programs and 1 customizable program. Offers 6 operating modes via Pilot Wire (Comfort, Eco, Frost Protection, etc.).
- Intuitive LCD Touchscreen: For easy control and adaptation of heating to your schedule.
- Característiques de seguretat: Includes window open detection, child safety lock, and overheat protection.
- Certificacions: NF & CE certified, IP24 rated.
Components del producte:
Your BESTHERM FREYA radiator comes with the main unit and wall mounting fixings.

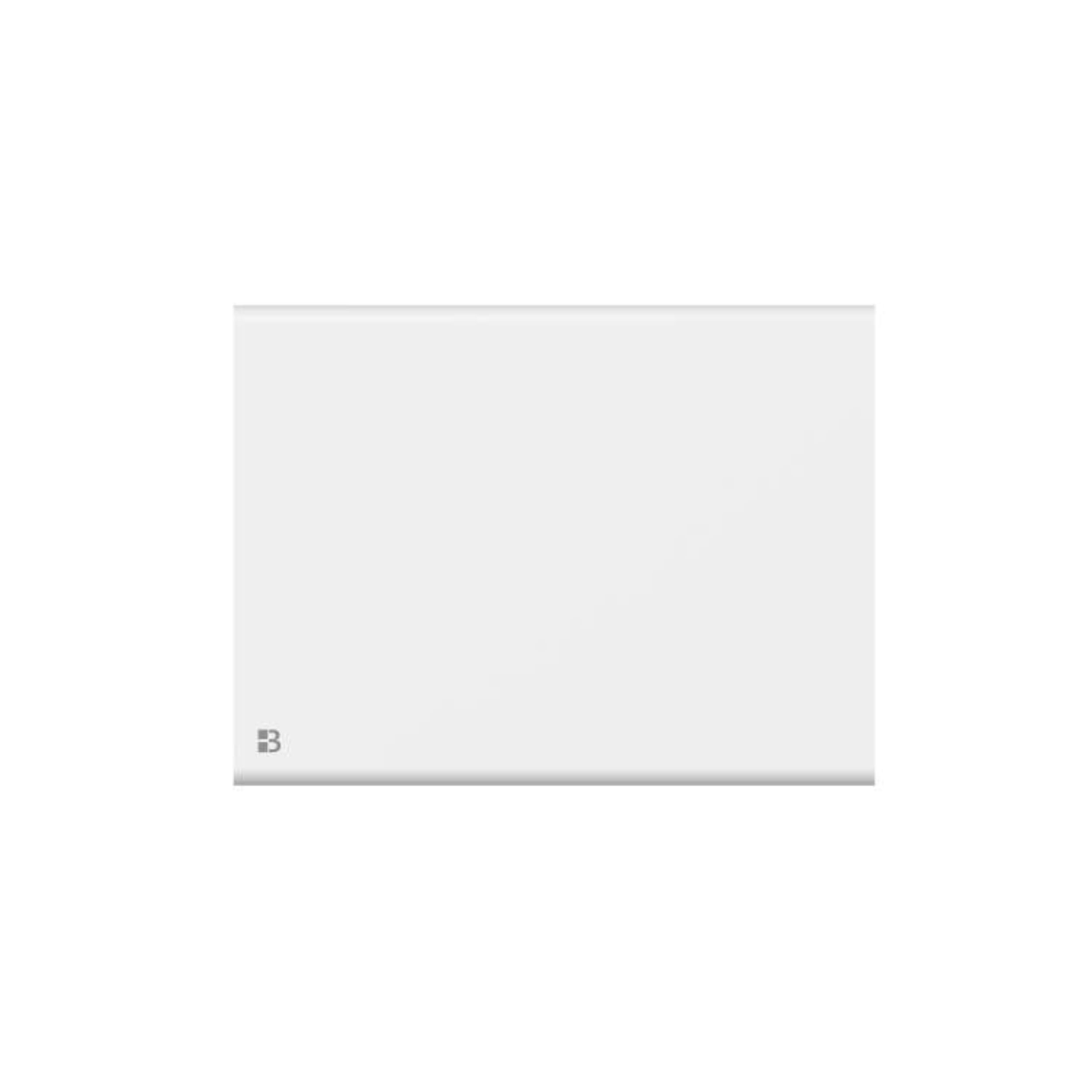

Figura 3.1: Frontal view of the BESTHERM FREYA 1000W Electric Radiator.
Figura 3.2: Mésview of the FREYA 1000W radiator, highlighting its ceramic core and heating film technology, along with 2-year warranty and NF certification.

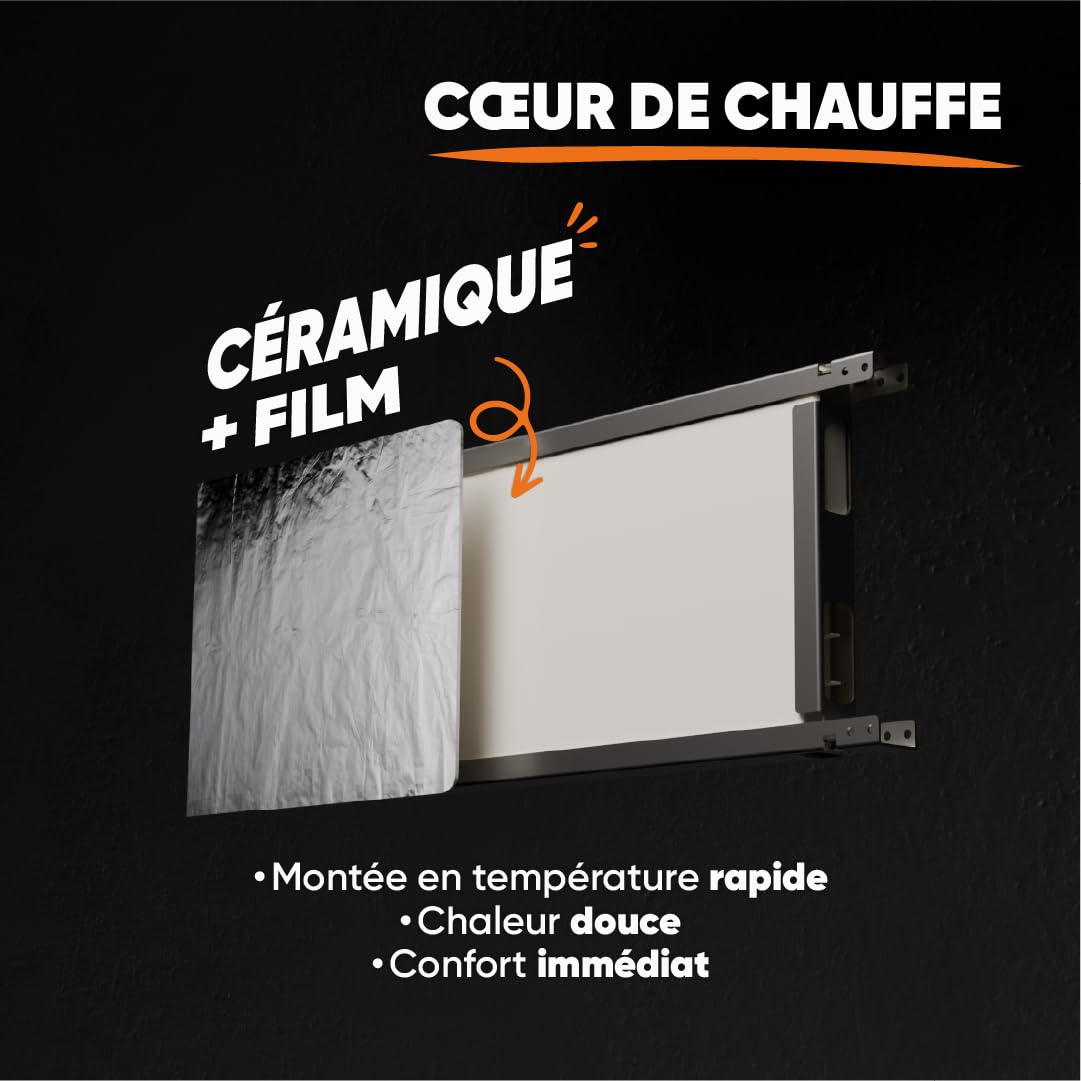

Figura 3.3: Detallada view of the ceramic heating core and film, illustrating the internal heating elements responsible for rapid and gentle heat.
4. Instal·lació
The BESTHERM FREYA radiator is designed for wall-mounted installation. Ensure the chosen location allows for proper air circulation and is away from flammable materials.
Passos de muntatge:
- Unpack the radiator and check for any damage.
- Choose a suitable wall location, ensuring sufficient clearance from floors, ceilings, and adjacent walls as per local regulations.
- Feu servir el suport de muntatge proporcionat com a plantilla per marcar els punts de perforació a la paret.
- Perfora forats i introdueix tacs de paret (si cal).
- Securely attach the mounting bracket to the wall.
- Carefully hang the radiator onto the mounting bracket, ensuring it is level and securely fixed.
For detailed visual instructions on installation and programming, scan the QR code below. This QR code links to official BESTHERM video guides.
Figure 4.1: Scan this QR code to access BESTHERM's official installation and programming video tutorials.
5. Connexió elèctrica
Important: Electrical connection must be performed by a qualified electrician. Ensure the main power supply is disconnected before commencing any wiring work.
This appliance is designed for a three-phase connection. Always connect the Neutral (Blue wire) and the Phase (Brown or Red wire).
- Filferro blau: Connecteu-vos al neutre.
- Brown (or Red) Wire: Connect to Phase.
- Fil negre: Connect this wire ONLY for control via a central thermostat (Pilot Wire system). If not using a central thermostat, insulate this wire and do not connect it.
- NO CONNECTEU A TERRA. This appliance does not require a ground connection.
Figure 5.1: Wiring diagram showing connections for Neutral (Blue), Phase (Brown/Red), and optional Pilot Wire (Black). Note: Do not connect to ground.
6. Funcionament i programació
Your BESTHERM FREYA radiator features an intuitive LCD touchscreen for easy control and programming.
Funcionament bàsic:
- Once powered on, the LCD screen will illuminate.
- Use the touch controls to adjust the desired temperature.
- Select from the available operating modes (e.g., Comfort, Eco, Frost Protection).
Programació:
The radiator offers flexible programming options to suit your lifestyle and optimize energy consumption.
- Pre-recorded Weekly Programs: Choose from 3 pre-set weekly schedules designed for common usage patterns.
- Customizable Program: Create your own personalized weekly heating schedule to match your specific needs.
- Pilot Wire Modes: If connected to a central thermostat via the Pilot Wire, you can utilize 6 distinct modes for advanced control.
Detecció de finestres obertes:
The radiator is equipped with a window open detection feature. If a sudden drop in temperature is detected (indicating an open window), the radiator will temporarily pause heating to prevent energy waste. Heating will resume automatically once the window is closed or after a set period.
7. Manteniment
To ensure optimal performance and longevity of your BESTHERM FREYA radiator, follow these simple maintenance guidelines:
- Neteja: Disconnect the radiator from the power supply before cleaning. Use a soft, damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
- Eliminació de pols: Periodically remove dust from the air vents using a soft brush or vacuum cleaner attachment to maintain efficient heat dissipation.
- Inspecció: Comproveu regularment el cable d'alimentació i l'endoll per detectar qualsevol signe de desgast o dany.
- No internal user-serviceable parts. Do not open the appliance casing.
8. Solució De Problemes
If you encounter issues with your radiator, refer to the following common troubleshooting steps:
- El radiador no escalfa:
- Check if the radiator is properly plugged into a functioning power outlet.
- Assegureu-vos que l'interruptor automàtic no s'hagi saltat.
- Verify that the desired temperature setting is higher than the current room temperature.
- Check if the window open detection feature has been activated. Close any open windows.
- La pantalla no funciona:
- Ensure the radiator is receiving power.
- Try turning the radiator off and on again at the main power switch.
- Escalfament desigual:
- Ensure no objects are obstructing the radiator's heat output or air circulation.
- Verify the room size is within the recommended heating coverage (up to 10 m² for the 1000W model).
If the problem persists after attempting these steps, please contact BESTHERM customer support.
9. Especificacions
Figure 9.1: Physical dimensions and weight of the BESTHERM FREYA 1000W radiator, suitable for heating areas of 5 to 10 m².
| Especificació | Detall |
|---|---|
| Marca | Bestherm |
| Model | FREYA 1000W |
| Color | Blanc |
| Dimensions del producte (L x A x A) | 60 x 13 x 45 cm |
| Pes de l'article | 7 quilos |
| Tipus d'element calefactor | Ceràmica |
| Cobertura de calefacció | Fins a 10 m² |
| Nombre de modes | 6 |
| Característica especial | Programmable, Window Open Detection, Child Safety |
| Tipus de muntatge | Muntatge de paret |
| Ús interior/exterior | Interior |
| Certificacions | NF & CE, IP24 |
| Disponibilitat de peces de recanvi | Informació no disponible |
10. Garantia i Suport
Garantia:
The BESTHERM FREYA 1000W Ceramic Dry Inertia Electric Radiator comes with a 2 any de garantia des de la data de compra. Aquesta garantia cobreix els defectes de fabricació en condicions d'ús normal. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia.
Atenció al client:
BESTHERM is committed to providing responsive and efficient after-sales service. For any questions, technical assistance, or warranty claims, please contact us through the following channels:
Figure 10.1: BESTHERM's dedicated French after-sales service ensures quick and effective support.
- Preguntes freqüents en línia: Visita el nostre website for frequently asked questions and detailed guides: www.bestherm.fr/pages/faq
- Assistència telefònica: Call us at 03 20 47 05 37
- Assistència per correu electrònic: Envia les teves consultes a sav@hom-y.fr
